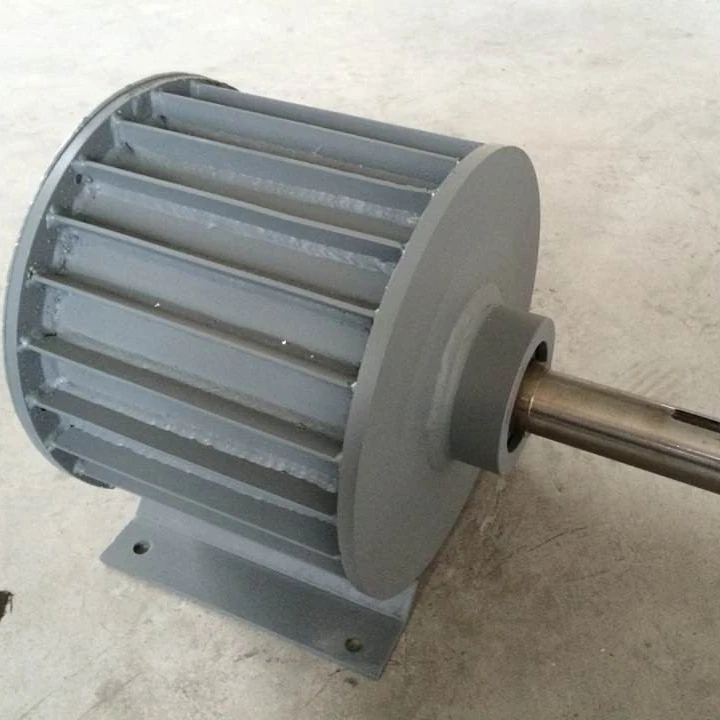

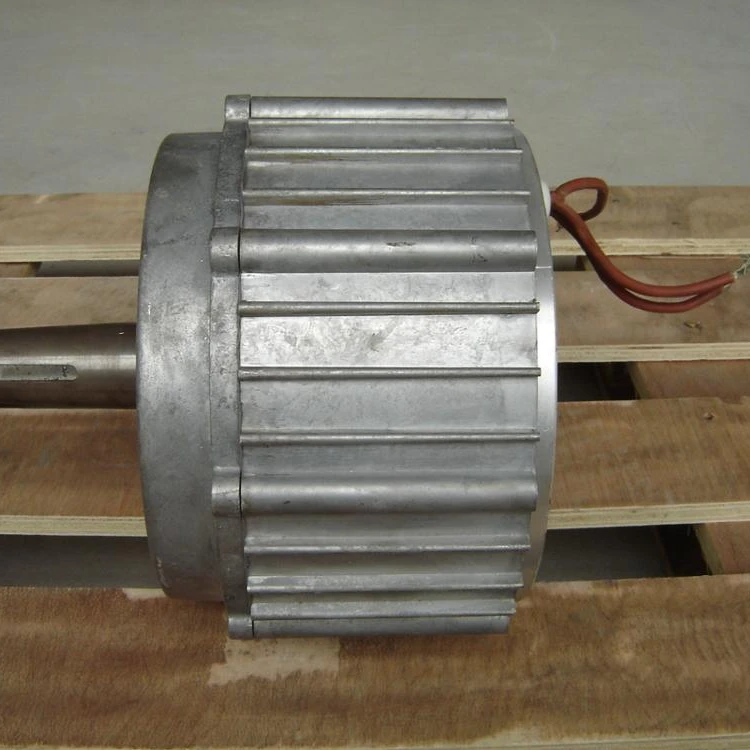

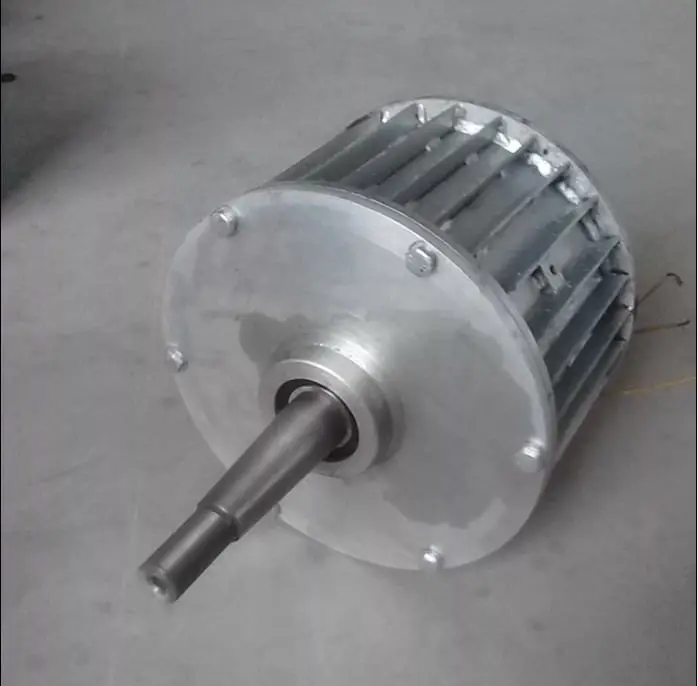

4kw permanent magnet generator

Item #

4kw GP

Rated Power(W):

4kw

Rated Speed(RPM):

300r/m

Rated Voltage(V):

AC220v or as your request

Insulation Class:

F

Efficiency (%)

93

Generator type

3 -Phase Permanent Magnet AC          Synchronous Generator

Service Life:

over 20 years

Working Environment

-35º C-60º C

Speed Range

0-550 rpm

Mechanical specifications

Mounting Means

Horizontal/ Vertical

Approx Gross Weight(Kg)

95

Start Torque(N*M)

2.7

Rated Toque(N*M)

159.2

Poles

20

Material specifications

Shaft Material

Iron with quenching and tempering Treatment

Bearing

HRB or as your request

Lubrication

Lubrication Grease

Shell Material

Carbon Steel

Winding Temperature Class

150 Centigrade

Permanent Magnet Material

Rare Earth NdFeB

Permanent Magnet Material Temperature Class

150 Centigrade

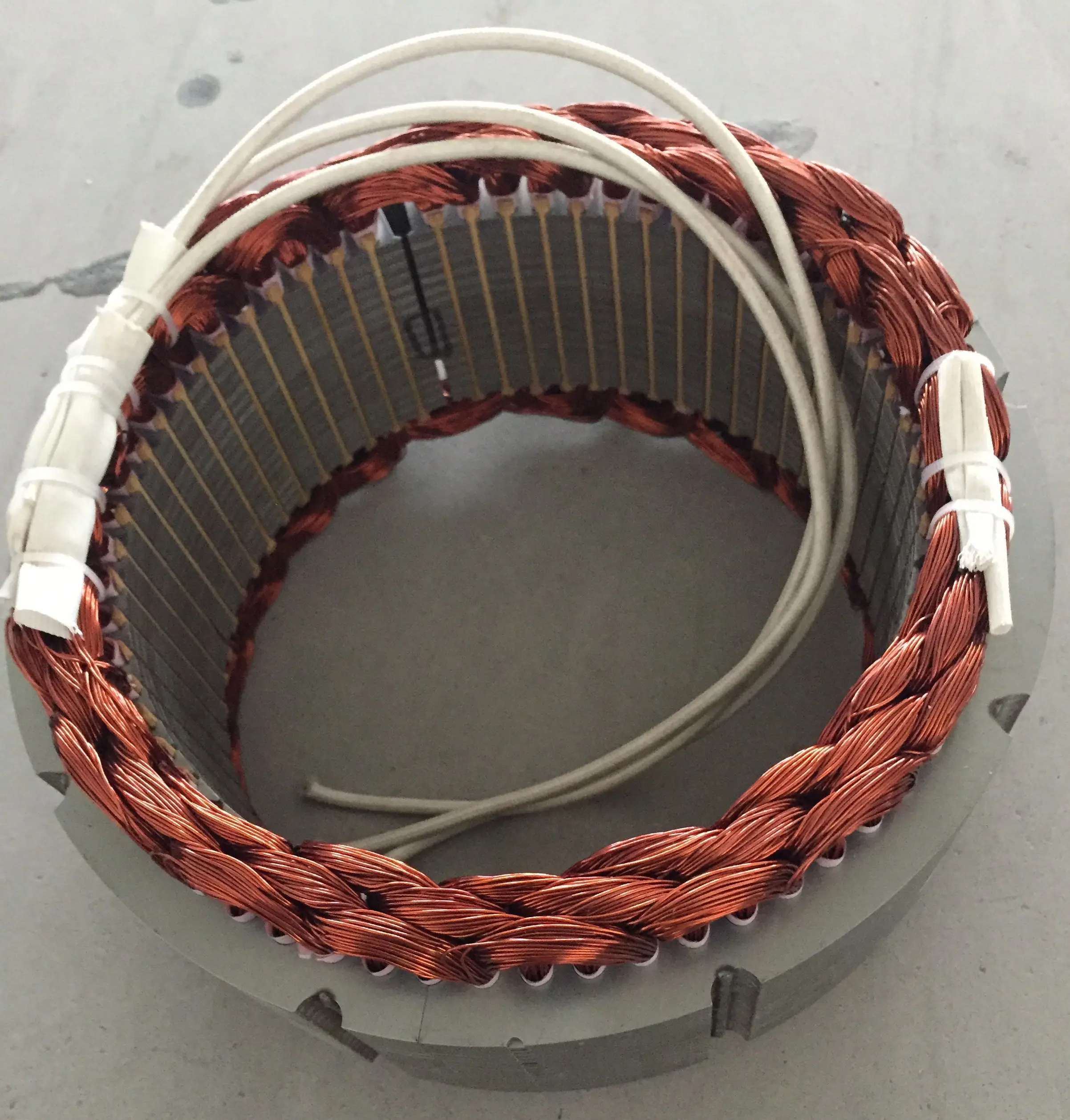

Core

High Grade Cold Rolling Silicon Sheet 50WW470

Protection Grade

IP54
