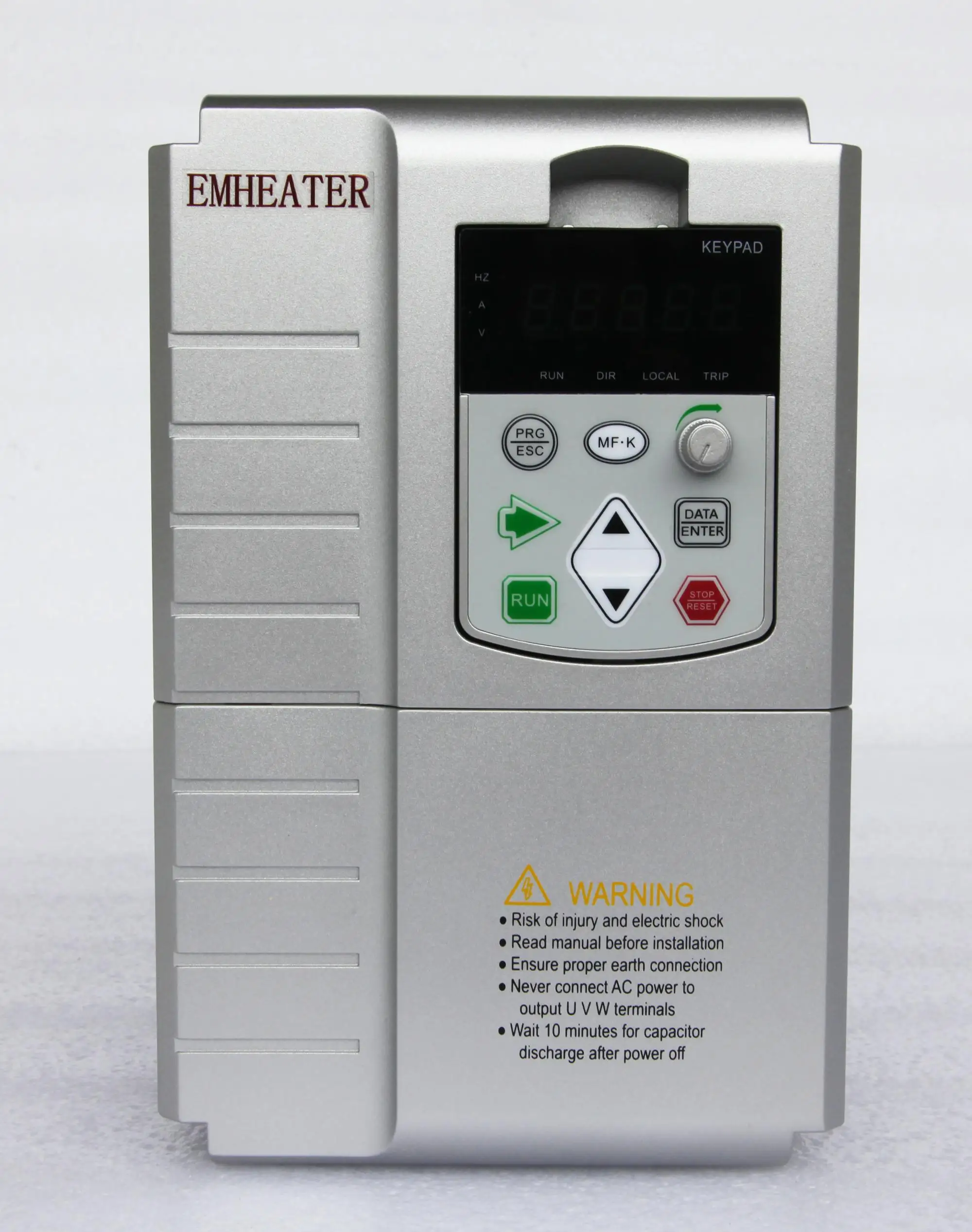

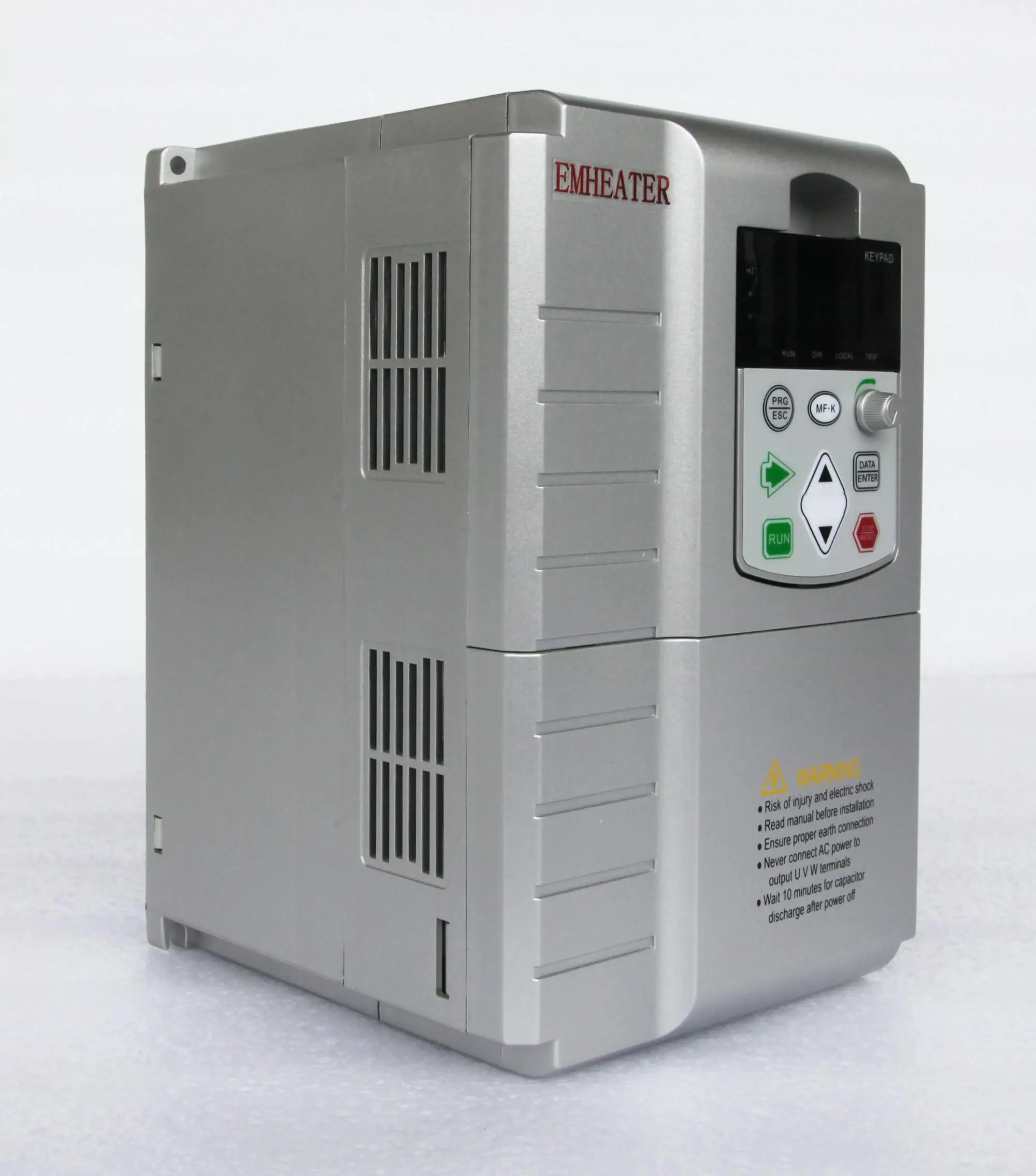

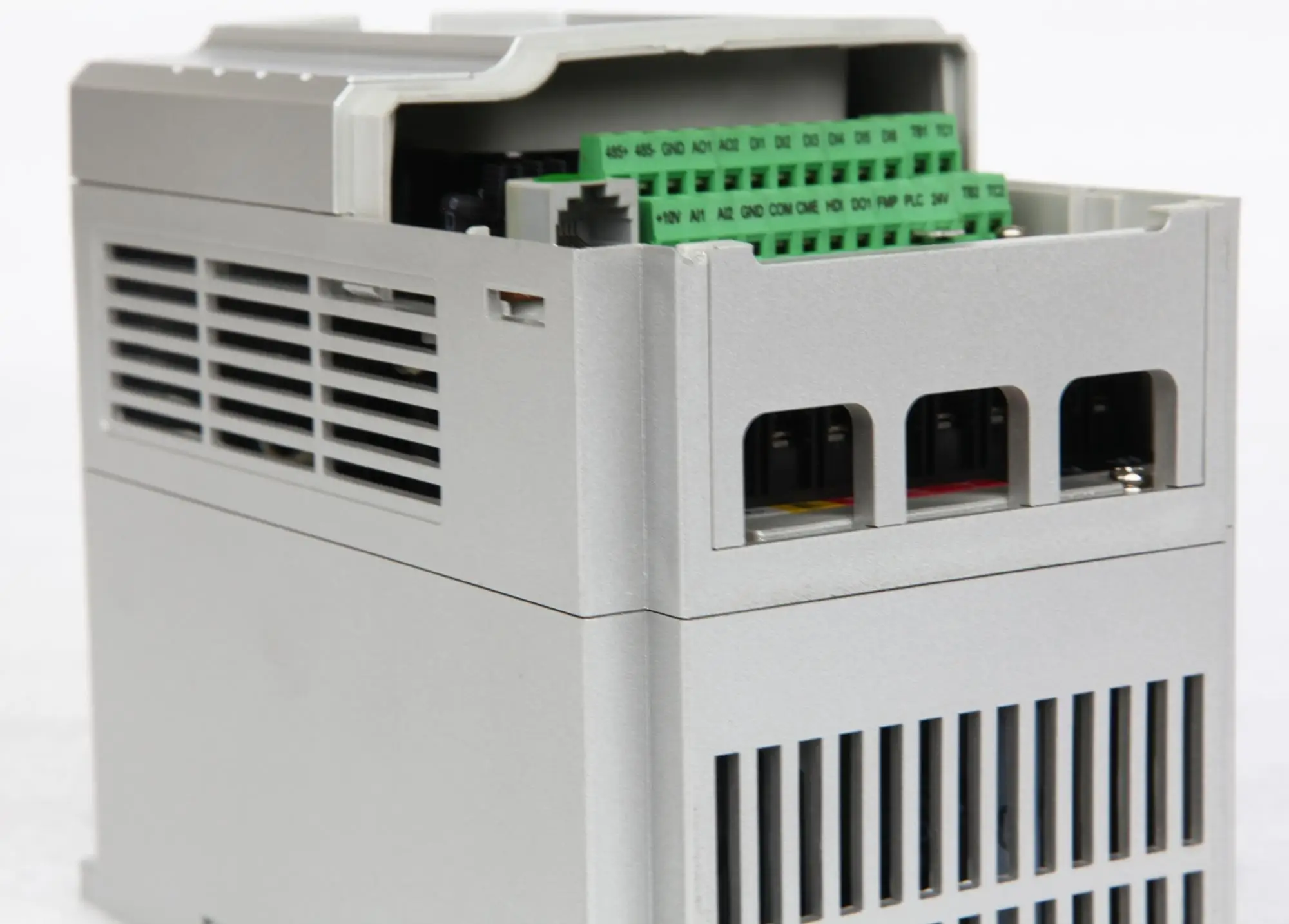

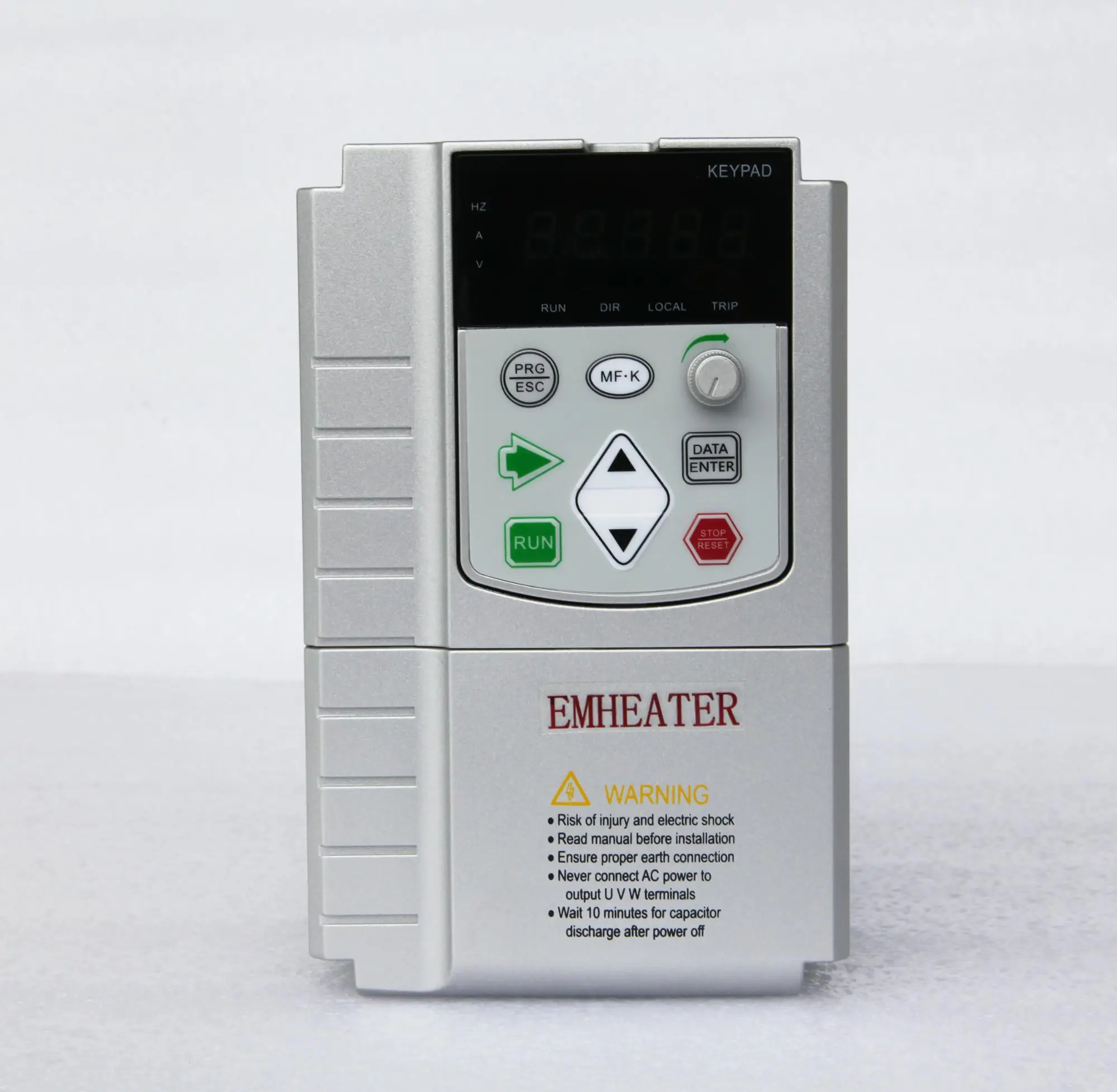

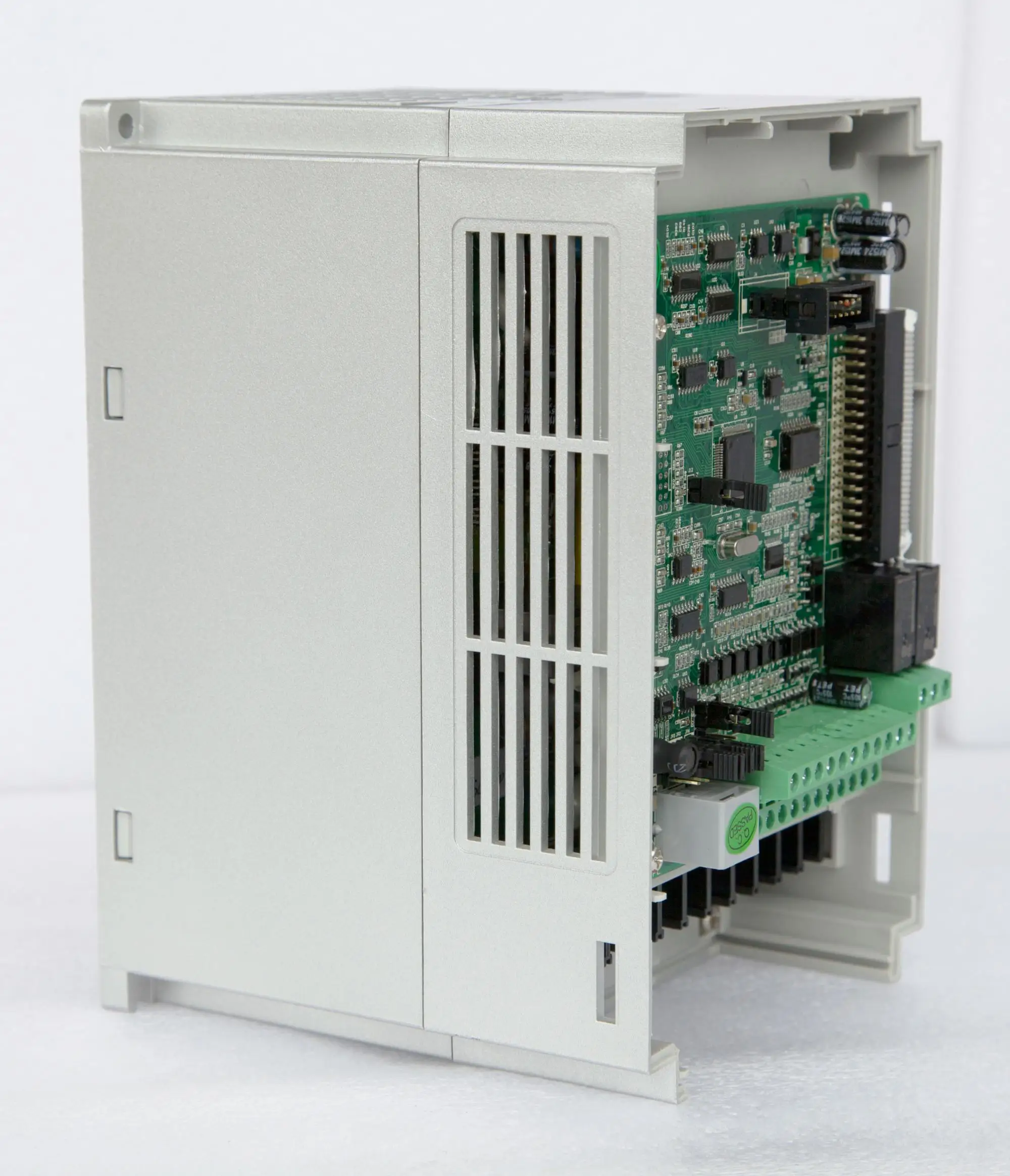

3 phase 5.5KW 450V DC to 650V DC MPPT solar pump inverter drive with automatic operation
3 phase 5.5KW 450V DC to 650V DC MPPT solar pump inverter drive with automatic operation
3 phase 5.5KW 450V DC to 650V DC MPPT solar pump inverter drive with automatic operation
3 phase 5.5KW 450V DC to 650V DC MPPT solar pump inverter drive with automatic operation
3 phase 5.5KW 450V DC to 650V DC MPPT solar pump inverter drive with automatic operation
3 phase 5.5KW 450V DC to 650V DC MPPT solar pump inverter drive with automatic operation
3 phase 5.5KW 450V DC to 650V DC MPPT solar pump inverter drive with automatic operation

3 phase 5.5KW 450V DC to 650V DC MPPT solar pump inverter drive with automatic operation

Share on (60791747588):


Price:$800.00

Quantity:


Product Overview

Description


solar pump drive

EM12-SP series solar pump inverter rate

1.: 300VDC to 380VDC Single Phase Input and 220VAC three Phase Output, 0.75KW to 400KW

2.: 300VDC to 380VDC Single Phase Input and 220VAC single Phase Output, 0.75KW to 400KW

3.: 450VDC to 650VDC Three Phase Input and 380V three Phase Output, 0.75KW to 600KW


Input Voltage range: DC300/540V±20% or AC220/380V±15%.

Output Voltage Range:3phase AC220/380V±15%. Power range: 0.75KW to 630KW


Product Introduction

Foreward for EM12-SP MPPT solar pump drive

Water is essential to all forms of life. In many remote locations around the world, traditional power is unavailable or unreliable to power a submersible pump and motor.


EMHEATER is committed to quality, availability, service, innovation and value by developing new systems for renewable energy while using our proven EM12-SP series solar pump inverter

Product Details Show
Product Parameters
\t
Name
\t
Models
\t
rated current
\t
DC input range (VDC)
\t
Output voltage

\t
Applicable for pumps

\t
Installation size (mm)

\t
Remarks
\t
EM12-SP1 S series: 310V DC input, 1 phase 220V output, Or 1 phase 220v AC input,1 phase 0- 220V AC output
\t
Solar pump drive

\t
EM12-SP1S-d75

\t
7A

\t
310V DC
\t
220V/240VAC

\t
0.75KW
\t
235*175*214

\t
igbt module

\t
Solar pump drive
\t
EM12-SP1S-1d5

\t
9.6A
\t
310V DC
\t
220V/240VAC

\t
1.5KW
\t
235*175*214
\t
igbt module
\t
EM12-SP1 series: 310V DC input, 3 phase 220V output, Or 1 phase 220v AC input,3 phase 0- 220V AC output
\t
Solar pump drive
\t
EM12-SP1-d75
\t
4A
\t
310V DC
\t
220V/240VAC
\t
0.75KW
\t
235*175*214
\t
igbt module
\t
Solar pump drive
\t
EM12-SP1S-1d5
\t
7A
\t
310V DC
\t
220V/240VAC
\t
1.5KW
\t
235*175*214
\t
igbt module
\t
Solar pump drive
\t
EM12-SP1-2d2

\t
9.6A
\t
310V DC
\t
220V/240VAC
\t
2.2KW
\t
320*230*230

\t
igbt module
\t
Solar pump drive
\t
EM12-SP1-004

\t
17A
\t
310V DC
\t
220V/240VAC
\t
4KW
\t
320*230*230

\t
igbt module
\t
Solar pump drive
\t
EM12-SP1-5d5

\t
25A
\t
310V DC
\t
220V/240VAC
\t
5.5KW
\t
320*230*230

\t
igbt module
\t
General type EM12-SP3 series : 540 V DC input, 3 phase 380V output, Or 3 phase 380v AC input,3 phase 380V AC output

\t
Solar pump drive
\t
EM12-SP3-d75

\t

2.5A
\t
540V DC

\t
380VAC
\t
0.75kw
\t
235*175*214
\t
igbt module
\t
Solar pump drive
\t
EM12-SP3-1d5

\t
3.8A
\t
540V DC
\t
380VAC
\t
1.5kw
\t
235*175*214
\t
igbt module
\t
Solar pump drive
\t
EM12-SP3-2d2
\t
5.1A
\t
540V DC
\t
380VAC
\t
2.2kw
\t
235*175*214
\t
igbt module
\t
Solar pump drive
\t
EM12-SP3-004

\t
9A
\t
540V DC
\t
380VAC
\t
4kw
\t
320*230*230
\t
igbt module
\t
Solar pump drive
\t
EM12-SP3-5d5

\t
13A
\t
540V DC
\t
380VAC
\t
5.5ke
\t
320*230*230
\t
igbt module
\t
Solar pump drive
\t
EM12-SP3-7d5

\t
17A
\t
540V DC
\t
380VAC
\t
7.5kw
\t
320*230*230
\t
igbt module
\t
Solar pump drive
\t
EM12-SP3-011

\t
252A
\t
540V DC
\t
380VAC
\t
11kw
\t
390*300*270

\t
igbt module
\t
Solar pump drive
\t
EM12-SP3-015
\t
32A
\t
540V DC
\t
380VAC
\t
15kw
\t
390*300*270

\t
igbt module
\t
Solar pump drive
\t
EM12-SP3-018

\t
37A
\t
540V DC
\t
380VAC
\t
18.5kw
\t
390*300*270

\t
igbt module
\t
Solar pump drive
\t
EM12-SP3-022
\t
45A
\t
540V DC
\t
380VAC
\t
22kw
\t
390*300*270

\t
igbt module
\t
Solar pump drive
\t
EM12-SP3-030
\t
60A
\t
540V DC
\t
380VAC
\t
30kw
\t
390*300*270

\t
igbt module
\t
Solar pump drive
\t
EM12-SP3-037
\t
75A
\t
540V DC
\t
380VAC
\t
37kw
\t
465*302*241


\t
igbt module
\t
Solar pump drive
\t
EM12-SP3-045
\t
91A
\t
540V DC
\t
380VAC
\t
45kw
\t
465*302*241

\t
igbt module

EM12-SP solar inverter features:

MPPT algorithm of fast tracking of maximum power point of PV cells, efficiency >99%.

Solar battery working point voltage can be manually or automatically MPPT tracking.

All weather automatic operation,can also be manually or automatically,

Realize"sunrise work and sunset sleep".

35 kinds protection function. including auto detecting short circuit after power on.

Auto sleep function/pump dry protect/low frequency protection/over load protection and etc.

Full protections:overload,over current, overvoltage,under voltage,short circuit, dry pumping etc.

Output frequency range: V/F(0~3000hz); vector control(0~300HZ).

Overload capacity:60s with 150% of rated current,3s with 180% of rated current.

Speed accuracy:±0.5%(SVC);±0.02%(VC).

Pulse setting input:0Khz~100Khz.

Remote control, support RS232/RS485 protocol, terminal control, analog control.


Why Choose Us

About us

1• We have 6 factories and more than 820 staff. As a professional manufacturer of industrial automation products, we are always dedicated to soft starter, frequency inverter, servo motor and drive, EMI filters, harmonic wave AC choke, sine wave filter, brake units and resistor. In the year of 2008, EMHEATER Group does have established "China EM Technology Limited" to cultivate oversea market.

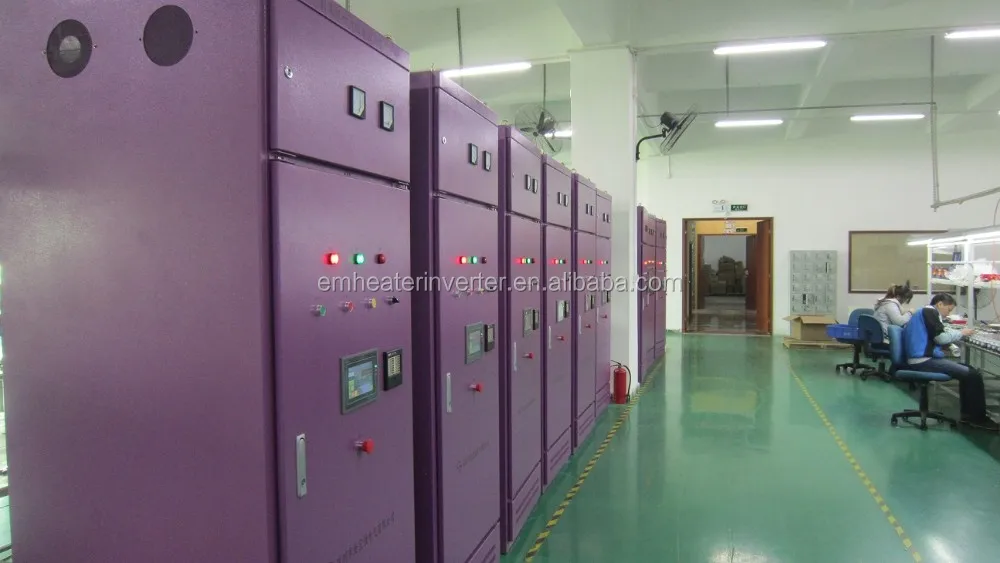

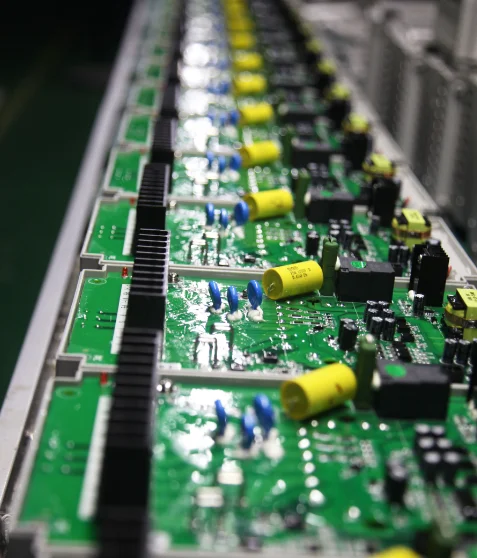

Equipment & technology

2, We have following mature series products:

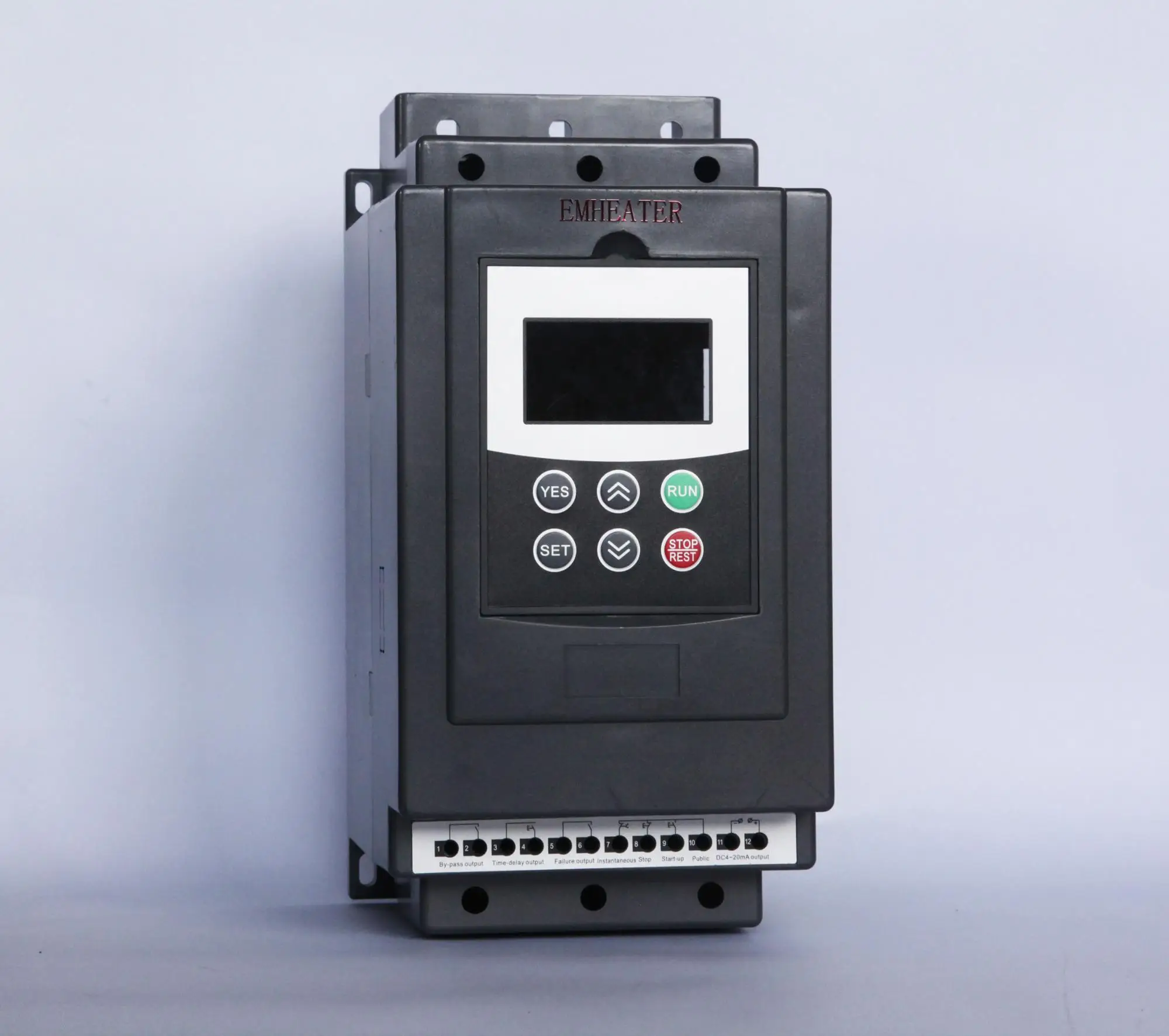

• EM-GS,GW series soft starter, (220V/380V~690V; 5.5KW~ 600KW).
• EM12 series vector control inverter. (220V~690V; 0.75KW~630KW).
• EM12-SP series solar pump inverter. (220V~690V; 0.75KW~630KW).
• EMA to EMD series servo motor drive system, (220~380V;0.2~22KW).
• And relative accessories(filter; choke; resistor).

Service

3, stable product quality , supply, the good faith management.We provide 18 months warranty period for all products. Caused by products quality fault within warranty period, we provide free charge components and load shipping cost or deliver components with next order. After warranty period, we still provide replacing components with material cost.

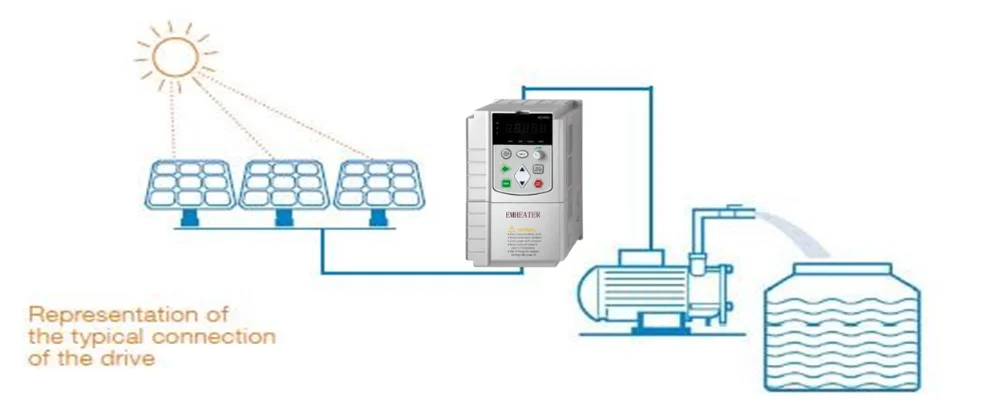

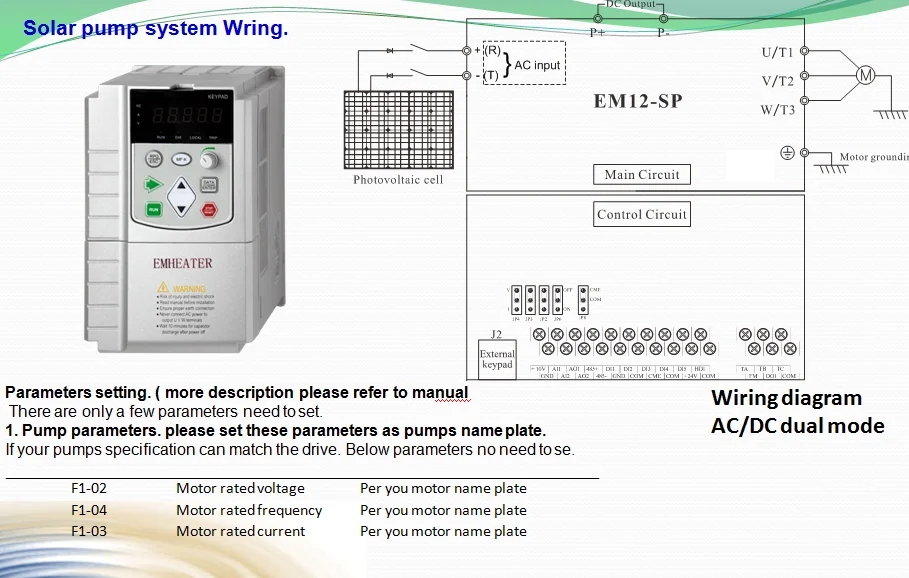

Wiring

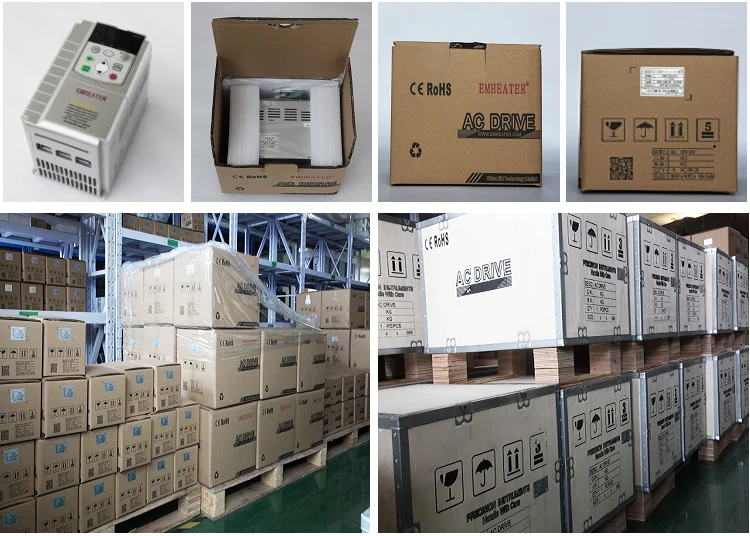

Product Packing
Main Products


EM12 series vector control inverter. (220V~690V; 0.75KW~630KW).


EM-GS series soft starter, (220V/380V~480/690V; 5.5KW~ 600KW).

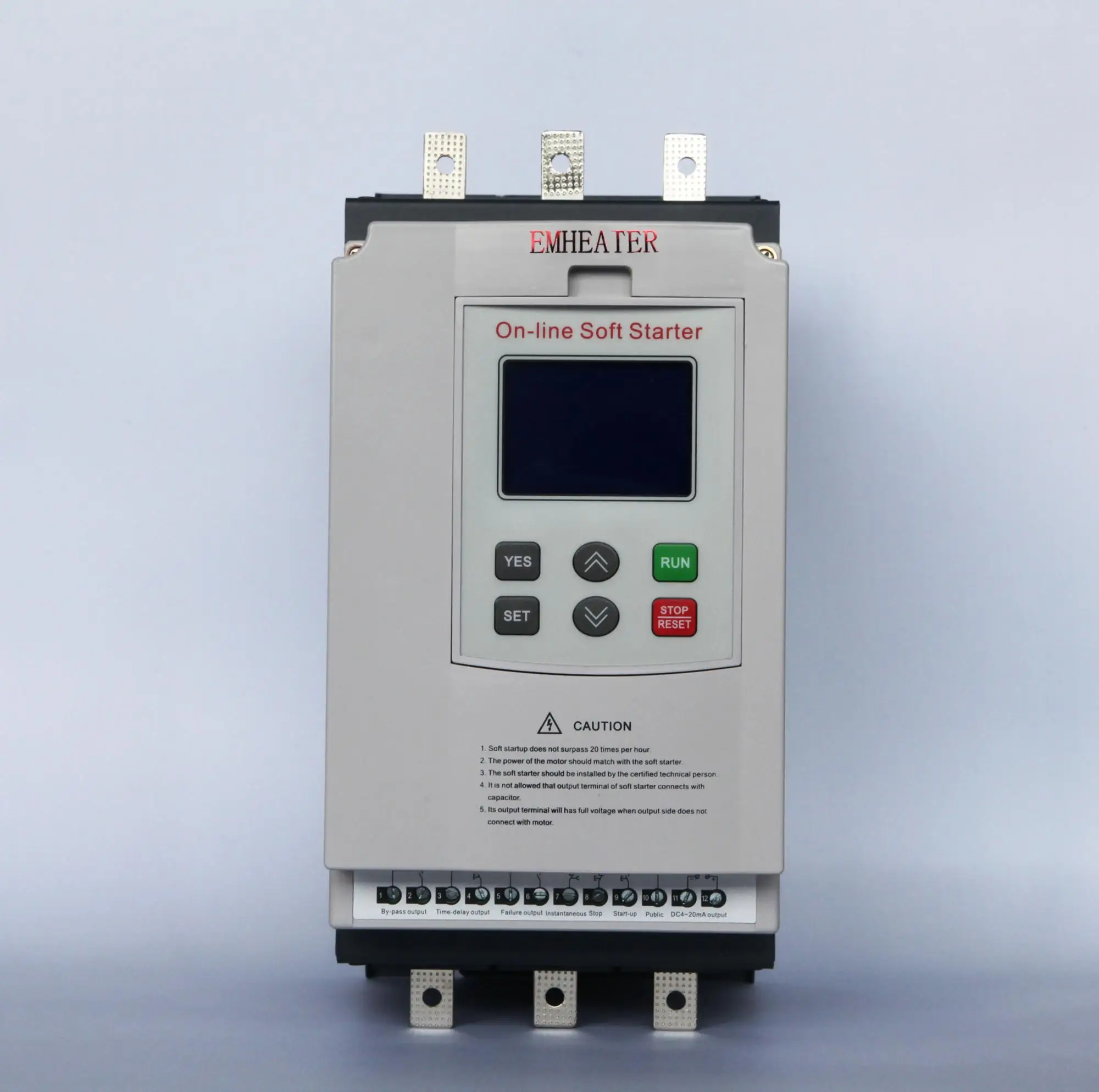

EM-GW series online soft starter, (220V/380V~480/690V; 5.5KW~ 600KW).
