DZP 250A Toothbrush Paper Card Plastic Whole Seal Blister Packaging Machine

Product Details

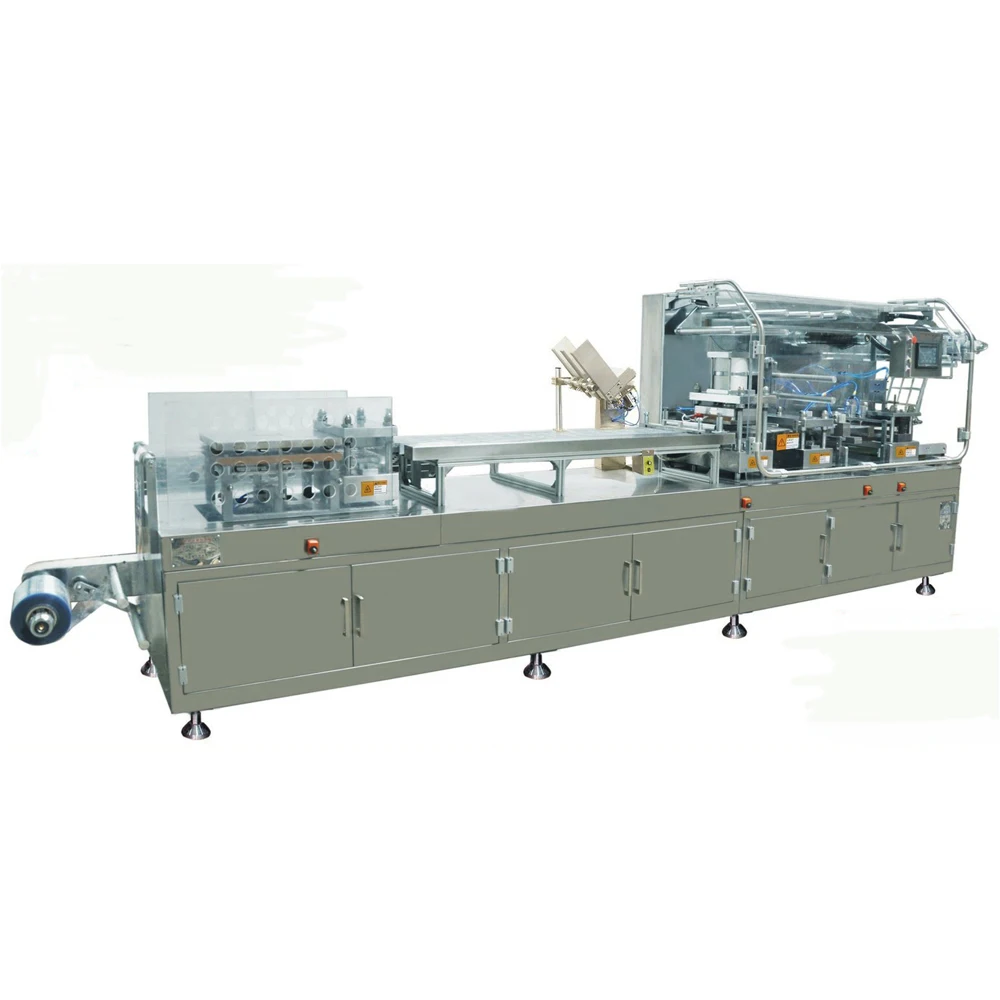

DZP-250A Toothbrush Paper Card Plastic Whole Seal Blister Packaging Machine

Application:

Main Features:

1. Packing forms such as positive pressure forming, feeding, thermal sealing, tearable opening cutting, cutting, waste rejecting, finished products conveying, etc. are adopted. Featured by simple structure and convenient operation.

2. The 304 stainless steel cover is adopted, which conforms to GMP requirements. Featured by beautiful shape and convenient cleaning.

3. Frequency conversion speed adjustment, color touch screen (man-machine interface) and PLC control system are adopted. With high output, low noise, clearer and more convenient operation, and high automation degree, the machine is more user-friendly.

4. Servo motor stepless travel control is adopted. The travel adjustment is simple and mold replacement is convenient.

5. The photoelectric control is adopted. When the PVC sheet is used up or the paperboard is insufficient, buzzer alarm will be sent.

6. The whole machine adopts the split design, so as to facilitate transportation and traveling in and out the elevator.

7. The winding plastic sheet feeding device is used to save large amounts of packing materials.

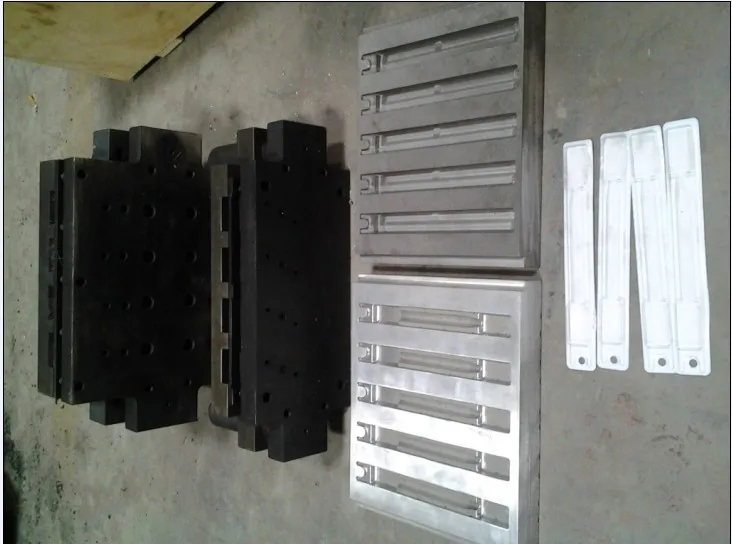

8. The mold and automatic feeder can be designed according to user requirements and materials to be packed.

Related Products:
JFP-110A Capsule Polishing Machine	ZJS-A Capsule Counting Machine	DPP-80 Blister Packing Machine
Similar Products:
NJP-400 Capsule Filling Machine	NJP-1200 Capsule Filling Machine	NJP-2000 Capsule Filling Machine

Product Prameters

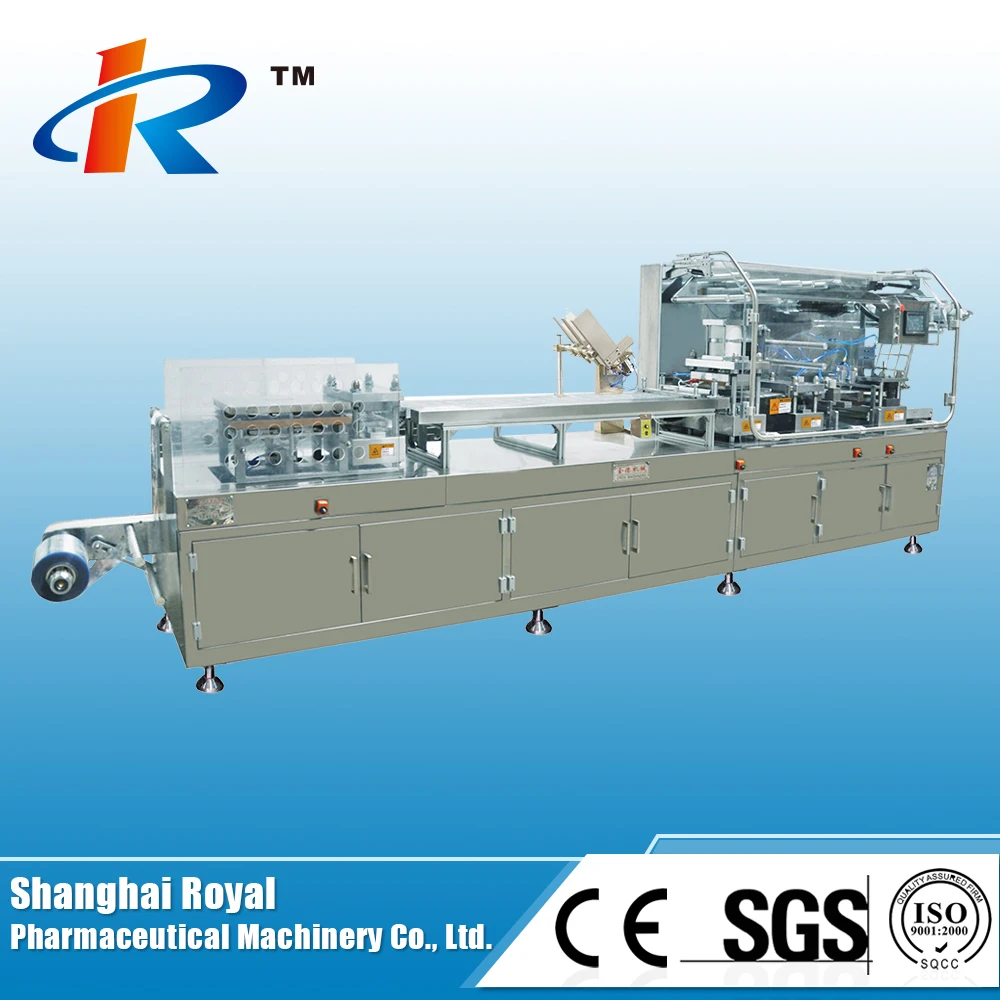

Model	DZP-260	DZP-250A	DZP-350A
Cutting frequency(times/min)	10-30	10-30	10-30
Max forming areas and depth(mm)	210*190*45	240*210*35	340*210*35
Travel range(mm)	30-160	30-220	30-220
Air Pressure(Mpa)	0.5-0.7	0.5-0.7	0.5-0.7
Air Supply	≥0.3m3/min	≥0.35m3/min	≥0.35m3/min
Main Motor Power (KW)	1.5	1.5	1.5
Total Power	380V/220V 7kw	380V/220V 8kw	380V/220V 10kw
PVC rigid sheet(mm)	(0.25-0.5)*260	(0.25-0.5)*250	(0.25-0.5)*350
Paper Card(g)	(250-350)*260	(250-350)*250	(250-350)*350
Mould cooling	Tap water or circulating water	Tap water or circulating water	Tap water or circulating water
Overall dimensions(mm) (L*W*H)	4500*780*1540	5300*840*1670	5300*940*1670
Weight(Kg)	2000	2800	3200



Quality Testing

Quality Testing

Certificate Show

Certificate Show

Cooperative Client

Cooperative Client

Our Service

Our Service

Package And Shipping

Package Transportation

FAQ

1.Q: What price terms you offer?

A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.



2.Q: What payment terms you take?

A: We prefer T/T, but other terms also workable for us.



3.Q: Will you help with installation and stuff training?

A: Yes, we can send our engineers to your place to guide the installation and train your workers if needed, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100day.



4.Q: How can I visit and check your company?

A:Our factory is located in Shanghai and Zhejiang Province. Headoffice lay in shanghai, Minhang District. From Pudong International Airport to our office need only 45 minutes. U can take the metro line 5 come to our office directly!



Any other doubts about our machine, please feel easy to contact with us.
