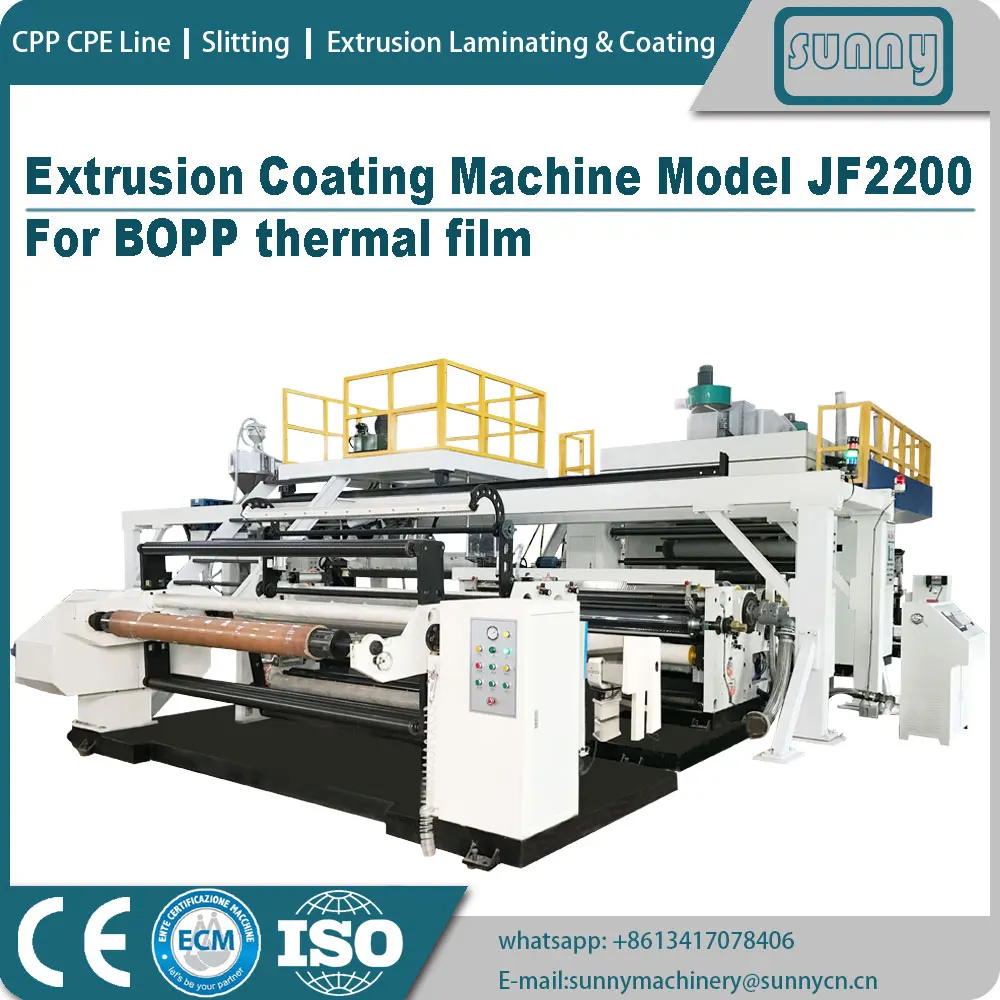

Product Overview
Description

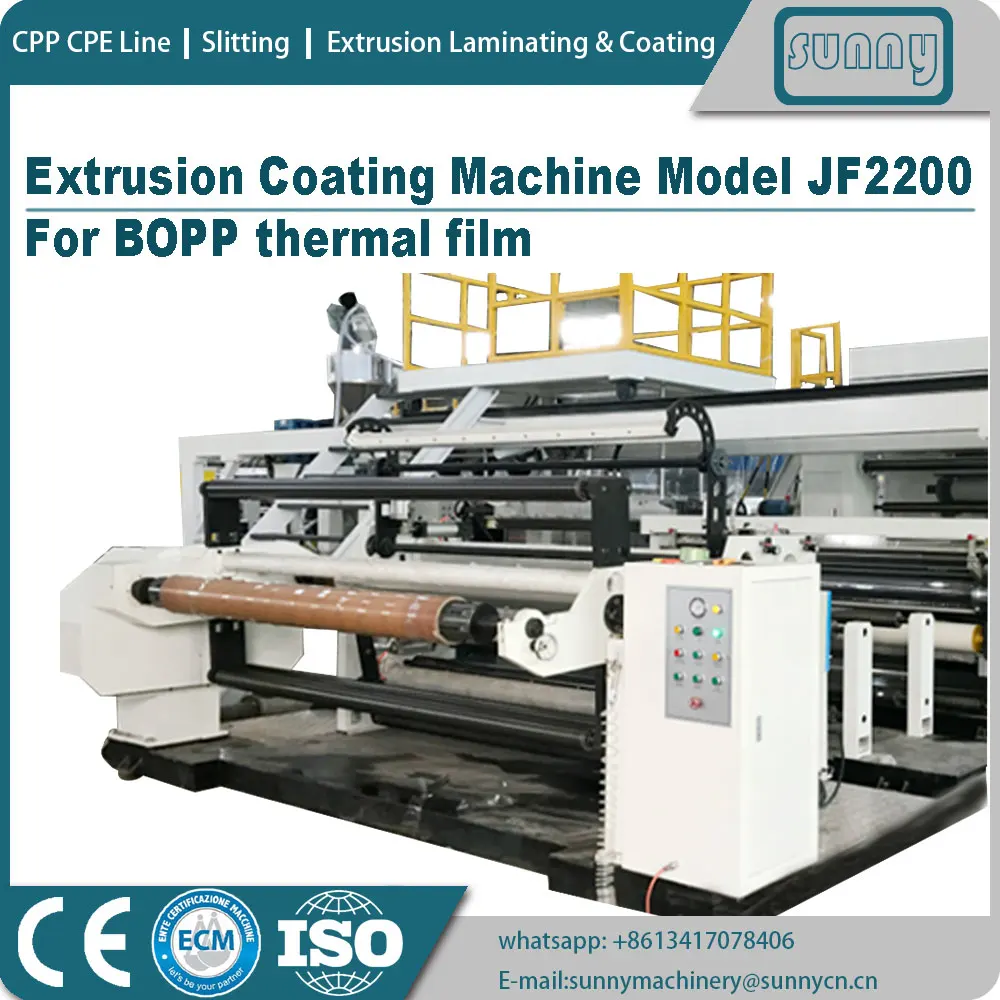

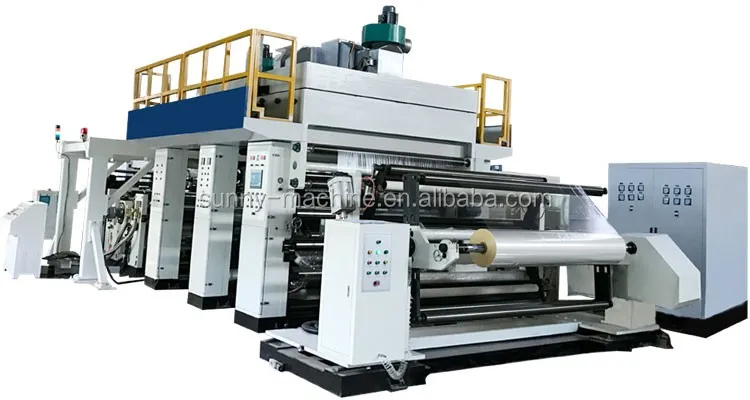

Product Description
Product Application
Thermal film extrusion machine is comprised of EVA, EAA, extrusion level resin to be raw material, it adopts casting type extrusion technological and substrate material (such as BOPP, PET film etc) to carry single face coating production, to improve the strength of extension, fasten of lamination, and moisture barrier comprehensiveness performance, it is widely used for thermal lamination films industries.
| SPECIFICATIONS FOR THERMAL FILM EXTRUSION MACHINE | |||||
| Applicable film coating resin | EVA,EAA coating level | ||||
| Extrusion coating maximum width | 1850 mm | ||||
| Extrusion coating thickness | 0.012-0.05 mm | ||||
| Extrusion coating thickness error | less than ±4% mm | ||||
| Extrusion coating line speed | Max.150 m/min | ||||
| Maximum extruding volume | 350 kg/h | ||||
| Idler roller width | 2020 mm | ||||
| T-Die width | 2260 mm (including blanking plate) | ||||
| T-Die effective width | 2200 mm | ||||
| Unwind maximum diameter | 800 mm | ||||
| Rewind maximum diameter | 800 mm | ||||
| Paper-core specification | 6 inches | ||||
| Extruder power | 110 KW | ||||
| Screw diameter | 135mm L/D 28:1 | ||||
| Compressed air demanded | 0.6 m3/min | ||||
| Compressed air pressure | 0.7 MPa | ||||
| Electrical power supply | 3 phase 5 cables 380V 50Hz | ||||
| Full machine power | About 300 KW | ||||
| External dimension | 11.5m x 8m x 3.8m (L x W x H) | ||||
Main Features
1) Technological of this machine is reasonable from substrate material unwind, extrusion coating and traction edge cutting to final products winding up. It is equipped with advanced electric system, mechanical and pneumatic device to achieve ganged between single adjustable and group control, with high automatic control degree.
2) Dual-station substrate material unwind adopts ultrasonic automatic web guiding system, substrate material is oriented automatic and guiding control, air-shaft loading material, unwind full-automatic tension control, high-speed non-stop automatic splicing continuous production; casting segments cooling roller adopts forced water-cooling structure, good cooling effect; rolling up segments adopts double working station structure, full-automatic tension control, non-stop shaft exchanged, automatic splicing. Each technology roller clutch of complete machine controlled by pneumatic system.
3) Technological of this machine is reasonable from substrate material unwind, extrusion coating and traction edge cutting to final products winding up. It is equipped with advanced electric system, mechanical and pneumatic device to achieve ganged between single adjustable and group control, with high automatic control degree.
4) This machine is comprised of EVA, EAA, extrusion level resin to be raw material, it adopts casting type extrusion technological and substrate material (such as BOPP, PET film etc) to carry single face coating production, to improve the strength of extension, fasten of lamination, and moisture barrier comprehensiveness performance, it is widely used for thermal lamination films industries.
5) Thermal film extrusion machine is the advanced products elaborately manufactured by our factory combined with actual production condition. The structure of this machine is reasonable, appearance is novelty, easy to operate and maintenance, less energy consumption, high efficiency, products enjoy excellent quality, which is the ideal equipment for producing BOPP, BOPET thermal film.
Certifications

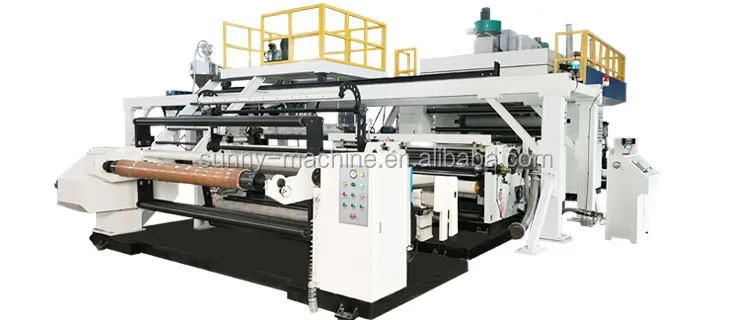

Detailed Images
Machine Parts

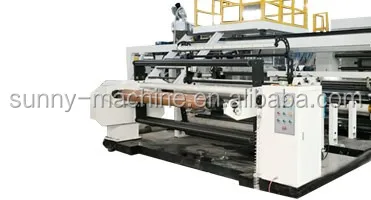

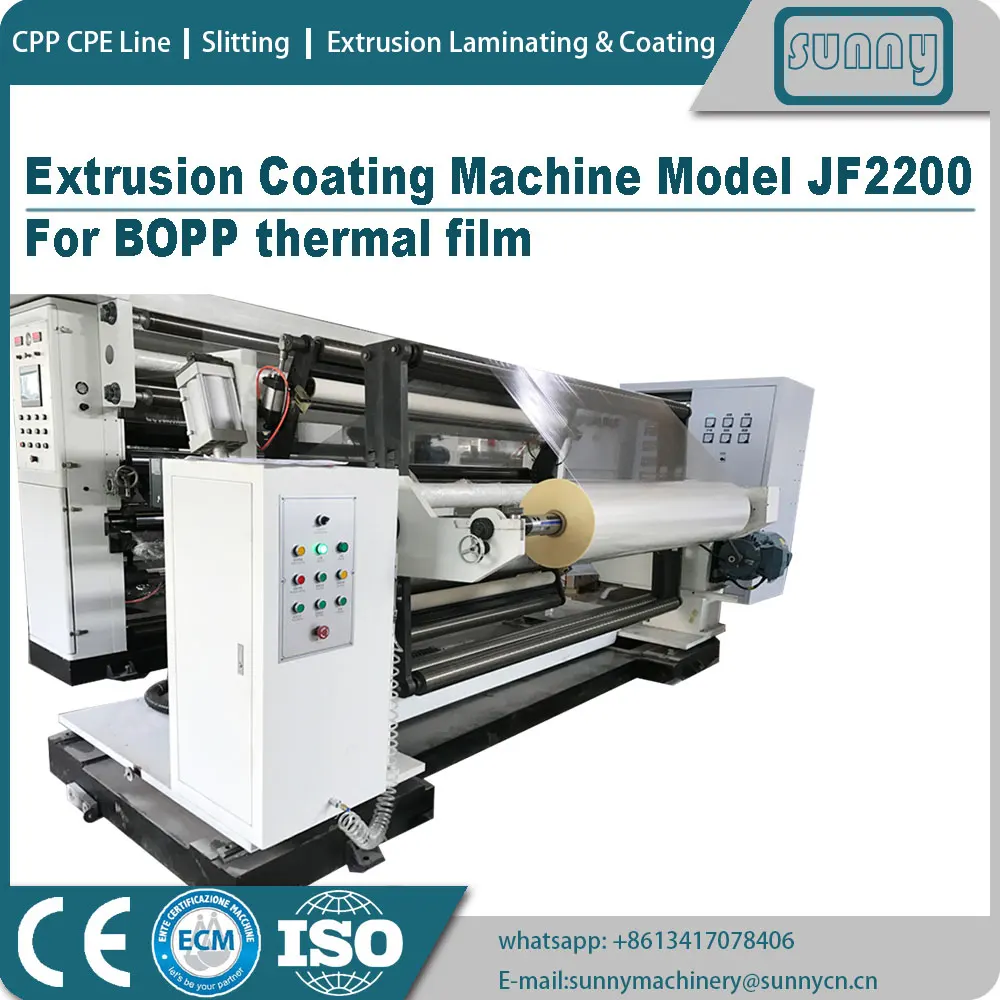

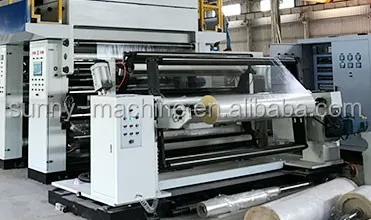

Name: No.1 substrate material unwind device
Brand: YASKAWA
Original: China
No.1 substrate material unwind device is comprised of double arms type turret roll-over frame, air-shaft, drive motor, tension DANCER roller, trim institutions.
Main Features

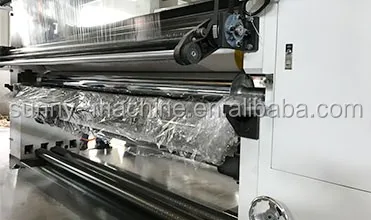

Name: AC Anchor Coating Device
Brand: YASKAWA
Original: China
AC agent coating device is comprised of coating roller, rubber press roller, doctor blade, glue slot, glue circulation system and drying oven system. It has coating uniformity, easy operation features. Drying oven system is comprised of draught fan, exhaust fan, air heating circulation system device, nozzle and temperature control system, air-out uniformity and drying sufficient.
Machine Parts

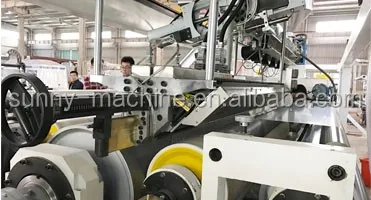

Name: Extruder Machine
Brand: JCTIMES
Original: China
Trolley-type extruder machine adopts sealed adjustable T-DIE. Vacuum automatic material-suction pump, speediness screen exchange device, front and back walking rise and fall type trolley, range of rise and fall is 0-100mm, lateral displacement ±10mm. screw drum, linker region adopts cast aluminum heating panel. T-DIE adopts built-in heating bar, has fast thermal effect and fast warming up effect. Bevel wheel superpower reduction gearbox; JAPAN digital temperature-controlled meter to control temperature automatic; 7 pipes magnetic force frame, stainless steel hopper, static state mixer, screw cold air blast cooling, manual type screw pushing-out institution. DIE adopts 10 areas temperature control, machine barrel 8 areas temperature control, connector 1 area temperature control.
Main Features

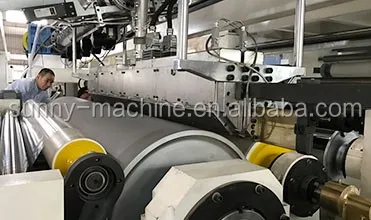

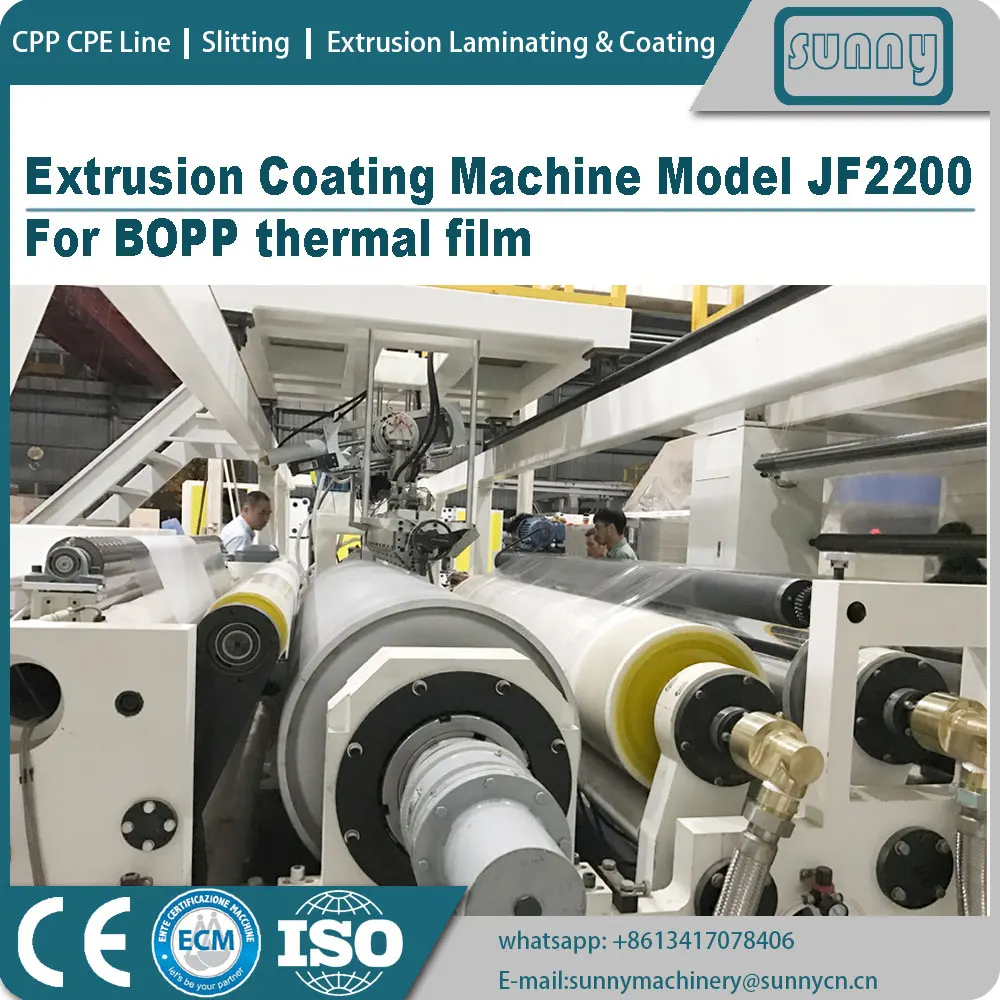

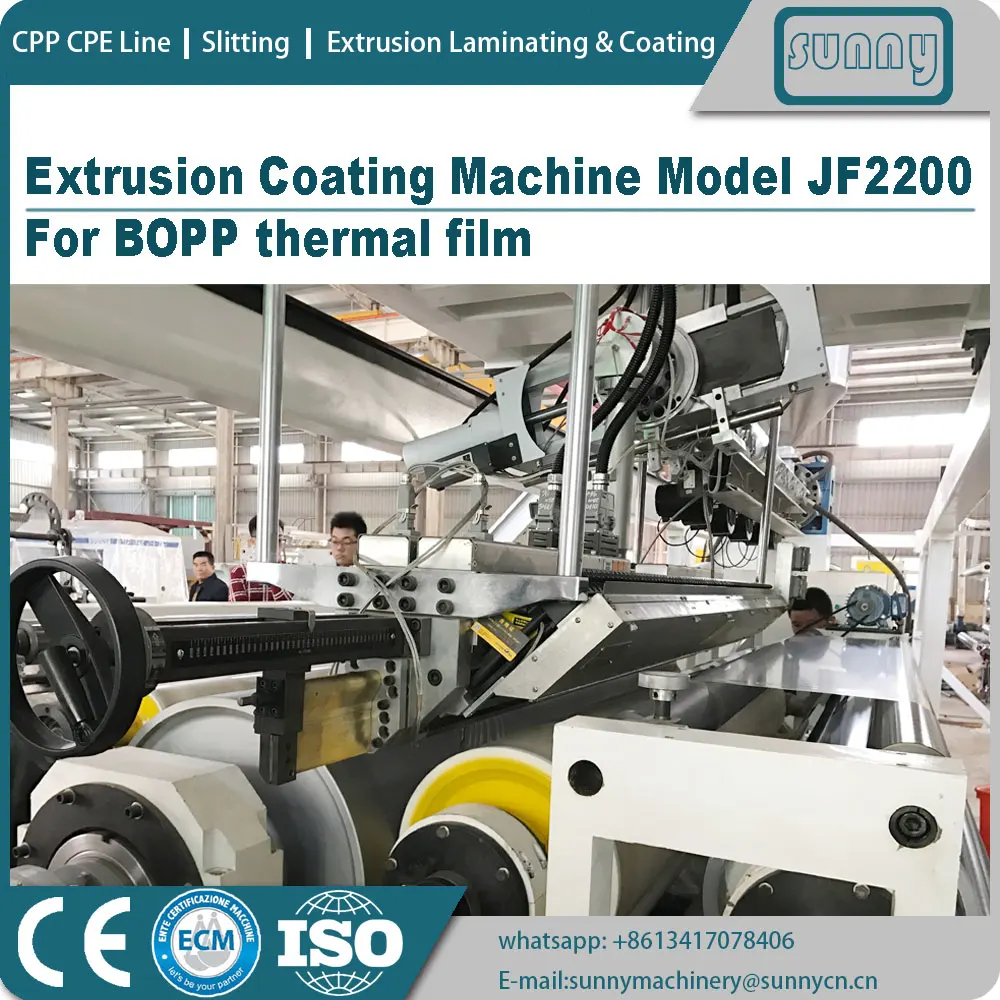

Name: Extrusion Coating device
Brand: YASKAWA
Original: China

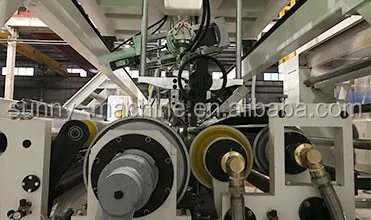

Extrusion coating device adopts three-rollers type institution, backpressure roller make the coating pinch roller load-carrying uniformity, stripping rubber roller make the extrusion coating products are easy to peel off from cooling stripping roller. Banana roller spreading organization make the film spread quickly. Substrate film feeding in adjustment roller can overcome film material thickness non-uniform defects. High-pressure fan edge-suction, edge can be suction out quickly. Low-voltage air-cylinder detected tension feedback device is equipped between 2lamination machines. Drive motor adopts import inverter continuously viable.
Our Service
After-Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
| Packaging | |
| Size | 13 (L) * 2.3 (W) * 2.5 (H) |
| Weight | 15T |
| Packaging Details | If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
