400kg light weight hydraulic hand portable manual platform stacker fork lift
- Category: >>>
- Supplier: Shanxi Kyzz Industry Co. Ltd.
Share on (60791810303):
Product Overview
Description

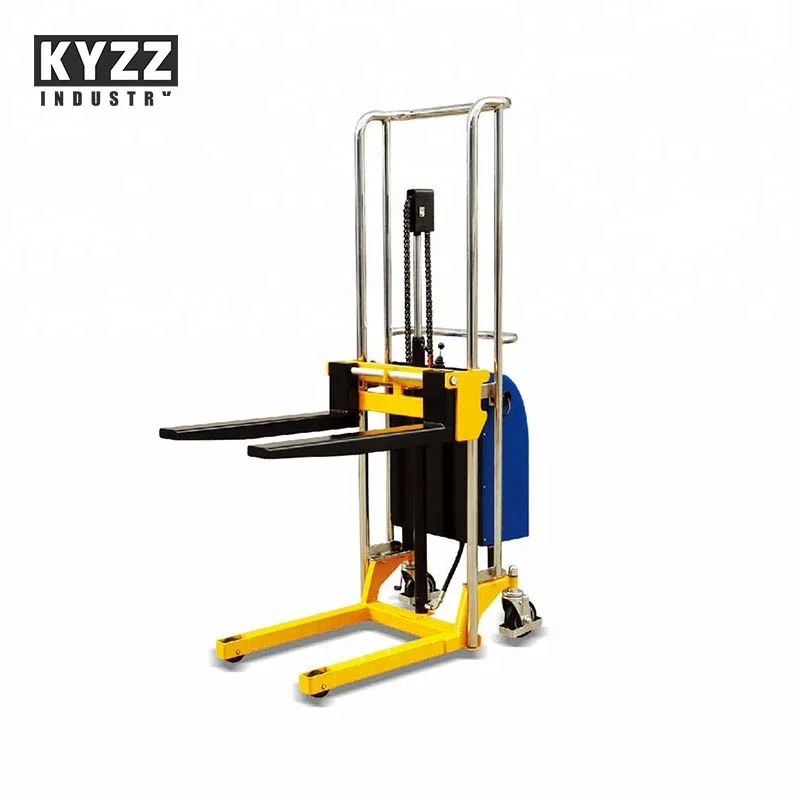

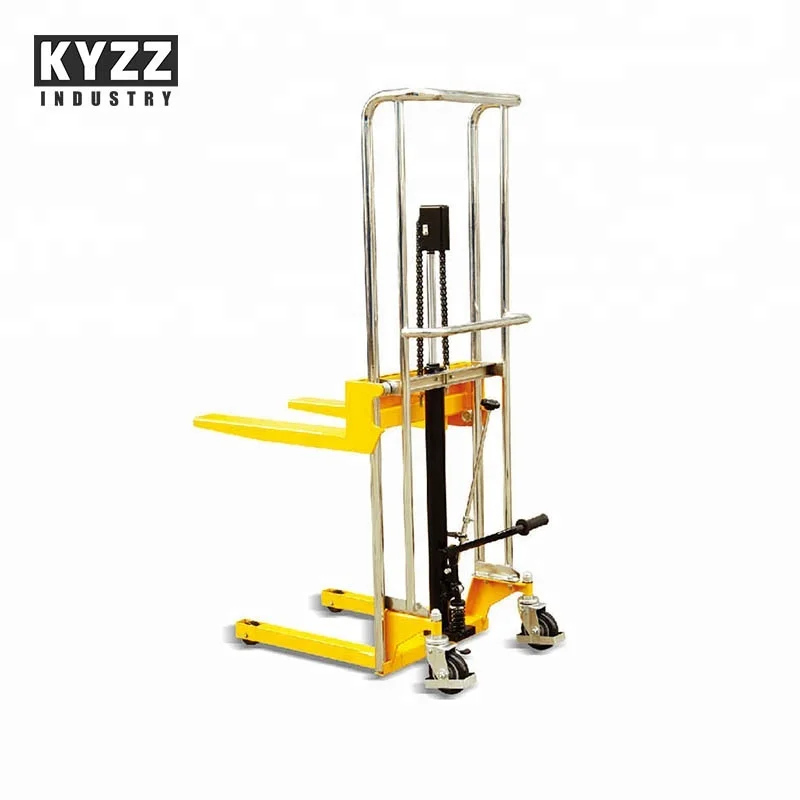

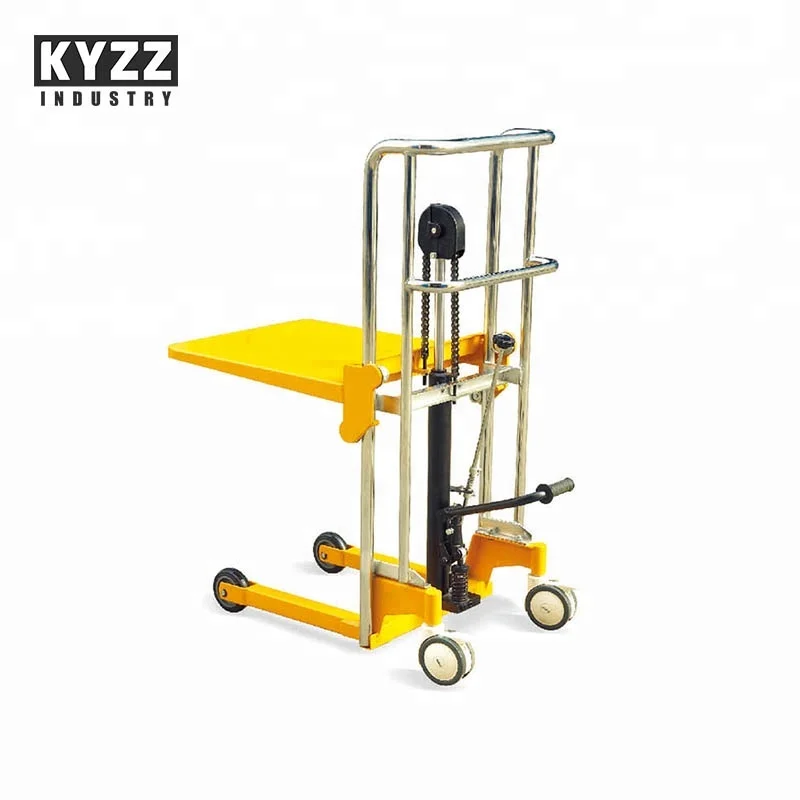

400kg hydraulic hand portable manual platform stacker fork lift
| Model(Platform) | ME-C2085 | ME-C2120 | ME-C4085 | ME-C4120 | ME-C4150 | ||
| Model(Fixed Fork) | ME-F2085 | ME-F2120 | ME-F4085 | ME-F4120 | ME-F4150 | ||
| Model(Adjustable Fork) | ME-G2085 | ME-G2120 | ME-G4085 | ME-G4120 | ME-G4150 | ||
| Capacity | kg | 200 | 200 | 400 | 400 | 400 | |
| Max.Fork/Platform Height | H(mm) | 850 | 1200 | 850 | 1200 | 1500 | |
| Min.Fork height(ME-G/ME-F) | H1(mm) | 85 | 85 | 85 | 85 | 85 | |
| Min.Platform height(ME-C) | H1(mm) | 200 | 20 | 200 | 200 | 200 | |
| Fork/Platform length | L1(mm) | 600 | 600 | 650 | 650 | 650 | |
| Fixed Fork Width (ME-C/ME-F) | W(mm) | 500 | 500 | 550 | 550 | 550 | |
| Adjustable Fork Width(ME-G) | mm | 215-500 | 215-500 | 235-500 | 235-500 | 235-500 | |
| Pump Strekes to Max.Height(ME-C) | 14 | 21 | 30 | 45 | 58 | ||
| Pump Strekes to Max.Height(ME-F/ME-G) | 19 | 26 | 35 | 50 | 63 | ||
| Overall Height | ME-F/ME-G | H2(mm) | 1080 | 1435 | 1060 | 1410 | 1710 |
| ME-C | H2(mm) | 960 | 1310 | 970 | 1310 | 1610 | |
| Overall Width | B(mm) | 560 | 560 | 590 | 590 | 590 | |
| Overall Length | ME-F/ME-G | L(mm) | 1000 | 960 | 1040 | 1040 | 1040 |
| ME-C | L(mm) | 940 | 940 | 1040 | 1040 | 1040 | |
| Net Weight | ME-C | kg | 53 | 58 | 72 | 78 | 83 |
| ME-F | kg | 55 | 62 | 70 | 76 | 82 | |
| ME-G | kg | 58 | 65 | 75 | 81 | 85 | |
| Option Platform(ME-G/ME-F) | (mm) | 610x530 | 610x530 | 660x580 | 660x580 | 660x580 | |
