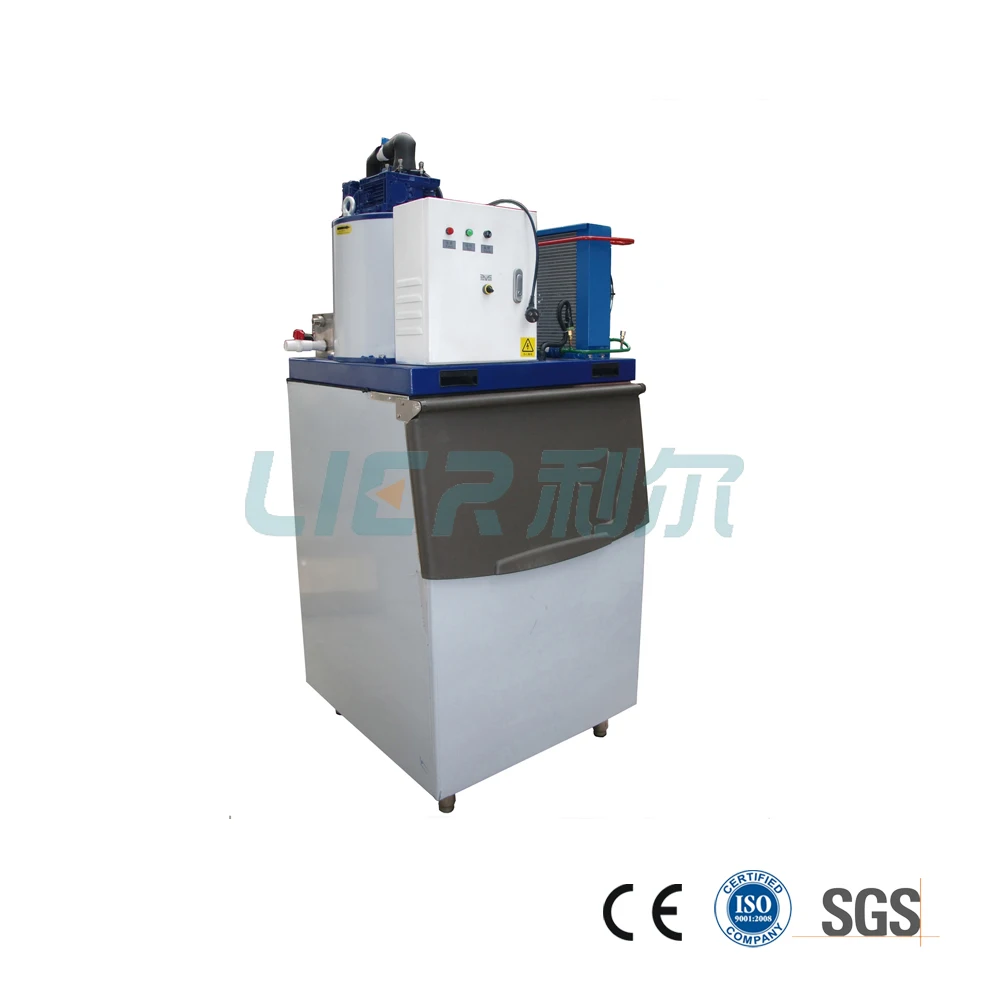

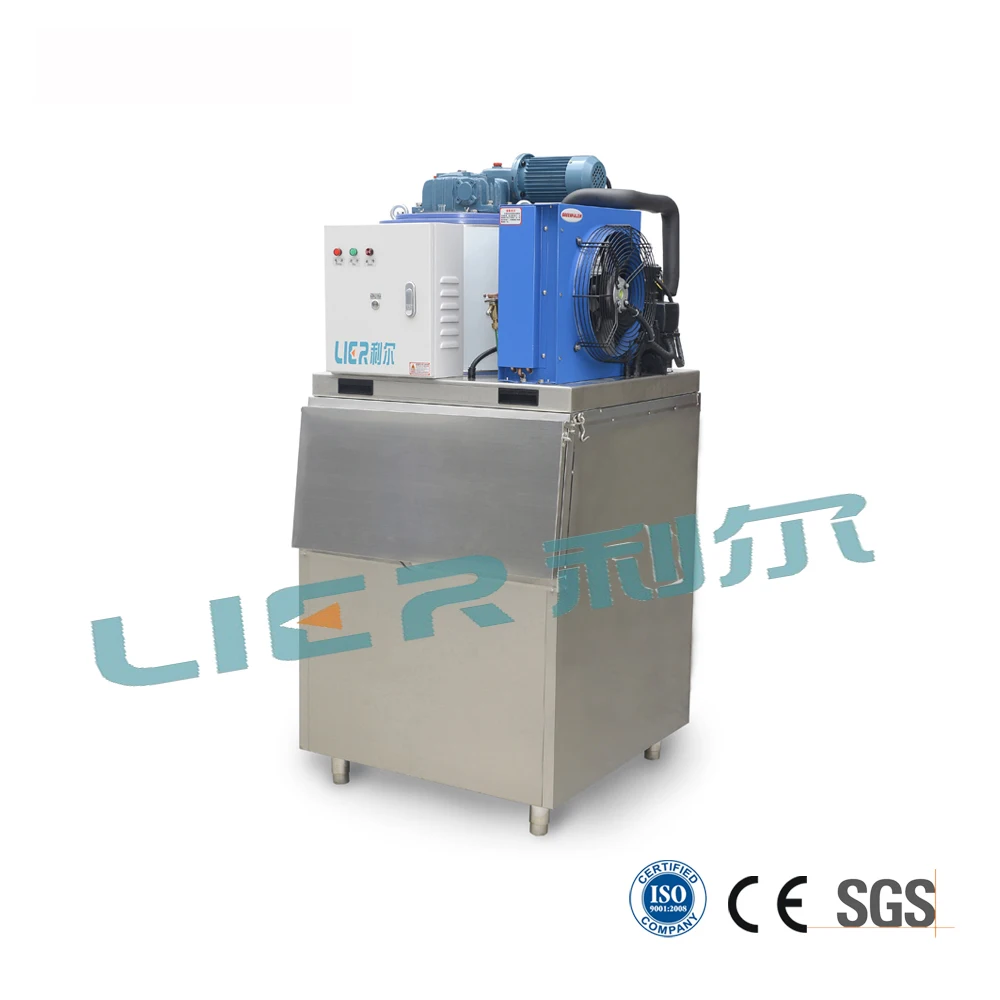

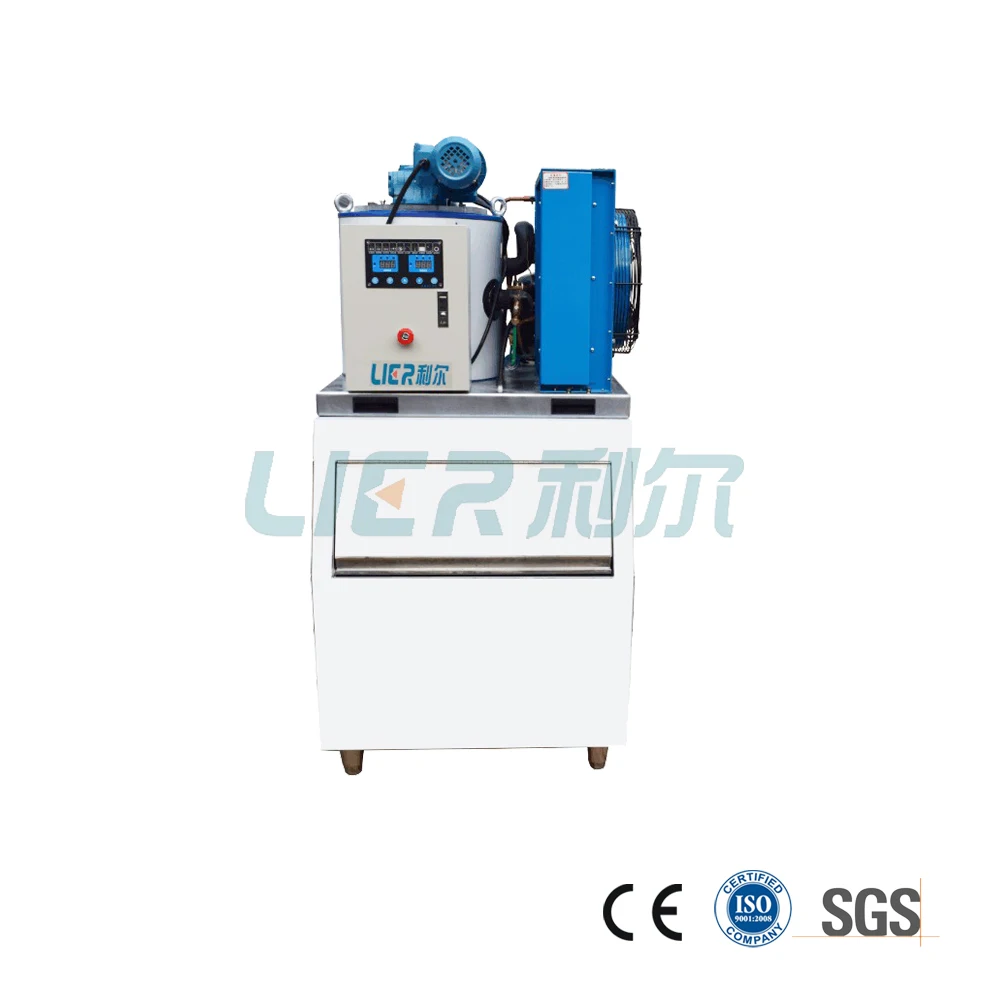

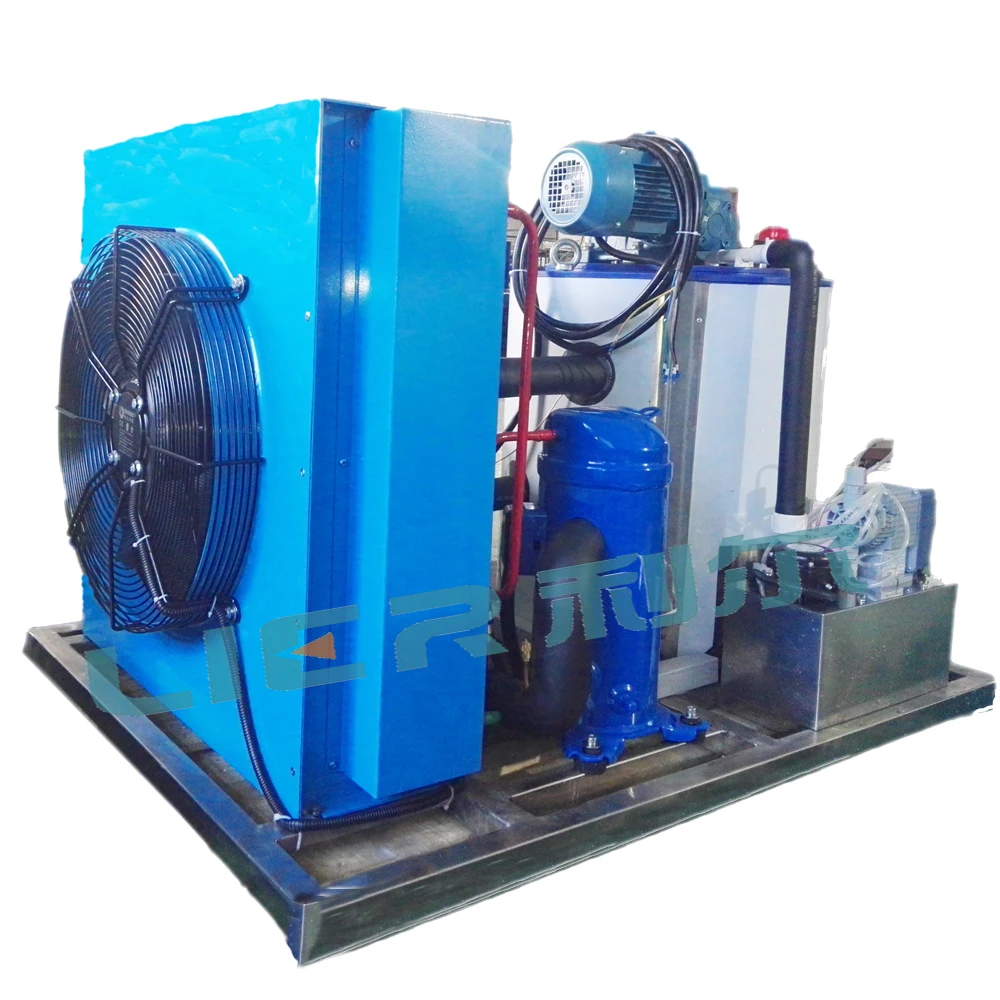

Compact Design 2tons Flake Ice Machine with R404 Refrigeration

Product Overview

Description

High Quality Freshwater Crushed Ice Machine Scales Ice Machine 1500kgs



Features and advantages of Flake ice machine

1 Large contact area:
As its flat and thin shape, it has got the largest contact area among all types of ice. The larger its contact area is, the faster it cools other stuff. In comparison with 1 ton of cube ice, 1 ton of flake ice has 1799 sqm of contact area while 1 ton of cube ice only has 1383 sqm, therefore the flake ice has got much better cooling effects than cube ice.

2 Low cost of producing:
The producing of flake ice is very economical, it only requires 1.3RT refrigerating effect to make 1 ton of ice from 16C water.

3 Perfect in food cooling:
Flake ice is type of dry and crispy ice, it hardly forms any shape edges, in food cooling process, this nature has made it the best material for cooling, it can reduce the possibility of damage to food to the lowest rate.

4 Thoroughly mixing:
Flake ice can become water quickly through the rapid heat exchanging with products, and also supply the moisture for products to be cooled.

5 Convenient for delivery:
Because the flake ice fairly dry, it will not stick with others during delivery or storage.



High Quality Freshwater Crushed Ice Machine Scales Ice Machine 1500kgs







 High Quality Freshwater Crushed Ice Machine Scales Ice Machine 1500kgs

 Application

1.Fishing:
Sea water flake ice machine can make ice directly from the sea water, ice can be used in fast cooling of fish and other seaproducts. Fishing industry is the largest application field of flake ice machine.

2.Sea food process:
Flake ice can lower the temperature of cleaning water and sea products, therefore it resists the growth of bacteria and keeps the sea food fresh

3.Bakery:
During the mixing of flour and milk, can prevent the flour from self raising by adding flake ice

4.Poultry:
Huge amount of heat will be generated in food processing, flake ice can effectively cool the meat and water air, also supply moisture for the products at the meantime.

5.Vegetables distribution and fresh-keeping:
Now days, in order to guarantee the safety of food, such as vegetables, fruit and meat, more and more physical methods of storing and transporting are being adopted. Flake ice has a fast cooling effect so as to ensure the applied object will not be damaged by bacteria.

6.Medicine:
In most cases of biosynthesis and chemosynthesis, flake ice is used to control the reaction rate and maintain the liveness. Flake ice is sanitary, clean with rapid temperature reduction effect. It is the most ideal temperature-reducing carrier.


7.Concrete Cooling:
Flake ice is used as the direct source of water in concrete cooling process, more than 80% in weight. It is a perfect mediaof temperature controlling, can achieve effective and controllable mixing effect. Concrete will not crack if has been mixed and poured inconstant and low temperature. Flake ice is widely used in the large projects such as high standard express way, bridge, hydro-plant and nuclear power plant.





CE-LVD certification, ISO 9001:2008 , AUDITED SUPPLIER

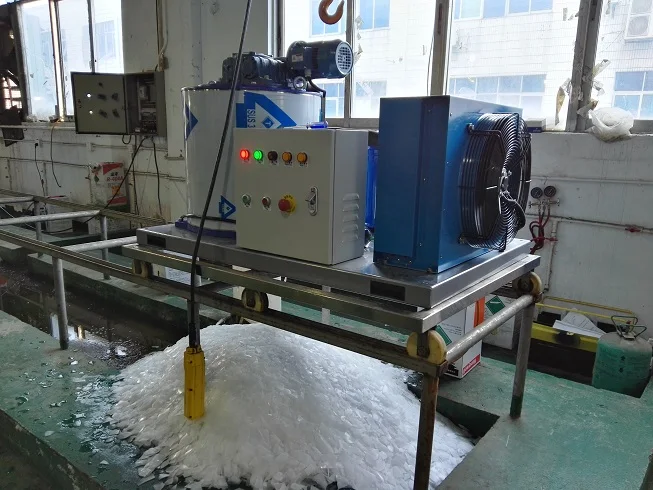

Ice Generator in Scales Flake Ice Machine



Specification:

1.The acture ice capacity is subject to ambient and water inlet temperature. Higher temperature, less ice.

 2.Standard power supply: 3P-380V/220V-50HZ/60HZ.

3.Water supply: fresh water, ordinary tap water or groundwater is available.

4.Better to be placed indoor.

5.Flake ice thickness: 1.8-2.5mm.

6.Flake ice temperature: -5°C~-10°C.

7.Standard operating conditions: ambient temperature 25°C, water inlet temperature 18-20°C.



Flake ice machine technical parameters:

Model	Ice capacity     (kg/24h)	Refrigerating capacity                 (kw)	Power supply	Total power        (kw)	refrigerants	Dimension (mm)	Weight    (kg)
LR-02T	200	1.8	1P/220V/60HZ	1.2	R22	760*730*450	115
LR-05T	500	3.7	3P/380V/50HZ	2.5	R404A/R507	1310*890*780	195
LR-1T	1,000	6.5	3P/380V/50HZ	4.8	R404A/R507	1310*970*880	227
LR-1.2T	1,200	7.8	3P/380V/50HZ	5.4	R404A/R507	1310*970*980	263
LR-1.5T	1,500	9.8	3P/380V/50HZ	7.3	R404A/R507	1310*970*980	364
LR-2T	2,000	13	3P/380V/50HZ	8.5	R404A/R507	1500*1095*1040	423
LR-2.5T	2,500	16.2	3P/380V/50HZ	9.2	R404A/R507	1500*1095*1200	456
LR-3T	3,000	19.5	3P/380V/50HZ	12.2	R404A/R507	1750*1190*1200	530
LR-4T	4,000	26	3P/380V/50HZ	16.3	R404A/R507	1700*1650*1250	630
LR-5T	5,000	32.5	3P/380V/50HZ	19.6	R404A/R507	1700*1650*1450	760
LR-6T	6,000	39	3P/380V/50HZ	23.5	R404A/R507	1700*1650*1450	867
LR-8T	8,000	49	3P/380V/50HZ	26.6	R404A/R507	2500*2000*1560	968
LR-10T	1,0000	65	3P/380V/50HZ	32.5	R404A/R507	2500*2000*1700	1260
LR-15T	1,5000	95	3P/380V/50HZ	58	R22	3100*2160*1865	2120
LR-20T	2,0000	130	3P/380V/50HZ	63	R22	3100*2160*2050	2860
LR-25T	2,5000	160	3P/380V/50HZ	75	R22	3100*2160*2265	2940
LR-30T	3,0000	195	3P/380V/50HZ	86	R22	3500*2700*2350	3240



 Ice flake evaporator advantages:
1.Be made of low-temperature pressure vessel special materials and passed precision processing;
2.More sufficient evaporation area and better performance with dry style evaporation way;
3.Whole processing is made by vertical lathe to ensure the precision up to 2 ounces;
4.Be designed and produced with standard low-temperature pressure vessel manufacturing process, including surface treatment, heat treatment, gas-tight test, tensile & compression strength test, etc.
5.Using imported refrigeration accessories;
6.All water supply line are made of stainless steel, high sanitary condition;
7.Fast ice forming & falling speed, ice begins within 1 to 2 minutes.



 Why to choose us:

1.cheaper price - more competitive.
2.longer warranty period - longest up to 18 months.
3.faster delivery speed, have stock for specification under 5tons
4.superior after-sales service guarantee & professional technicial support.
5.more stringent quality assurance than foreign trade company, passed CE, SGS and BV world-famours three main certification

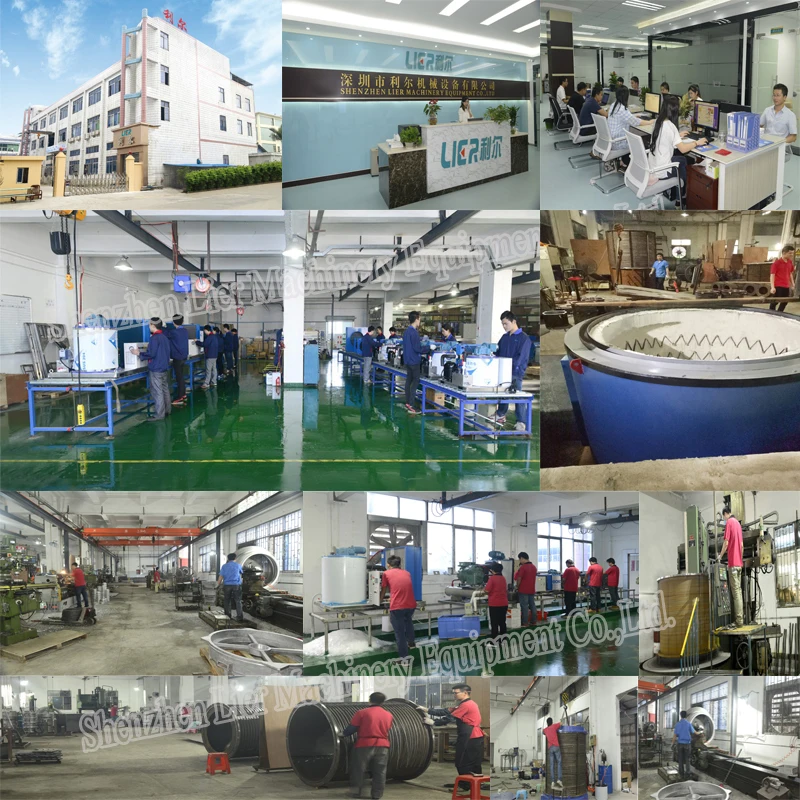

6.and the most important: As one of few ice machine evaporator leading and professional manufacturers who have the self-production capacity, we provide it for many refrigeration companies and counterparts. And they just need to assemble the ice machine with our evaporator and other refrigerating accessories. our evaporators are warmly welcomed at home and abroad.





 High Quality Freshwater Crushed Ice Machine Scales Ice Machine 1500kgs
