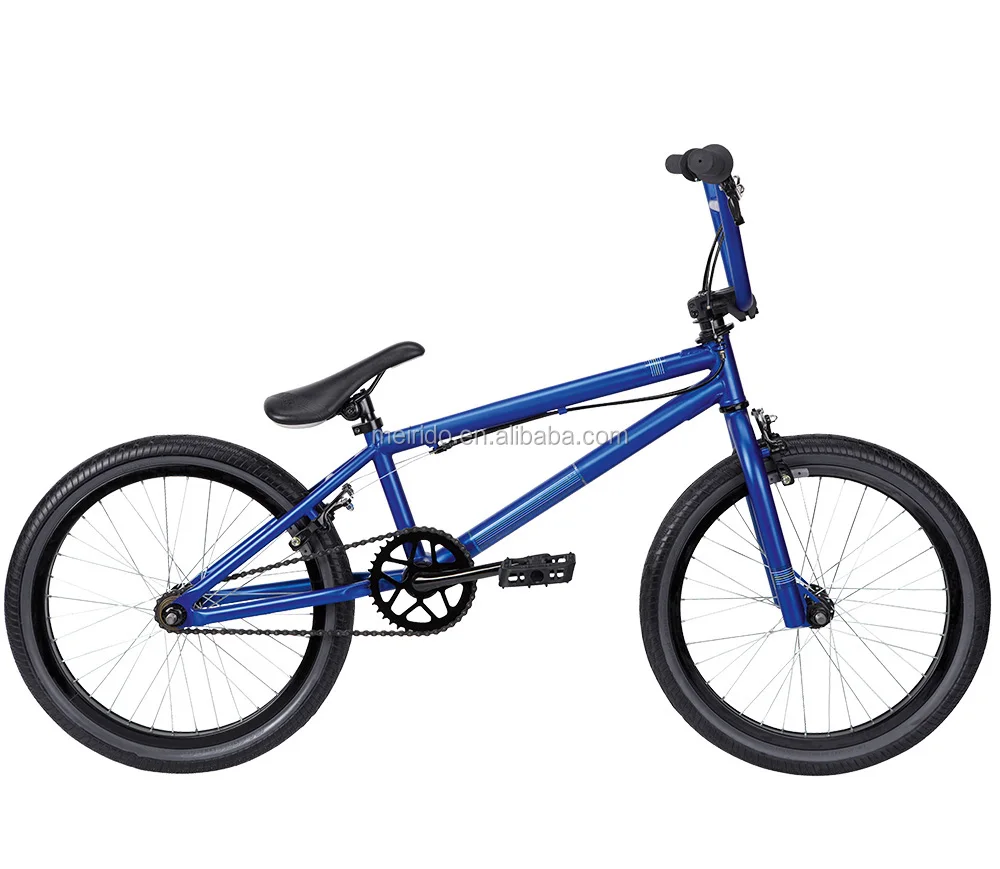

2018 hot sale bmx bike /20 inch HI TEN Frame /Bmx Freestyle Bike SY FS2042

Product Overview

Description

  Freestyle Bicycle:

SY-FS2042

Frame: 20"  Chromoly  Steel 20.8” Top tube length,  removable brake hardware

Fork: 20" Chromoly Legs

Handlebar: HI-TEN Bars 8-3/4" Tall x 29" Wide

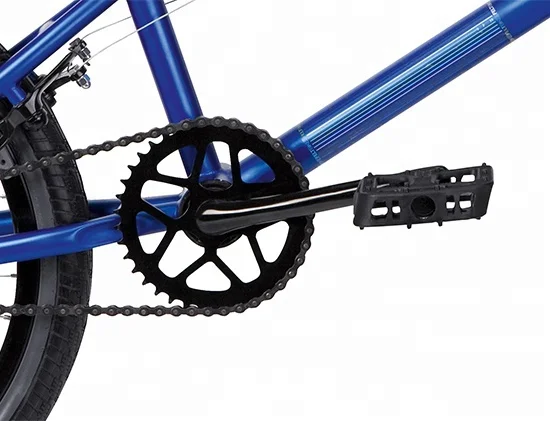

Chain wheel:  steel ½"*¹/₈"*25T

Free wheel:  ½"*¹/₈"*9T 1-pc driver

Brake:  Tektro 907u-brake rear

Bottom braket : USA BIG size .sealed bearing 19mm.spindle  drive train:25*9Tgearing,3-pc cr-mo 170mm cranks senled mid B.B KMC chain

Pedals:  pc pedals , aluminum  axle

Rim : 20"*1.75" aluminum

SPC	VENDOR	Component	COMPONENT COLOR
DECAL/NAME PLATE	BLUESKY	WATER TRANSFER DECAL
FRAME	YJ	20 INCH  Cr-Mo Steel TOP TUBE SIZE 20.8 KENCYCLE DESIGNED,	PAINTI NG
FORK	KSK	THREADLESS 1-1/8" Cr-Mo Steel	PAINTING
HEAD SET	VP	AHEADSET THREADLESS,9PCS	BLACK
HEADSET SPACERS	VP	HI-TEN BLACK	BLACK
TOP CAP/STAR NUT	VP	TOP CAP W/STAR NUT	BLACK
SPROCKET/SPIDER	CW	CHUAN WEI MODEL 1/8”x25T ALLOY CHAINRING	SU
CRANK SET	CW	3-PC  TUBULAR SEAMLESS ARMS 170MM	CP
BB-SET	CW	19MM  SPINDLE- 8 SPLINE INTERFACE	BLACK
HANDLEBAR	EVG	BMX Hbar  .Hi Ten.	CP
STEM	EVG	28.6*55MM EXT; BAR BORE 22.2MM	BLACK
GRIP	VELO	VELO GRIP 130MM LENGTH	BLACK
H/BAR END PLUG	N/A	N/A

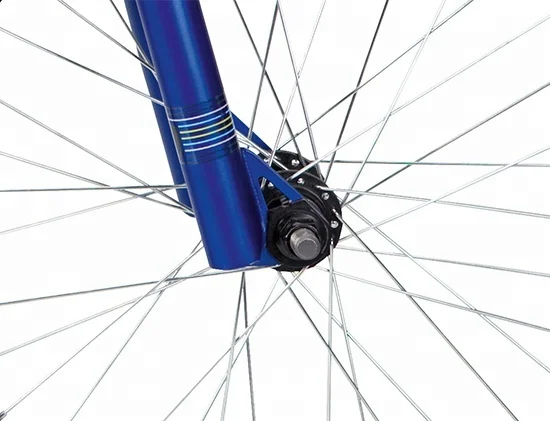

F/HUB	RT HUB	KT HUB; MODEL 48H LOW FLANGE ALLOY SHELL	BLACK
R/HUB	RT HUB	KT HUB; MODEL 48H LOW FLANGE ALLOY SHELL	BLACK
FRONT RIM	SNM	Singlewall rim. PBR 20"*1.75"	BLACK
REAR RIM	SNM	Singlewall rim. PBR 20"*1.75"	BLACK
SPOKES	SLE	14 GAUGE STEEL; LACED 3 CROSS	UCP
FRONT TIRE/TUBE/STRIP	WANGDA	TUBE 20X 2.125" A/V  RIM STRIP 20"*16W	BLACK WITH  BROWN SIDE
REAR TIRE/TUBE/STRIP	WANGDA	TUBE 20X 2.125" A/V  RIM STRIP 20"*16W	BLACK WITH  BROWN SIDE
F/BRAKE	N/A	N/A
R/BRAKE	Promax	Promax  BMX U-BRAKE	BLACK
BRAKE LEVER	Promax	Promax Melt Forged alloy	BLACK
BRAKE CABLE/CASING	LEE CHI	LEE CHI 2P 2C	BLACK
ROTOR		NIL
FREEWHEEL	LIDA	LMA-8   BLACK	BLACK
CHAIN	KMC	KMC Z410A	BROEN
CHAINGUARD		NIL	CP

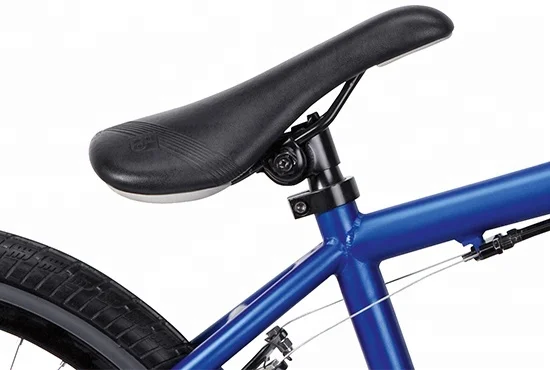

SADDLE	KEN	PIVOTALASTIC  NO FOAM AND NO COVER	BLACK PLASTIC
SEAT POST	PREMETEC	STEEL PIVOTAL POST 25.4 X 250MM	CP
SEAT CLAMP	Promax	Promax MX-38-RT; 31.8MM	BLACKANO JY-002
PEDALS	VP	VP-565 Aluminum; Ball Bearing; 9/16"	BLACK
CHAIN TENSIONER	PMT	YES
PEGS	HQ	STEEL 38*110MM 4PCS COLOR ED	BLACK
REFLECTORS	CATEYE	AS REQUIRED TO MEET CPSC REQUIREMENT; WHITE WHEEL;  WHITE FORWARD FACING; RED REAR FACING
MISC	N/A	N/A
F/REF. BRKT	YF	FOR HANDLEBAR CROSS BAR	BLACK
R/REF. BRKT	YF	FOR  SEAT POST	BLACK
F. AXLE SAFETY RET		BLACK	BLACK
BOLTS	SG	STAINLESS	BLACK
MANUAL		AS CLIENT REQUIRE
PACKING MATERIAL		CARDBOARD PAPER WRAP
CARTON		5 PLY EXPORT STANDARD
FRAME/FORK FINISH:		AS ORDER	PAINTI NG
HANDLEBAR FINISH		AS ORDER	MATTE BLACK
PACKING	SKD 85%	1SET/CARTON
	CKD	A+B CARTON PACKING
