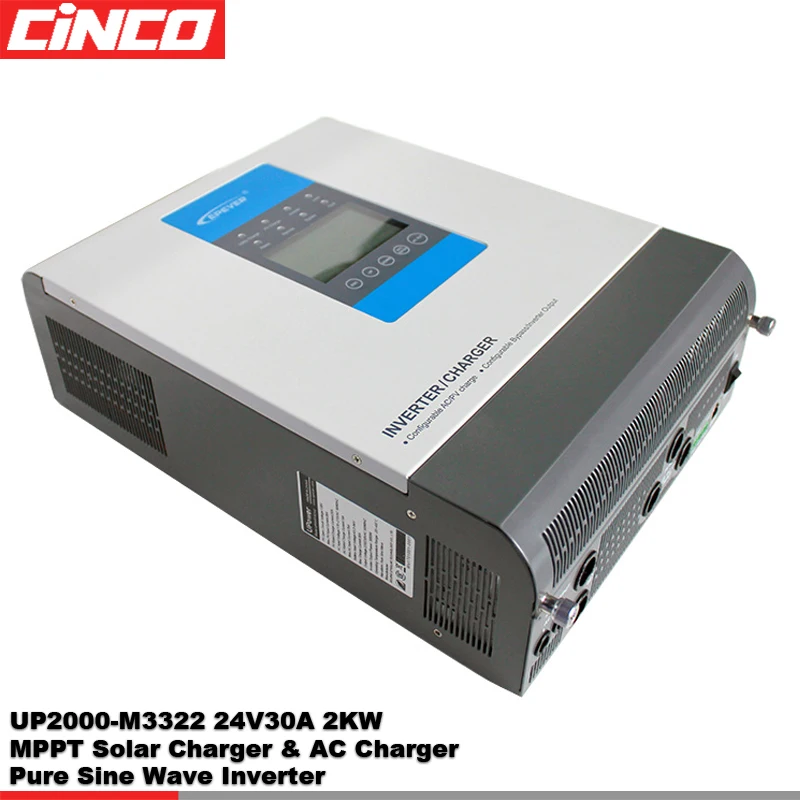

UP2000 M3322 single phase DC TO AC off grid power inverter 2KVA 24V 220V with 30A PWM solar controller all in one box
- Category: >>>
- Supplier: Cinco Electronics Tech Co. Ltd.
Share on (60791845595):
Product Overview
Description
Products Description
1. A new type of all-digital intelligent energy storage and management Inverter/charger
2. MPPT technology, Max. tracking efficiency 99.5 %, Max. DC-DC conversion efficiency 98.5 %
3. Advanced all-digital control technology for AC-DC charging modules
4. SPWM technology, with high efficiency up to 95 %
5. With the function of Utility & Solar charging ratio selection, and total charging current setting
6. Four charging mode and two output mode
7. Rich set of options
8. RS485 isolated communication interface with standard Modbus protocol
9. Extensive electronic protections
10. Variety of accessories can be selected according to user’s requirements
2. MPPT technology, Max. tracking efficiency 99.5 %, Max. DC-DC conversion efficiency 98.5 %
3. Advanced all-digital control technology for AC-DC charging modules
4. SPWM technology, with high efficiency up to 95 %
5. With the function of Utility & Solar charging ratio selection, and total charging current setting
6. Four charging mode and two output mode
7. Rich set of options
8. RS485 isolated communication interface with standard Modbus protocol
9. Extensive electronic protections
10. Variety of accessories can be selected according to user’s requirements

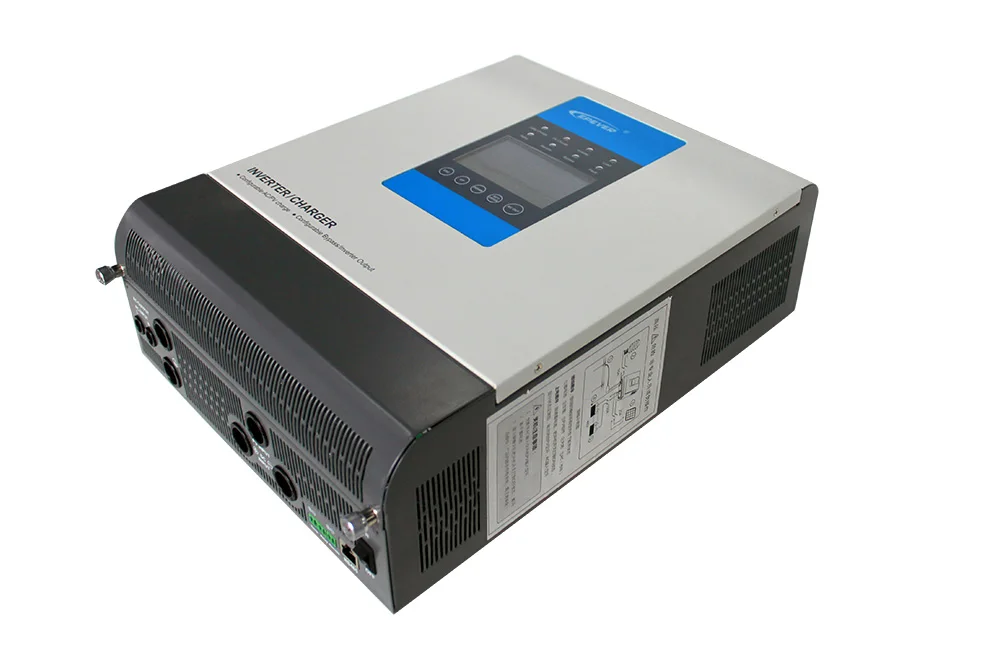

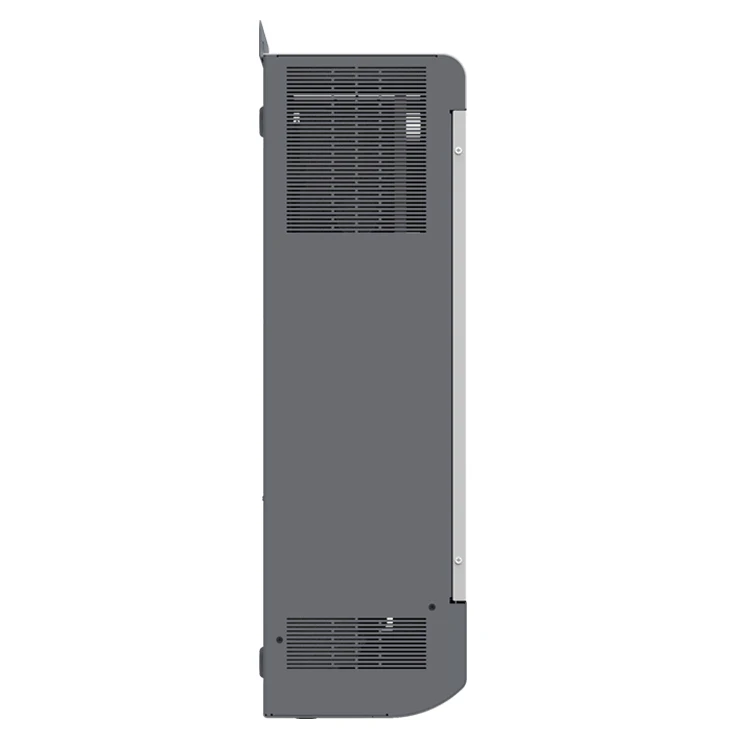

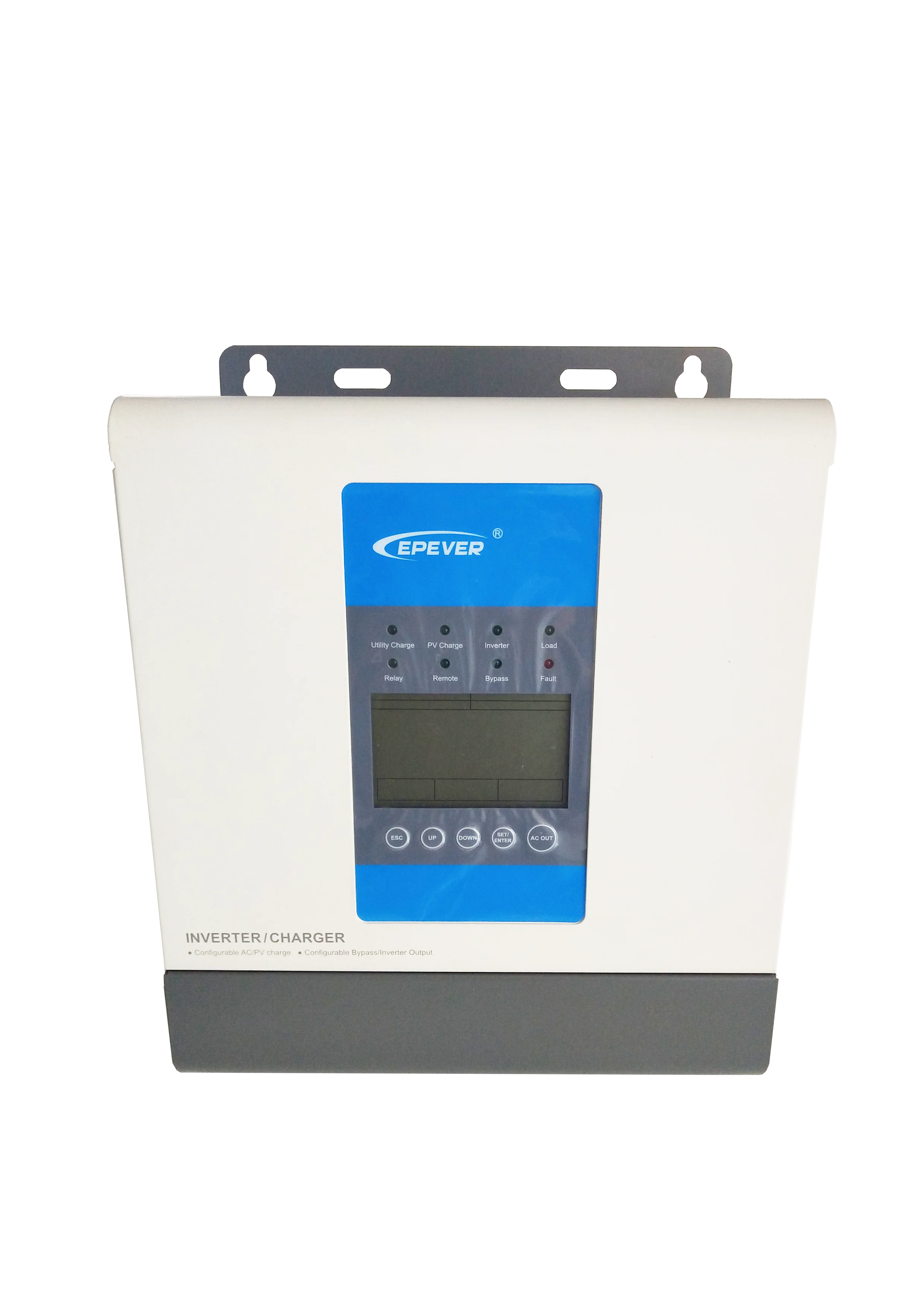

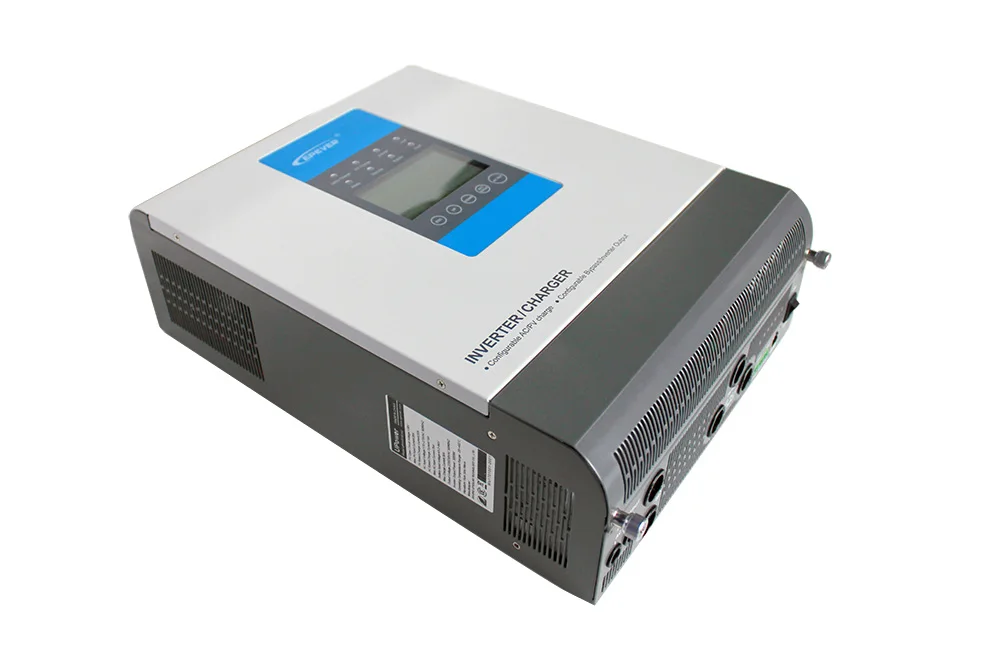

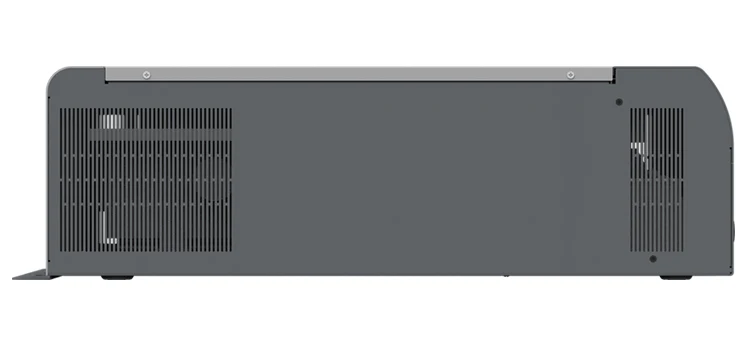

Details Images

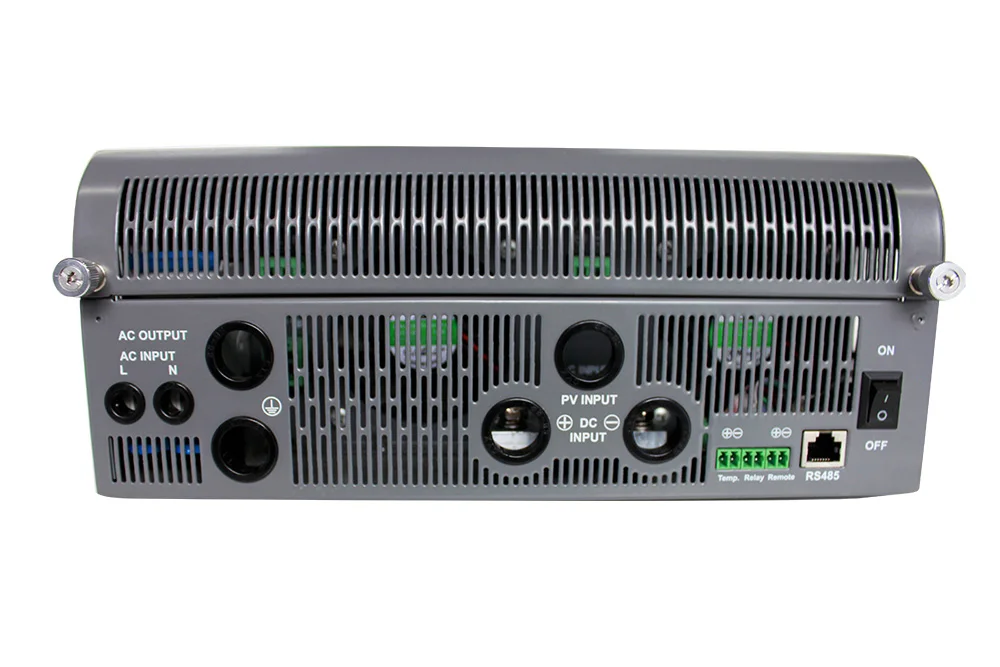

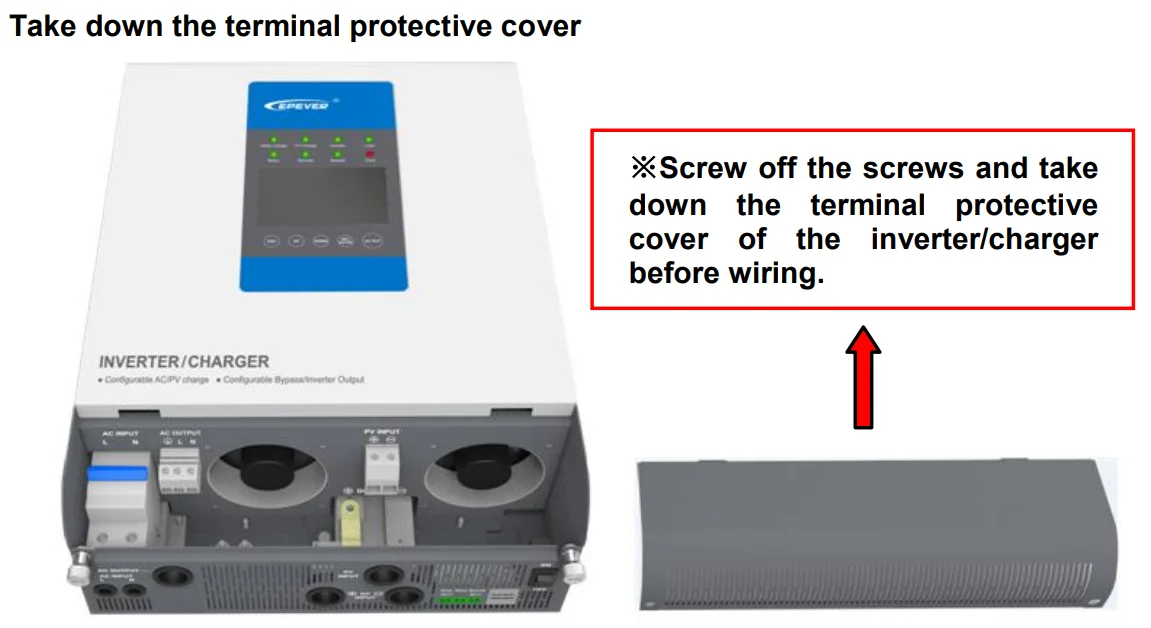

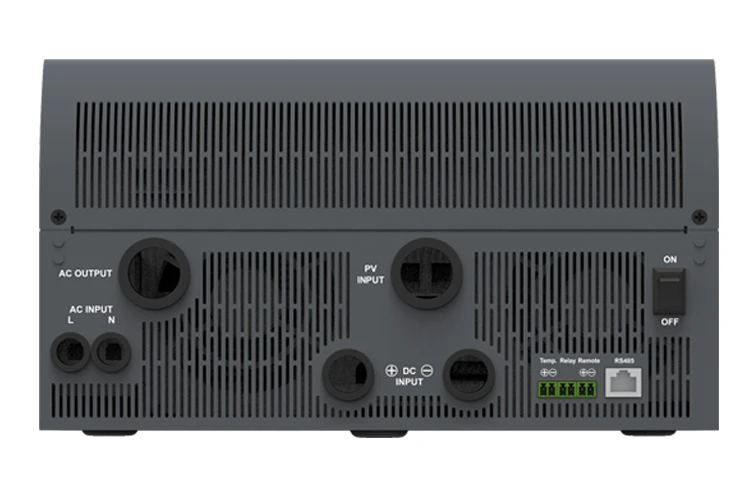

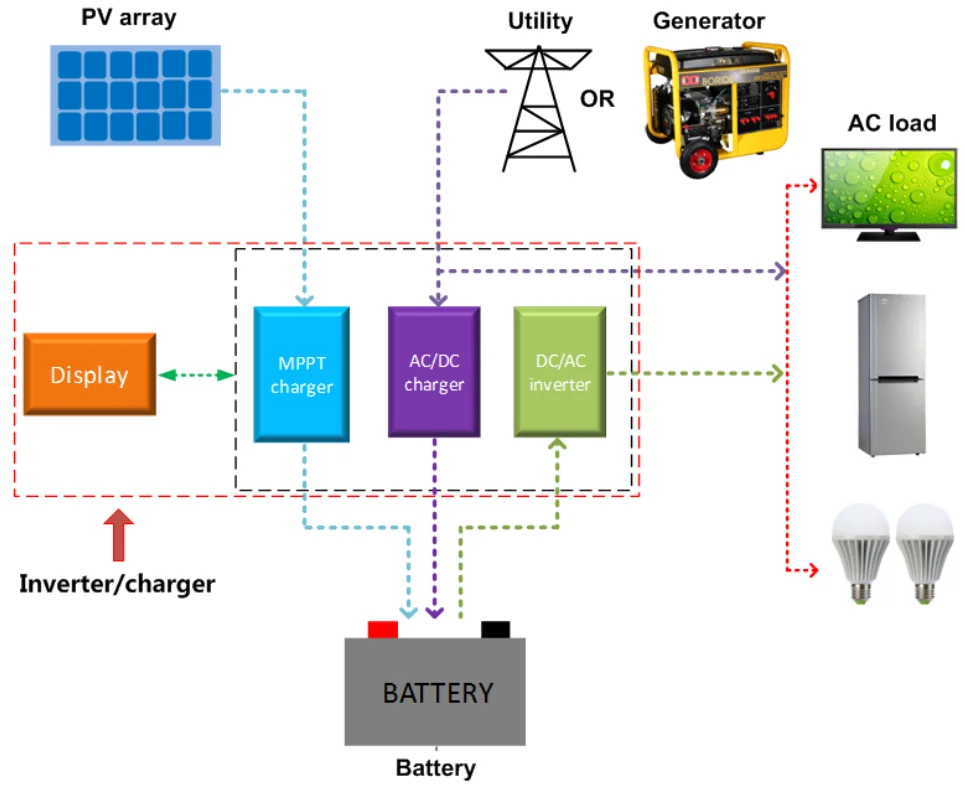

Wiring order & Accessories
Product Paramenters
Model | UP1000-M3212 | UP1000-M3222 | UP1500-M3222 | UP2000-M3222 | ||||
System battery voltage | 12VDC | 24VDC | ||||||
Battery input voltage range | 10.8～16VDC | 21.6～32VDC | ||||||
Inverter output | ||||||||
Continuous output power | 800W | 800W | 1200W | 1600W | ||||
Output power (15min.) | 1000W | 1000W | 1500W | 2000W | ||||
Overload power(5s) | 1600W | 1600W | 2400W | 3200W | ||||
Max. surge power | 2000W | 2000W | 3000W | 4000W | ||||
Output voltage range | 220VAC±3%,230VAC(-7%～+3%) | |||||||
Output frequency | 50Hz/60Hz | 150V① 138V② | 150V① 138V② | 150V① 138V② | ||||
Output wave | Pure Sine Wave | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | ||||
Distortion THD | ≤3%(12V or 24V resistive load) | |||||||
Inverter efficiency | 91% | 94% | 95% | 95% | ||||
Transfer time | 20mS | |||||||
Utility input | ||||||||
Utility input voltage range | 160VAC～280VAC(Working voltage range) 170VAC～270VAC(Utility starting voltage range) | |||||||
Max. utility charge current | 20A | 20A | 20A | 30A | ||||
Solar charging | ||||||||
Max. PV open circuit voltage | 60V ★ 46V ◆ | 100V★ 92V | ||||||
Max. PV input power | 390W | 780W | 780W | 780W | ||||
Max. PV charging current | 30A | 30A | 30A | 30A | ||||
Equalization voltage | 14.6V | 29.2V | ||||||
Boost voltage | 14.4V | 28.8V | ||||||
Float voltage | 13.8V | 27.6V | ||||||
Tracking efficiency | ≤99.5% | |||||||
Charging conversion efficiency | ≤98% | |||||||
Temperature compensate coefficient | -3mV/℃/2V (Default) | |||||||
Others | ||||||||
No load consumption | ≤1.2A | ≤0.6A | ≤0.6A | ≤0.8A | ||||
Enclosure | IP30 | |||||||
Relative humidity | < 95% (N.C.) | |||||||
Working environment temperature | -20℃～50℃（100% input and output） | |||||||
Mechanical Parameters | ||||||||
Dimension(mm) | 386×300×126 | 386×300×126 | 386×300×126 | 444×300×126 | ||||
Mounting dimension(mm) | 230 | |||||||
Mounting hole size | Φ8mm | |||||||
Weight | 7.3kg | 7.3kg | 7.4kg | 8.5kg | ||||
★At minimum operating environment temperature ◆At 25℃ environment temperature | ||||||||
Model | UP3000-M3322 | UP3000-M6322 | UP3000-M2142 | UP3000-M6142 | ||||
System battery voltage | 24VDC | 24VDC | 48VDC | 48VDC | ||||
Battery input voltage range | 21.6～32VDC | 21.6～32VDC | 43.2～64VDC | 43.2～64VDC | ||||
Inverter output | ||||||||
Continuous output power | 2400W | 2400W | 2400W | 2400W | ||||
Output power (15min.) | 3000W | 3000W | 3000W | 3000W | ||||
Overload power(5s) | 4800W | 4800W | 4800W | 4800W | ||||
Max. surge power | 6000W | 6000W | 6000W | 6000W | ||||
Output voltage range | 220VAC±3%,230VAC(-7%～+3%) | |||||||
Output frequency | 50Hz/60Hz | 150V① 138V② | 150V① 138V② | 150V① 138V② | ||||
Output wave | Pure Sine Wave | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | ||||
Distortion THD | ≤3%(12V or 24V resistive load) | |||||||
Inverter efficiency | 95% | 95% | 95% | 95% | ||||
Transfer time | 20mS | |||||||
Utility input | ||||||||
Utility input voltage range | 160VAC～280VAC(Working voltage range) 170VAC～270VAC(Utility starting voltage range) | |||||||
Max. utility charge current | 30A | 30A | 15A | 15A | ||||
Solar charging | ||||||||
Max. PV open circuit voltage | 100V★ 92V◆ | 150V★ 138V◆ | 150V★ 138V◆ | 150V★ 138V◆ | ||||
Max. PV input power | 780W | 1500W | 1040W | 3000W | ||||
Max. PV charging current | 30A | 60A | 20A | 60A | ||||
Equalization voltage | 29.2V | 29.2V | 58.4V | 58.4V | ||||
Boost voltage | 28.8V | 28.8V | 57.6V | 57.6V | ||||
Float voltage | 27.6V | 27.6V | 55.2V | 55.2V | ||||
Tracking efficiency | ≤99.5% | |||||||
Charging conversion efficiency | ≤98% | |||||||
Temperature compensate coefficient | -3mV/℃/2V (Default) | |||||||
Others | ||||||||
No load consumption | ≤0.8A | ≤0.8A | ≤0.6A | ≤0.6A | ||||
Enclosure | IP30 | |||||||
Relative humidity | < 95% (N.C.) | |||||||
Working environment temperature | -20℃～50℃（100% input and output） | |||||||
Mechanical Parameters | ||||||||
Dimension(mm) | 444×300×126 | 518×310×168 | 444×300×126 | 518×310×168 | ||||
Mounting dimension(mm) | 230 | |||||||
Mounting hole size | Φ8mm | |||||||
Weight | 9.2kg | 14.9kg | 7.3kg | 14.7kg | ||||
★At minimum operating environment temperature ◆At 25℃ environment temperature | ||||||||
Model | UP5000-M6342 | UP5000-M8342 | UP5000-M10342 | |||||
System battery voltage | 48VDC | 48VDC | 48VDC | |||||
Battery input voltage range | 43.2～64VDC | 43.2～64VDC | 43.2～64VDC | |||||
Inverter output | ||||||||
Continuous output power | 4000W | 4000W | 4000W | |||||
Output power (15min.) | 5000W | 5000W | 5000W | |||||
Overload power(5s) | 8000W | 8000W | 8000W | |||||
Max. surge power | 10000W | 10000W | 10000W | |||||
Output voltage range | 220VAC±3%,230VAC(-7%～+3%) | |||||||
Output frequency | 50Hz/60Hz | 150V① 138V② | 150V① 138V② | 150V① 138V② | ||||
Output wave | Pure Sine Wave | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | ||||
Distortion THD | ≤3%(12V or 24V resistive load) | |||||||
Inverter efficiency | 95% | 95% | 95% | |||||
Transfer time | 20mS | |||||||
Utility input | ||||||||
Utility input voltage range | 160VAC～280VAC(Working voltage range) 170VAC～270VAC(Utility starting voltage range) | |||||||
Max. utility charge current | 30A | 30A | 30A | |||||
Solar charging | ||||||||
Max. PV open circuit voltage | 150V★ 138V◆ | 200V ★ 180V ◆ | 200V ★ 180V ◆ | |||||
Max. PV input power | 3000W | 4000W | 5000W | |||||
Max. PV charging current | 60A | 80A | 100A | |||||
Equalization voltage | 58.4V | 58.4V | 58.4V | |||||
Boost voltage | 57.6V | 57.6V | 57.6V | |||||
Float voltage | 55.2V | 55.2V | 55.2V | |||||
Tracking efficiency | ≤99.5% | |||||||
Charging conversion efficiency | ≤98% | |||||||
Temperature compensate coefficient | -3mV/℃/2V (Default) | |||||||
Others | ||||||||
No load consumption | ≤0.8A | ≤0.8A | ≤0.8A | |||||
Enclosure | IP30 | |||||||
Relative humidity | < 95% (N.C.) | |||||||
Working environment temperature | -20℃～50℃（100% input and output） | |||||||
Mechanical Parameters | ||||||||
Dimension(mm) | 614x315x178 | 614x315x178 | 614x315x178 | |||||
Mounting dimension(mm) | 230 | |||||||
Mounting hole size | Φ8mm | |||||||
Weight | 16.6kg | 17.5kg | 17.8kg | |||||
★At minimum operating environment temperature ◆At 25℃ environment temperature | ||||||||
