Вольфрамовая фольга 0,1 мм для теплового экранирования

Product Overview

Description

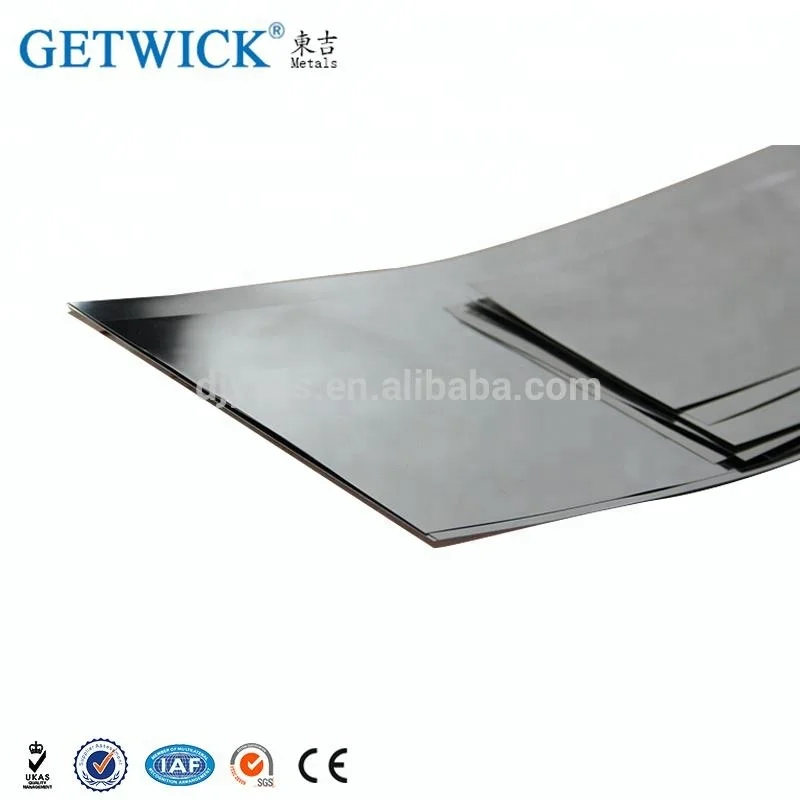

0.1mm Tungsten Foil Used for   Heat Shielding

Item: 0.1mm Tungsten Foil Used for  Heat Shielding

Materials: W1

 Surface: Black and polishing,Alkaline clean surface

Purity: 99.95%

Density: 19.35g/cm³

Melting Point: 3410℃



Feature:

tungsten is the highest melting point of all metals.

low coefficient of thermal expansion.

very high level of dimensional stability.

Main Comp.W≥99.95
Other Content≤	Fe	0.0026	Al	0.0006	Si	0.001
	Ca	0.001	Ni	0.0009	O	0.0018
	Cu	0.0005	N	0.0015	Pb	0.0001
	Sn	0.0001	Sb	0.001	As	0.001
	Cd	0.0001	Mg	0.0006	C	0.002
	Bi	0.0001	Mo	0.003

Normal specification we can provide:

Tungsten Plate/Sheet /Foil
Thickness(min) mm	Width(max) mm	Length(max) mm
0.05	150	500
0.06~0.09	250	500
0.1	300	500
0.12	320	550
0.15	350	600
0.2~0.6	400	1000
0.7~0.9	400	1000
1~2	450	1000
2~10	450	1000
10~15	450	500
15~25	300	500



Application

For producing electric light source parts and electric vacuum components

For producing heating elements and refractory parts in high temperature furnaces

Used as electrodes in the field of rare earth metal industry

Used in military of some aspects

For medical aspects

Be used to make decorations and etc.
