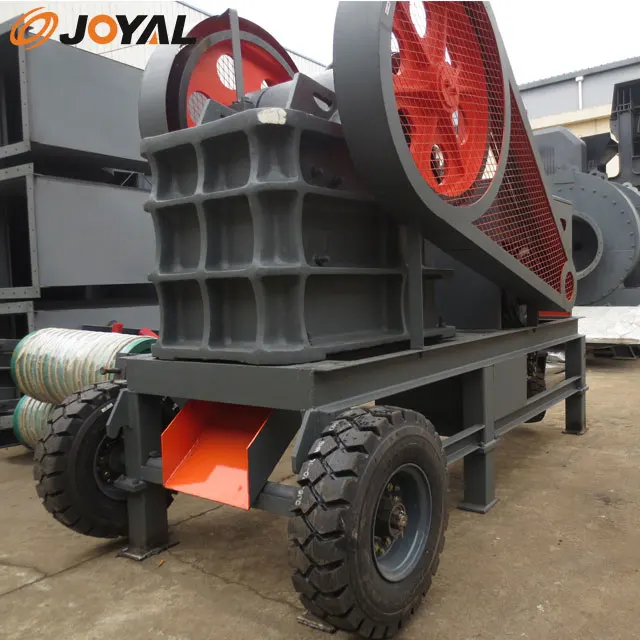

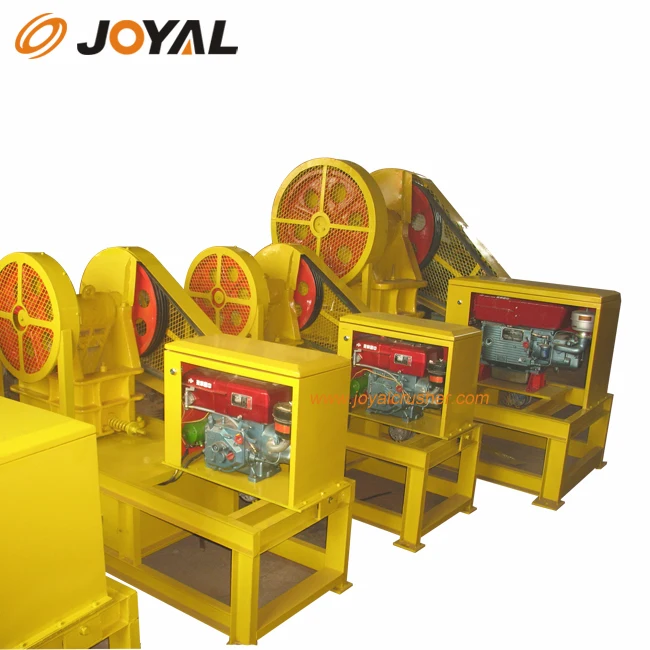

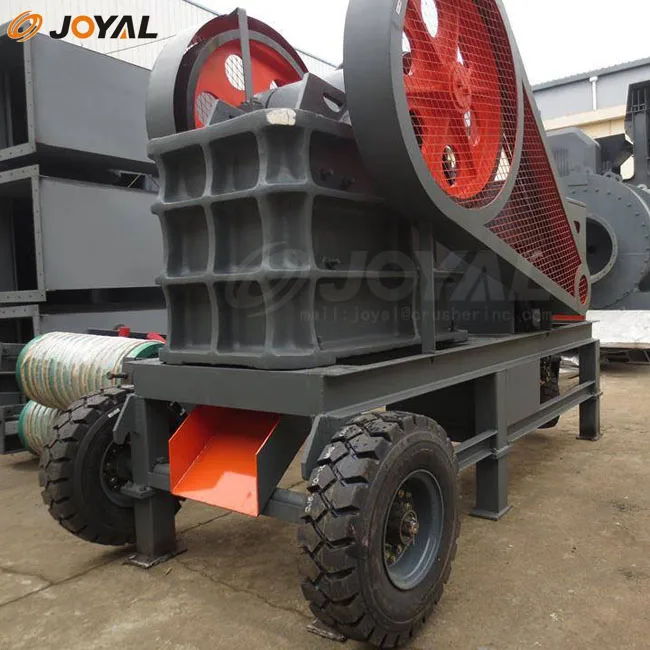

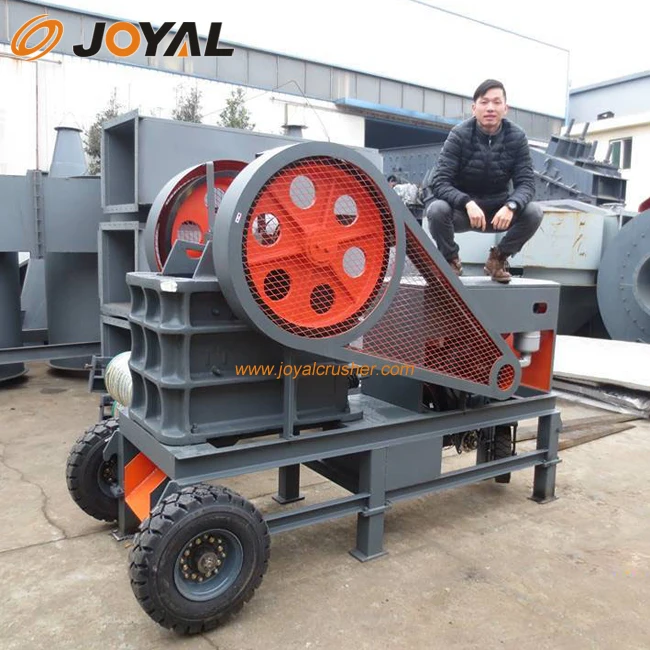

Introduction of mini diesel engine crusher
mini diesel engine crusher is mainly used in some place that donnot have enough electricity or without electricity. The Diesel Engine Rock Crusher can do the middle or fine crushing for every kind of rocks and stones
Features of Diesel Engine Rock Crusher in my company Shanghai Joyal Mining Machinery Co., Ltd.:
The Diesel Engine Rock Crusher is in compact structure, easy usage and simple operation. We also can do portable (mobile) ones as clients’ request.

Main Specifications of mini diesel engine crusher
Model | Feeding Size (mm) | Discharging Size (mm) | Capacity (t/h) | Power for Diesel engine (kw) | Weight (kg) | Overall Dimension (mm) |
PEC1525 | <125 | 10-40 | 1-3 | 5.7 | 920 | 1836×1030×1408 |
PEC2540 | <200 | 20-50 | 5-20 | 15.5 | 3150 | 2805×1210×1860 |
PCC3040 | <70 | ≤12 | ≤8 | 11.5 | 960 | 2210×1195×1360 |
PCC4060 | <100 | ≤15 | ≤15 | 23 | 1650 | 2612×1205×1670 |
