Product Overview

Description

Product Description

Product Application

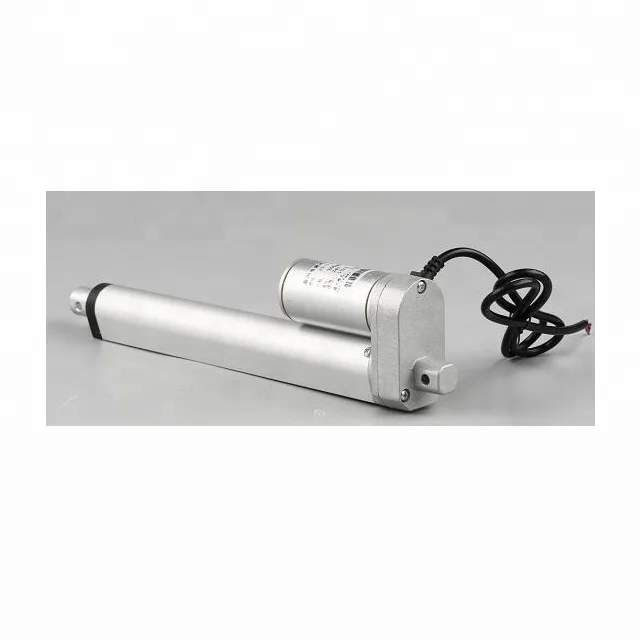

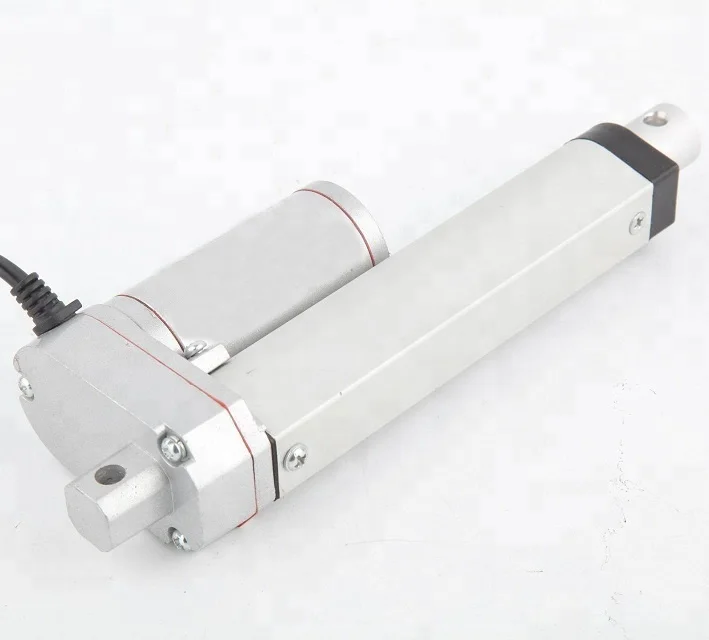

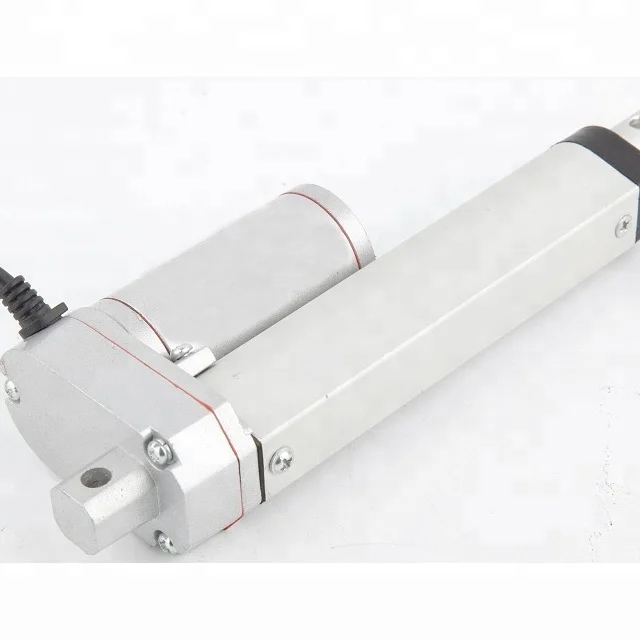

G-motor's IMD6 series is min linear actuator used for medical equipment,furniture equipment,lawn mower,automatic equipment,farming machine,industry and so on.This small linear actuator is designed to be compact size,high speed,and simple installation.

SPECIFICATIONS FOR linear actuator 12v
Product name
electric linear actuator
Duty Cycle
25% (function 2.5minutes in 10minutes)
Model
IMD6
Limited Switch
Inner,can not be adjusted after leave factory
Input voltage
12V/24V/36VDC
IP
IP65
Gear Ratio
7:1
Option sensor
Hall or potentiometer sensor
Speed
45mm/s
Front and rear hole
￠6.5 mm(￠8mm special request)
Load
75KG
Controller
Input220V,output24/12V,can be designed to drive several actuators together
Stroke
350mm
Static Load
500KGs
Environment Temperature
–26℃ ~ +65℃

Main Features

◆Mini series
◆Low noise design
◆Enhanced corrosion resistance
◆Aluminum outer and inter tube
◆Znic alloy housing
◆Powder metal gears

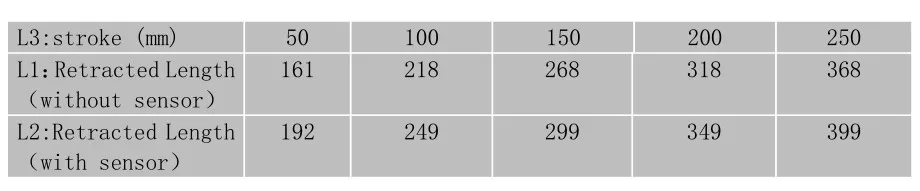

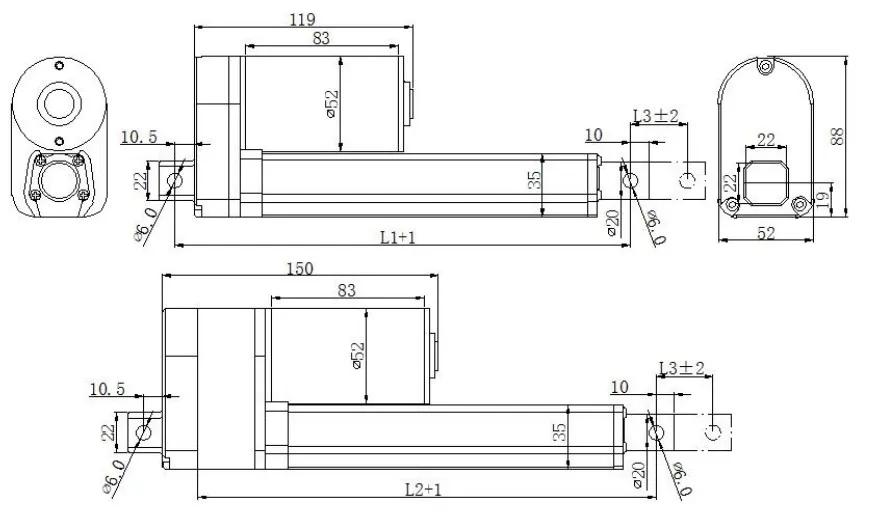

Dimension
Application example

This micro linear actuator can be used for medical equipment.

This compact size linear actuator can be used for smart home.

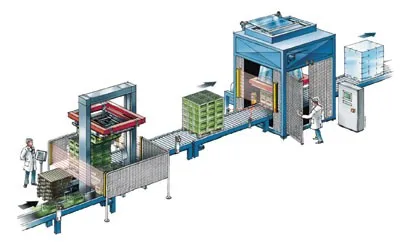

This fast speed linear actuator can be used for automatic equipment.

Certifications

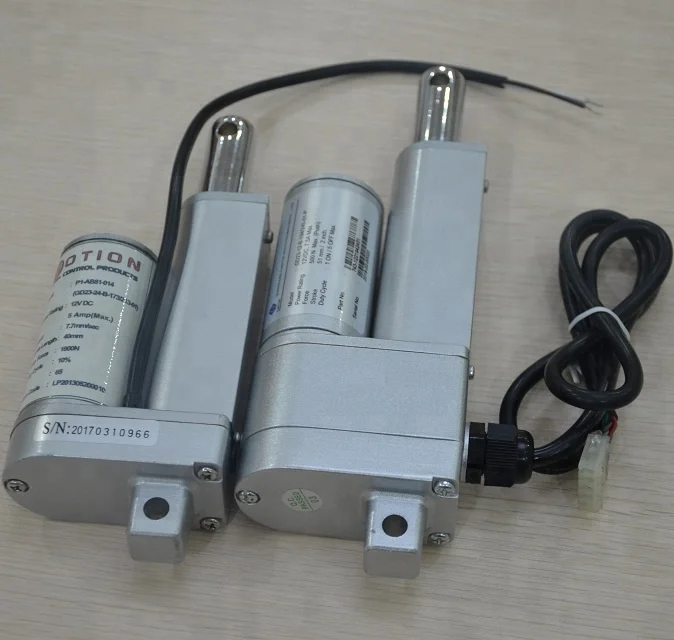

Detailed Images

Actuator accessories

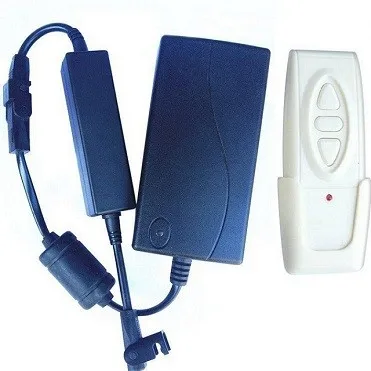

Name: Remote controller

Brand: G-motor

Original: China

The small linear actuator IMD6 series can be controlled by remote control.G-motor provides remote controller and power supply if requested.

Actuator accessories

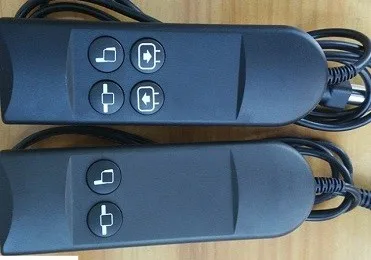

Name: Wire controller
Brand: G-motor
Original: China
This is wire controller,price is cheaper than remote controller.We provide different number of buttons for our clients to meet their different requirements,and the function of these buttons is different.

Actuator accessories

Name: Power supply(or called adapter)
Brand: G-motor
Original: China
G-motor provide different functions of power supply for different linear actuator.If you want to control several actuators at the same time,we can make it.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Instructions for use

*One year warranty.

Packing & Delivery
Packaging
Size
500 (L) * 215 (W) * 190 (D)(mm)
Weight
7.46KG/carton



Packaging Details
The normal package for sample is carton box(Size: L*W*H).Inside the carton box,there will fill with foam to protect the linear actuator from damage.There are four pcs in one carton box.We will also provide the drawing and test report inside the carton box.
Packaging
Size
various
Weight
various



Packaging Details
Batch order package is carton box and wooden pallet(Size: L*W*H),which is usually shipped by sea.The wooden pallet will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
