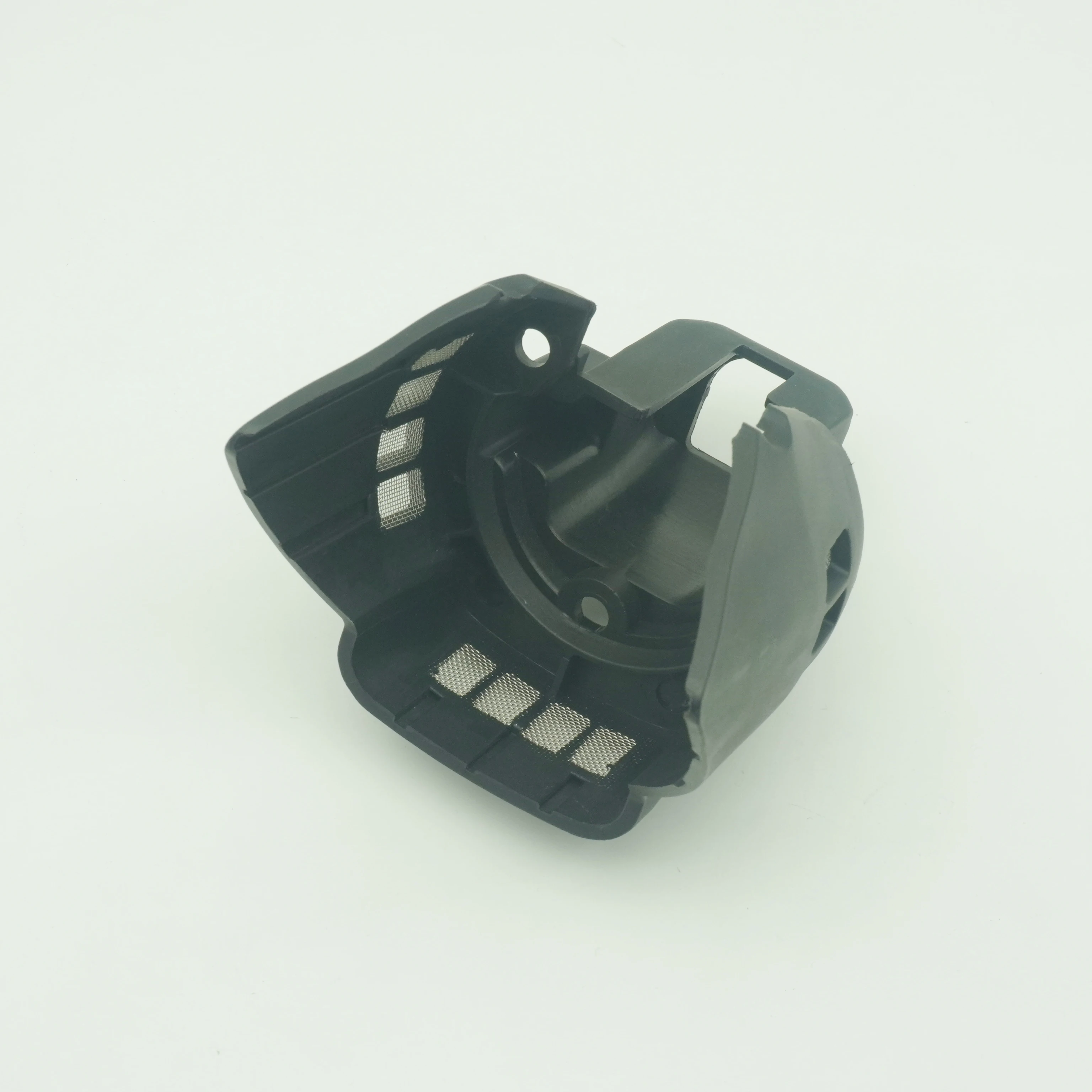

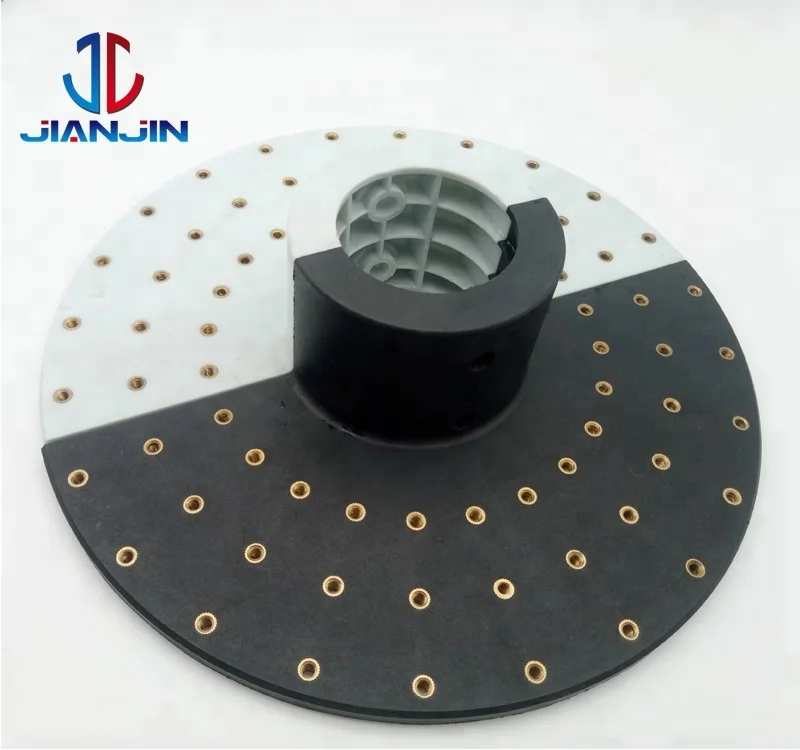

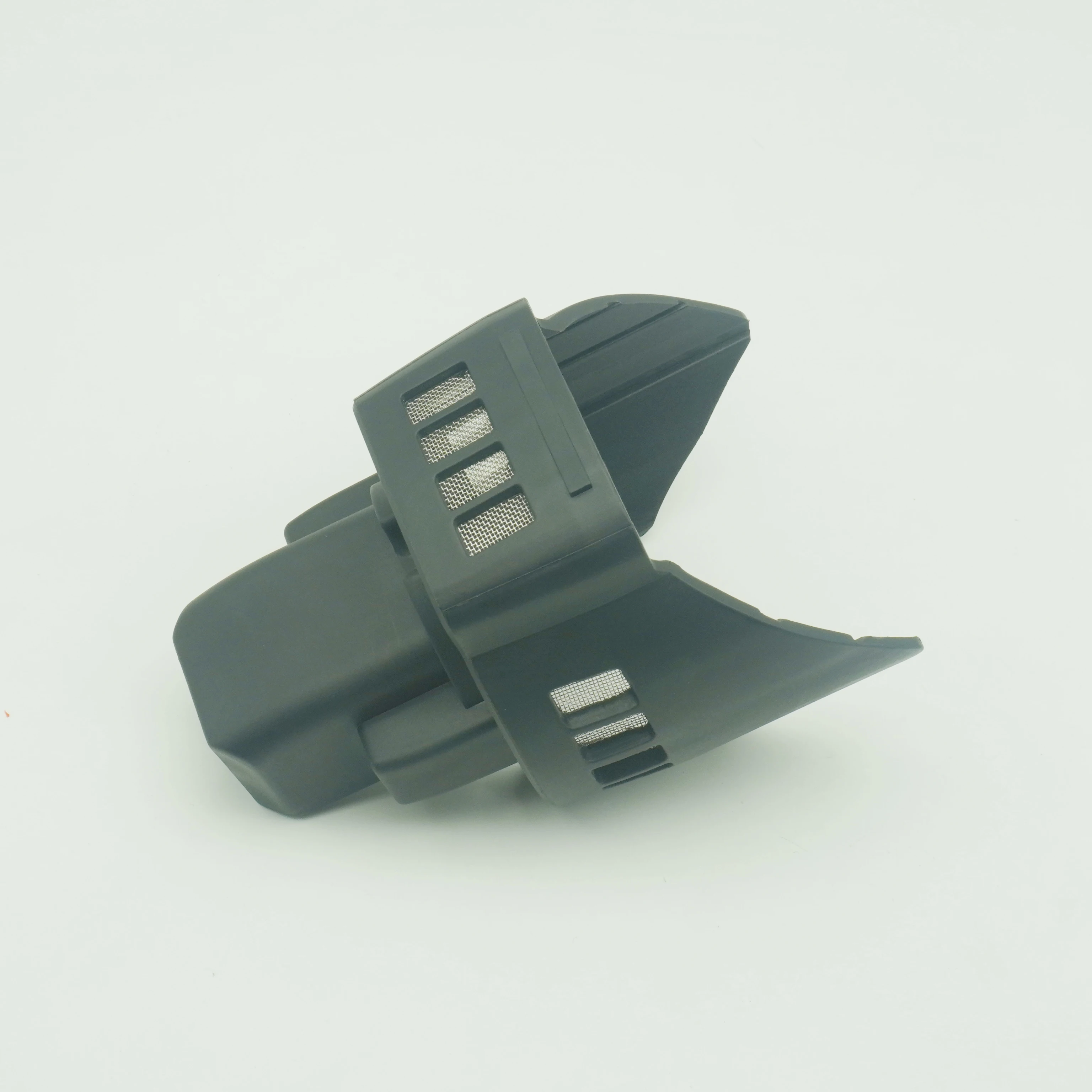

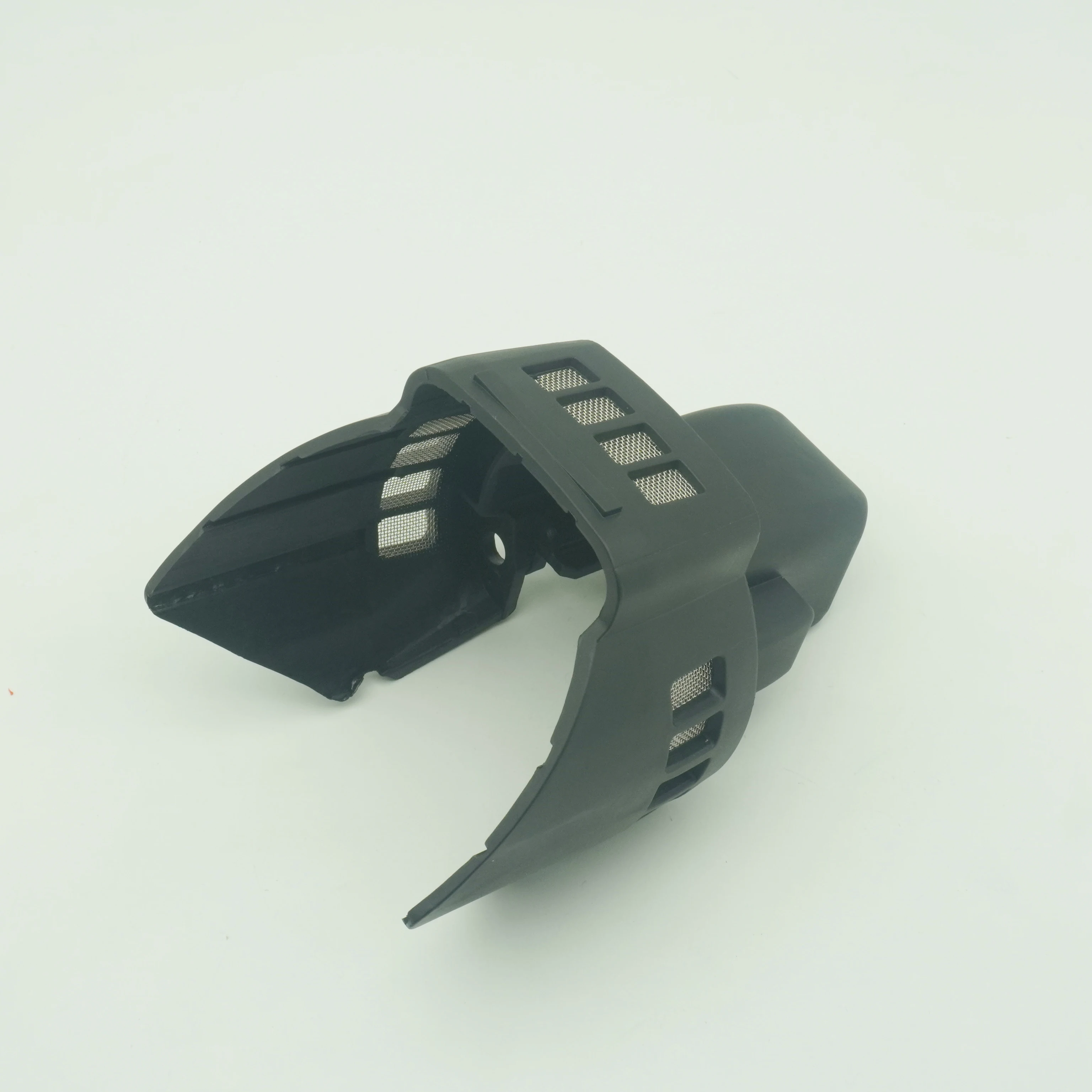

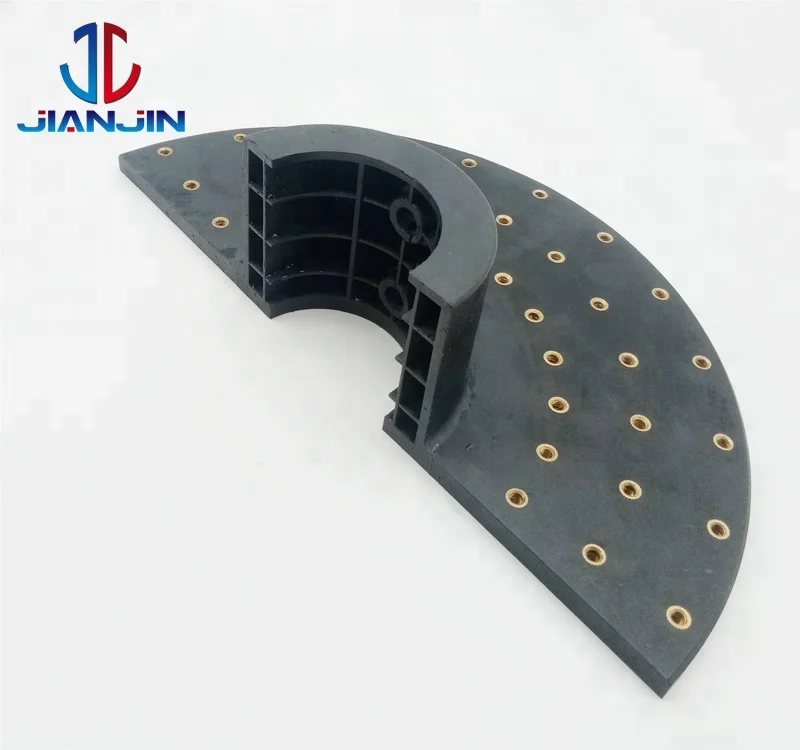

Manufacturers Plastic injection molding machine Insert Mold
- Category: >>>
- Supplier: Yuyao Jianjin Plastics Co. Ltd.
Share on (60792022104):
Product Overview
Description
Products Description
Mold product details
Mould Type | China Top Tool Maker MIM injection Multi-Cavity Moulding Mold |
Design Software | UG, ProE, Auto CAD, Solidworks, etc. |
Mould Material | 718H, P20, NAK80, S316H, SKD61, etc. |
Hardness of the steel | 20~60 HRC |
Mould Base | HASCO, DME, LKM, etc. |
Runner | Hot runner, Cold runner, as per customers requirement and part structure. |
Mould Cavity | Single-cavity or Multi-cavit, as per customers requirement and part structure. |
Ejection Techniques | Pin ejection, sleeve ejection, bar ejection, blade ejection, etc. |
Gate Type | Edge gate, sub-gate, pin gate, side gate, etc. |
Mould hot treatment | Quencher, Nitridation, Tempering, etc. |
Mould Cooling System | Water cooling or Beryllium bronze cooling, etc. |
Mould Surface | EDM, texture, high gloss polishing |
Mould Life | >500,000 shots |
Equipments | High speed CNC, standard CNC, EDM, Wire cutting, Grinder, Lathe, Milling machine, plastic injection machine |
Raw material of metal injection | 316L,17-4ph,420,440c,al203,zr02,si02,fe,ndfeb,smco5,fe-si,wc-co,fe-2ni,fe-8ni,ti,ti-6al-4v, etc. |
Lead time | 25~60 days |
Detail information of mould steel
Mould material | Mould hardness | Mould life |
P20 | HRC 29-33 | 300000 shot |
H13 | HRC >43 | 500000 shot |
718 | HRC 30-36 | 500000 shot |
S136 | HRC 48-52 | 1000000 shot |
2344 | HRC >48 | 800000 shot |
Manufacturing Process
1. Design molds
2. Purchase mold base & re&cavities material
3. CNC machining
4. EDM machining
5. Grinding &Driling machining
6. W-cut machining
7. Design molds
8. Assembly molds
9. Trial run TO samples
10. Inspection samples.
11. Silk screen logo
12. Batch production and delivery after sample confirmation
Our Service
Why Choose Us
ADVANCED EQUIPMENTS
Imported sophisticated production and testing equipment with high stability
RICH EXPERIENCE
More than 10 years of experience in plastic injection molding, independent design and developing capability.
HIGH QUALITY,COMPETITIVE PRICE AND
FAST DELIVERY TIME
Own the factory under a systematic management, professional team and flexible production time to guarantee the satisfying service.
ONE-STOP SERVICE
Customer Photos
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q: Which kind of product can you do?
A: Plastic injection molding and mass production for plastic parts.
Q: Which kind information need for quotation?
A: 1) Sample photo with size or 2D/3D design
2) Product material
3) The quantity
4) Runner type, cold or hot
5) Mould steel type, P20, 718, 2738, H13, S136, 2316, an so on.
Q: I have no 3D drawing, how should I start the new project?
A: You can supply us a sample or tell me your idea,we will help to finish the 3D drawing design.
Q: How long will be the injection mold finished?
A: Usually it will take about one month to finish the mold
Q: How about the samples?
A: After mold finished. We will make some samples for you to check as soon as we finish the mold and then deliver the samples for you to check.
Q: How about the mould modify?
A: You can tell us your comment about the samples after you receive them.If there is any dimension different from the drawing,we will modify the mold for free in our side and ther make the new samples
Q: How about the proprietary rights of the plastic injection mold?
A: Customer paid the mould so it all belong to Customer.
