Lab Rotational Oil Food Rotational Viscometer NDJ 1 Manufacturer Viscosity Meter Rotational Viscometer

Product Overview

Description

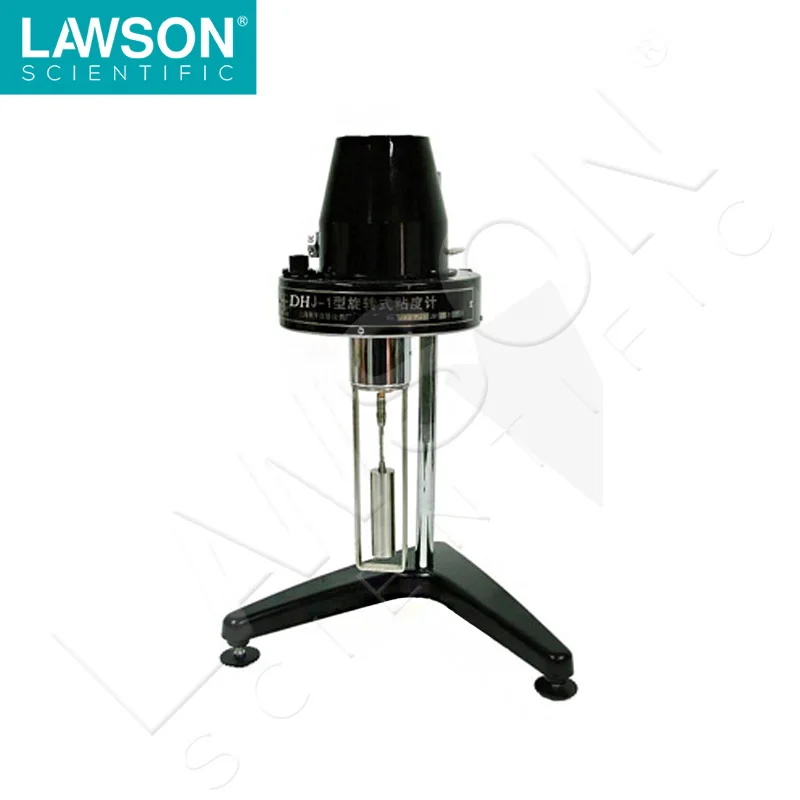

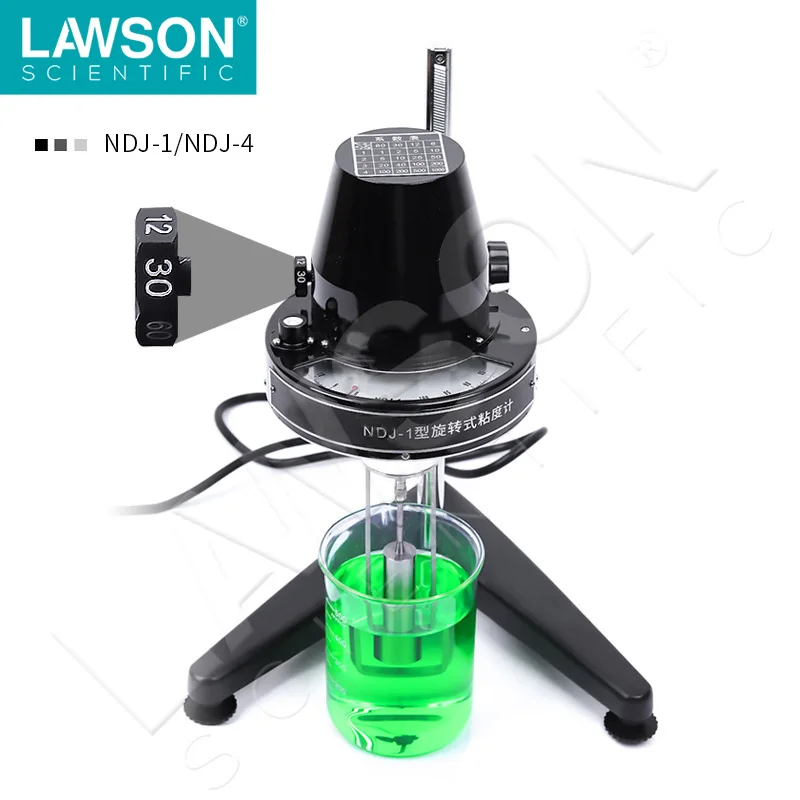

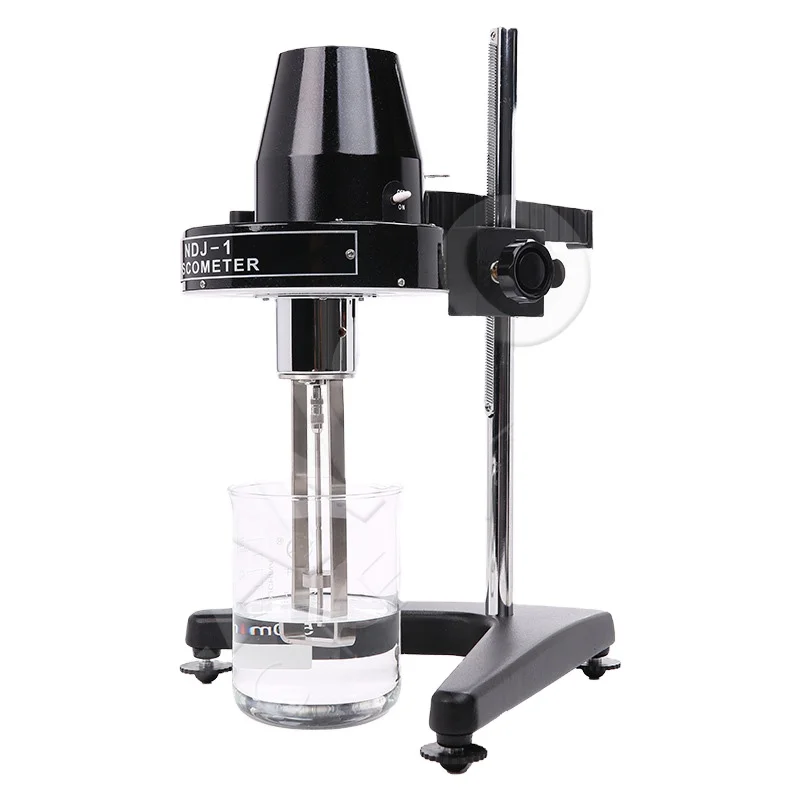

 Pointer rotary viscometer NDJ-1



The Pointer rotary viscometer NDJ-1 has the characteristics of high sensitivity, reliable test results, convenient operation and beautiful appearance. It is used to measure the apparent viscosity of Newtonian liquid and the apparent viscosity of non Newtonian liquid. It can be widely used in oil, paint, plastics, drugs, ornaments, coatings, detergents and so on. Measurement of the viscosity of various objects.



Introduction:
The instrument is suitable to determine viscosity resistance and absolute viscosity of liquids. It is equipped with four spindles, so please select a suitable one as per the viscosity of liquids measured.

Purpose:
It is used to determine viscosities of oil greases, paints, plastics, foods, pharmaceuticals, adhesives, other liquids and various fluids.

*These are dial types, if you need digital type, pls contact us or search at our web.
*We have other viscometers for your reference,
rotary viscosimeter, Brookfield Viscometer, Engler viscosimeter, Storm Krebs viscometer and so on.
For Newtonian liquid and non-Newtonian liquid, high viscosity and low viscosity whether in large capacity or small capacity.



model(viscometer)	NDJ-1
Measurement Range(mPa·s)	1~1*105
Rotor Specification	1, 2, 3, 4#
Rotating Speed of Rotor(rpm)	3 / 6 / 12 / 30 / 60 rpm
Rotor	0# Optional
Automatic Switch	free selection of proper rotating speed or rotor number.
Stable Cursor	Strip-type cursor fully charged displayed when reading basically stable
Measurement Tolerance	±5%(newtonian liquid)
Voltage (V)	AC(220-240V 50HZ / 110-120V 60HZ)
Working Condition	Temperature 5-35°C,Relative humidity no more than 80%
Outline Dimension(mm)	400*370*160
Net Weight(kg)	6.1

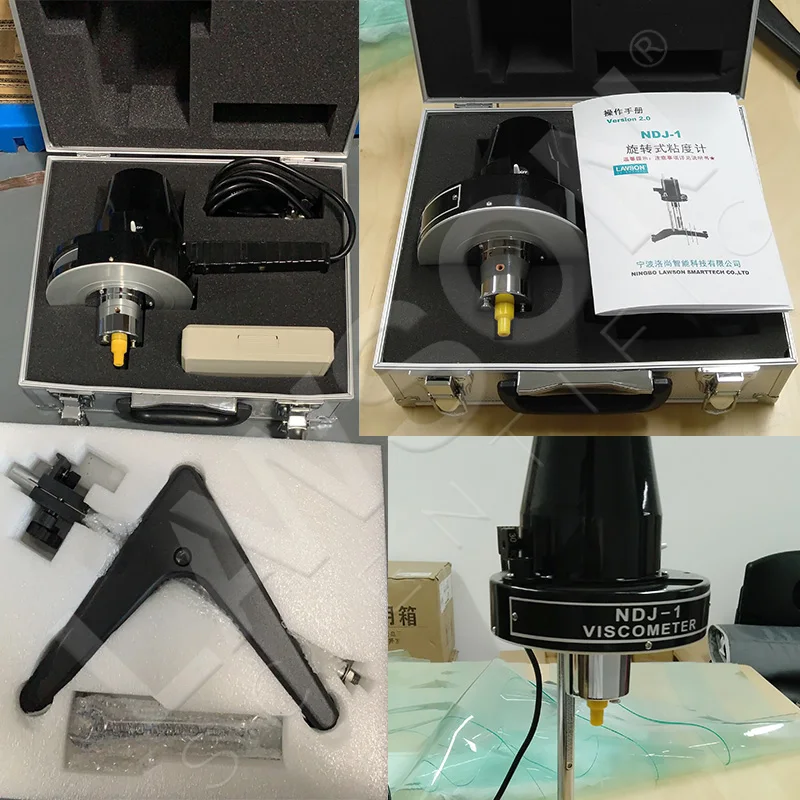

viscosity meter	1 pce
ascending and falling rack	1 set

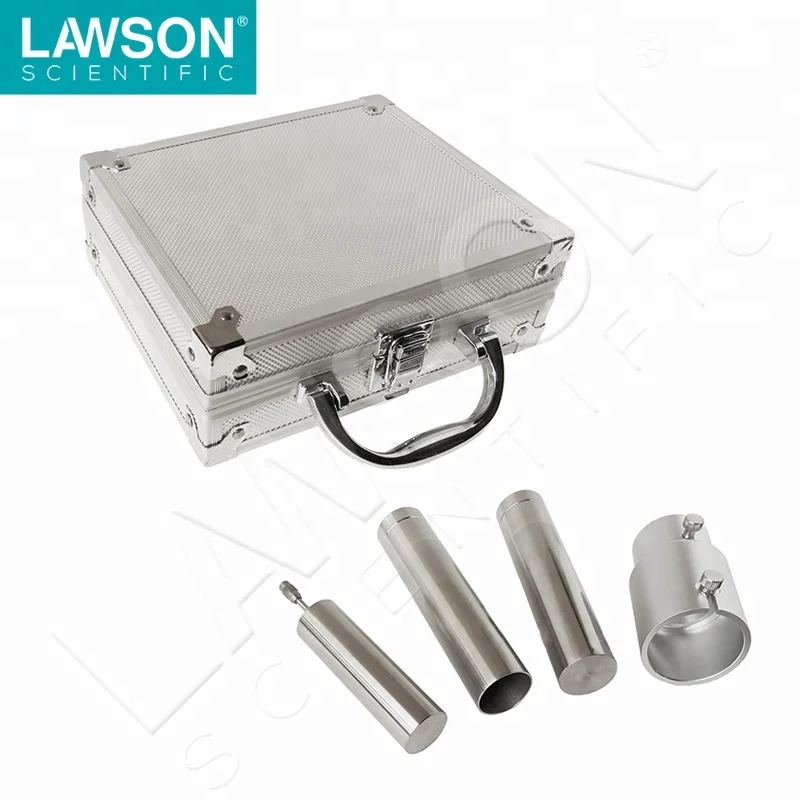

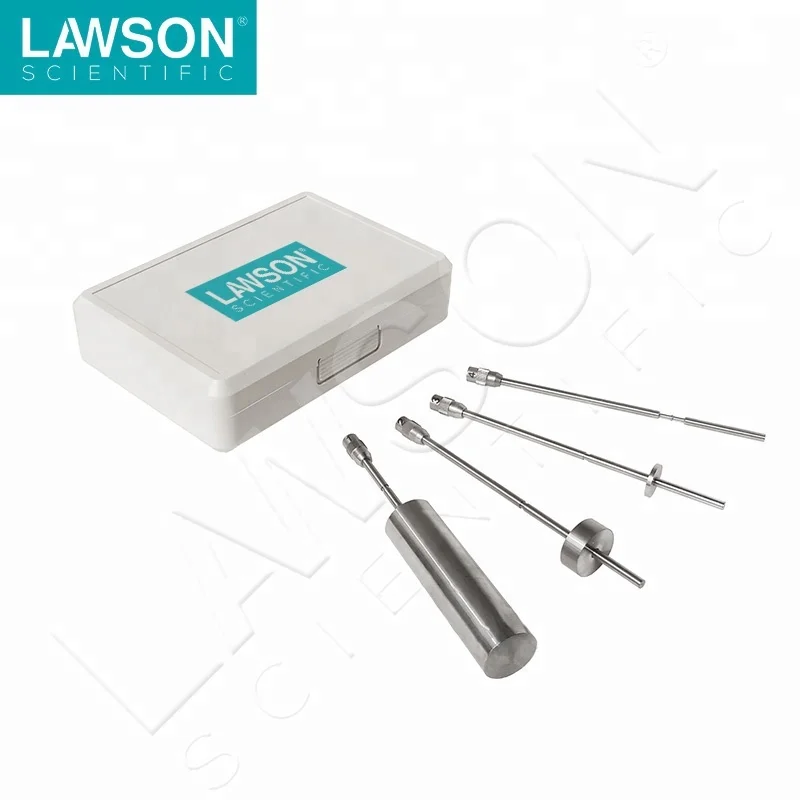

standard spindle	1 set
power adapter	1 pce
protective frame of spindle	1 pce
spanner	1 pce
Seat and leveling feet	1 set

1. one year warranty

2. don't have MOQ limit, you can order any quantity as need. if need specification, packing etc.contact me.

3. delivery time: 5 days for sample, 10 days for 100pcs, for more quantity, let's talk and confirm.
