BRIEF INTRODUCTION
The Pcx fine impact crusher is series of sand making machine, are designed for crushing ores and rocks with particle size no more than 500mm and compression strength no more than 320MPa. They enjoy features of high crushing ratio, high-efficient crushing, cubic shape of product, alternative crushing, etc. and they are ideal aggregate processing widely used in expressway, hydropower construction, airport and building industries.

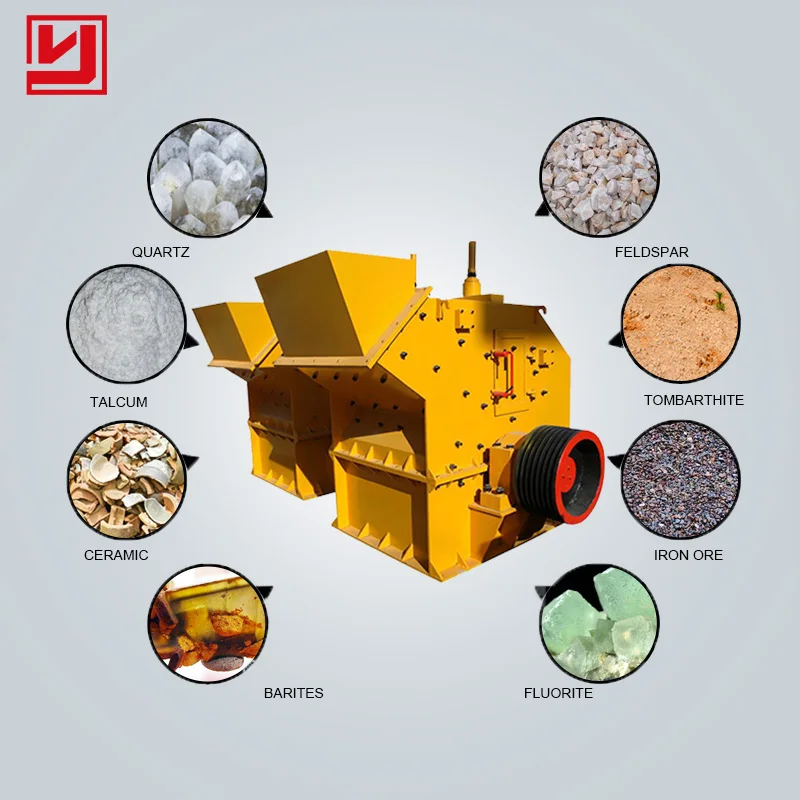

APPLIABLE MATERIALS
The Pcx fine impact crusher is widely used in fine crushing of many minerals, such as granite, basalt, limestone, cobble, cement clinker, quartzite, iron ore, and bauxite etc. And it can also produce the superior aggregate materials.

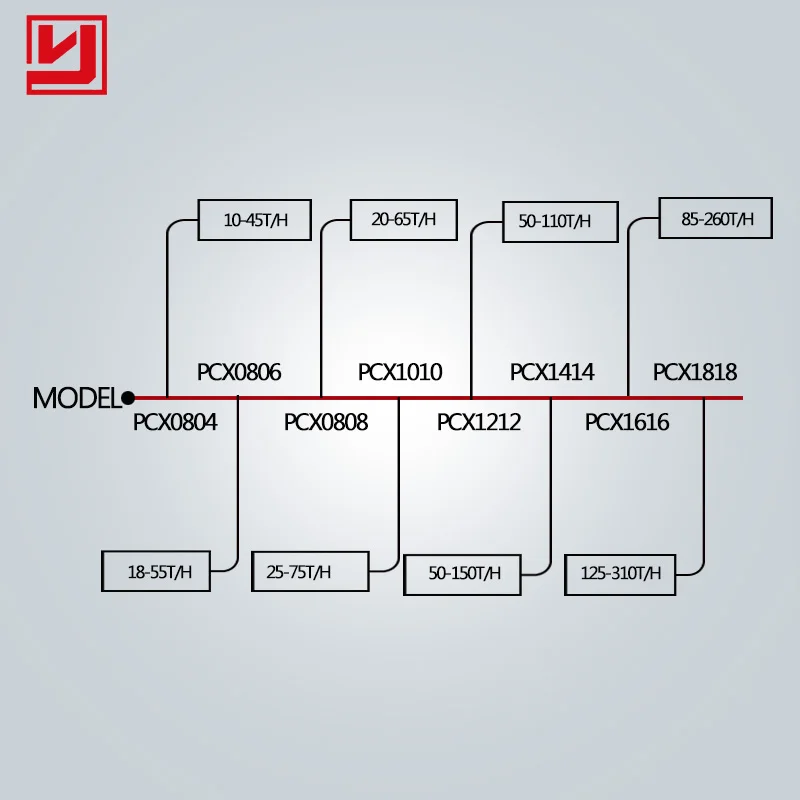

PRODUCT PARAMETERS
PCX fine | rotorø×width | rotorø×width | rotorø×width | rotorø×width | rotorø×width | rotorø×width | rotorø×width | rotorø×width |
(mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
Model | PCX0804 | PCX0806 | PCX0808 | PCX1010 | PCX1212 | PCX1414 | PCX1616 | PCX1818 |
Feed opening(mm) | 400×185 | 500×250 | 550×300 | 1000×350 | 1200×450 | 1500×500 | 1600×550 | 1800×800 |
Max feeding size(mm) | <120 | <180 | <180 | <180 | <180 | <190 | <190 | <190 |
Adjustable discharging opening(mm) | 5-10 | 5-10 | 5-10 | 5-10 | 5-10 | 5-10 | 5-10 | 5-10 |
Adjustment width of the discharge gap(mm) | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 |
Clinker(t/h) | 10-30 | 18-40 | 20-45 | 25-55 | 50-110 | 50-150 | 85-210 | 125-270 |
limestone(t/h) | 18-45 | 23-55 | 28-65 | 35-75 | 45-100 | 50-150 | 95-260 | 140-310 |
power(kw) | 37 | 37 | 45 | 55 | 110 | 160 | 250 | 315 |
weight(t) | 3.9 | 4.5 | 6 | 10.5 | 14.4 | 22 | 35 | 49.7 |
FAQ
Q1: Why choose YuHong machinery?
A1: 1. Up-to-date design, CAD calculation and simulation;
2. ISO,BV,SGS,CE quapty control manufacturing;
3. Over 30 years experience, export to over 50 countries;
4. Highest standard to suit operators' use;
5. World class quality at affordable price.
Remarks: The price will depend on different models. Reply message ,you will get 5% discount price.
Q2: What are the requirements for Pcx fine impact crusher material?
A2: Our Yuhong has a high standard on choosing material of Pcx fine impact crusher.
1.Using very high grade steel plate (i.e. Q235, Q345) on structuring part;
2. Using wear-resistant steel (i.e. ZG35, ZGMn13, 65Mn, 35CrMo, ZG60Si2CrA) on quick-wear parts;
3. The motor, reducer, bearing, belt, bolts are Chinese top 5 brands;
4. Metallurgy performance must be considered during designing, cutting, bending, fitting&welding.
Q3: What information do we need to provide you the reasonable model and best quotation?
A3: 1. What is the raw material?
2. raw material size before crushing?
3. material size after crushing?
4. What is the capacity per hour or per day?

HENAN YUHONG HEAVY MACHINERY CO., LTD.
Henan Yuhong Heavy Machinery Co.,LTD is a joint-stock mining machinery manufacturing enterprise integrated in scientific research,prodcution and marketing.our main products include five series ,they are the Crushing equipment ,Beneficiation equipment,Grinding Powder equipment ,Drying equipment ,Kilning equipment.YUHONG GROUP set off from "the customer for this " angle ,put self's whole heart to be that the customer provides the valuable service pattern,the effort using up 100% satisfies different customer product need.
