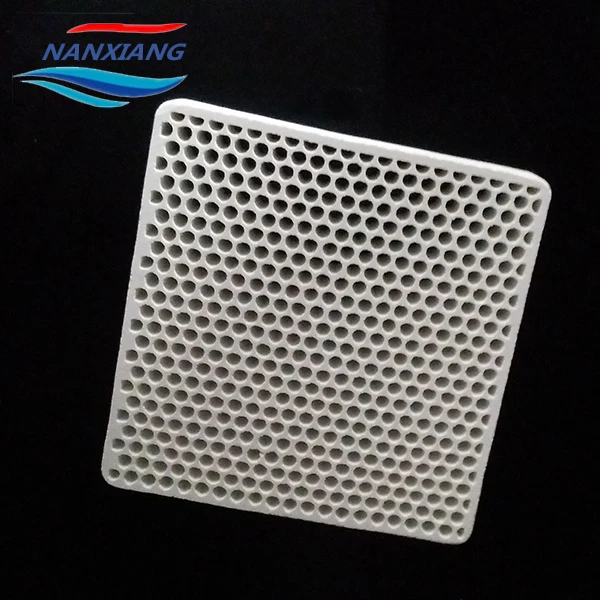

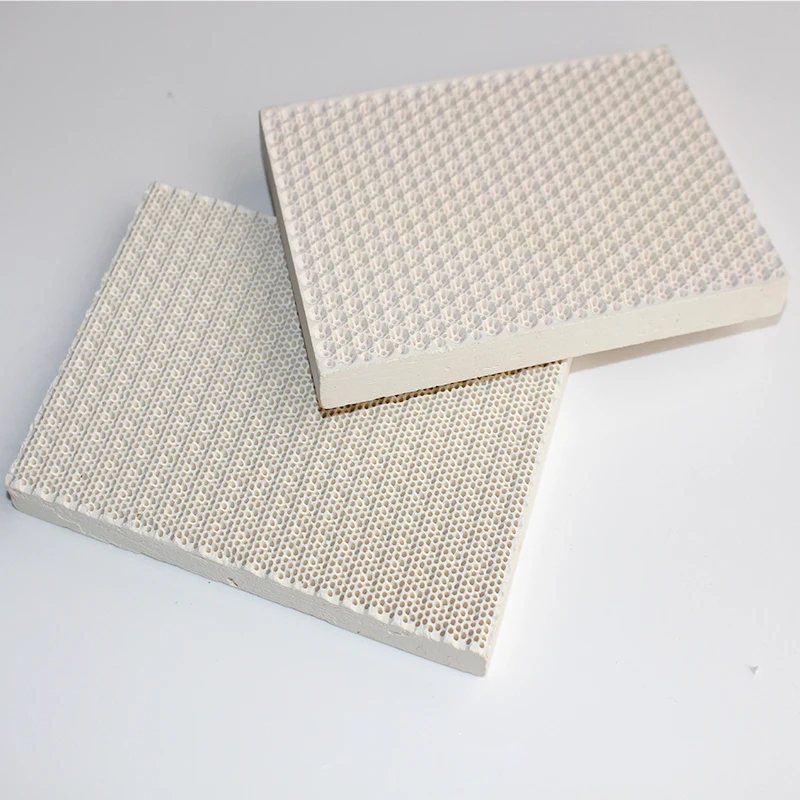

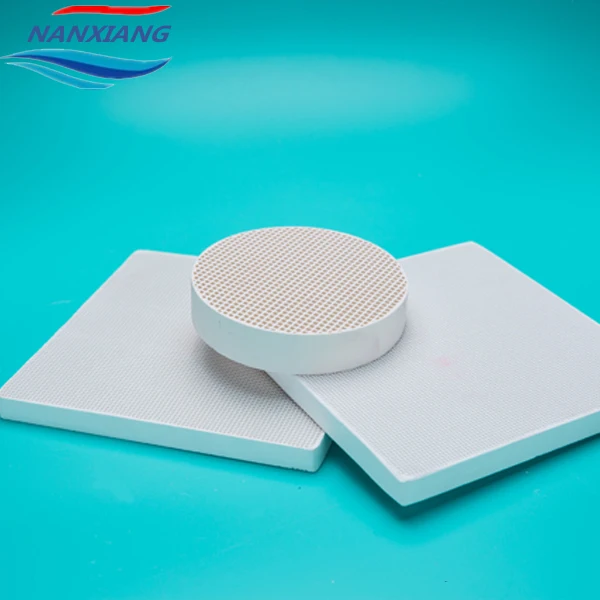

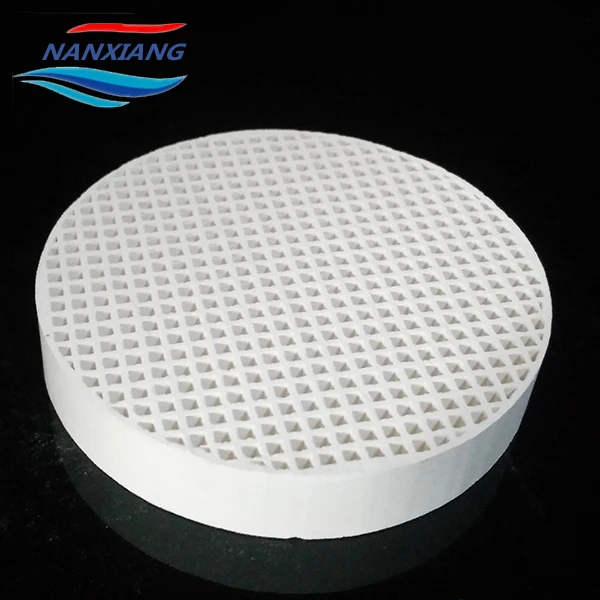

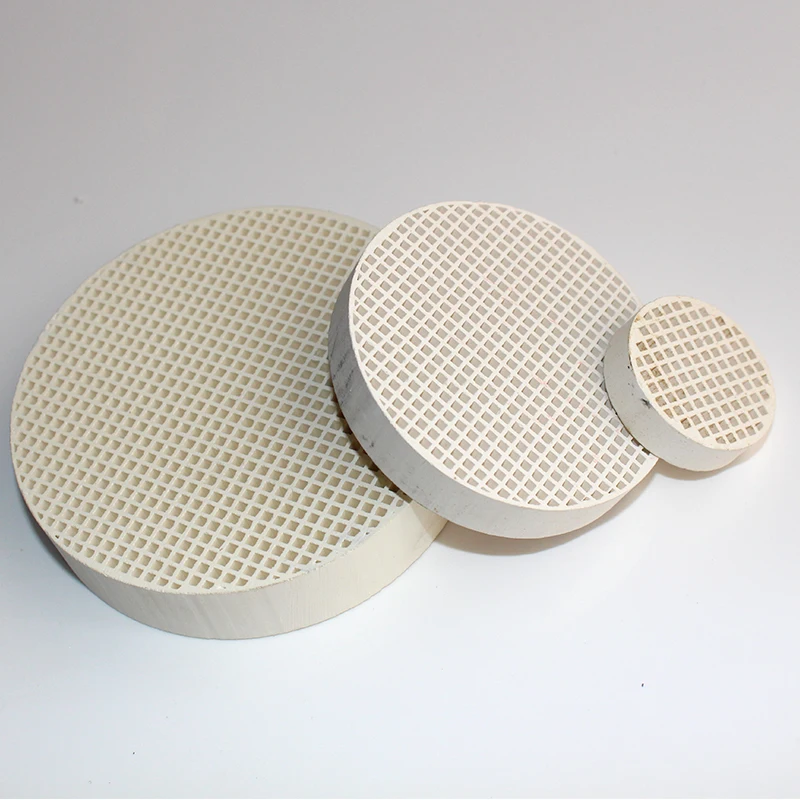

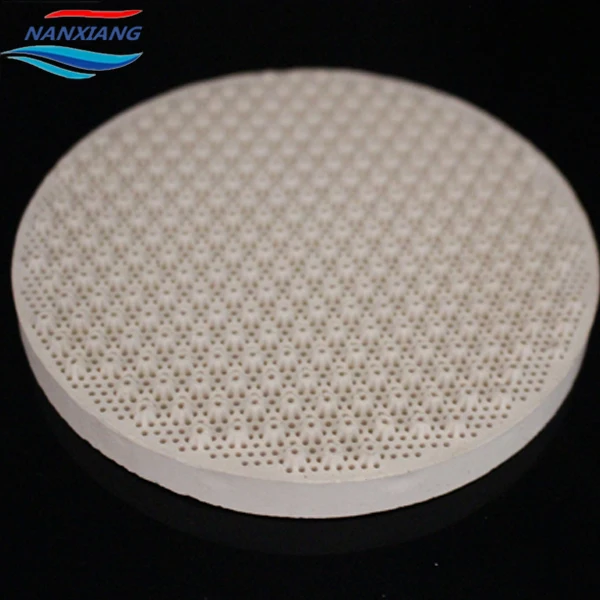

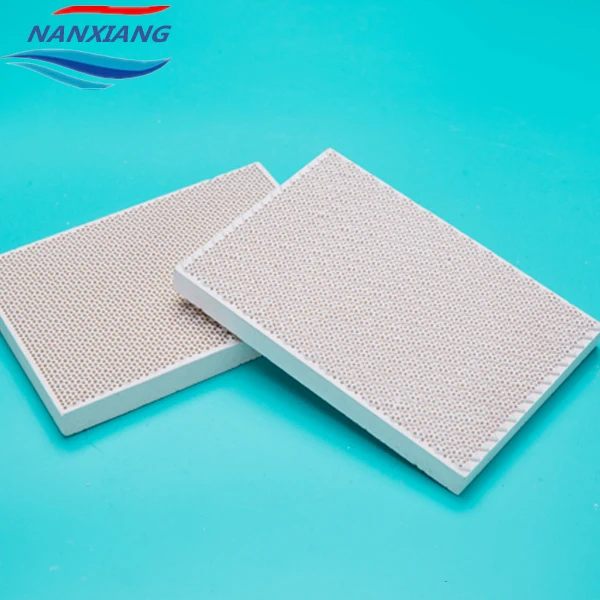

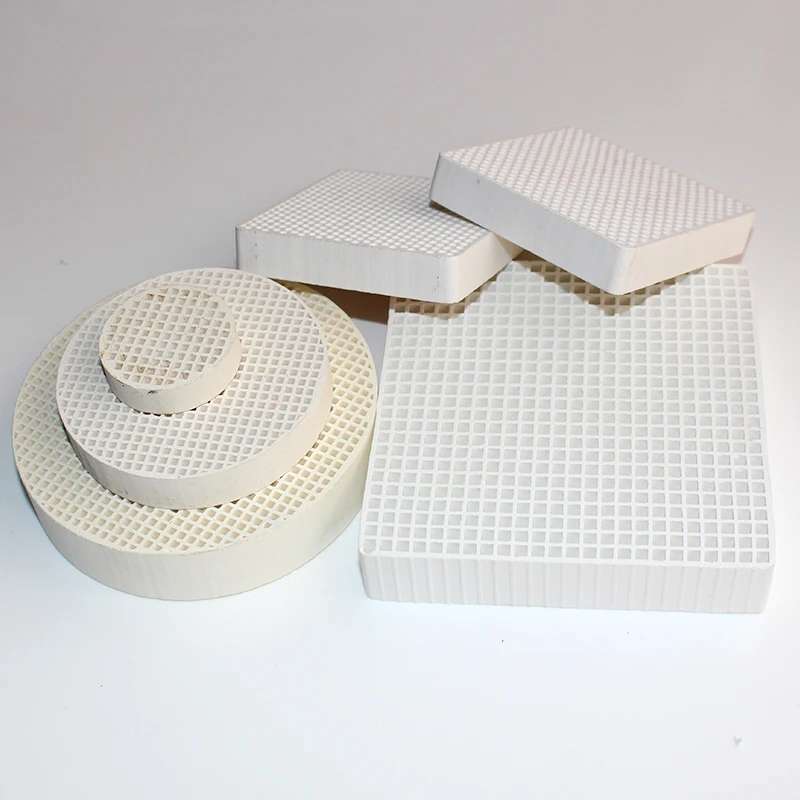

Honeycomb ceramic plates industrial infrared gas burners
Honeycomb ceramic plates industrial infrared gas burners
Introduction: Infrared honeycomb ceramic plate has an important application in the field of gas heating for technical ceramics. To improve the efficiency of heat exchange, radiation gas heaters should give out very little convection heat, and the wave length of radiation has to be in the infrared range. The gas flows through many parallel holes to the largest possible surface area for complete combustion.
Our developed Cordierite material has good resistance against mechanical and thermal shock under normal operating conditions.
Infrared Honeycomb Ceramic Plate, It's widely used in gas radiant heaters and plays the most important part in those applications. The interlaced corrugated surface of the ceramic tile combined with honeycomb design basis provides a superb surface area and working burning surface. We have also adopted the best raw material and new formula to maximize the micro-porosity of the tile. With all these advantages, the oxygen mix completely with the gas, burning without flame, emitting high efficiency far infrared ray and radiant heat, saving up to 40%-50% energy cost .
Technical Data:
Item | Index | Specifications |
Material | Cordierite | Round Size:Φ80×12.5mm, Φ100×50mm, Φ125×12.5mm, Φ150×12.5mm, Φ160×13.5mm, Φ168×13.5 mm Square Size:100×50×13.5mm, 132×68×13.5mm, 110×110×12.5mm, 132×76×13.5mm, 132×92×13.5mm, 158×72×13.5mm 198×136×13mm, 202×148×12.5mm |
Water absorption | 50.4% | |
Open Porosity | 61% | |
Specific gravity | 0.9-1.10Kg/cm3 | |
Temperature softening | >1280 °C | |
Cooking Surface Temperature | 1000-1200 | |
CO Release | ≤0.006% | |
NOx Release | ≤5ppm |
Packaging & Shipping
Our Services
1.Quality: Excellent quality is our first pursuite, we have strict quality contral by our QC team.
2.Capacity: Constantly introducing new equipment to meet clients production requirment and market changing
3.Team: Specilized in Chemical Packing for more than 12 years, professional export team give customer comprehensive service
4.Efficiency: 24 hours on line service to solve all your questions.(Email, Trademanager, Skype, MSN, WhatsApp, Telphone), Factory direct sale price will be provided in 24 hours.
5.Customized: size & shape could be made as customer requirments
6.Payment: Flexible and diverse payment ways can be chosen, make you more convenient
