Meat vacuum tumbler GR 400 600 800 for meat processing

Product Overview

Description

Meat vacuum tumbler GR-400-600 800 for meat processing

Customized machine is available , pls feel free to contact us.

-  Brief description of meat vacuum tumbler for meat processing :



1	This vacuum tumbler using the physical impact principle, tumbling the meat or meat filling in the chamber under vacuum situation, to massage and pickle the meat or meat filling.
2	Specialized designed circular arc type blade, distribute the marinade evenly without damage the surface of product.
3	Single-speed , double speed or frequency control are optional.





-  Main specifications of Meat vacuum tumbler for meat processing :



Model No.	GR-400	GR-600	GR-800
Capacity (kg/tank)	100	200	300
Motor power (kw)	2.2	2.2	2.2
Volume of mixing tank(L)	400	680	780
Speed of mixing shaft (r.p.m)	VFD or 15 r.p.m
Overall dimension (mm)	1280*820*1380	1330*1020*1573	1490*1020*1573
Machine weight (kg)	270	330	400

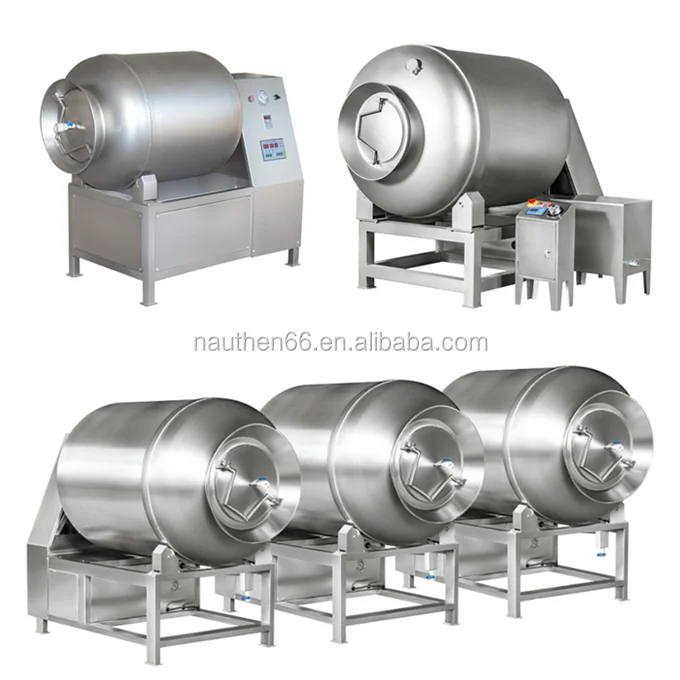

- Reference pictures of Meat vacuum tumbler for meat processing:
