Good Quality Articulated Arm Swing Gate Opener/Automatic Gate Opener Swing with Automatic Close Function

1) Used for articulated arm swing gate

2) Max open angle 120°

3) Soft start function, reverse push lock

4) Automatic close function, time is adjustable

5) Single door mode

6) Support Electronic lock, photocell, alarm lamp

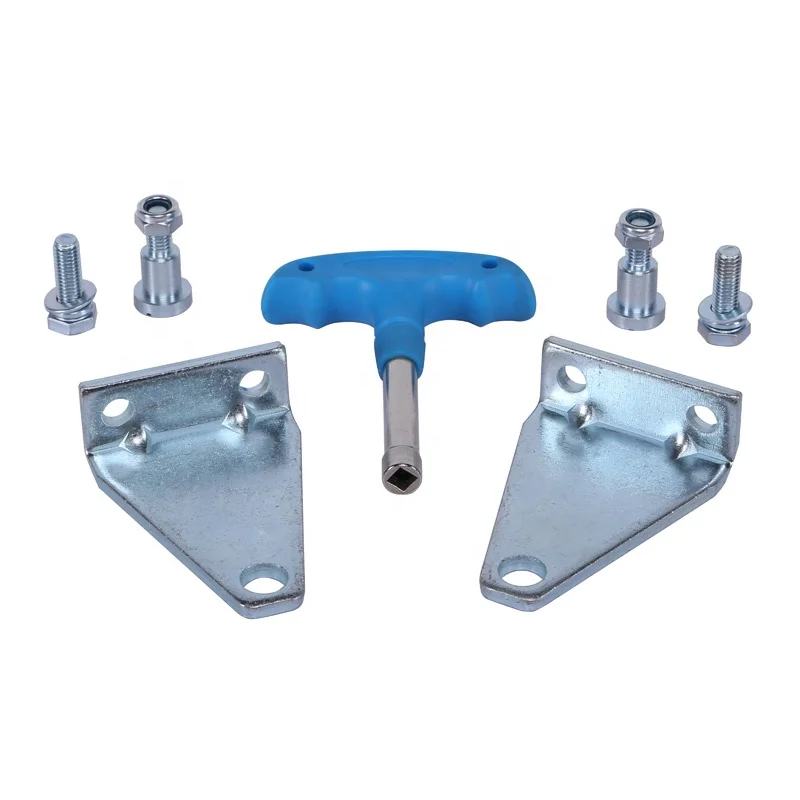

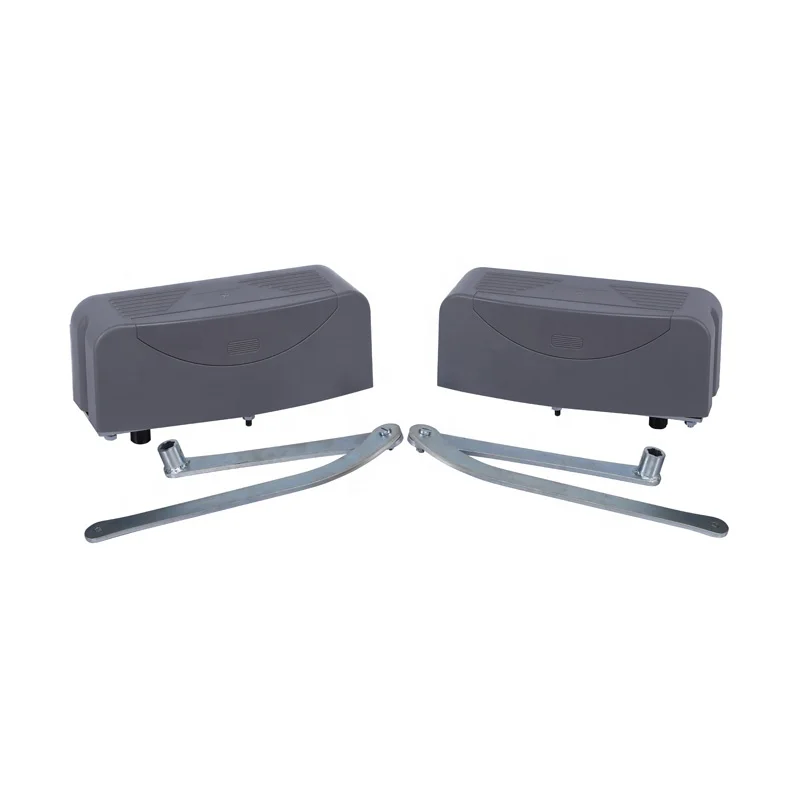

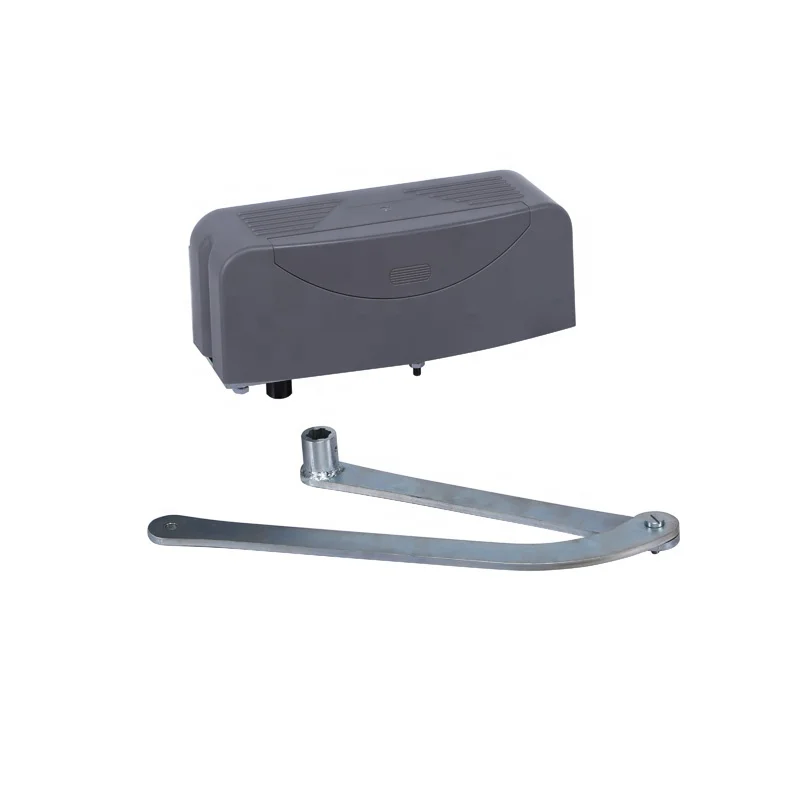

7) Standard configuration: 2 motors, 1 control box with board, 2 transmitters, 1 release bar, 2 crank arms, 2 connecting rods

8) Optional accessories: alarm wall lamp(20V/220V/110V),  photocell, wireless keypad, wireless wall button

Specifications



Model	PK400AC
Opening Time	10 s/90°
Motor Power	200W
Remote Control Distance	≥30m
Remote Control Mode	Single-button
Limit Switch	Mechanical limit switch
Max. Single Gate Weight	400KG
Noise	≤58dB
Working Duty	S2, 15min
Max. Remote Transmitter Qty.	25pcs
Working Temperature	-20℃~70℃
Power Supply	220V/50Hz(Optional: 110V/60Hz)
Weight	28KG



Tips:

This model is AC motor 400KG, if you need DC 24V motor 300KG, pls click it here;

For more types of swing gate openers, pls click here and check more!
