Product Overview

Description


Briture
Product Description

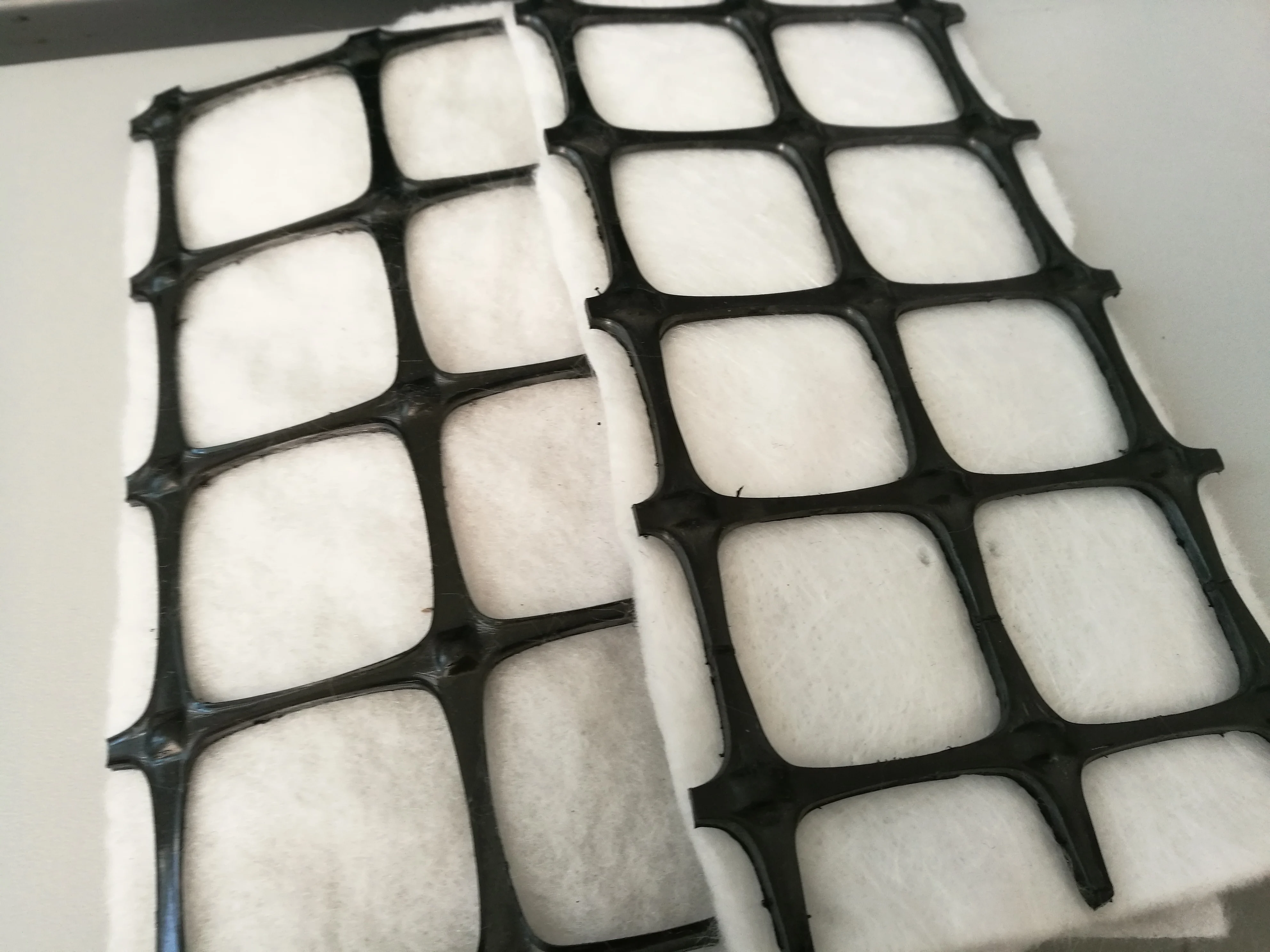

PP biaxial composite geogrid

Plastic PP geogrid composite geotextile is a compound product made of PP geogrid and PET geotextile,

especially designed for soil stabilisation and reinforcement applications. The composite geogrids are manufactured by bonding a biaxial geogrid to a nonwoven polyester geotextile.

Lab test for Tensile Strength


            Lab test for Creep


       Approved by TRI Austin Lab


Specifications
Index for PPBG C 30-30
Test method
Units
MD values
TD values
Polymer
-
-
PP
-
Minimum carbon black
ASTM D4218
%
2
-
Tensile strength @ 2% Strain
ASTM D6637
kN/m
10.5
10.5
Tensile strength @ 5% Strain
ASTM D6637
kN/m
21
21
Ultimate Tensile Strength
ASTM D6637
kN/m
30
30
Strain @ Ultimate Strength
ASTM D6637
%
13
13
Structural Integrity


Junction Efficiency
GRI GG2
%
90
90
Overall Flexural Rigidity
ASTM D1388
mg-cm
3,930,000
Aperture Stability
COE Method
mm-N/deg
1432
Dimension

Aperture Dimensions
-
mm
36
34
Minimum Rib Thickness
ASTM D1777
mm
2.1
1.8
Roll width
m
3.95
Roll length
m
50
Geotextile physical properties
Long filament PET needle punched nonwoven geotextile
Mass per unit area g/m2
ASTM D 5261
g/m2
150/200
Opening size mm
ASTM D 451
mm
0.07
Application

1,It can widely apply in the water conservation, the municipal administration,

2, The building,the transportation, the subway,the tunnel,

3, The environmental protection and so on.

Funcation

1, Improving bearing capacity of road foundation and  prolong its service life.
2, Preventing road surface from subsiding and cracking.
3, Be convenient for construction, reducing cost and maintaining expense for the project.
4, Providing stability for slopes and avoid the losing of the water and soil.

Packing & Delivery
PP Biaxial Geogrid
Width (M)
Length (M)
Quantity per 40`HQ (M2)
PPBG C 15-15
3.95
50
about36735 (186 rolls)
PPBG C 20-20
3.95
50
about26070 (132 rolls)
PPBG C 25-25
3.95
50
about17775 (90 rolls)
PPBG C 30-30
3.95
50
about11850 (60 rolls)
PPBG C 40-40
3.95
50
about9875 (50 rolls)
