Пневматический цилиндр из нержавеющей стали
- Category: Cylinders >>>
- Supplier: Ningbo Xinchao Automatization Component Co. Ltd.
Share on (60792182887):
Product Overview
Description

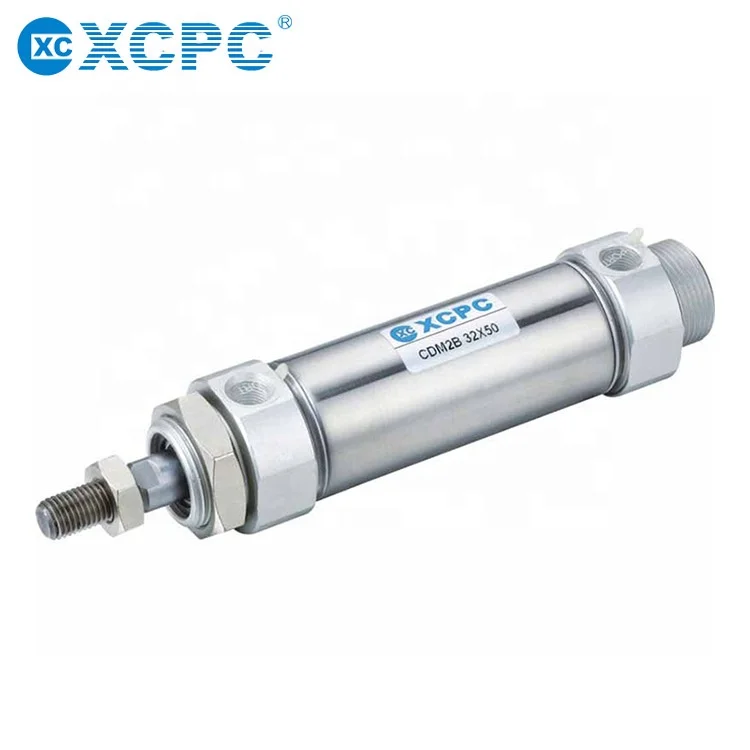

CM2 Series Stainless Steel Mini Cylinder
Product Description

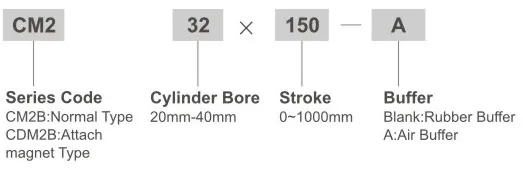

1. Ordering Code
2. Specification
| Bore(mm) | 20 | 25 | 32 | 40 |
| Working Medium | Air | |||
| Motion Pattern | Double action | |||
| Ensured Pressure Resistance | 15.3kgf/cm2(1.5Mpa) | |||
| Max.pressure | 10.2kgf/cm2(1.0Mpa) | |||
| Min.pressure | 0.5kgf/cm2(0.05Mpa) | |||
| Operating Temperature Range | -10~+70℃ | |||
| Operating Speed Range | 50~750mm/s | |||
| Buffering | Rubber buffer(Standard),Air buffer(Optional) | |||
| Margin of Stroke Error(mm) | 1.4 | |||
| 0mm | ||||
| Port size | G1/8" | G1/8" | G1/8" | G1/4" |

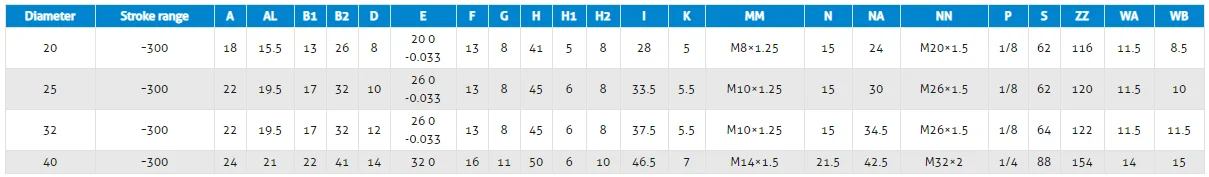

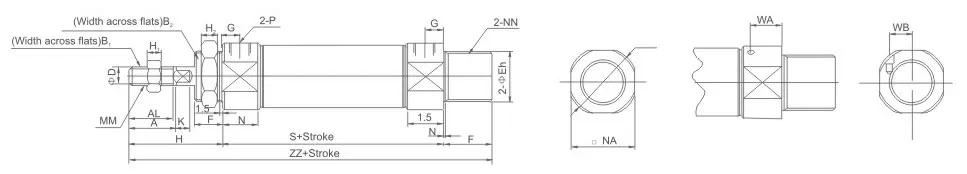

3. Overall Dimension
Company Information
Popular Products
Application
Packaging & Shipping
FAQ
Customized Solutions
Customized pneumatic components XCPC pneumatic is the ideal solution for custom pneumatic components because of its ability to be 100% customizable to your business' processes and operations. XCPC pneumatic specialize in design, custom and manufacture pneumatic components, including pneumatic cylinders, pneumatic actuators, air source treatment(FRL), fluid solenoid valves, directional valves, pneumatic fittings as well as PU/PE/NY tubes. Choose from our product categories above to get started! If you have any specific needs for your new project, feel free to contact us. We are always here to support you ! |
