High speed automatic motor lamination notching machine for stator rotor
- Category: >>>
- Supplier: Nantong Zhenhuan Trade Co. Ltd.
Share on (60792212159):
Product Overview
Description

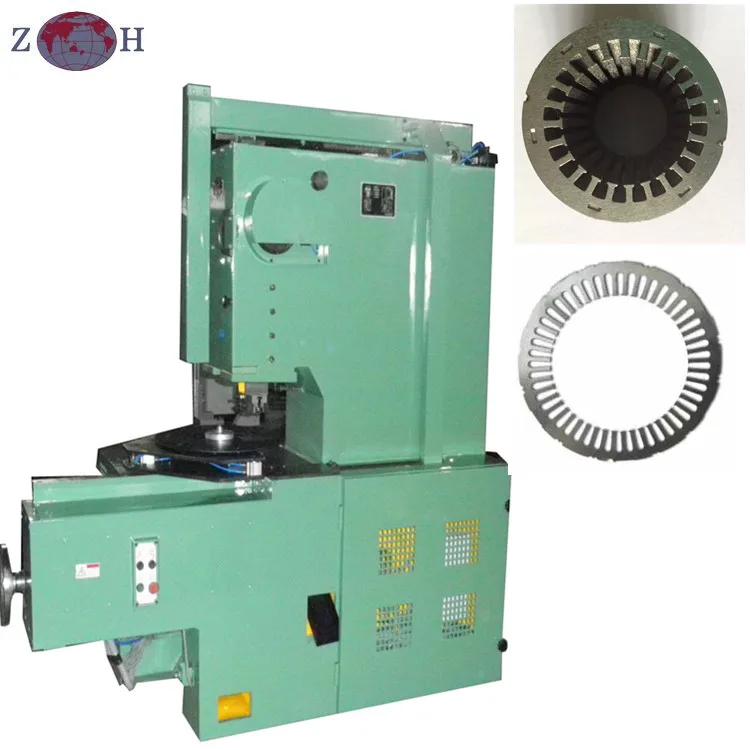

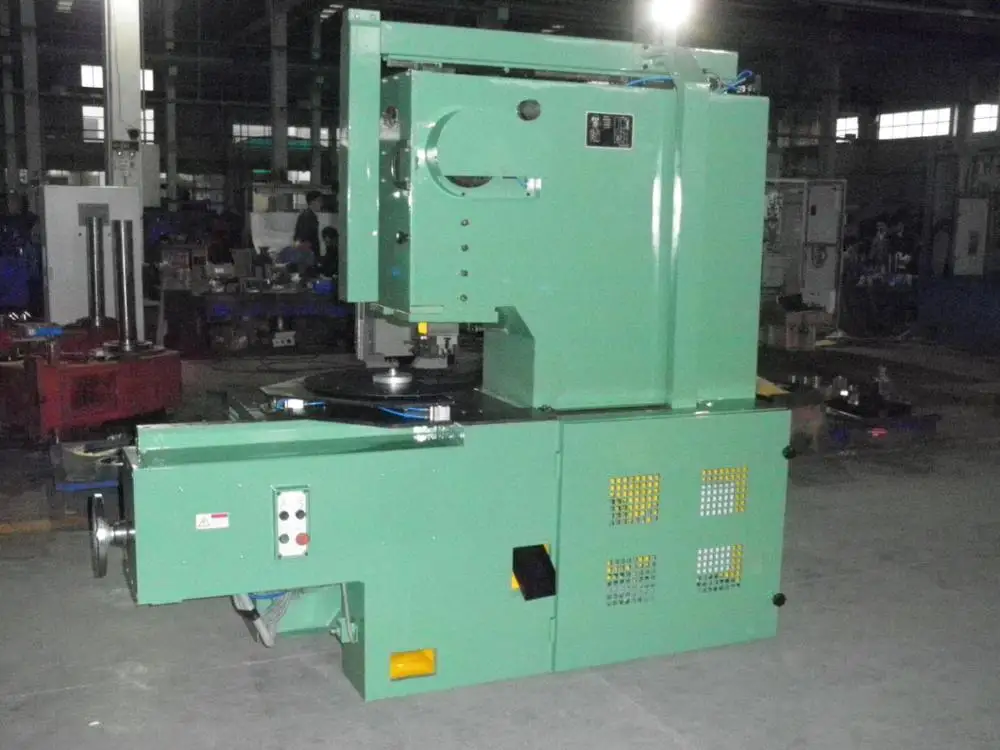

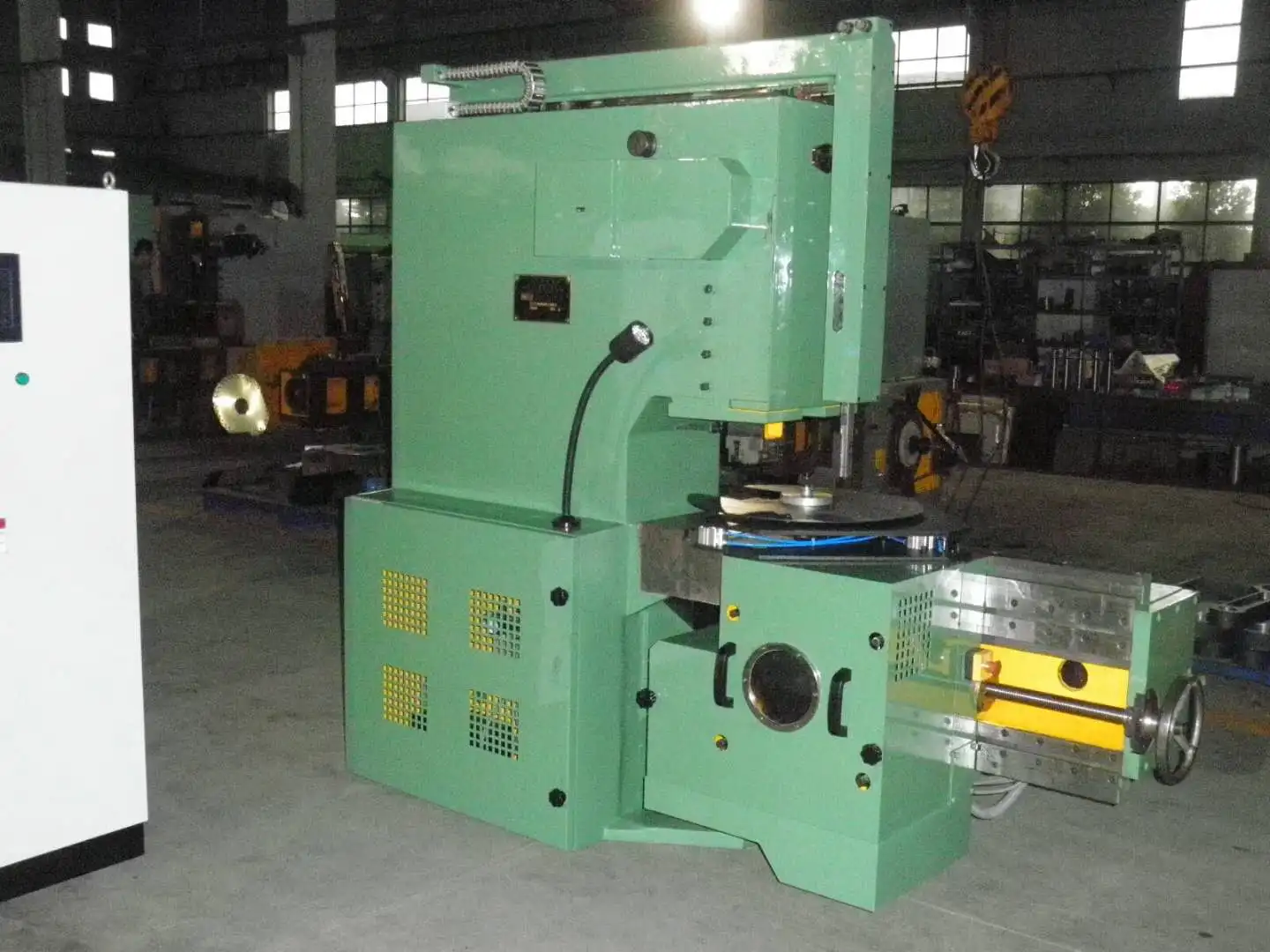

CNC motor lamination notching machine for stator rotor
I Description of Lamination Manufacturing Stamping and Notching machine

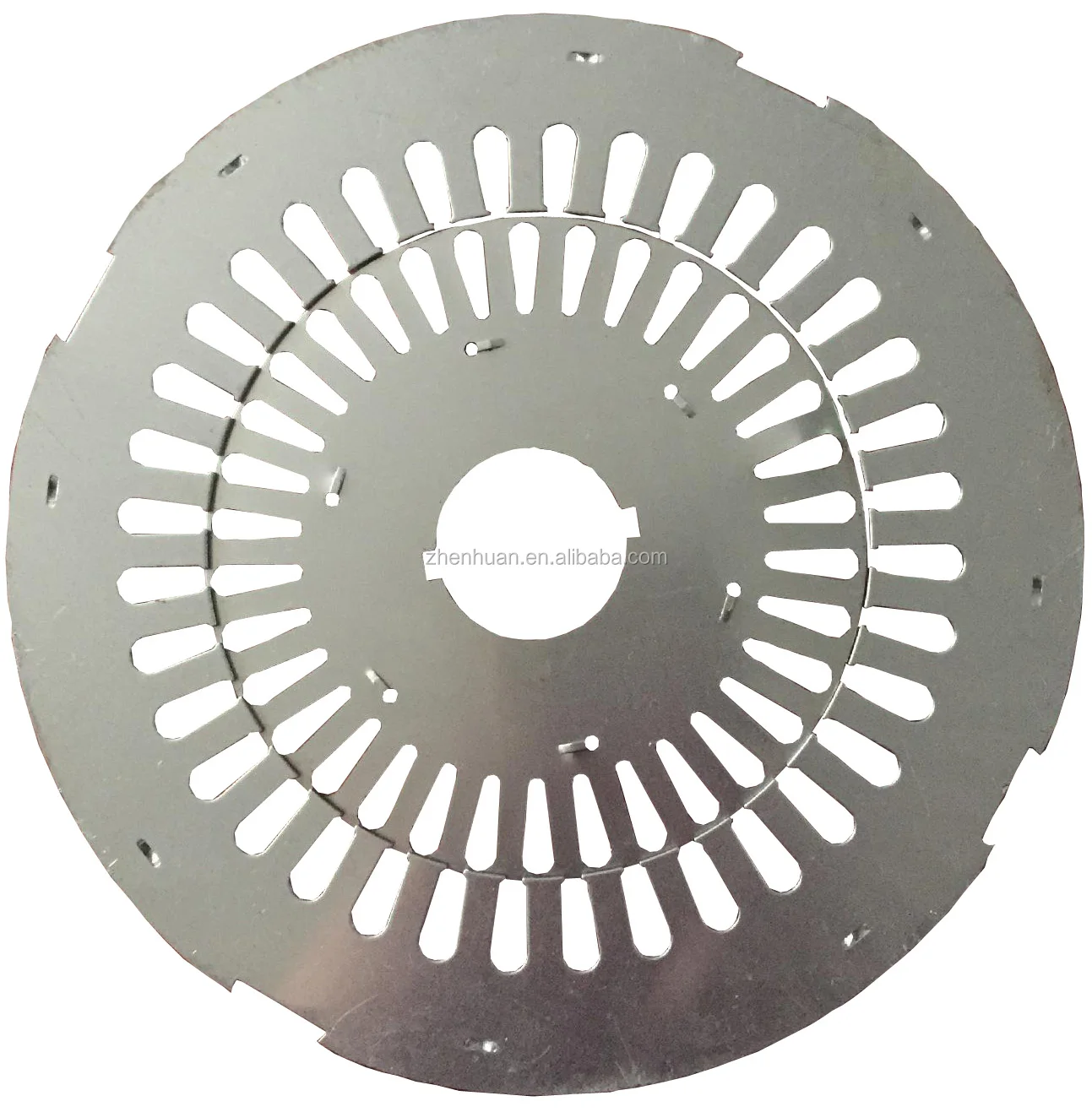

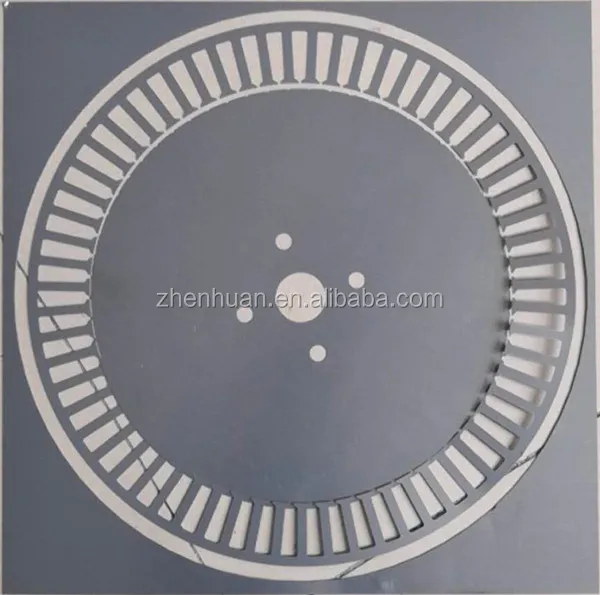

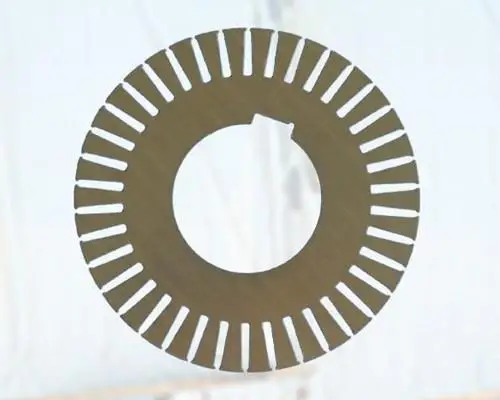

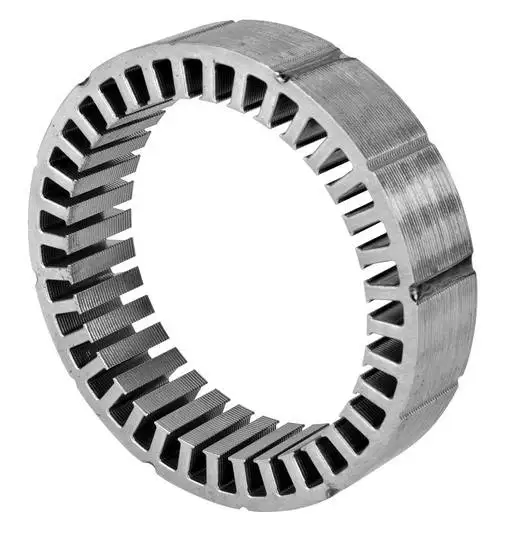

This machine is used for notching silicon steel lamination for stator and rotors.
II Main technical data of Lamination Manufacturing Stamping and Notching machine
Data | Data | Data | |
Machine code | CCM-160 | CCM-200 | |
Normal force | 100kN | 160kN | 200kN |
Number of slide stroke | 180-600 times/min | 180-600 times/min | |
Slide stroke | 16mm | 16mm | |
Max. closing height | 210mm | 220mm | 220mm |
Regulating variable of closing height | 25mm | 35mm | 40mm |
The distance of slider center and machine body | 350mm | 400mm | |
The distance of indexing spindle center and slider center | 35-500mm | 135-650mm | 135-800mm |
1-999 | 1-999 | ||
Diameter of lamination | Φ90-1300mm | Φ300-1500mm | Φ300-1500mm(Φ1800mm) |
Thickness of lamination | 1.5mm | 2.0mm | 2.0mm |
250 x 450mm | 370 x 480mm | ||
Floor plan size for slider | 110 x 170mm | 140 x 210mm | 140 x 210mm |
Working pressure of compressed air | 0.4Mpa | 0.4Mpa | |
Dimension (L x W x H) | 2570 x 1000 x 2150mm | 2770x 960x2240mm | 2970×960×2240mm |
Video link | |||
Contacts: Cherie Mao
Whatsapp: +86 1348510 5931
Skype: yuexuanmao
Company Information
We Nantong Zhenhuan Trade Co., Ltd. is certified by TUV, BV, SGS, good reputation and credit. We can provide you not only various kind of machines but also good after-sale service. We have more than 14 years experience on machinery.
