1.77 inch soldered color OLED display 45PIN P16807 drive SSD1353 driver

Share on (60792220558):


Price:

Quantity:


Product Overview

Description


1.77 inch soldered color OLED display 45PIN P16807 drive SSD1353 driver

  • It is 160x128 resolution oled display.
  • OLED display mode is Passive Matrix.
  • Specific touch panel can be designed & customized.
  • Product parameters
Display Type: oled display
Display Mode: Passive Matrix
Diagonal Screen size:1.77 inch
Interface:

6800/8080 Parallel serial port/ SPI

Number of Pixels:

160x128

Driver IC:

SSD1353

Active Area:

 35.015X28.012(mm)

Pixel Size:

0.073 x 0.219 (mm)

Display color:

RGB

Operating Temperature:

-40~85°

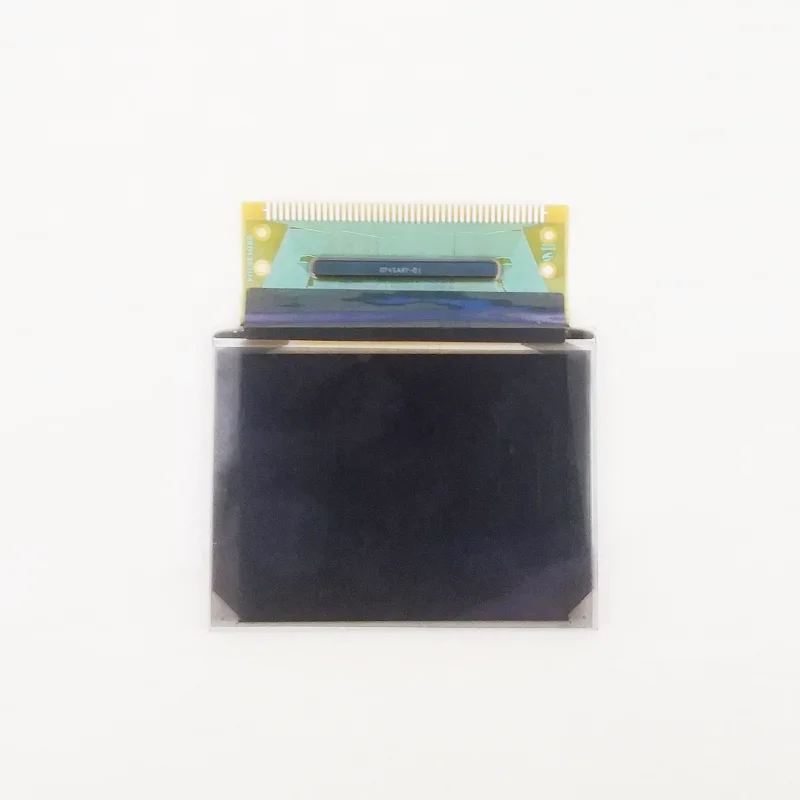

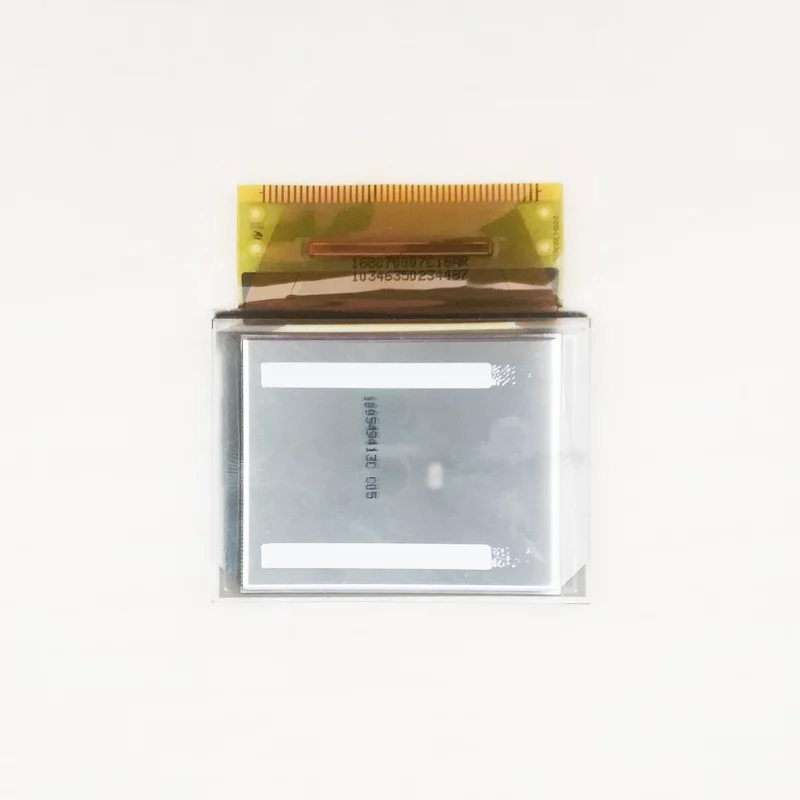

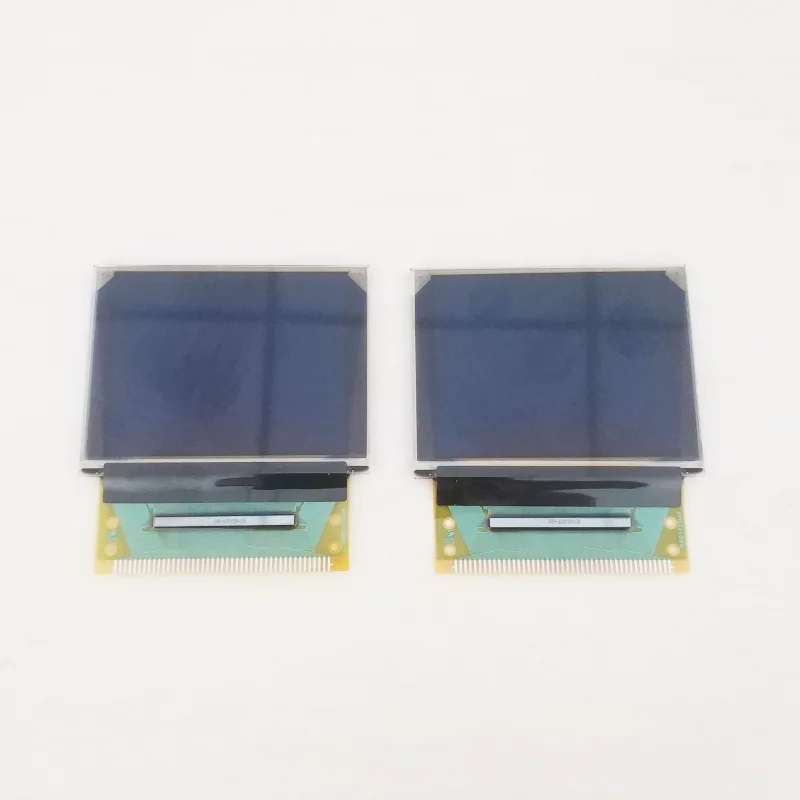

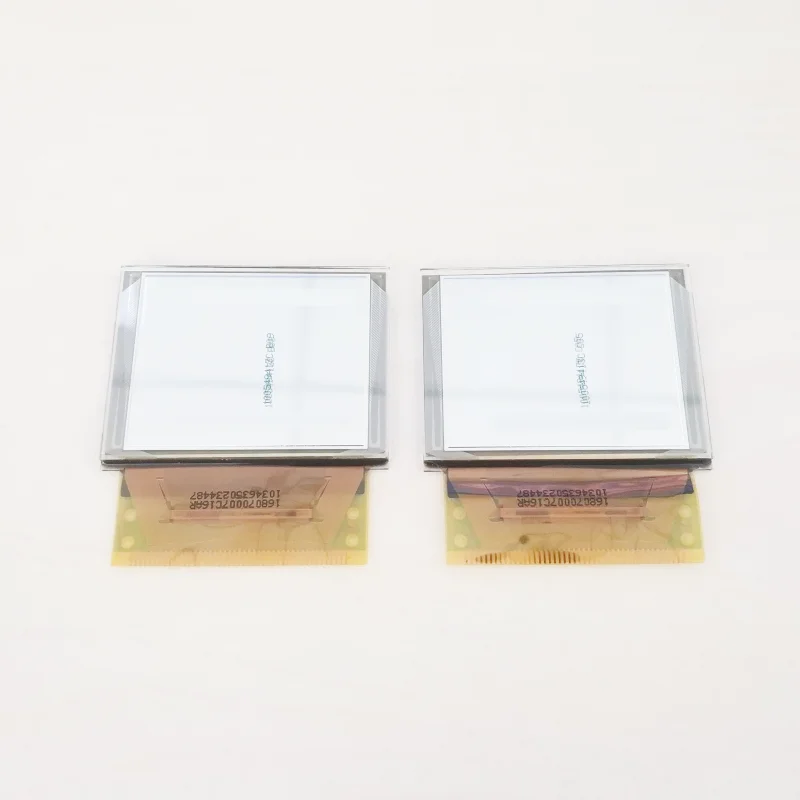

1 (1).png1 (4).png1 (3).png1 (2).png
