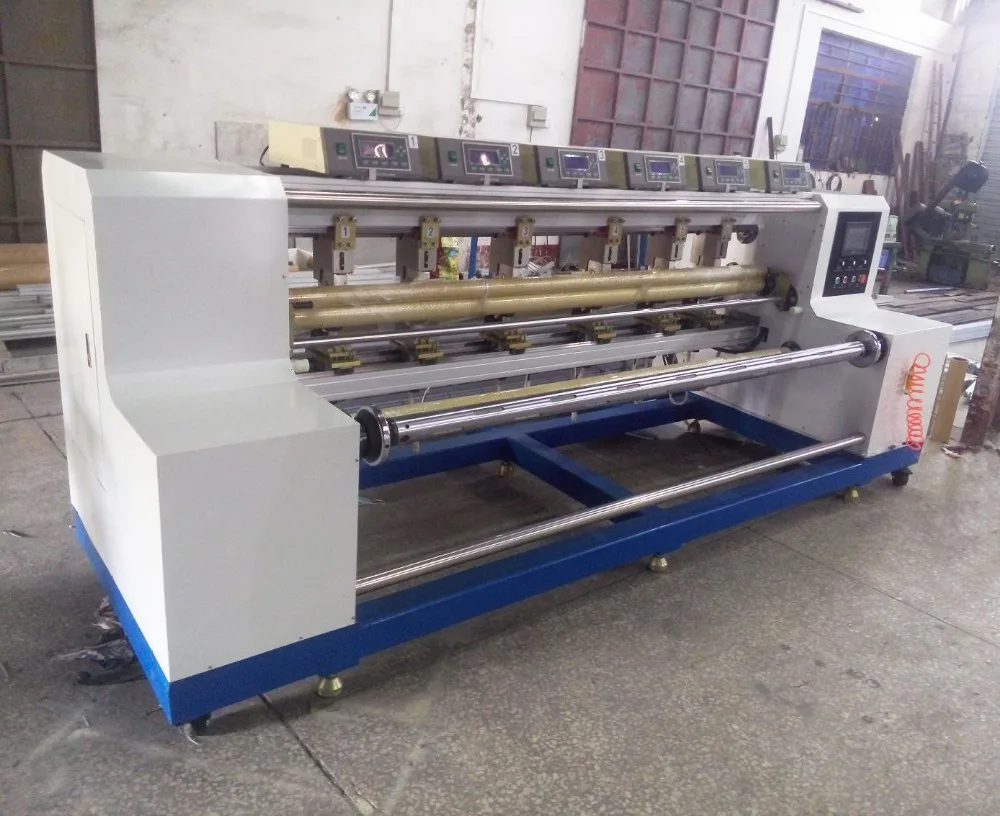

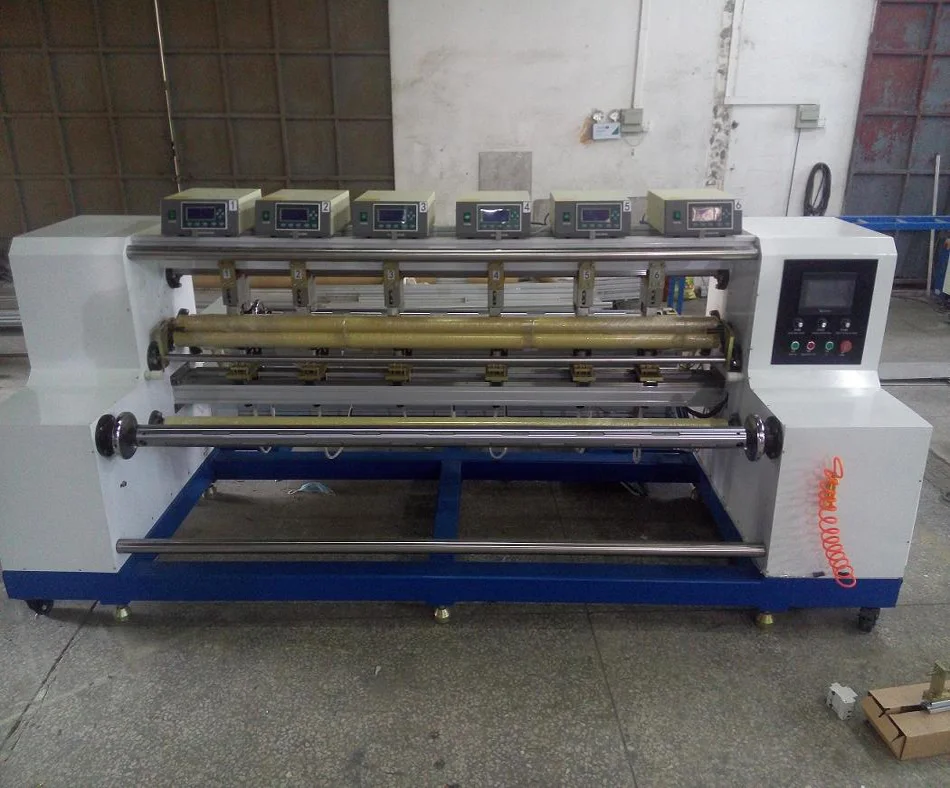

Top Quality Computerized Ultrasonic Slitting Machine for non Woven Fabrics

Product Overview

Description

Machine Descriptions:-

♦ Suitable for slitting and cutting sunscreen , Blockout of roller blinds, Non woving fabrics like tower fabrics, carpets, etc, slit fabrics thickness max to 30mm.

♦ Fabrics edge automatically sealed after cutting, edge smooth and firm, no rough thread comes out.

♦ This machine has high efficiency, cutting speed is 0-40 meter per second(depends on fabrics thickness).

♦ Mitsubishi PLC and touch screen as control center, easy operating.

♦ Cutting width is adjutable. Using preciscion rails and slider to fix knives to make it movable easliy on the machine.

♦Have automatic edging system to make sure the edge is the same width when cutting;

♦ Using air shaft feeing and receiving fabrics.

♦ Has tension device and edge correcting system which automatically ensures edge smooth.

Machine Parameters;-

(Suitable for slitting and cutting non voven fabrics like tower fabrics, carpets and sunscreen, blockout, etc)

Power: 220VAC Single or three phase;

Rated power: 8.0KW

Work pressure: 0.3-0.5Mpa

Max slitting with: 2.0/2.5/3.0/4.0 meters(customizeable)

Min slitting width: 89mm

Weight: 1500KG(2.5m)

Dimension(LxWxH): 3630x1700x1300mm(2.5m)

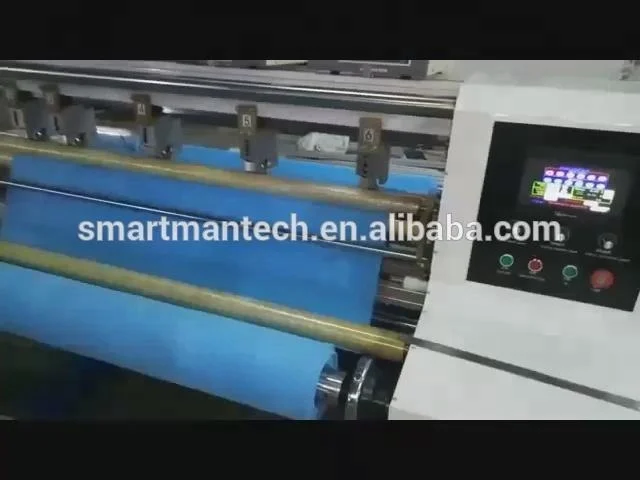

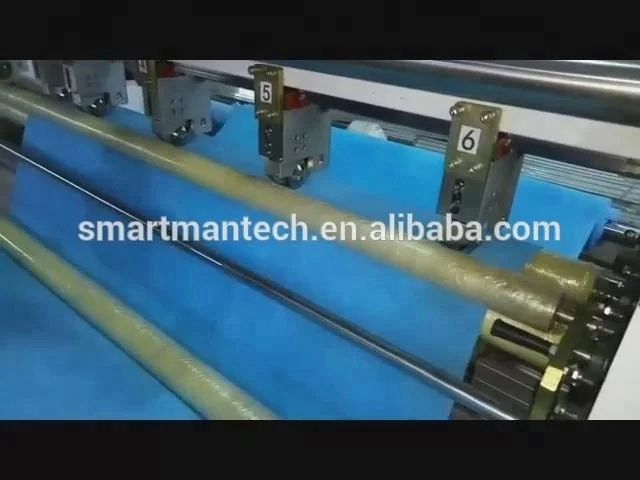

PLS kindly check the video of this machine at below link:

https://youtu.be/yPwZo_elKxo
