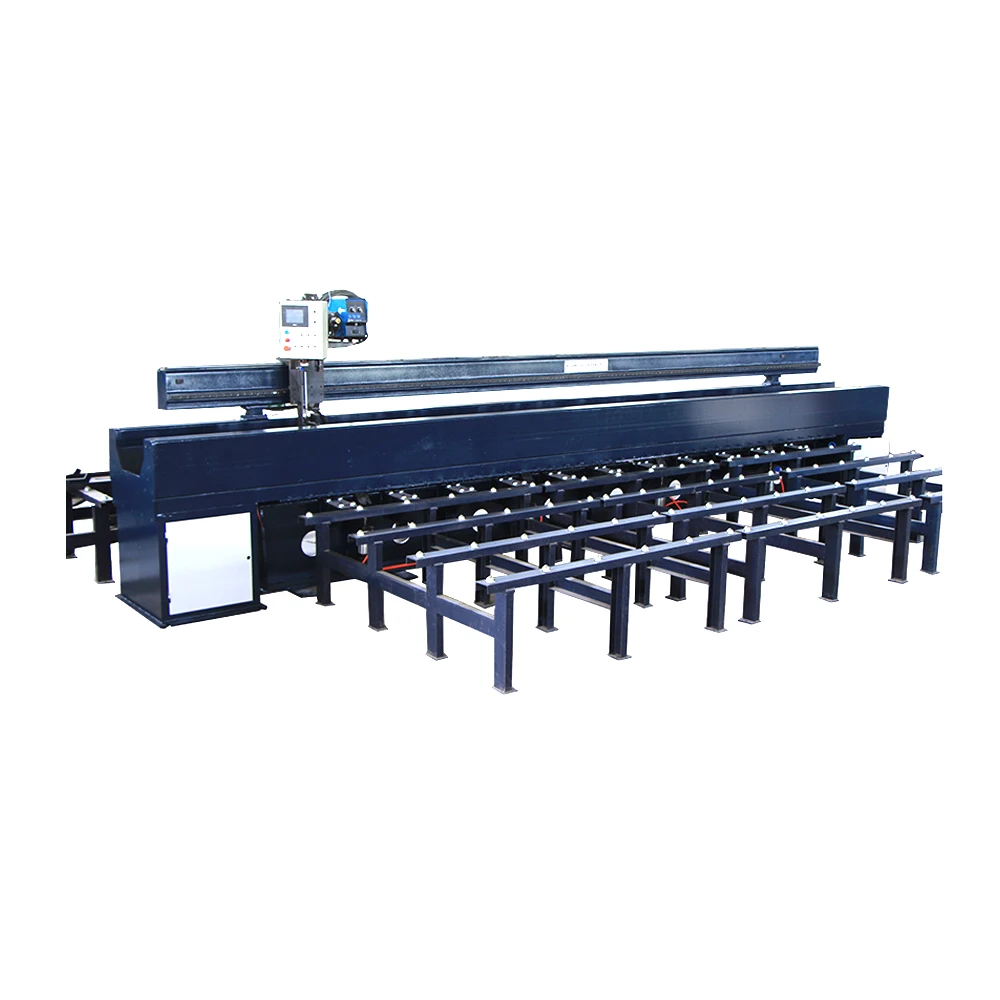

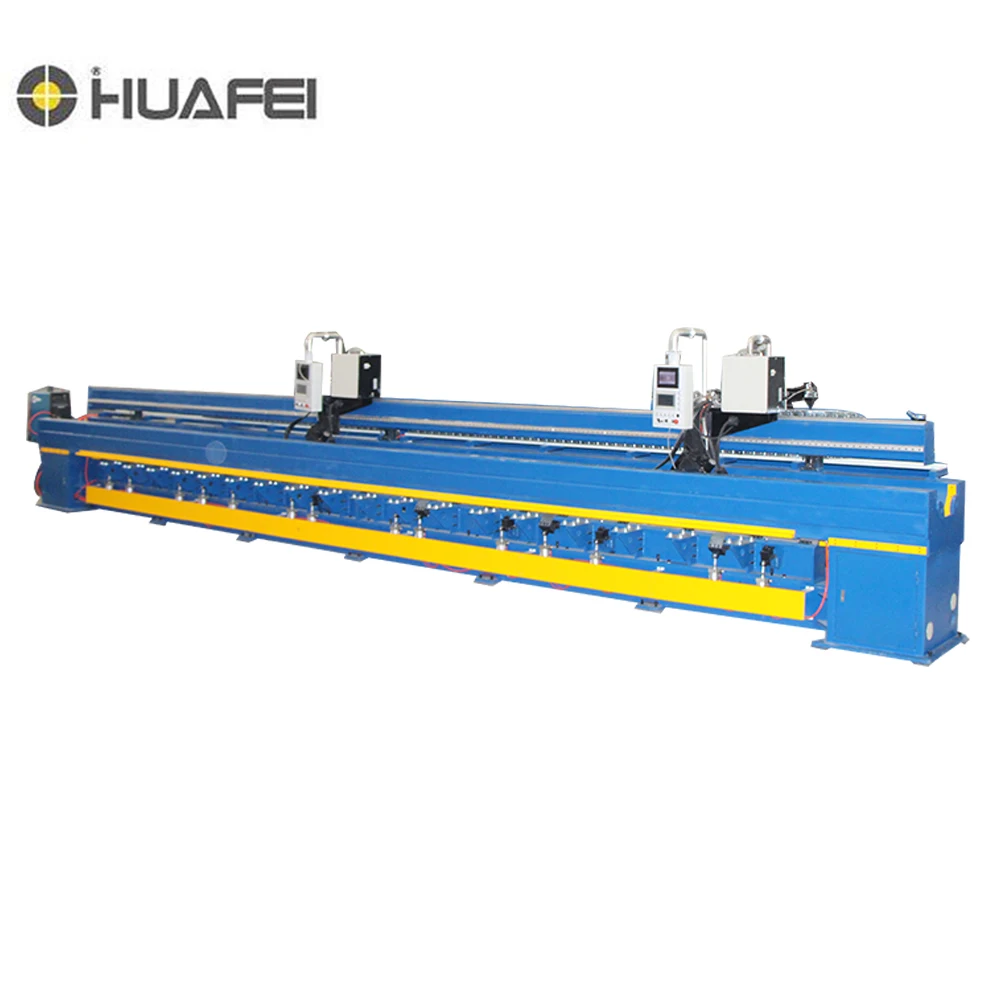

High quality Longitudinal Seam Metal Plate Butt Welding Machine
Product Description
Mainly used for flat stitching longitudinal seam automatic welding, the welding process can be TIG / MIG / MAG / PWA / SAW and other methods for welding carbon steel, stainless steel, aluminum and aluminum alloys, titanium and other materials, widely used the aerospace, automotive parts, motorcycles, home appliances, pressure vessels and food machinery industry. Pneumatic compression device key structure to ensure uniformity of the workpiece clamping, mandrel optional water-cooled and back seam gas protection, reduce welding deformation; control system uses PLC + touch interface humane and effective to ensure the welding quality, simple and reliable operation.
Model | PB-3000 | PB-4500 | PB-6000 | PB-9000 |
Workpiece length(mm) | ≤3900 | ≤4500 | ≤6000 | ≤9000 |
Workpiece thickness(mm) | 3.0-8.0 | |||
Welding head welking speed(mm/min) | 0-4000(or according to customer demand) | |||
Welding torch lift stroke(mm) | 100 | 100 | 250 | 250 |
Welding torch fine turning stroke (mm) | Y=100,Z=100 | |||
Controller power | Single-phase AC220v 50Hz | |||

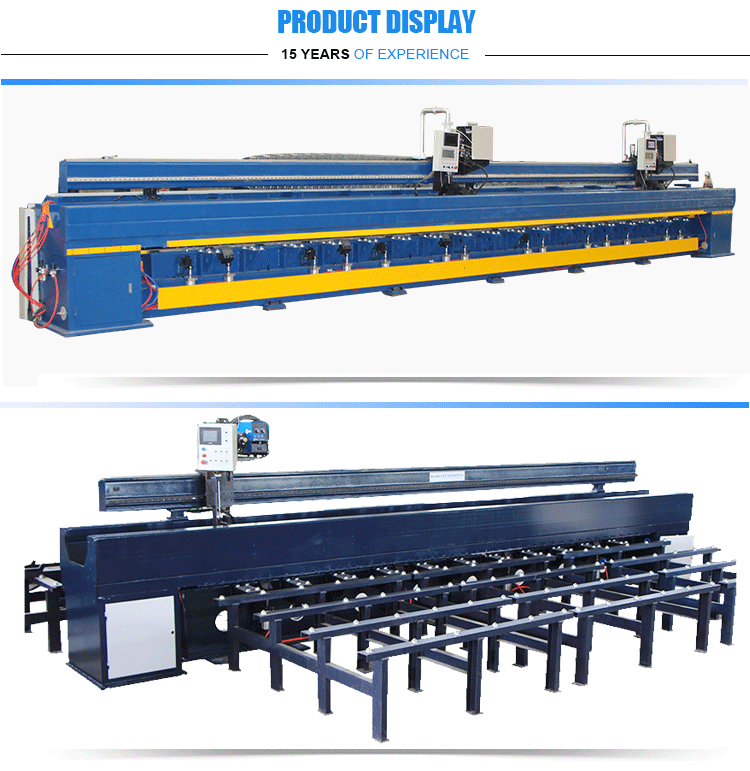

Product Display

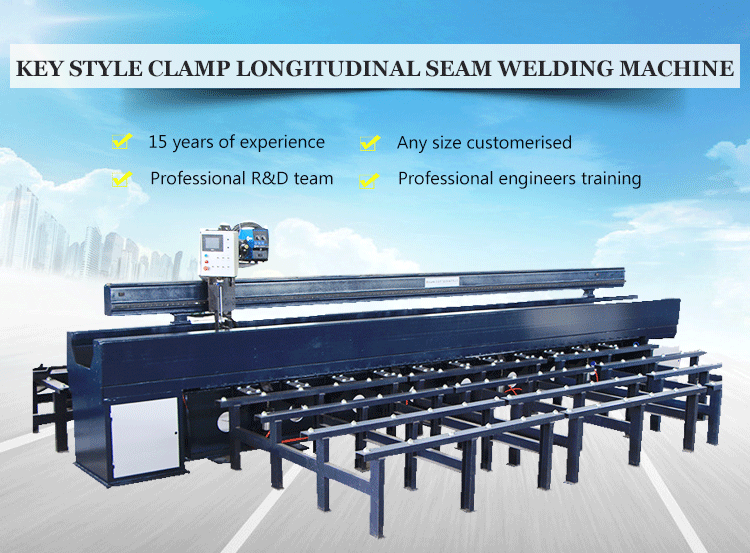

The equipment consists of the machine seat, the key jig, the beam and the walking trolley, the welding seam to the middle device, the welding gun in place, the regulating mechanism and the pedestrian platform.The corresponding cable assembly, air pipe, water pipe, measuring instrument and circulating water pump are also configured.
Standard configuration: Support mandrel (without water), copper solder pads (pads shaped groove dimensions according to the workpiece thickness, material, welding technology decision), copper key pressure means, 100mm gun pneumatic lift mechanism (carrying 20kg), 60mm stroke two-dimensional manual adjustment mechanism, common arc welding controller (can be adapted TIG / MAG / PAW).
Option: Water-cooled spindle support with back air protection pads, stainless steel liner, pneumatic / manual for the device, TIG wire feeder, ALC arc length tracker, pneumatic hook, electric cross skateboard, seam tracking devices, auxiliary loading and unloading car, submerged arc welding head and controller.
Related Products
Packaging & Shipping

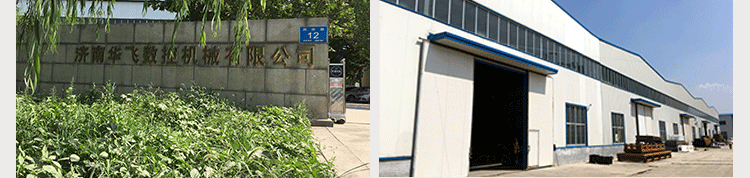

Company Information
