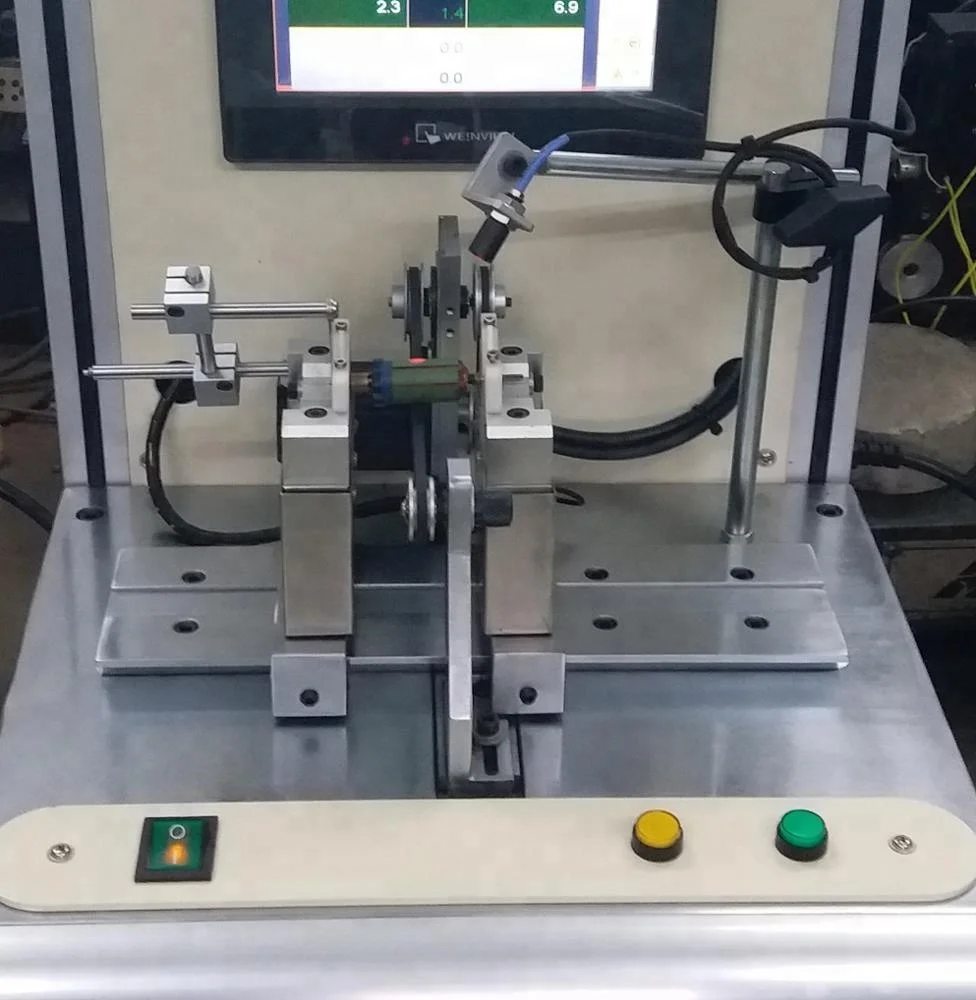

HUASHUN armature Balancing Machine for Micro Motor rotor

Share on (60792265399):


Price:RUB 74,327.10 - RUB 743,271.00

Quantity:


Product Overview

Description

Product Description

HUASHUN Hard Bearing Balancing Machine for Micro Motor Fields

Application Areas

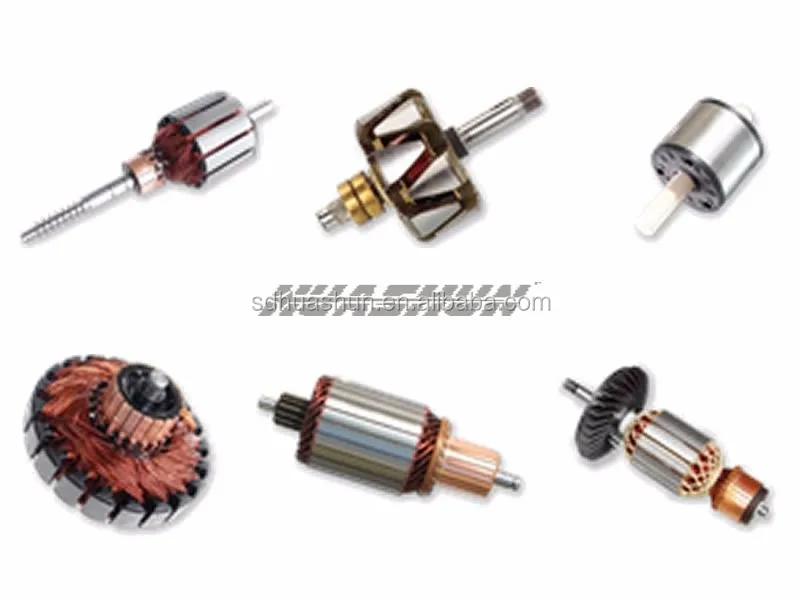

For micro motors fiels, such as micro rotors, electric tool, hair dries, toy motor, etc.

Advantages

1. Nonstop, simple operation, high balancing effciency.
2. Strong resumption, excellent stablity

Structure

1.Touch screen measuring unit
2. H-shaped bearing supports
3. Advantaged Germany measuring ccircuit
4. Servo motor drive, adjustable rpm


Type of balcing machine
Universal hard bearing balcncing machine
Belt drive
Specification/Type
HB0.5-Q
Weight of workpieces
 0.2-0.8kg
Diameter of workpieces
20-45mm
Dis. between supports
40-260mm
Min. achieveable residual unbalance amount
 less than 0.2 g.mm/kg
Balancing speed
1800-3500r/min
Power supply
AC220V  50HZ
Weight
 60kg
Dimension
490X360X540mm
