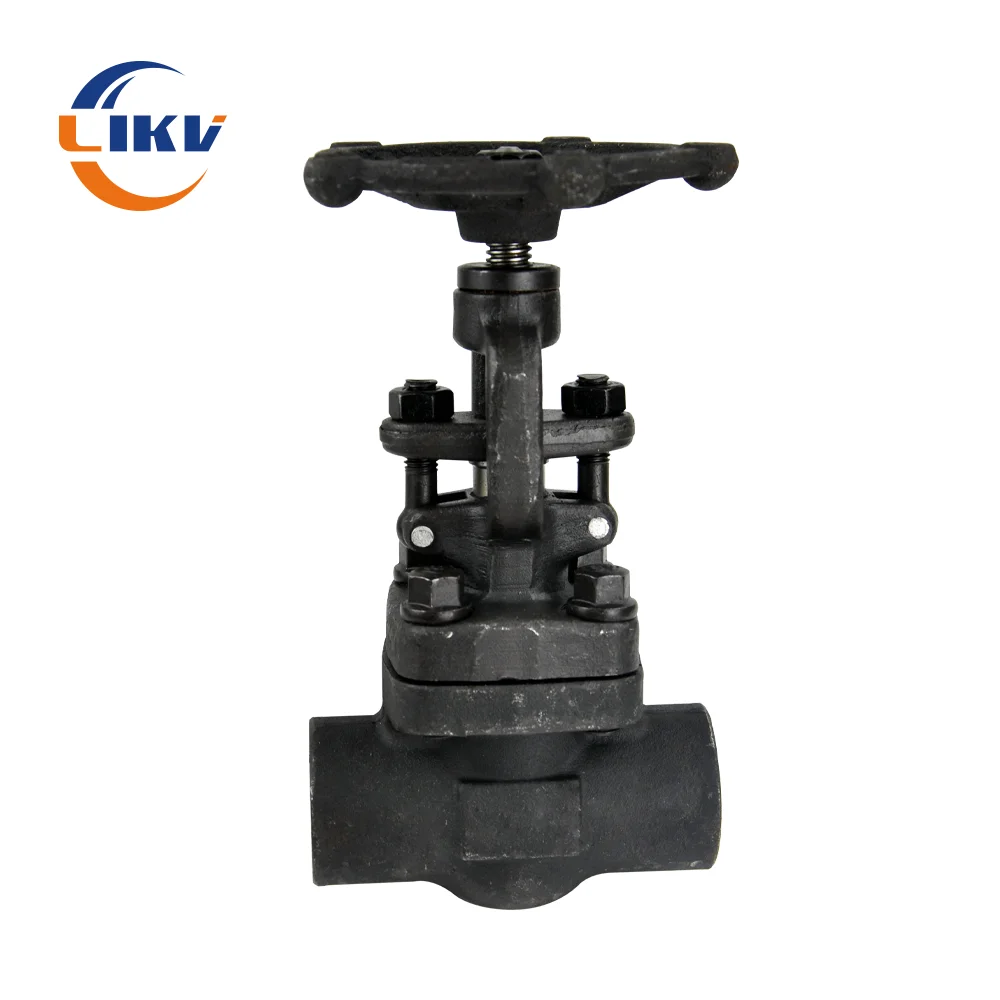

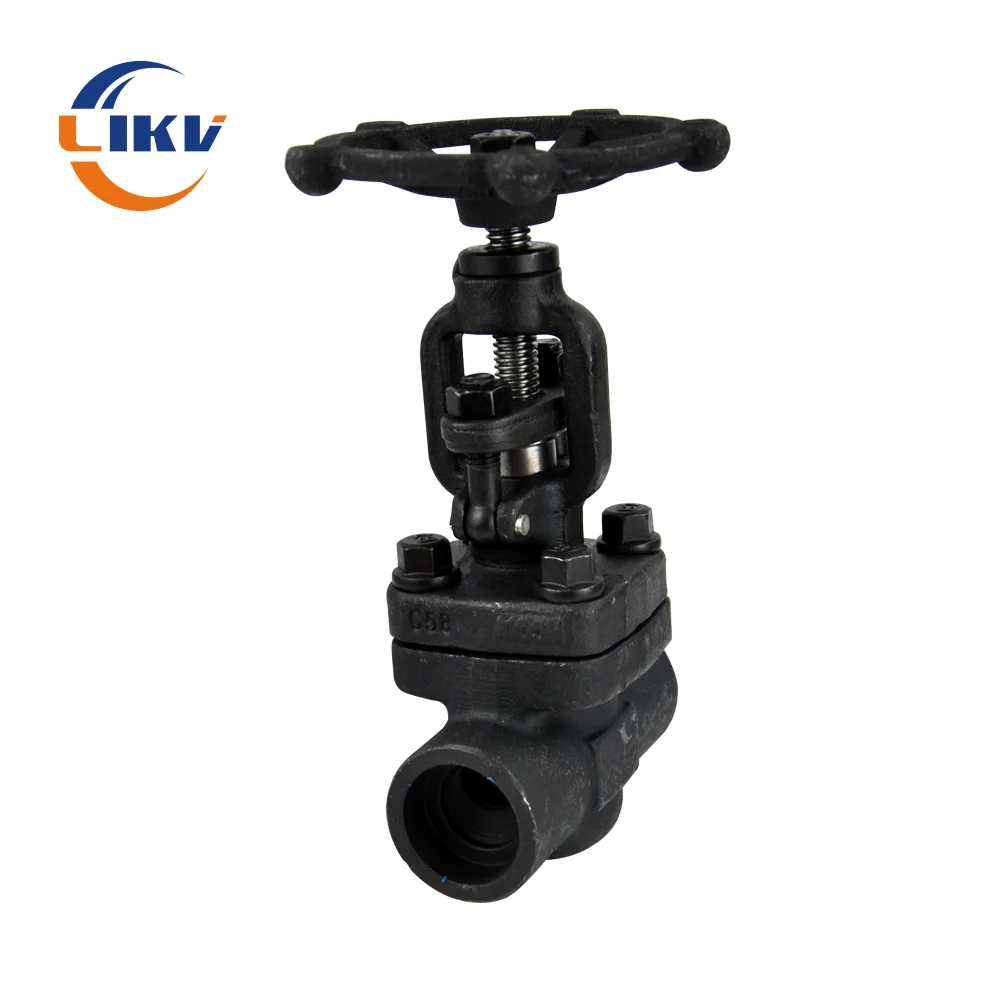

Flanged Metal seated Forged Steel Gate Valve
- Category: >>>
- Supplier: Like Valve (tianjin) Co. Ltd.
Share on (60792276622):
Product Overview
Description

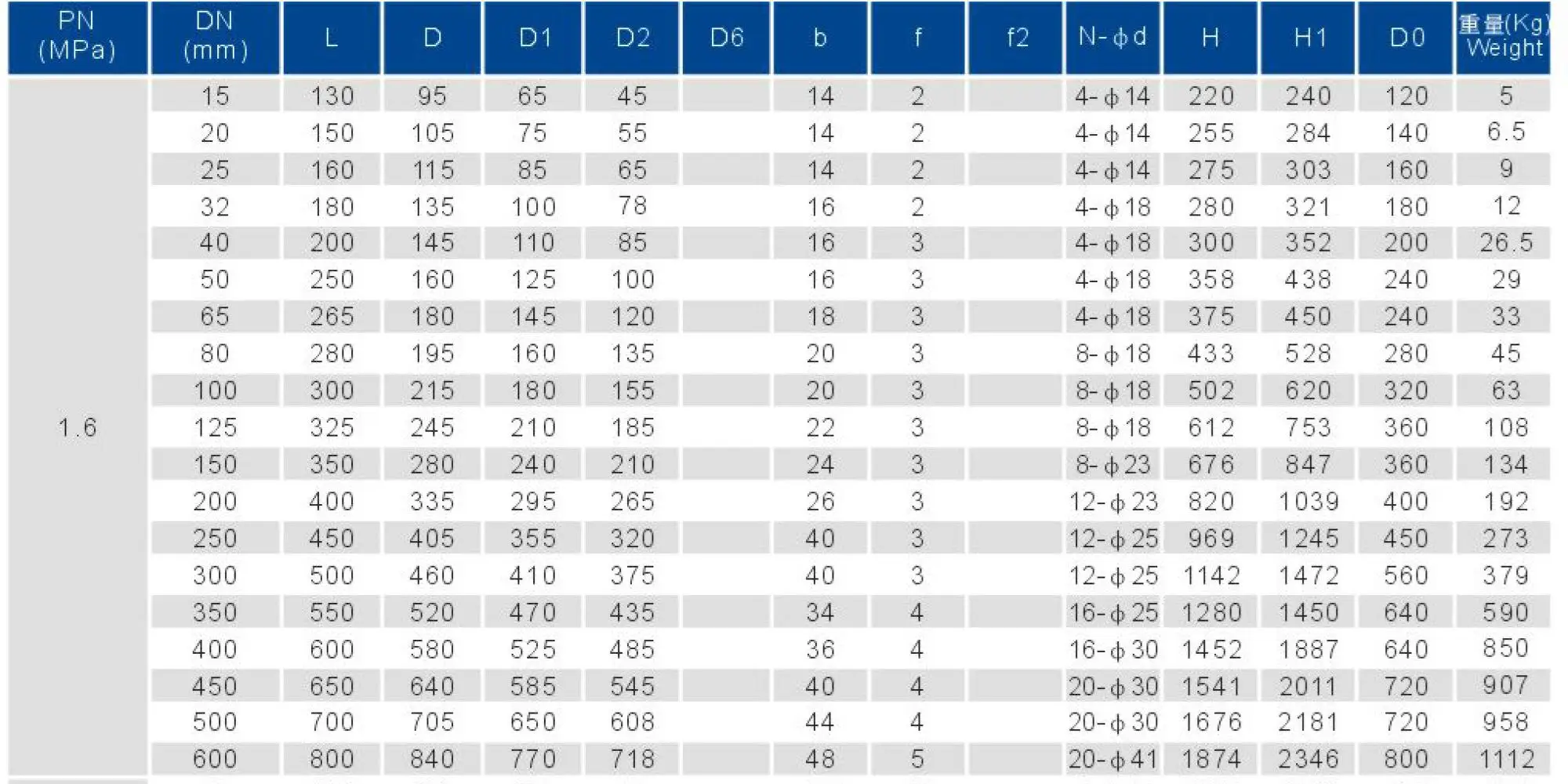

Technical data
| PN(MPA) Nominal Press | Testing Pressure(MPa) | |||
| Shell | Sealing(Liquid) | Sealing(Gas) | On sealing | |
| 1.6 | 2.4 | 1.8 | 0.6 | 1.8 |
| 2.5 | 3.8 | 2.8 | 0.6 | 2.8 |
| 4.0 | 6.0 | 4.4 | 0.6 | 4.4 |
Applicable
| Shell material | Suitable medium | Suitable temperatured °C |
| Carbon steel | Water,steam,oil | ≤425 |
| Ti-Cr-Ni steel | Nitric acid | ≤200 |
| Ti-Cr-Ni-Mo steel | Acetic acid | ≤200 |
| Ti-Mo steel | Water,steam,oil | ≤500 |

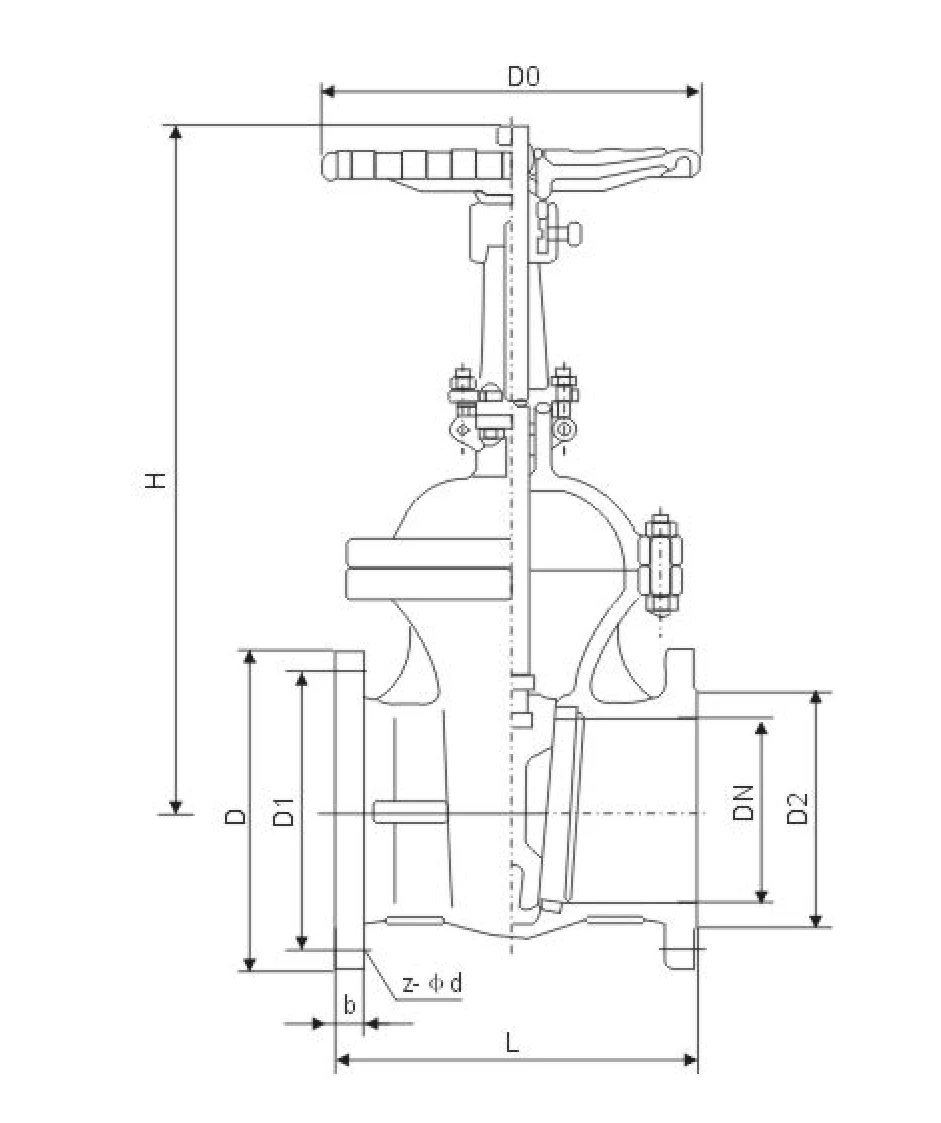

Gate valve detail
Hot sales
Products process

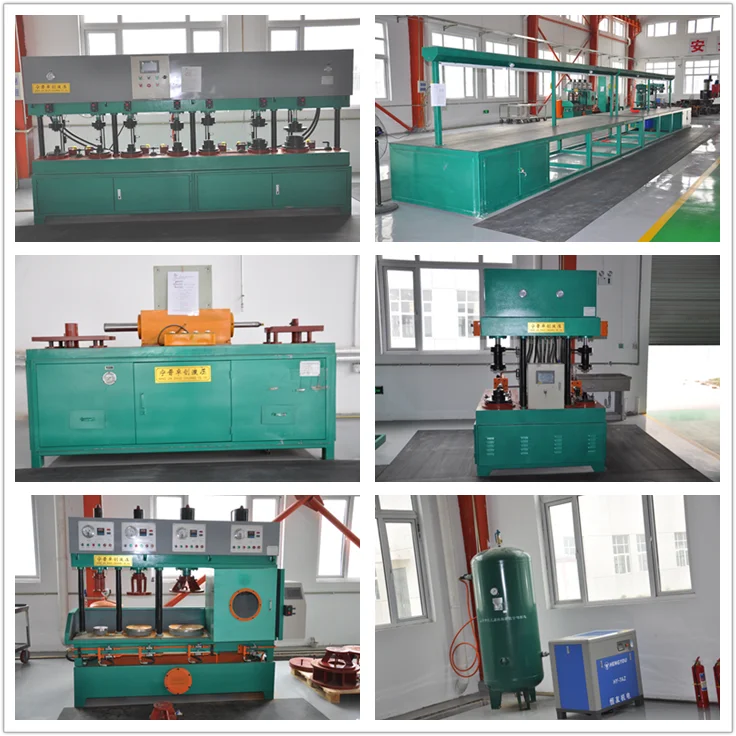

Equipement
Machine processing equipment 178 sets, Inspection equipment 32 sets.
Packaging & Shipping
Contact us
FAQ
Q: Which port do you usually delivery from?
A: LIKE VALVE usually delivery from Tianjin, QINGDAO, DALIAN and SHANGHAI.
A: LIKE VALVE usually delivery from Tianjin, QINGDAO, DALIAN and SHANGHAI.
Q:What is the capacity of one year?
A: The capacity is around 10,000 tons one year.
A: The capacity is around 10,000 tons one year.
Q:What is you payment term?
A: LIKE VALVE can accept T/T, L/C and ect.
A: LIKE VALVE can accept T/T, L/C and ect.
Q:Can you do OEM and ODM order?
A: Certainly, LIKE VALVE can do OEM and ODM order. We can supply the valves as you requirment.
A: Certainly, LIKE VALVE can do OEM and ODM order. We can supply the valves as you requirment.
