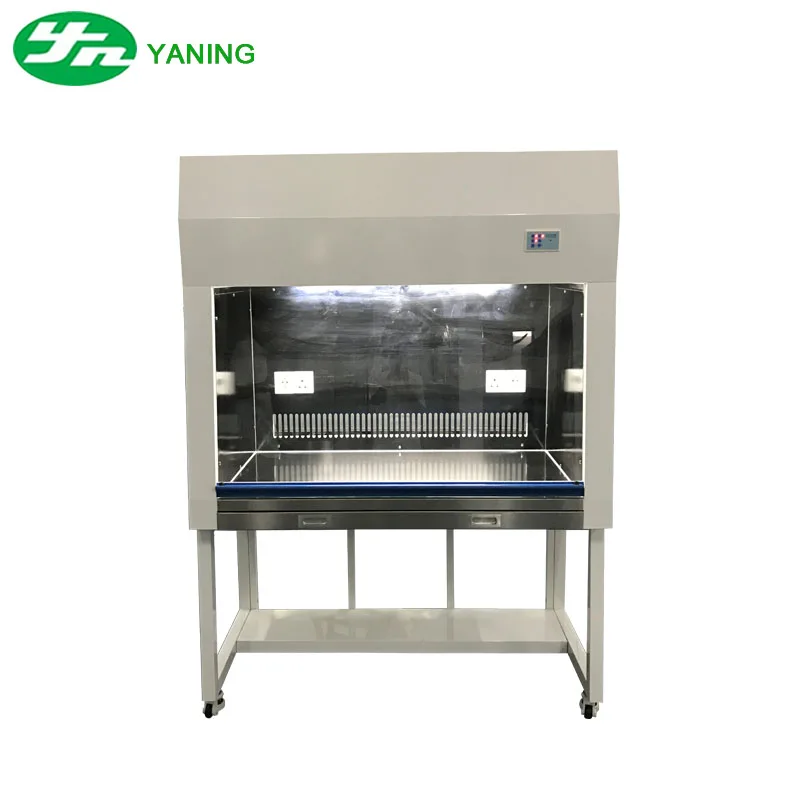

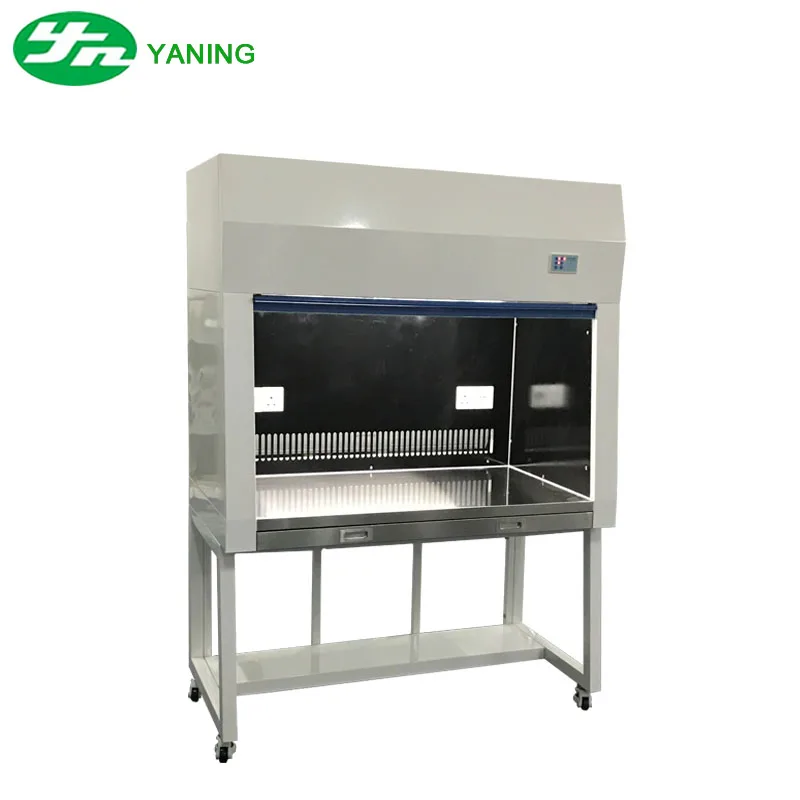

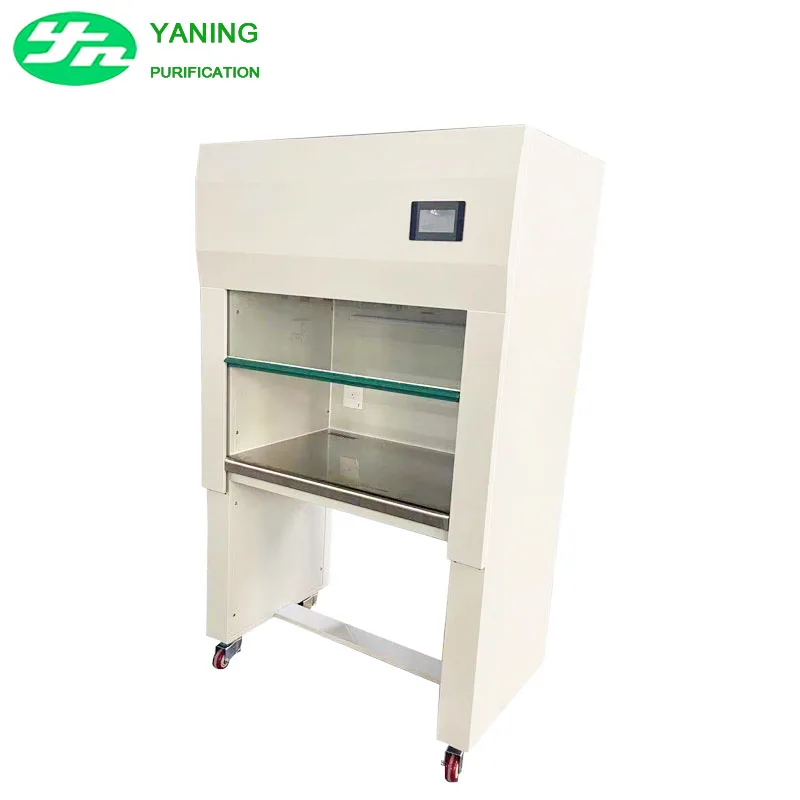

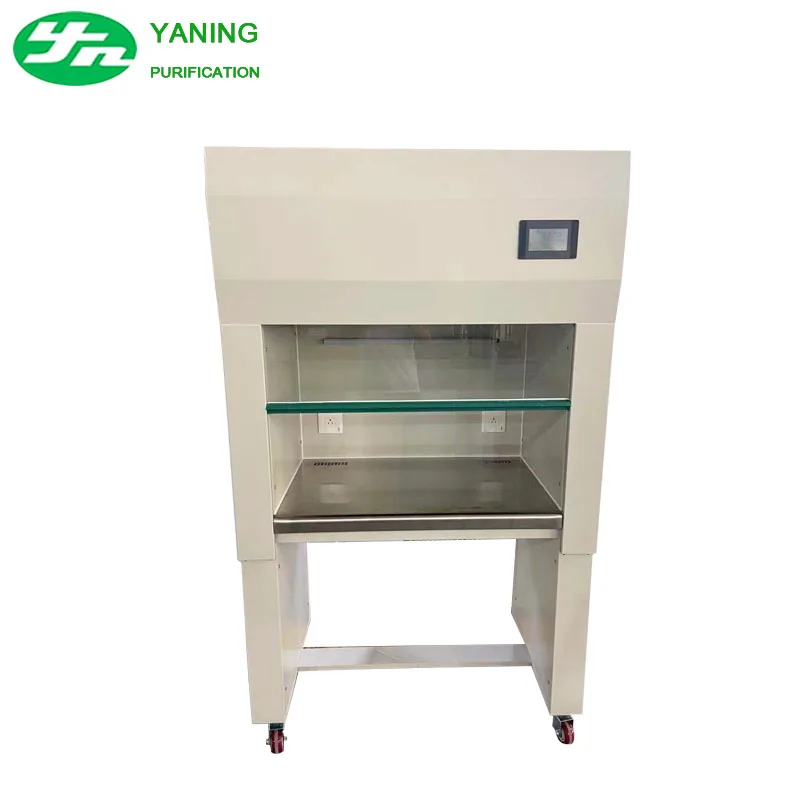

Cell culture laminar flow cabinet 120 cm long for 2 person operation clean bench
- Category: Air Cleaning Equipment >>>
- Supplier: Dongguan Yaning Purification Equipment Co. Ltd.
Share on (60792278494):
Product Overview
Description
Products Description
factory price high efficiency clean bench for dust free clean room
This Clean Bench provides a dust-free and sterile local air purification working environment, which is widely used in the research of electronic technology, aerospace, precision instruments, meters, fine chemicals, food, etc.
Laboratory clean bench vertical laminar flow hood uses a fan system with adjustable air volume. By adjusting the working
conditions of the fan, the average wind speed in the working area is kept within the rated range, which effectively extends the service life of the high-efficiency filter.
Laboratory clean bench vertical laminar flow hood uses a fan system with adjustable air volume. By adjusting the working
conditions of the fan, the average wind speed in the working area is kept within the rated range, which effectively extends the service life of the high-efficiency filter.
Purifier Horizontal /Vertical Clean Benches direct HEPA-filtered air horizontally over the work area to provide ISO Class 5 (formerly Class100) conditions and protect your work from particulate contamination. Applications for clean benches include plant tissue culture,media plate preparation, electronics inspection, medical device assembly and pharmacy drug preparation. Because they do not provide protection to the user, they should not be used in conjunction with biohazardous material, toxins or radionuclides.
1. Reservation on / off control for fan & UV light
2.Vertical Flow Clean Bench High quality, quiet fan
3. Universal electrical outlet
4. An additional pre filter below work surface helps capture large particles and prolongs HEPA filter life
5. Stable laminar air flow, from 0.30m/s to 0.50m/s
6. Realtime display air speed, time and the status of HEPA filter
7.Cumulative running time of HEPA filter
8. Power socket installed inside for ease power access
9. Audio and visual alarm for filter failure
10. Access password
11. Interlocking control between Ultraviolet ray light and interior light
2.Vertical Flow Clean Bench High quality, quiet fan
3. Universal electrical outlet
4. An additional pre filter below work surface helps capture large particles and prolongs HEPA filter life
5. Stable laminar air flow, from 0.30m/s to 0.50m/s
6. Realtime display air speed, time and the status of HEPA filter
7.Cumulative running time of HEPA filter
8. Power socket installed inside for ease power access
9. Audio and visual alarm for filter failure
10. Access password
11. Interlocking control between Ultraviolet ray light and interior light
Spec/Model | YN-HCB1-1 | YN-HCB1-2 | YN-VCB1-1 | YN-VCB1-2 | |||
Num of operation | One person | Two person | One person | Two person | |||
External Dimension | 1000*850*1500mm | 1400*850*1500mm | 1000*700*1800mm | 1500*700*1800mm | |||
Working area | 970*600*600mm | 1370*600*600 | 900*600*600 | 1400*600*600 | |||
Laminar flow | Horizontal | Vertical | |||||
cleanliness | ISO class 5, ISO-14644-1 | ||||||
air velocity | 0.3-0.54m/s | ||||||
Noise | <63dB | ||||||
Vibration | ≤3μm | ≤4μm | ≤3μm | ≤4μm | |||
power input | AC 110~480V/50~60Hz | ||||||
Illumination | >560lux | >800lux | >560Lux | >800Lux | |||
Product packaging
Packaging
Stretch film strapped whole cabinet,
Foam inside protected,
Plywood case solid fixed
Foam inside protected,
Plywood case solid fixed
shipping
Samples be shipped by DHL/FedEx/USP and so on
Mass production be shippinh by Air or Sea
Mass production be shippinh by Air or Sea
Company Profile

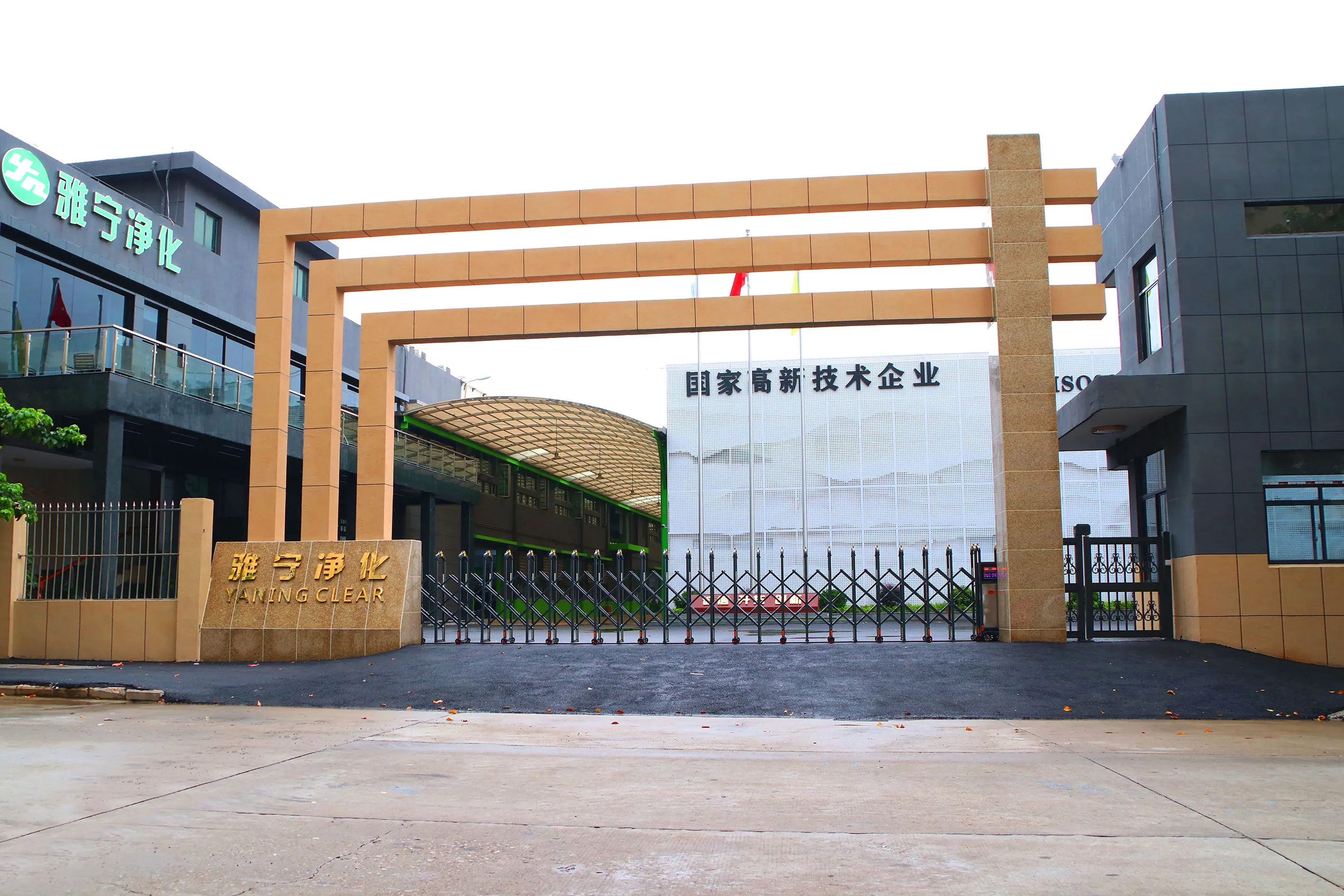

Factory View
Dongguan Yaning purifucation Technology Co.,Ltd.islocated in Dongguan city Changan ,is a set design development, production,sales, construction professional installation services in one purifier manufacyurers,the company is committed to the purificationindustry for more than ten years,the South China purification technology industry’s most Powerful enterprises.the main products used in health care,electronices technology ,bio-medicine ,food,precision instruments aerospace,automoble manufacturing and many another areas.
products:
1.FFU ,air shower room ,cargo air shower ,HEPA filter ,horizontal clean bench ,pass box ,clean booth medical bench and so on
2.primer,middle and HEPA filter ,sub-high efficiency filter
3. undertake 100-300 thousand class level clean room design and construction of the project commission inspection and maintenance.
products:
1.FFU ,air shower room ,cargo air shower ,HEPA filter ,horizontal clean bench ,pass box ,clean booth medical bench and so on
2.primer,middle and HEPA filter ,sub-high efficiency filter
3. undertake 100-300 thousand class level clean room design and construction of the project commission inspection and maintenance.
Reception
Office

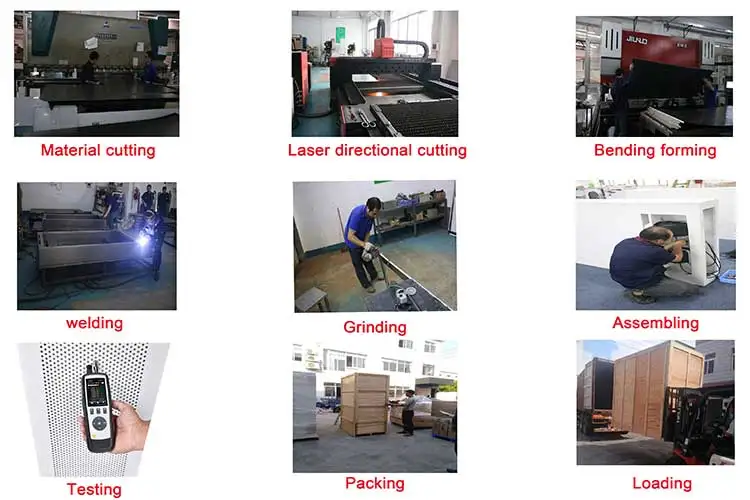

Production Process
Certifications
Exhibition
FAQ
Q1: What kind of pass box you make?
A: We can make pass box by customer order.
Q2: Are you really manufacturer or trading company?
A: We are indeed filter manufacturer over 10 years experiences and work with many brands for dozen years.
Q3: What price term do you accept?
A: Normally quote FOB price or CIF, others as per to customer required.
Q4: What Payment term you are running?
A: We currently do 40% deposit and 60% pay before shipping.
A: We can make pass box by customer order.
Q2: Are you really manufacturer or trading company?
A: We are indeed filter manufacturer over 10 years experiences and work with many brands for dozen years.
Q3: What price term do you accept?
A: Normally quote FOB price or CIF, others as per to customer required.
Q4: What Payment term you are running?
A: We currently do 40% deposit and 60% pay before shipping.
