192W Inventronics delta led driver dimming 2 channel programmable led driver
- Category: >>>
- Supplier: Hangzhou Moonlight Box Technology Co. Ltd.
Share on (60792303365):
Product Overview
Description
More models optional
192W Inventronics delta led driver dimming 2 channal programmable led driver
Features:
•High Efficiency (Up to 92.0%)
• Two Independent Output Channels (Isolated)
• Two Independent Dimming Channels (Isolated)
• Full Power at Wide Output Current Range (Constant Power)
• 0-5V/0-10V/PWM/Timer Dimmable (3 Timer Modes)
• Input Surge Protection: 6kV line-line, 10kV line-earth
• All-Around Protection: IUVP, OVP, SCP, OTP
• Waterproof (IP67) and UL Dry / Damp / Wet Location
• Class 2 & SELV Output
• TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location
• UL Class P Type
• 5 Years Warranty
Description:

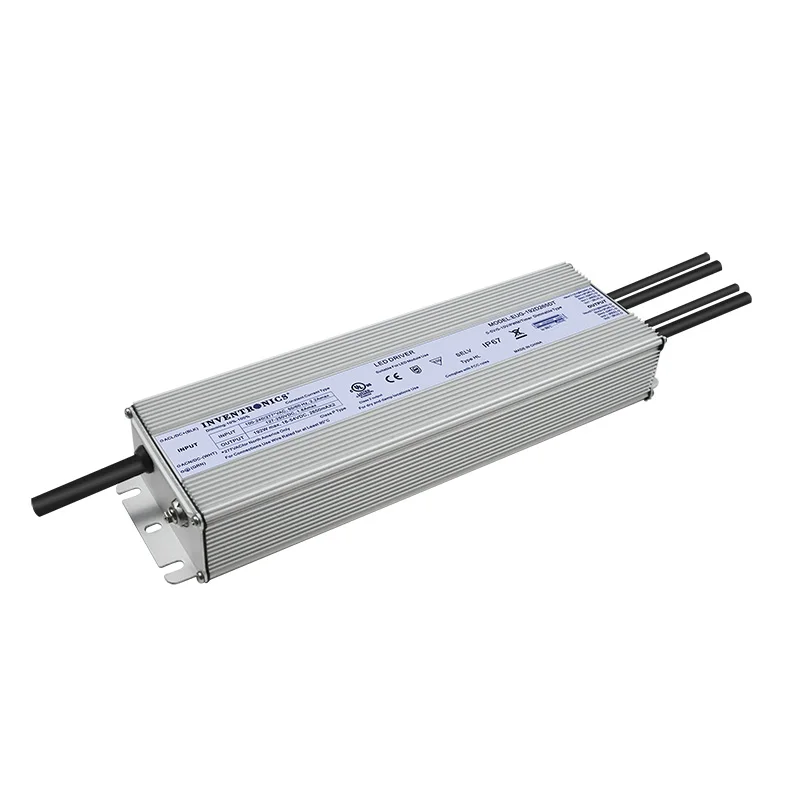

The EUG-192DxxxDT series is a 192W, two-channel, constant-current, programmable LED driver that operates from 90-305 Vac input with excellent power factor. It is created for many lighting applications including high bay, roadway, tunnel and horticulture. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.
Models:
| Adjustable Output Current Range | Full-Power Current Range (1) | Default Output Current | Input Voltage Range(2) | Output Voltage Range | Max. Output Power | Typical Efficiency | Power Factor | Model Number | |
| 120Vac | 220Vac | ||||||||
| 70-1050mA | 700-1050mA | 700mA | 90~305Vac 127~250Vdc | 48~137Vdc | 192W | 92.0% | 0.99 | 0.96 | EUG-192D105DT |
| 175-2650mA | 1750-2650mA | 2100 mA | 90~305Vac 127~250Vdc | 18~54Vdc | 192W | 91.5% | 0.99 | 0.96 | EUG-192D265DT(4) |
| 265-4000mA | 2650-4000mA | 2800mA | 90~305Vac 127~250Vdc | 12~36Vdc | 192W | 91.0% | 0.99 | 0.96 | EUG-192D400DT(4) |
Notes:
(1) Output current range with constant power at 192W
(2) Certified input voltage range: UL, FCC 100-277Vac or 127-250Vdc; otherwise 100-240Vac or 127- 250Vdc(except KS).

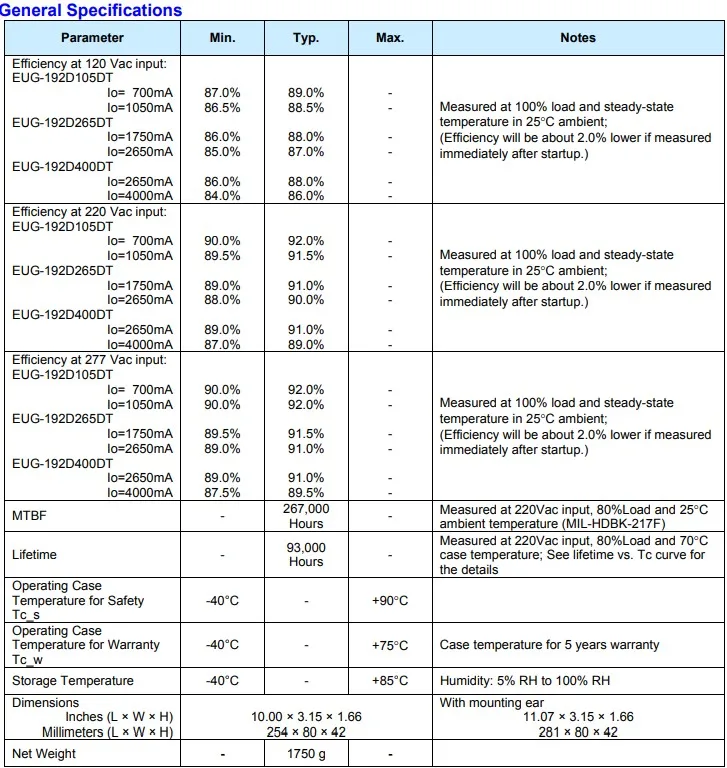

(3) Measured at 100% load and 220Vac input (see below “General Specifications” for details).
(4) Class 2 & SELV output.
More requirements about the model,pls send quote request
More requirements about the model,pls send quote request
More requirements about the model,pls send quote request
More requirements about the model,pls send quote request
FAQ
1. What is the warranty of the driver?
-- It's 5 years warranty
2 .What is MOQ of the led driver?
--1pcs
3.Can we get samples for testing?
-- Yes,sample order welcomed.
4.What is delivery of the sample and bulk order?
-- 7working days for samples, 15-25days for the bulk order after receiving payment.
5.What is the payment?
--Paypal,T/T in advance,LC,western Union,visa,credit card,MoneyGram,30% deposit,70% against documents.
USD, EURO are acceptable here.
6.How to delvery the samples and bulk order goods?
-- By DHL,UPS,FedEX,TNT,EMS for samples,
-- By air or by sea for bulk order
Delivery way:
Company Information
Hangzhou Moonlight Box Technology Co.,Ltd specializing led modules for outdoor led lighting retrofit and Inventronics & Meam well brand power supply. Our advantages as below:
* Over 14 years exporting experience
* Guaranteed by Alibaba
* With US $516,000 Alibaba insurance
* With an honest and high-effi executive team
* A willing heart without no excuse to deal with warranty and after-sale service
Warehouse and Container loading:
More requirements about the model,pls send quote request
