Overview

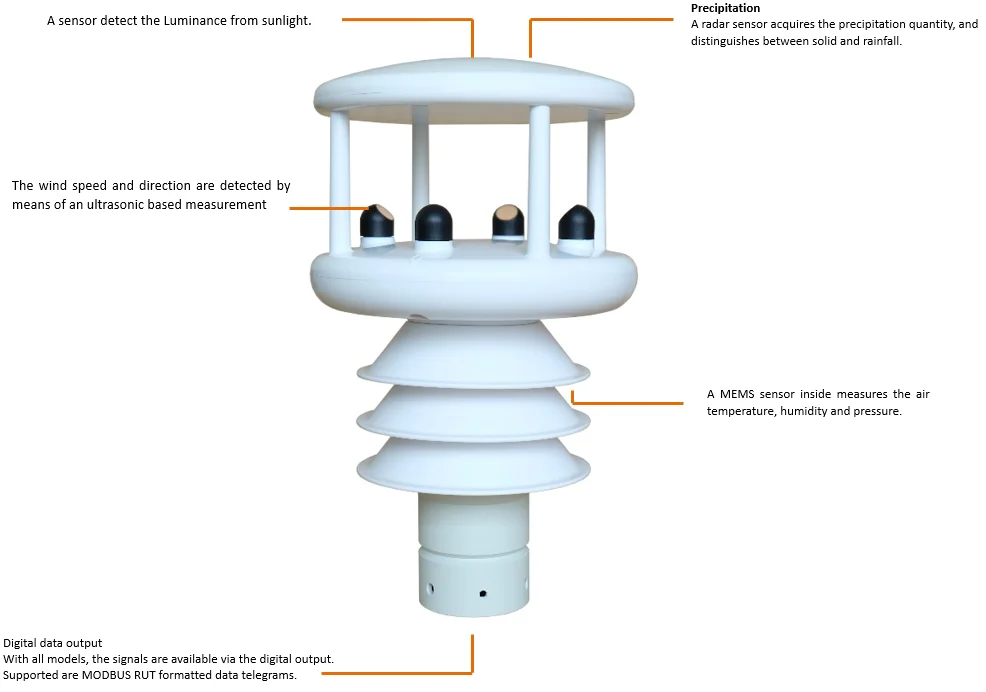

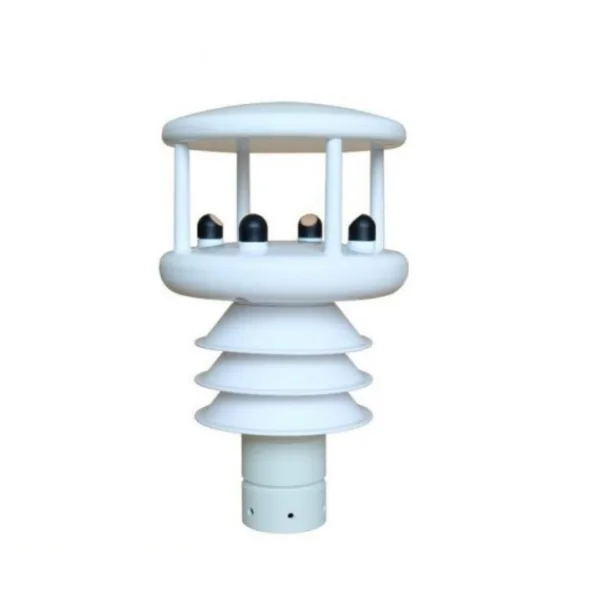

        HY-WDS6E Mini automatic weather station is a self-developed professional meteorological sensor for simultaneous measurement of multi-parameters: atmospheric temperature, atmospheric humidity, wind speed, wind direction, air pressure and precipitation.Air temperature, humidity, and pressure measurements are measured by standard industrial MEMS sensor positioned in radiation protection shield. It is characterized by high accuracy and fast response time. Measurement of wind speed and direction is working based on principle of ultrasonic travel time difference. Precipitation is detected by 24G radar, which can rapidly detect precipitation and its intensity. GPS global positioning module and electronic compass are optional to be installed in reserved room, with these two module, you can obtain longitude and velocity accurately, thereby, real and virtual wind speed & direction can be calculated out.

Features

• Robust design, easy to install, 24 hours continuous monitoring


• Without moving parts, whole system is free of maintenance


• MODBUS communication protocol, standard RS485/RS232 output


• Electronic compass, GPS or BeiDou global positioning module can be added


• With internal heating device ensures normal operation in cold weather


• Radar precipitation can accurately measure amount of precipitation and reflect beginning and ending of raining

Specification

Note: Standard HY-WDS6E don’t include items marked with”*”, those are optional parameters with extra cost.

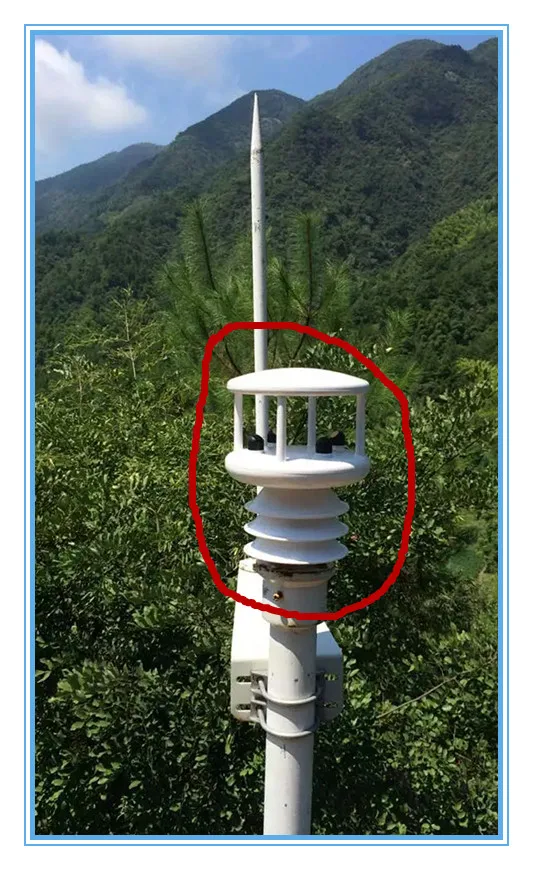

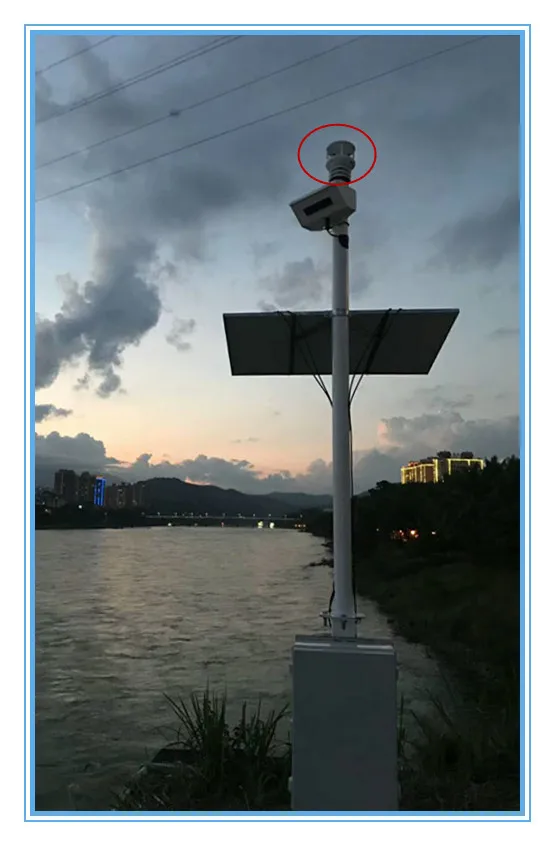

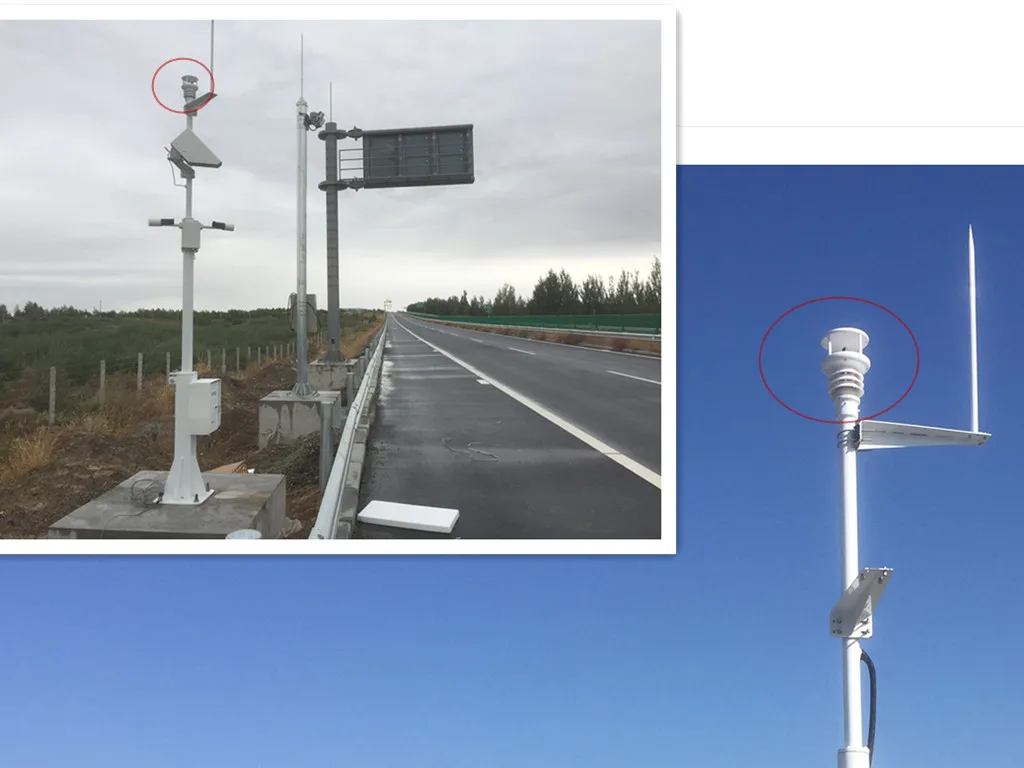

Our weather station,visibility monitor, tunnel photometer,illuminance monitor, road surface state detector are widely used in high way, tunnel for traffic control.

Hongyuv Technologies Co.,Ltd is located in Chengdu Hi-tech West Zone. As a high-tech company, We takes the development of new products as its main business direction. All of our products are self-developed and fully owned independent intellectual property rights of our sensors. Our current products are mainly divided into three categories: meteorological sensors, traffic environment detection sensors and photoelectric detection sensor for industrial application.

Hongyuv has a professional R&D team with over 10 years development experience involve in photoelectric detection, ultrasonic technology, video image analysis, etc. Therefore, we took the lead in the development of the transmissometer, visibility meter, ultrasonic wind speed and wind direction detector , Egg embryo classification infrared detector.

Price, Package, Service

1, Price : EXW, FOB, CIF
2, Payment: 100% T/T in advance, west union or paypal .
3, Packing : standard export packing , including instructions
4, Leading time :  5-8 working days after payment.
5, OEM avaliable
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder (by sea, air)
7. One year free repair for quality warranty
