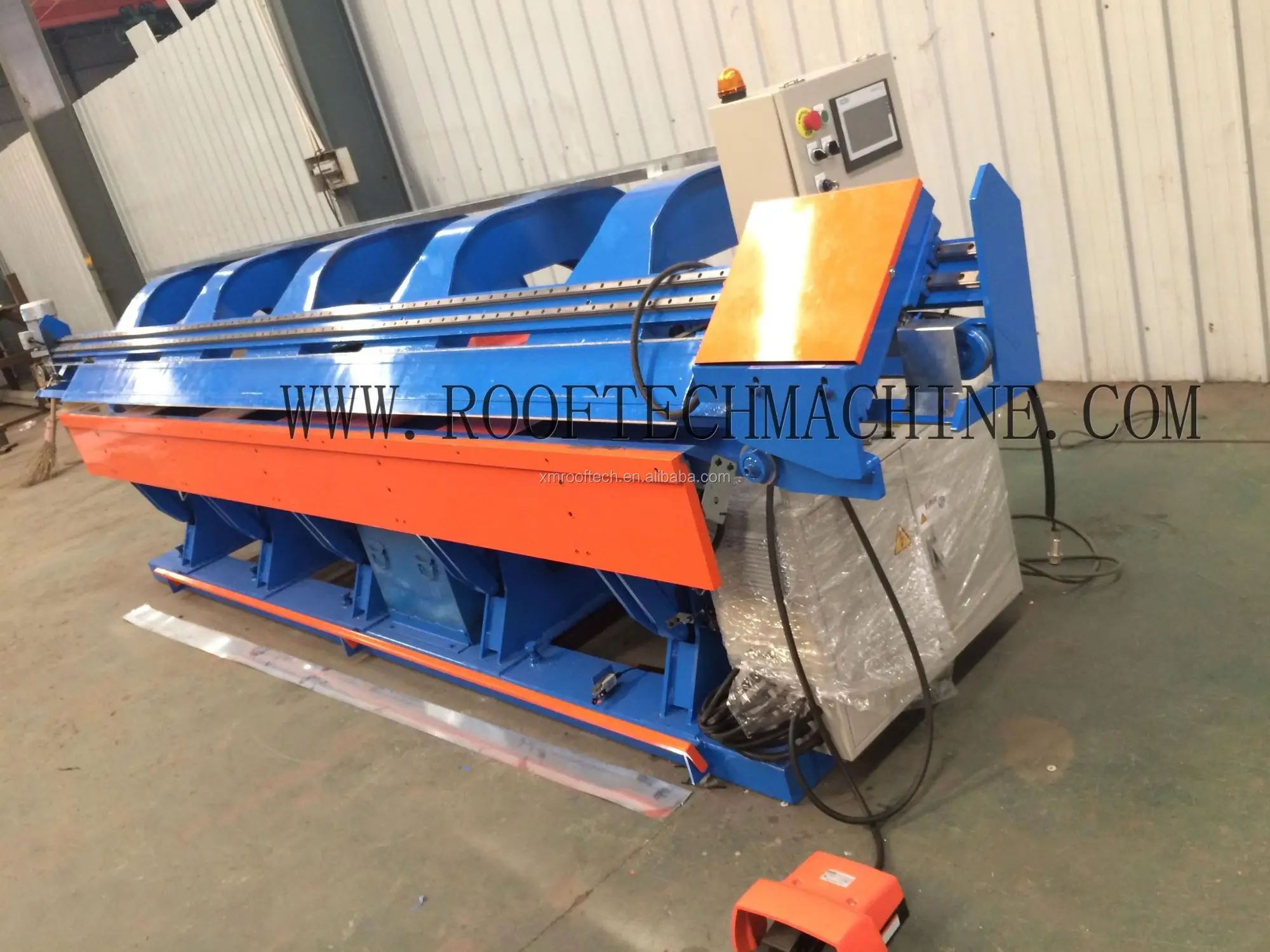

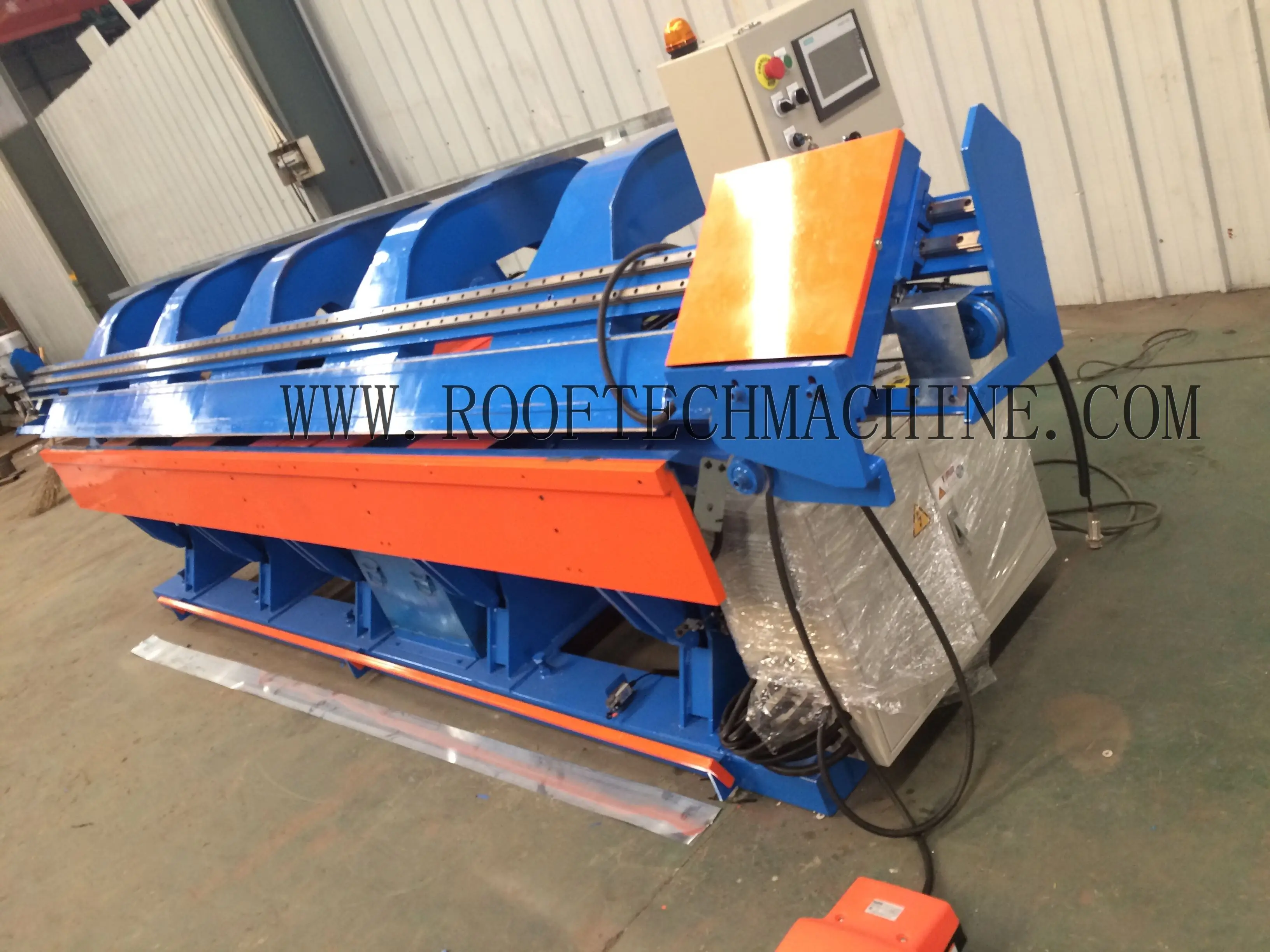

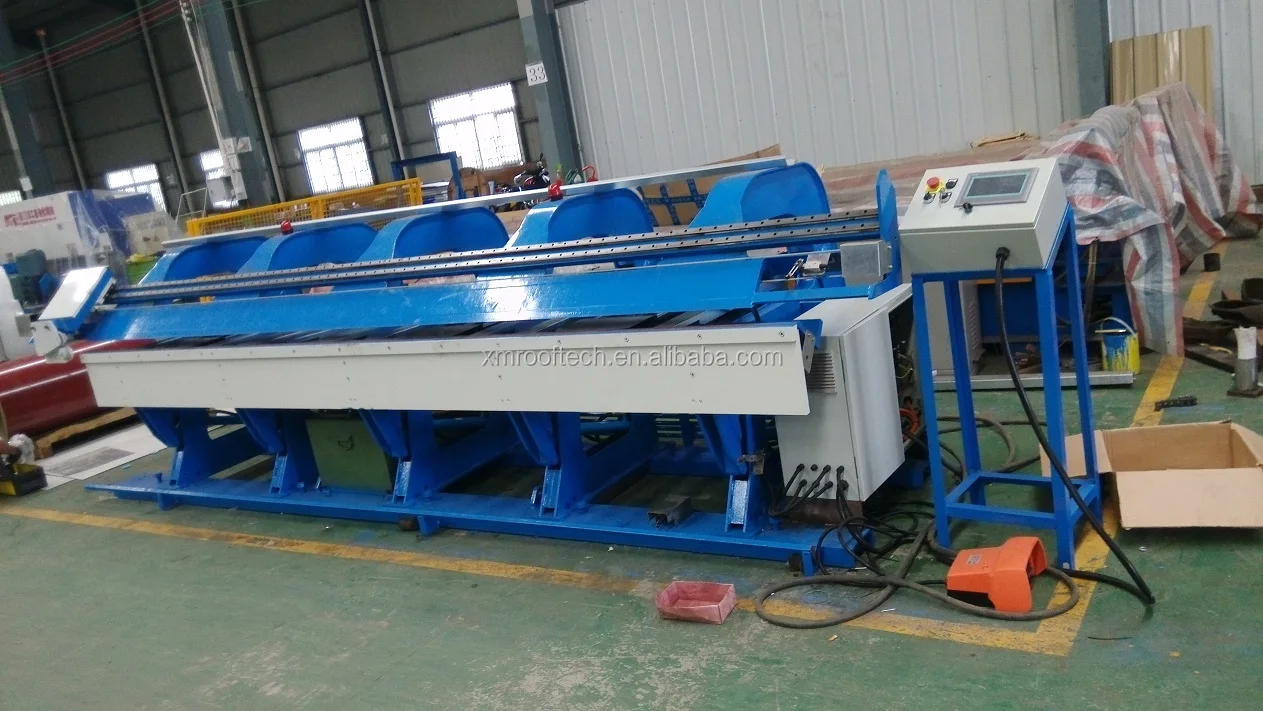

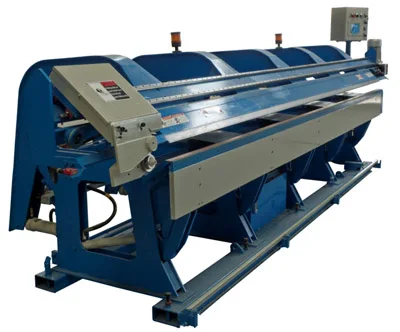

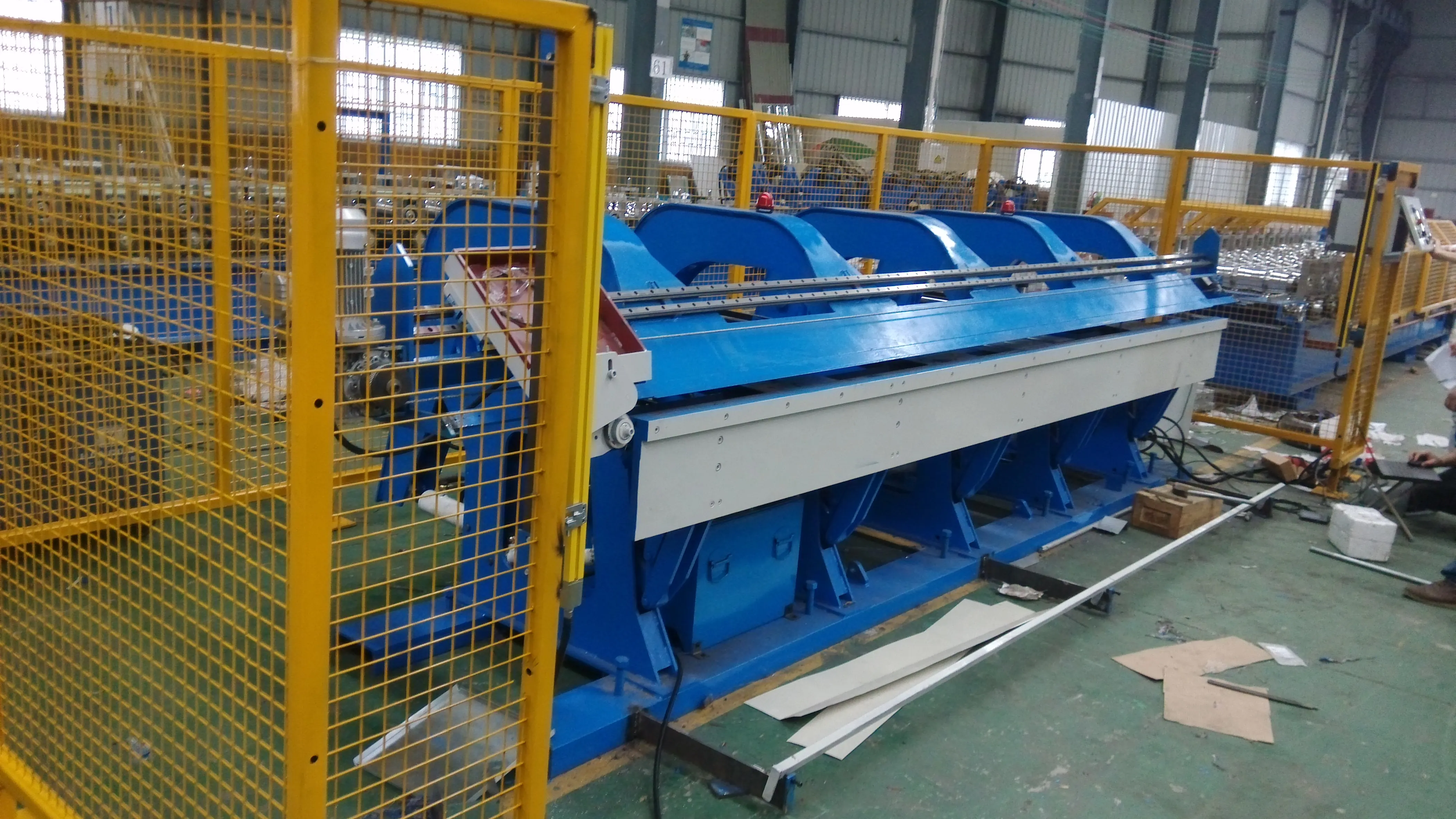

CNC metal bending machine metal sheet folder slitting folding machine

Can fold steel panel into any obtuse angle

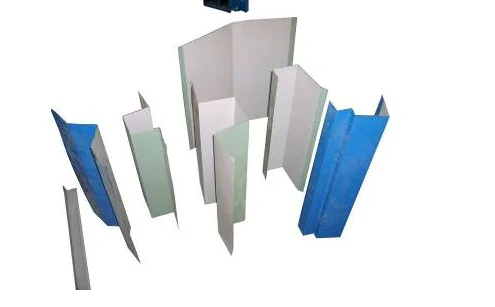

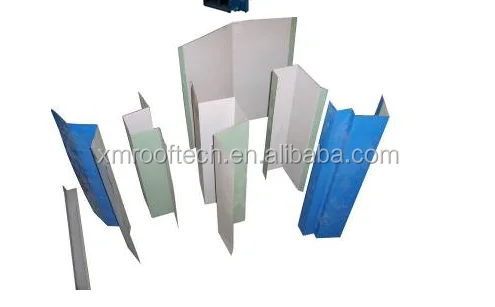

The folding machine can bend different kinds of section automatically.

Machine Components

General Parameter

1) For Steel sheet; Aluminum; Stainless steel

2) Thickness: Max.1.0mm

3) Feeding width: Max. 1000mm

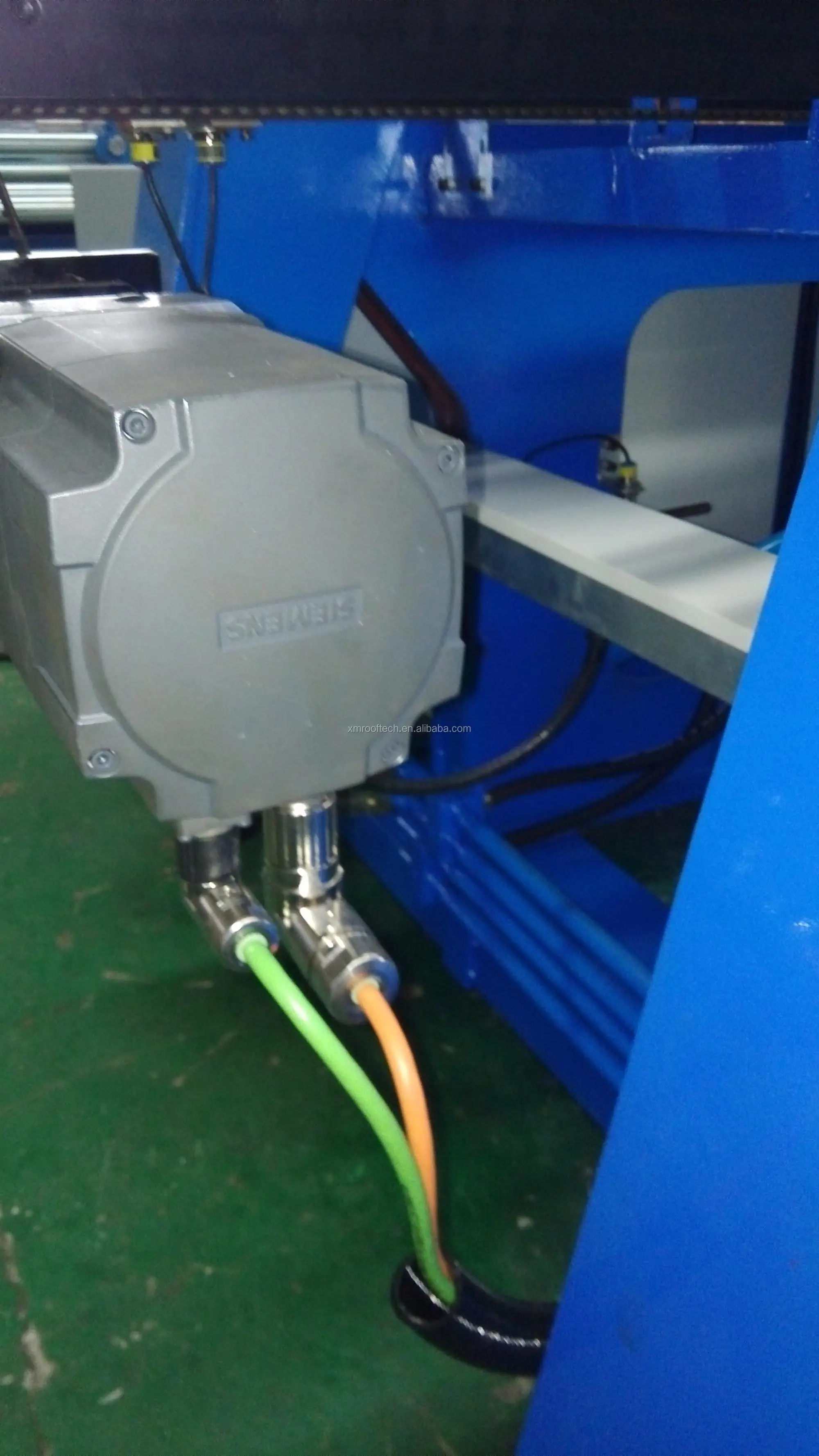

4) Driven by Servo motor, pump motor: 0.82KW

5)Working length: 6000mm

6) Press clamp:7 units

7) Weight:Approx. 3500 Kg

8) Pressing power:pump motor for hydraulic station 11KW(Located outside)

9) Bending range:0-125 degree

10) Depth of throat:1000 mm(Max. working width of material in clamp)

11) Hinge:7 groups

9) Total power:12.92KW (11KW+1.1KW+0.82KW)

10)Outline dimension 7600mm~1570mm~1770mm (For reference only)

Slitting Device

1) Type Of Blade : Slitting wheel

Diameter:80 (Enough)

Material:Cr12MoV

2) Drive system:Motor driving, 1.1KW

Guiding device:Steel rope circling

3) Slitting speed:Approx.0.8m/s

Slitting distance: Through steel rope circulation.

Bending & Slitting Device

1) Max. Bending thickness 1.0mm

2) Max. Bending length 6000mm
