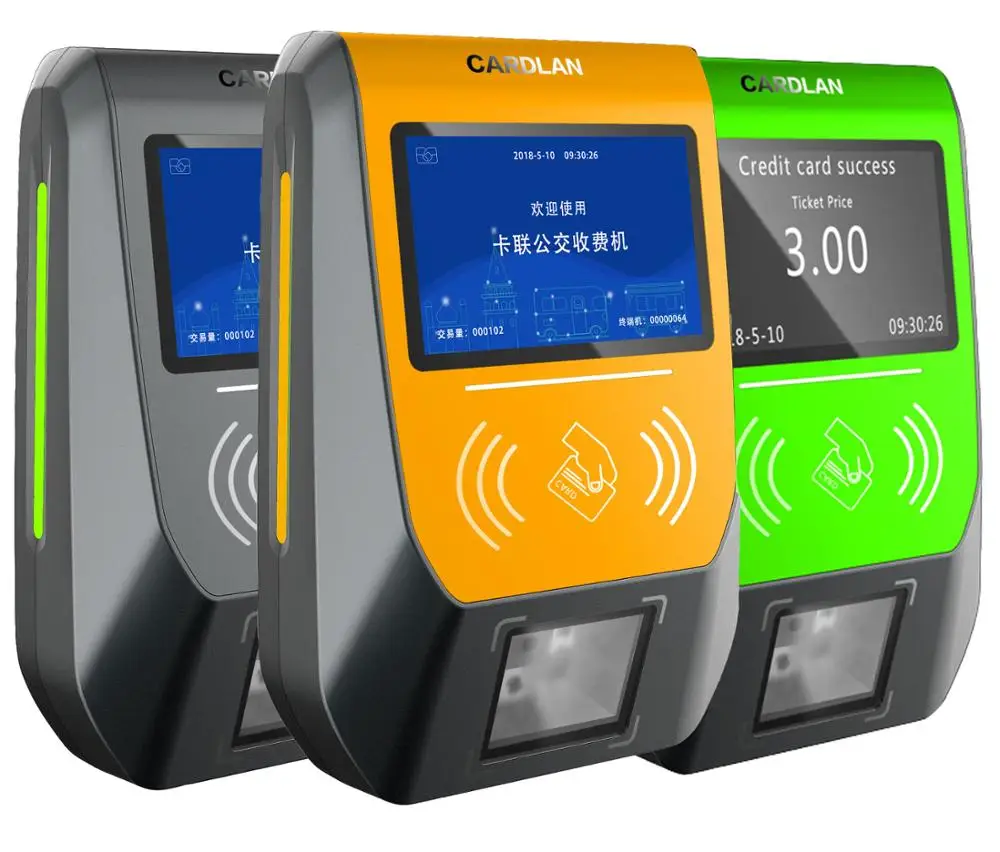

Android Linux Card Payment Terminal with Bus NFC reader and QR Validator For City Bus Ticketing

Share on:

Price in USD:Details


Product Overview


Android Linux Card Payment Terminal with Bus NFC reader and QR Validator For City Bus Ticketing

Company Information

More than 20 years Factory Manufaturing Experience and Project Experience

Shenzhen Cardlan Technology Co. Ltd was established in 2000 in Shenzhen Longgang District.We specialize in manufacturing high-quality bus POS systems, fare collection POS systems, urban all-in-one card systems, intelligent internet information systems and other RFID systems. Cardlan has done so many kinds of project in foreign countries, such as Myanmar, Cambodia, United Kingdom, Chile, Zimbabwe, Thailand, United States, Tajikistan,Dubai, Russia...


Product Description

 How the system works?

Topology Public transit



Main Functions of IC Card Public Transport Charge System


•    Super flexible and changeable automatic charge function: The IC card public transport charge system supports various consumption methods including tens types of public transport IC card like common card, student card, senior card, employee card, and driver card, E-wallet, and commutation ticket.

•    High reliable card payment record: For successful card payment, IC card public transport charge system will record the card number, card payment time, consumption amount (times), balance and consumption type.

•    Parameter setting function: It is easy to set terminal number, ticket price and card permission on IC card public transport charge system.

•    Time correction function: IC card public transport charge system can directly correct time by collector.

•    Super capacity blacklist processing function: IC card public transport charge system is with a capacity of storing 520,000 blacklists. All the passenger cards recorded on IC card public transport charge system blacklist are prohibited usi9ng on IC card public transport charge system.

•    Super humanized operation income automatic counting: IC card public transport charge system is equipped with the automatic counting function for drivers’ operating income, capable of recording the operating income of the driver and ticket agent after their check-in; the driver and ticket agent can inquire the operating income of the current shift.




1. Bus, Taxi, Metro, Highway, Supermarkets, Gas station, Kiosk, Store, Theater and so on fast payments fields;


2. Government, Institution, Company, Factory, School, Hospital, Hotel;


3. Urban public transportation ticket payment system, Company shuttle bus ticket payment system , School shuttle bus payment system




1. Made of industrial grade material, Fully adapt to special circumstances on bus

2. Sealed, dustproof, waterproof, shockproof and anti-electromagnetic interference

3. Dedicated stable power supply, voltage overload protection

4. With the most advanced Linux system, high-definition LCD display

5. WIFI Communication + USB data acquisition, support remote upgrading

6. Contactless smart card, read/write capability, light display for reading card

7. Live voice prompts, supports 15 kinds of voice prompts: such as "student card",      "employee card";

8. Support Mifare1 card, CPU card

9. With Thermal printing module, can connect to POS58 slip printer

10. Optional GPS positioning module, for global positioning satellite positioning;

11. Great stability of data storage, data kept as long as 10 years even with power outage

12. Card Capacity: 91,880,000 pcs;

13. Can check the nearest 20 records, to prevent ticket payment dispute.


Technical specifications:


CL1306 bus card payment




Engineering Plastics, Anti static electricity coating design, be protected from high-frequency interference


3.5 inch LCD display,320x240

Operating system:

Linux 2.6 system


N32905 processor,ARM9 core @ 240MHZ


32MBytes SDRAM,128MB NANDFlash

Data capacity:

259840 pcs of detailed data for console storage, unlimited data at GPRS storage

Card capacity:

91,880,000 pcs

Black list:

91,880,000 pcs (download thru PC with USB)

Working Voltage:

DC 8V-50V

Operating temperature:


Storage temperature:



0-95% RH non condensing


Red, Green light

Sound prompt:

Buzzer, single channel speaker (voice report)

Voice report prompt:

16KHz,16bit single channel voice report prompt


4 command buttons


Can read and write ISO14443 TYPE A\\B Electronic tag (Incl. Combi-Card )

Read card distance:


Supporting card:

Mifare 1 card, Mifare DESfiire card,CPU card, UnionPay IC card




RS232, RS485, USB

Printer modules:

Can be connected to slip printer-POS58

Width of receipt:

Based on printer configuration

Positioning mode:


Power consumption:


Communication Modules:

GPRS(900Mhz/1800Mhz), or CDMA(800Mhz) or 3G or 4G


Supporting 802.11n/b/g standards,150Mbps,2.4Ghz


Compatible for PBOC3.0 UnionPay card


Connect USB to PC, upgrade with GPRS

Data collection:



Our Services

Order Inquiry
We offer 24-hour online service, and door-to-door installation service. Our hardware carry one-year warranty and software have lifetime maintenance service


Installation Guide


First Step for Installation of Software, engineer will guide as below:

Remote Control to help install the software managment.( Teamviewer)

And follow engineer's guide to operate.


Second Step, to Install the Hardware:

1. Accessories of Bus POS Terminal

A 1.5m long power line which ends with aviation ports

A heightening back pad

8 screws (There are 4 long screws and 4 short screws. The long screws are used when the back pad is used. The short screws are used if the back pad is not used. The board may be damaged if you use the long screws.)

Two fixed U-shaped buckles



2. Effect Drawing after Installation



      Front and Back View


Another way of installation:

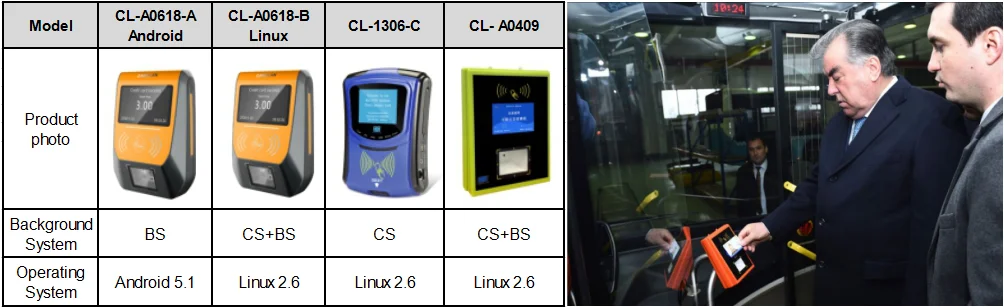

More products of Cardlan Bus payment Software platform as below:

5 (2)5

Quality control

Strictly hightemperature/low temperature testing, Vibration testing, to make sure products can meet the extreme environment on bus.

running test 02




Our hardware have got CE/FCC approvals, and if you have any more questions, please contact Kathy at +86-13530321253,she can speak English, welcome inquiry!~


Q: Are you trading company or manufacturer?

A: We are factory for 20 years for public transportation payment ,which include hardware and software.


Q: Do you sell the machine and management software system together?

A: We can sell them together , also you can only buy hardware machine or system.

Q: How to set the machine and the software management ?

A: we can provide you the whole set instruction book of the machine and the system, you can do as the instruction. wealso can send engineers to your country to set up the machine and adjust the whole system for you.

Q: Do you provide samples for testing?

A: yes, we could offer the samples for your inspection,and also offer SDK for your secondary development.


Q: what is your payment terms?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% TT in advance,balance payment before delivery.
