5V 12V 24V 2A 1 2 Channel SSR Solid State Relay High Low Level relay Module fuse 240V G3MB 202P
- Category: >>>
- Supplier: Shenzhen Setsail Business Co. Ltd.
Share on (60792451274):
Product Overview
Description

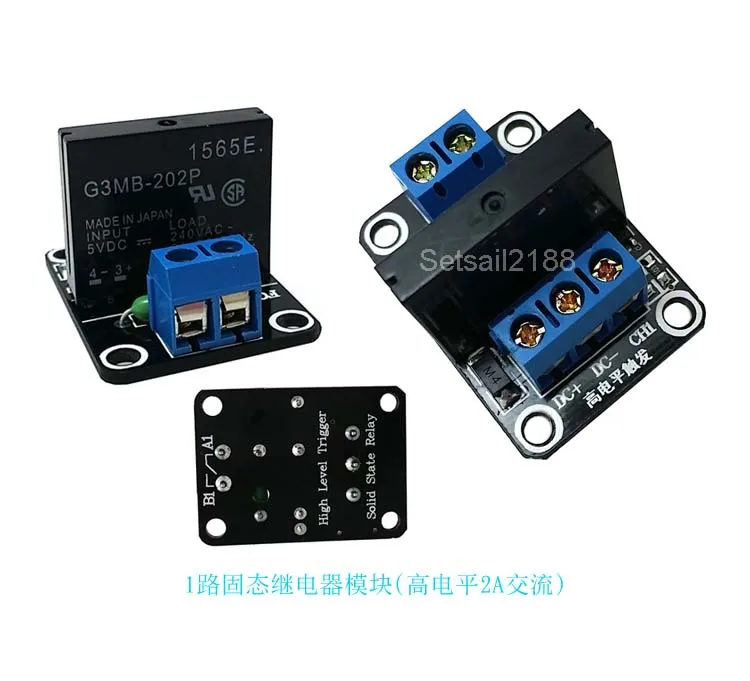

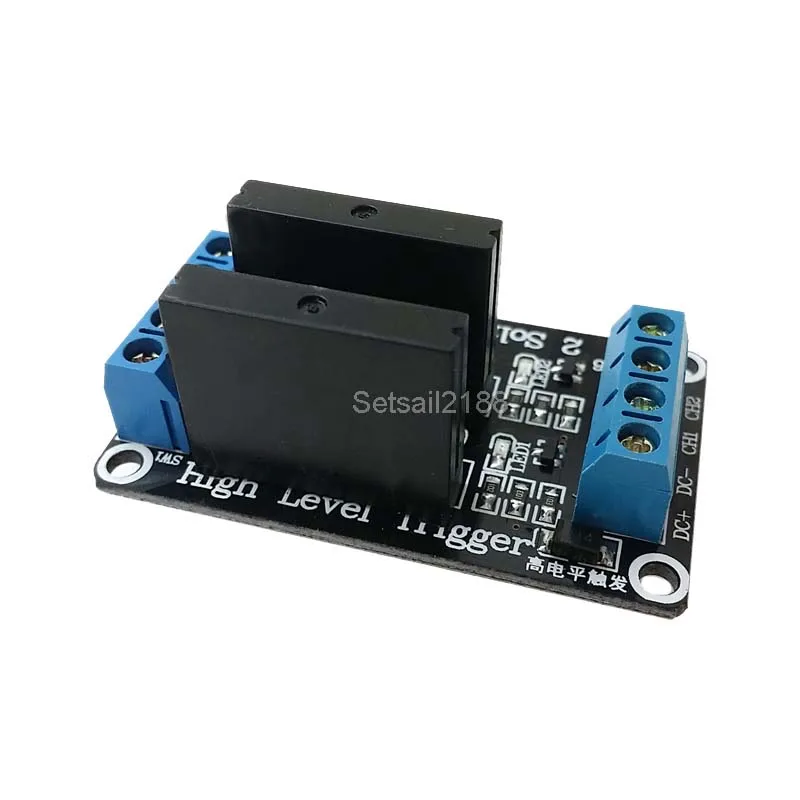

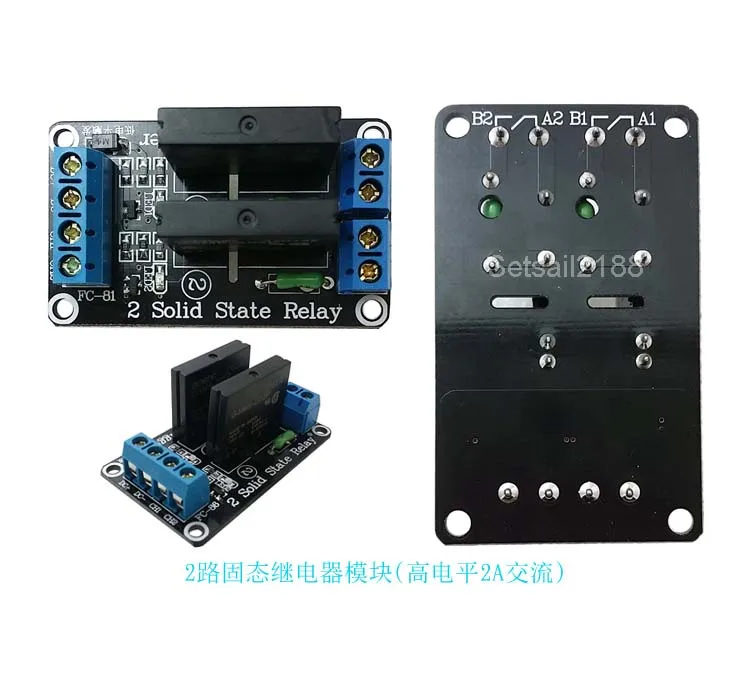

5V 12V 24V 2A 1 2 Channel SSR Solid State Relay High Low Level relay Module fuse 240V G3MB-202P
Note:We have this 1 2 4 6 8 channel
5V 12V 24V
Description:

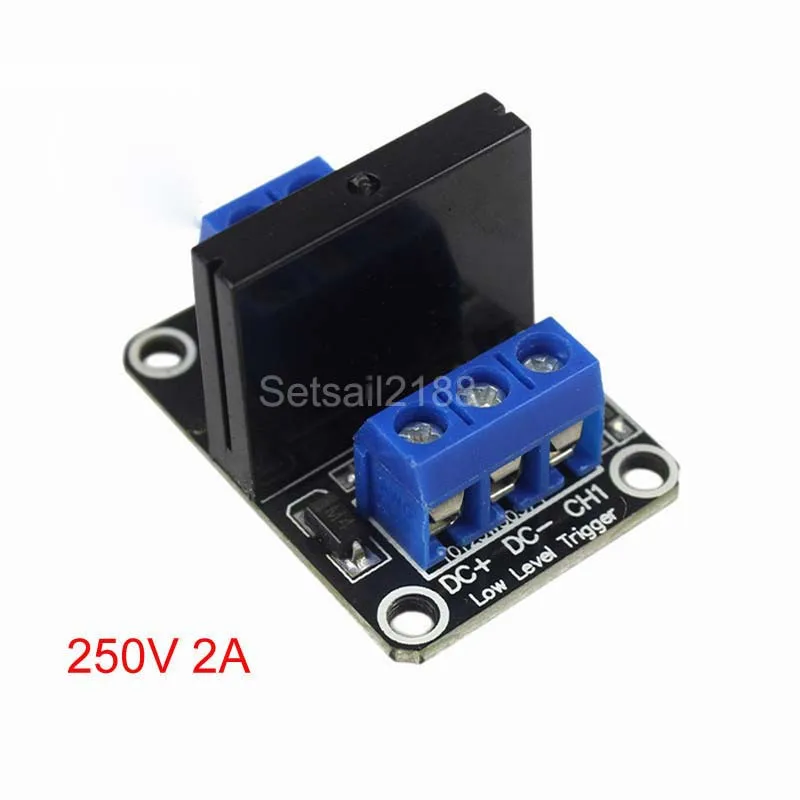

5V 12V 24V solid state relay 240V 2A, output with resistive fuse 240V 2A
Size: 24*32*21mm/0.94*1.25*0.82”
Input Power: 5V DC (160mA)
Input control signal voltage:
(0-2.5V state low relay OFF)
(3-5V state high relay ON)
Module interface:
Input section:
DC +: positive power supply (by relay voltage power supply)
DC-: connect power negative
CH: relay module signal to trigger the end (high level trigger effective)

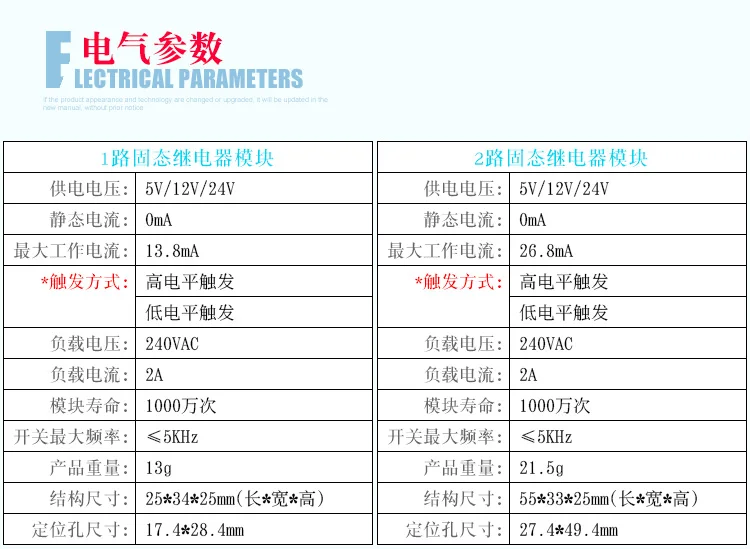

Voltage version static current working current trigger voltage trigger current
5V 0mA 12.5mA 3.3-5V 2mA
High and low level meaning:
The high level trigger refers to a forward voltage between the signal trigger terminal (IN) and the negative electrode of the power supply. It is usually a trigger mode connected with the positive terminal of the power supply and the trigger terminal. When the trigger terminal has a positive voltage or reaches the trigger level. At voltage, the relay pulls in.
The low-level trigger refers to the voltage between the signal trigger terminal and the negative electrode of the power source is OV, or the voltage of the trigger terminal is lower than the voltage of the positive electrode of the power supply, and when the voltage is low enough to trigger, the relay is pulled in, usually A triggering method of connecting the negative pole of the power supply to the triggering end causes the relay to pull in.
Package includes:
1 x Solid State Relay Module
