DC FUSE 1500VDC SOLAR PV FUSE feeo dc fuse
US $2.50-$6.80

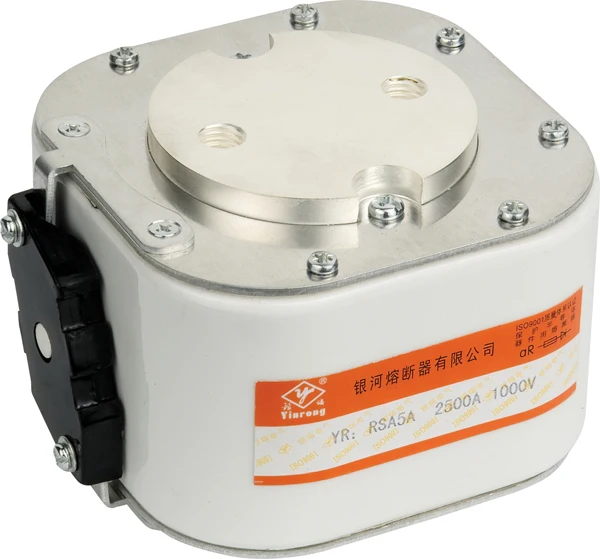

Yinrong 1000v fuse 2500a semiconductor protection fuse
- Category: Fuses >>>
- Supplier: Zhejiang,Galaxy,Fuse,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

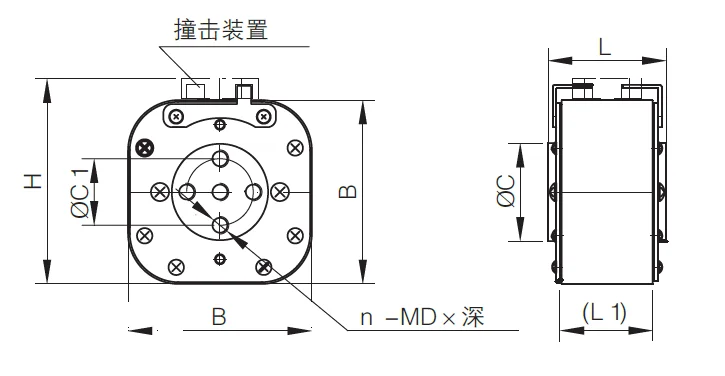

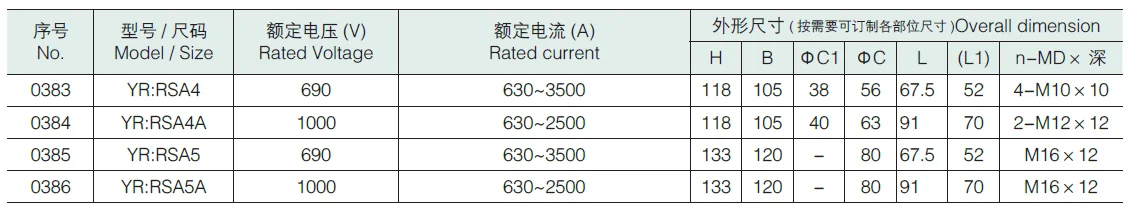

| Model | Rated voltage (V) | Rated current (A) | Overall dimension | ||||||
| H | B | ΦC1 | ΦC | L | (L1) | n-MD×deep | |||
| RSA4 | 690 | 630~3500 | 118 | 105 | 38 | 56 | 67.5 | 52 | 4-M10×10 |
| RSA4A | 1000 | 630~2500 | 118 | 105 | 40 | 63 | 91 | 70 | 2-M12×12 |
| RSA5 | 690 | 630~3500 | 133 | 120 | - | 80 | 67.5 | 52 | M16×12 |
| RSA5A | 1000 | 630~2500 | 133 | 120 | - | 80 | 91 | 70 | M16×12 |
