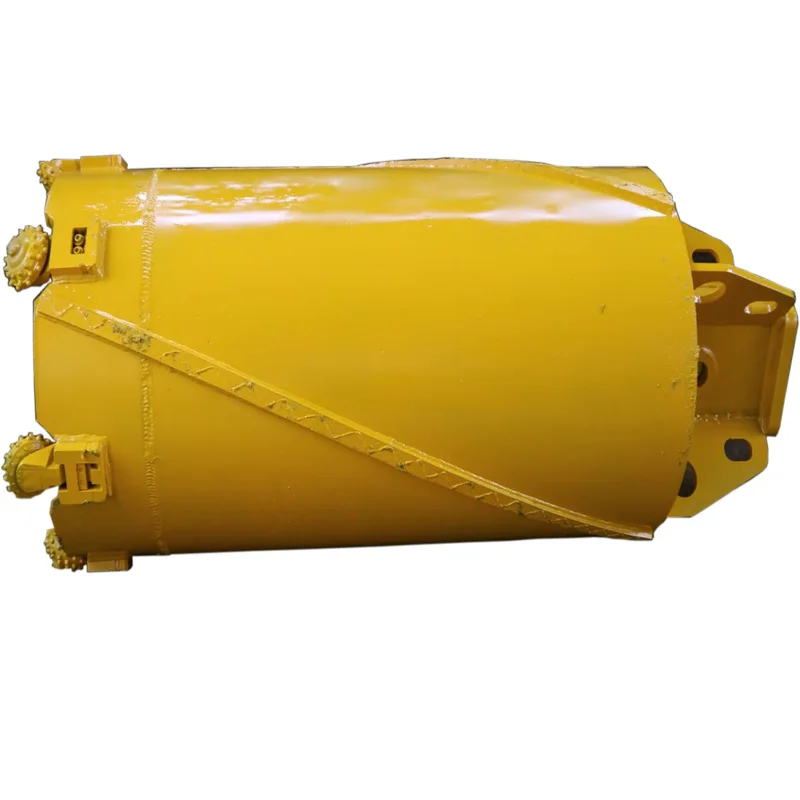

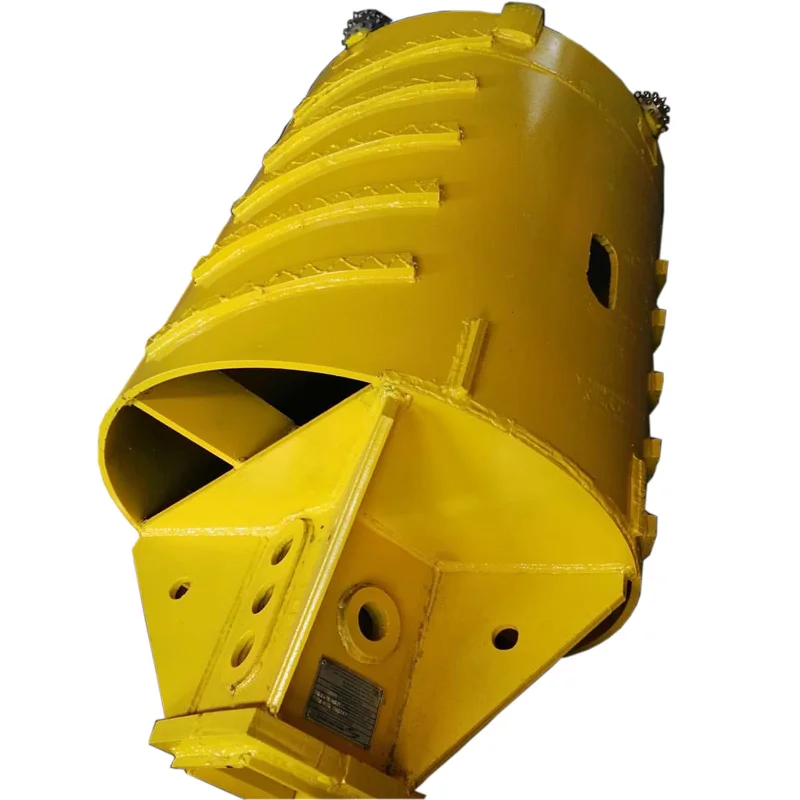

Rotary Drilling Rig Tools Core Barrel with Roller Bits for foundation construction
- Category: >>>
- Supplier: Xiangtan Zhongwei Heavy Industry Co. Ltd. [Hunan China]Xiangtan
Share on (60792470619):
Product Overview
Description
Rotary Rig Drilling Tools Core Barrel with Roller Bits for Civil Engineering
Products Description
Name: Rock Core Barrels drilling bucket
Drilling Diameter: 600-2500MM or customized
Description:
Rock Drilling Core Barrels with Roller Bits adopt the high-carbon steel and special drilling bits angle to keep the drilling strength and efficiency.
There are tree types of core barrels:

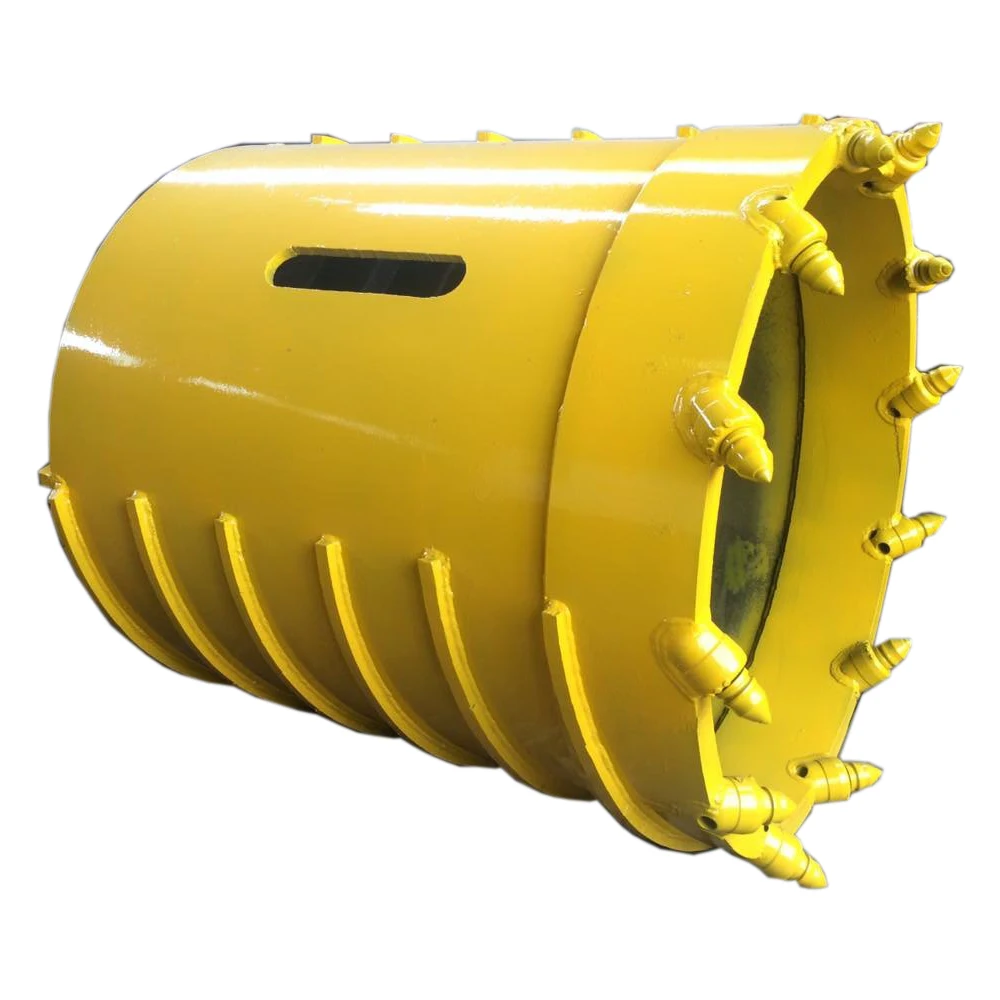

1)Core barrel with bullet teeth is used for cutting an annular ring in rock or concrete(also reinforced concrete).

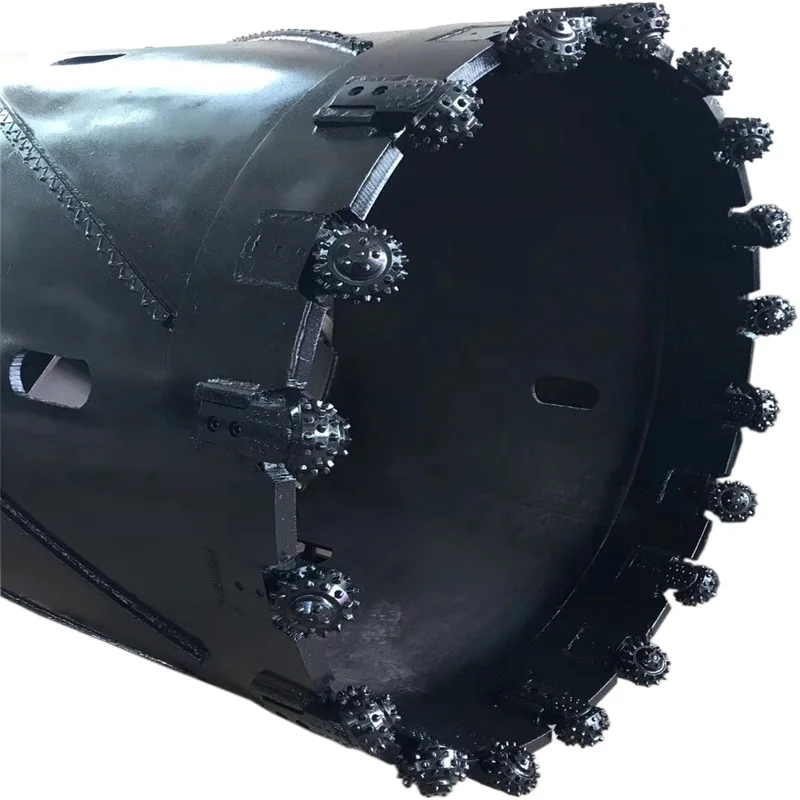

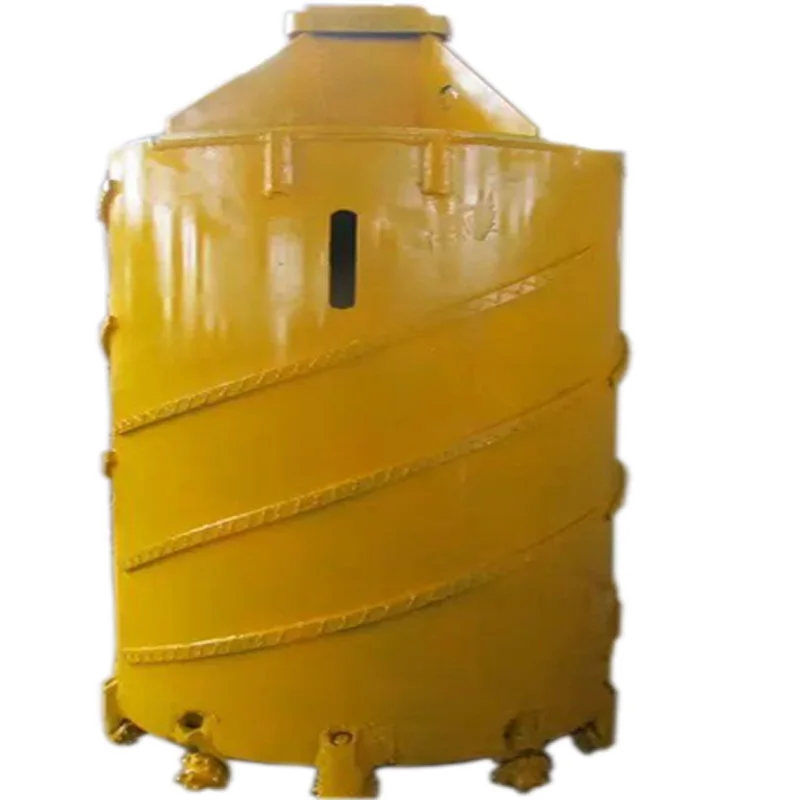

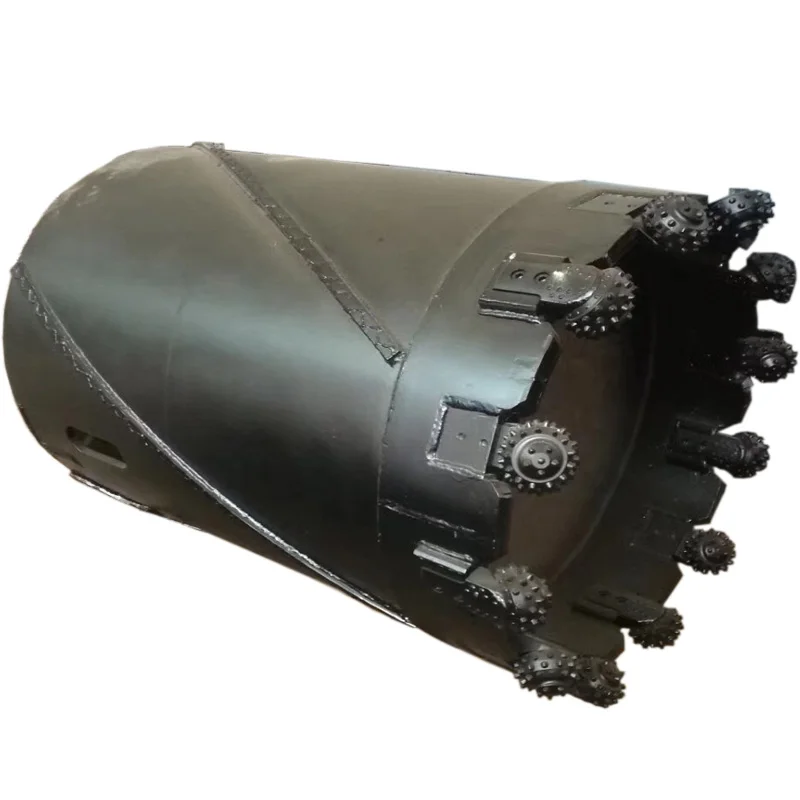

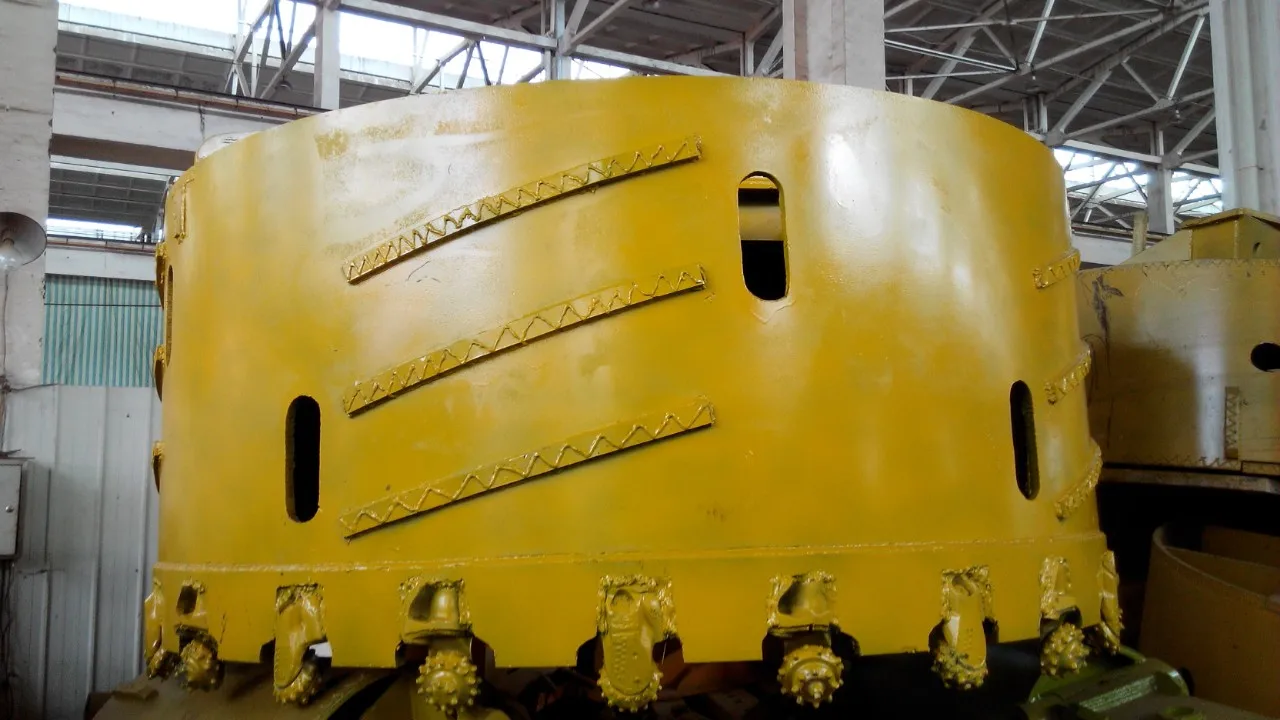

2)Core barrel with roller bits is used in very strong rock formations(compressive strength > 100Mpa).
3)Cross cutter core barrel is mainly used to break rock cores which remain in the borehole after using a core barrel, also suitable for drilling hard, jointed rock(<100Mpa) and for penetrating through layers containing boulders.
Applicable layers: dense sand, gravel and medium hard rocks, etc.
Feature:
1)Kelly Box size 100;150;200mm
2)Roller Bits are API Certificated, complete of bearing and carbibe insert
Suitable for Rotary Drilling Rig: Bauer, Sany, Xcmg, Soilmec, Mait, IMT

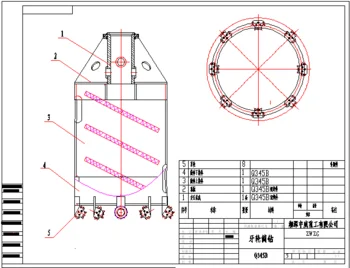

Parameter
| Product Name | Core Barrel With Roller Bits | |||||
| Material | Q345B | |||||
| Technique | Welding | |||||
| Kelly Box | Bauer Type 200mm*200mm as usual | |||||
| Teeth | 8.5'' roller bit (IADC 537) | |||||
| Model | Diameter (mm) | Shell Length (mm) | Shell Thickness (mm) | Bottom Ring Thickness (mm) | Teeth (Pcs) | Weight (kg) |
| ZWT-L 600 | 600 | 1200 | 20 | 40 | 4 | 700 |
| ZWT-L 700 | 700 | 1200 | 20 | 40 | 4 | 780 |
| ZWT-L 800 | 800 | 1200 | 20 | 40 | 5 | 880 |
| ZWT-L 900 | 900 | 1200 | 20 | 40 | 5 | 970 |
| ZWT-L 1000 | 1000 | 1200 | 20 | 40 | 6 | 1080 |
| ZWT-L 1200 | 1200 | 1200 | 20 | 40 | 8 | 1420 |
| ZWT-L 1400 | 1400 | 1200 | 20 | 40 | 8 | 1500 |
| ZWT-L 1500 | 1500 | 1200 | 20 | 40 | 9 | 1750 |
| ZWT-L 1600 | 1600 | 1200 | 20 | 40 | 10 | 1800 |
| ZWT-L 1800 | 1800 | 1200 | 20 | 40 | 11 | 2000 |
| ZWT-L 2000 | 2000 | 1200 | 20 | 40 | 12 | 2300 |
| ZWT-L 2200 | 2200 | 1200 | 20 | 40 | 13 | 2680 |
| ZWT-L 2500 | 2500 | 1200 | 20 | 40 | 15 | 3200 |
| Customize: | ||||||
| 1. Diameter: 500~3000mm | ||||||
| 2. Shell length: 800~2000mm | ||||||
| 3. Shell thickness: 16~25mm | ||||||
| 4. Kelly box: Bauer type(200*200mm, etc.), Sany type(200*200mm, 150*150mm, etc.), Soilmec type(75*75mm, 100*100mm, 130*130mm, etc.), etc. | ||||||

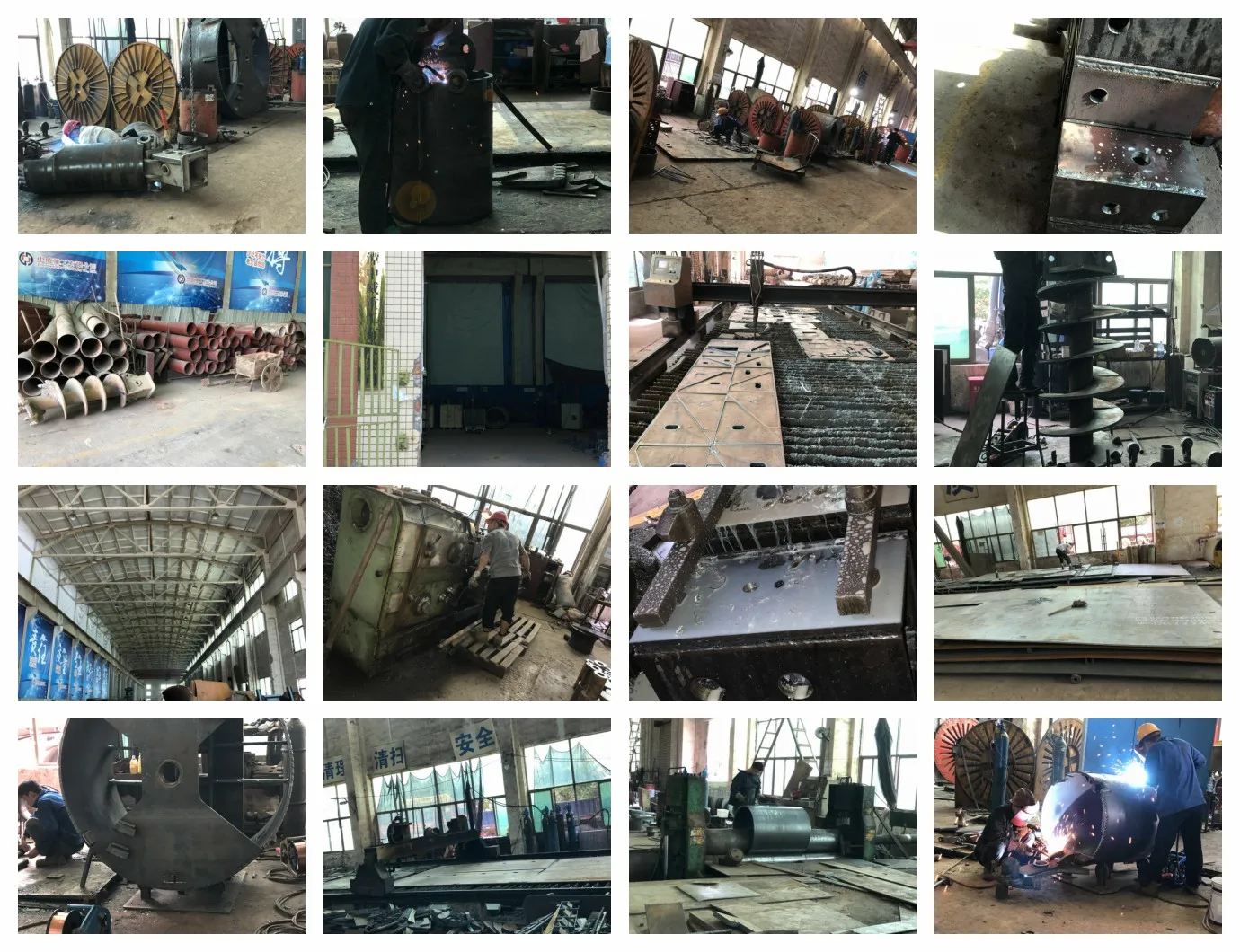

Production Line
Packaging & Shipping
1. Wrapped with plastic film.
2. Fixed with iron support, wheel or pallet when necessary.
(3. Packed with wooden cases for small things.)
