Product Overview

Description



Product Description







Application of  Carbide rods and bars

Tungsten carbide single hole rod can be used for making varioius drill bits, automobile special cutter, printed circuit board ,special cutters, engine special cutters, horologe,processing special cutters, integral vertical milling cutter, graver and etc.



Specification of  Carbide rods and bars

GRADE   YL06C YL10.2 YL10A YF06 XF20S XF30S XT30S XU30 XU09S XU10W
Drilling   * * * * *
Milling   * * *   * * * * * *
Reaming         *
P General carbon steel   ^   # ^ ^   #
M Stainless steel          #   ^
K Cast Iron   ^ #   ^ ^   #
S Ti         #   ^
  HRSA           #
N Al-Mg   ^ # ^ ^ ^   #
H Hard steel                 ^
Others Plastic   #     #
  CFRP ^(coated)
  Wood         ^ #       ^
  Ceramic ^(coated)

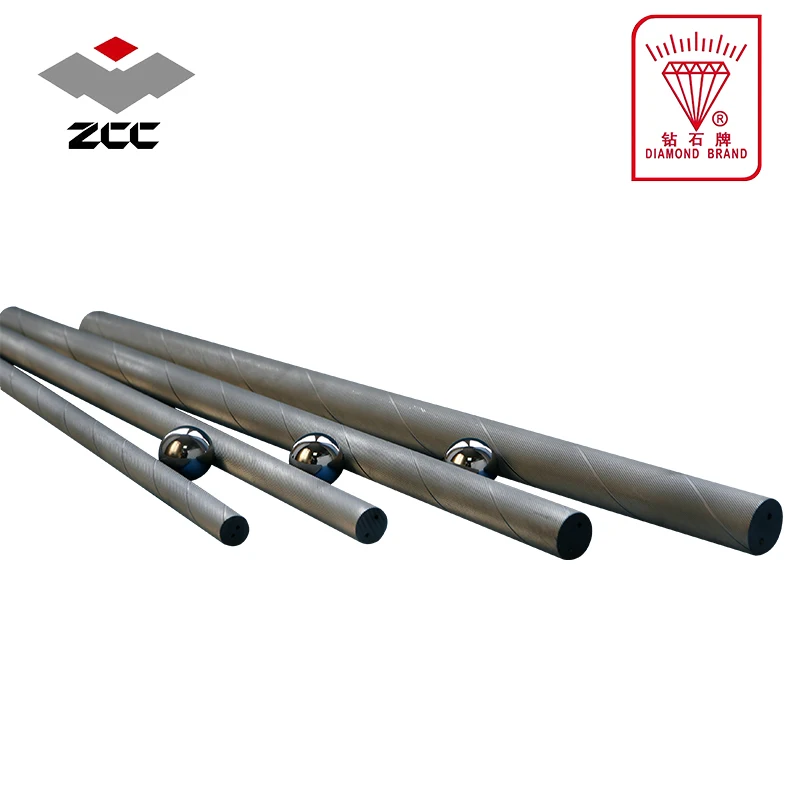

Cemented carbide rods blanks with one central coolant hole


Type D(mm) Tolerance d(mm) Tolerance Deviation of holes position≤(mm) L(mm) Tolerance
BΦ4.0×Φ1.0×330 4.0 +0.2/+0.6 1.0 ±0.15 0.2 330 0/+5
BΦ5.0×Φ1.0×330 5.0 +0.2/+0.6 1.0 ±0.15 0.2 330 0/+5
BΦ5.0×Φ1.5×330 5.0 +0.2/+0.6 1.5 ±0.15 0.2 330 0/+5
BΦ6.0×Φ1.0×330 6.0 +0.2/+0.6 1.0 ±0.15 0.2 330 0/+5
BΦ6.0×Φ1.5×330 6.0 +0.2/+0.6 1.5 ±0.15 0.2 330 0/+5
BΦ8.0×Φ1.0×330 8.0 +0.2/+0.6 1.0 ±0.15 0.25 330 0/+5
BΦ8.0×Φ1.5×330 8.0 +0.2/+0.6 1.5 ±0.15 0.25 330 0/+5
BΦ9.0×Φ1.0×330 9.0 +0.3/+0.7 1.0 ±0.15 0.25 330 0/+5
BΦ10.0×Φ1.0×330 10.0 +0.3/+0.7 1.0 ±0.15 0.25 330 0/+5
BΦ10.0×Φ2.0×330 10.0 +0.3/+0.7 2.0 ±0.2 0.25 330 0/+5
BΦ11.0×Φ1.0×330 11.0 +0.3/+0.7 1.0 ±0.15 0.25 330 0/+5
BΦ12.0×Φ1.0×330 12.0 +0.3/+0.7 1.0 ±0.15 0.25 330 0/+5
BΦ12.0×Φ2.0×330 12.0 +0.3/+0.7 2.0 ±0.2 0.25 330 0/+5
BΦ14.0×Φ2.0×330 14.0 +0.3/+0.7 2.0 ±0.2 0.25 330 0/+5
BΦ16.0×Φ2.0×330 16.0 +0.4/+0.8 2.0 ±0.2 0.25 330 0/+5
BΦ16.0×Φ3.0×330 16.0 +0.4/+0.8 3.0 ±0.25 0.25 330 0/+5
BΦ18.0×Φ3.0×330 18.0 +0.4/+0.8 3.0 ±0.25 0.3 330 0/+5
BΦ20.0×Φ3.0×330 20.0 +0.4/+0.8 3.0 ±0.25 0.3 330 0/+5

20.0≤Dia ≤40.0 are available on request
