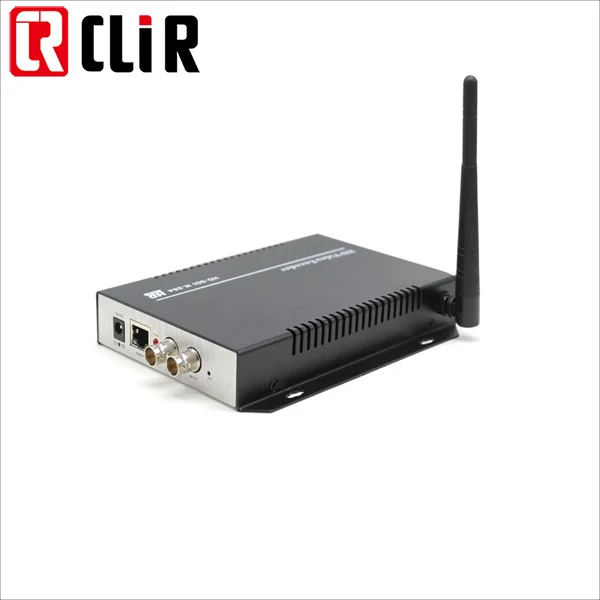

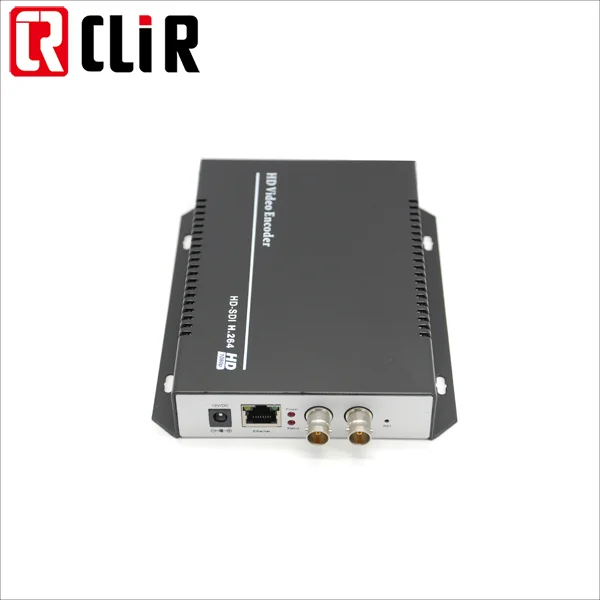

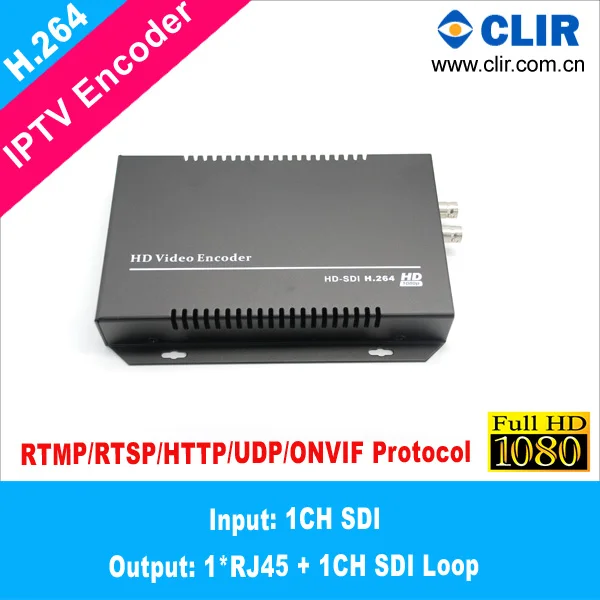

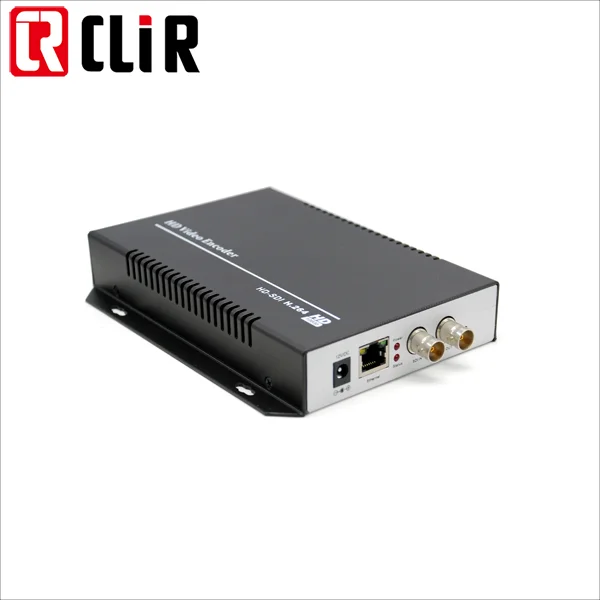

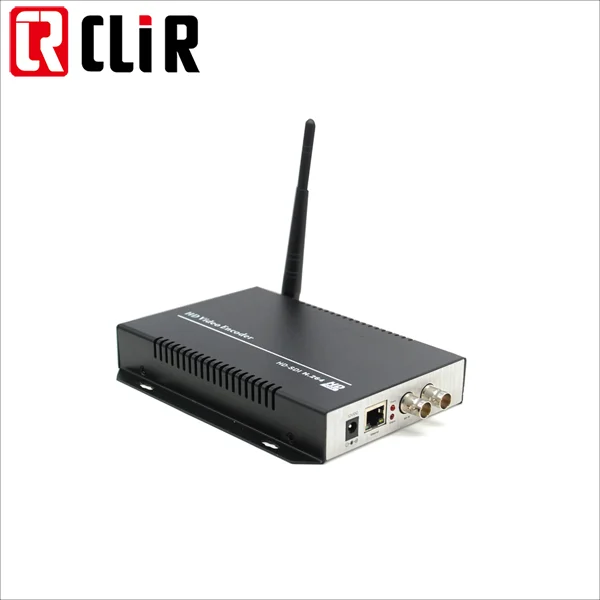

4 CHANNEL 1080P HD SDI H.264 IP Video iptv streaming encoder



Product Description


encoder mini800.jpg


Support 1 channel SDI input optional


Support H.264 Main Profile/H.264 High Profile and MP3 & AAC audio compression


Bitrate mode: CBR/VBR


Capable of image parameter settings


Switchable of audio output mode: Left, right and Stereo


Configurable of Multi-rate, Multi-resolution, Multi-protocol

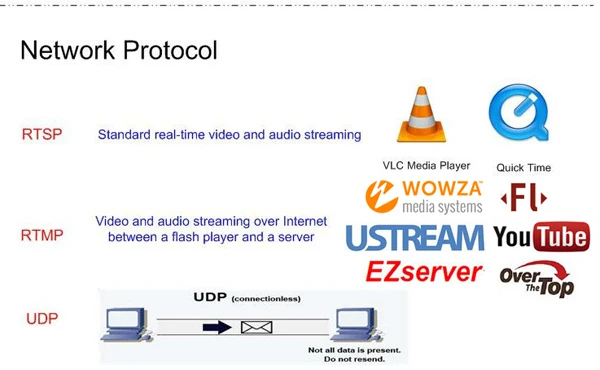

Providing RTSP/HTTP/UDP or RTMP protocol


Support HDCP protocol


Support ONVIF Network Video Protocol


Providing username, password matching function which required from destination server.


Support multiple equipments display at the same time on a computer


System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32/64, LINUX


Web-based management


Full-duplex mode 100M





APPLICATIONS,IPTV system,OTT system,Internet TV,Digital Signage Project,


Remote Video Conference,Video Monitoring

































































































Model    IPTV01H-SDI
Input1 channel SDI
Video CompressionH.264/AVC High Profile Level 4.0
Analog Input FormatPAL, NTSC
Main Stream Resolution

1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,


720x540,720x480, 720x404,704x576,640x480,640x360,auto


Sub Stream Resolution

1280x720,800X450,720x576,720x540,720x480,720x404,704x576,


640x480,640x300,352X288,320X240,320X180 auto


Bit Rate16kbps~12Mbps, CBR/VBR
Video Pre-processingNoise reduction, Sharpen, Filtering
Audio CompressionAAC, MP3
Sampling RateAdaptive, selectable of re-sample
Sampling accuracy24-bit
Bit Rate: 48000,64000,96000,128000,160000,192000,256000
Re-sample32000, 44100
IP output4*4CH TS over IP stream out (2 Channels main stream up to 1080P, 2 Channels sub streaming up to 720P)
Transport ProtocolTS over IP output, RTSP/HTTP/UDP or RTMP protocol
Connector4*RJ45, 100M Ethernet interface
Configuration InterfaceInternet Explorer
UpgradeVia network
PowerDC12V, 5W
Operating Temperature0~50°C
Dimension490mm(W)*260mm(D)*46mm(H)
Weight5kg(including accessories)


iptv5.jpgNVS SYSTEM
