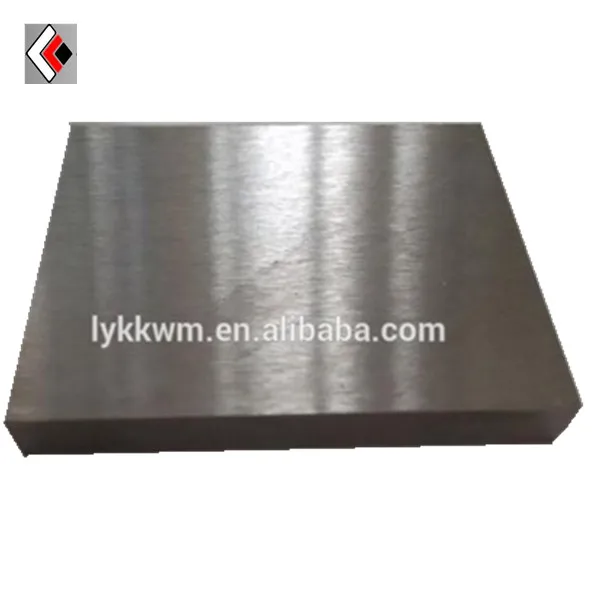

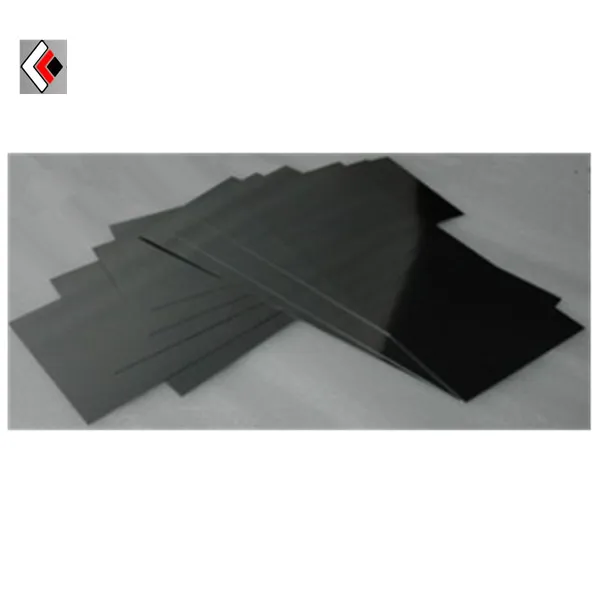

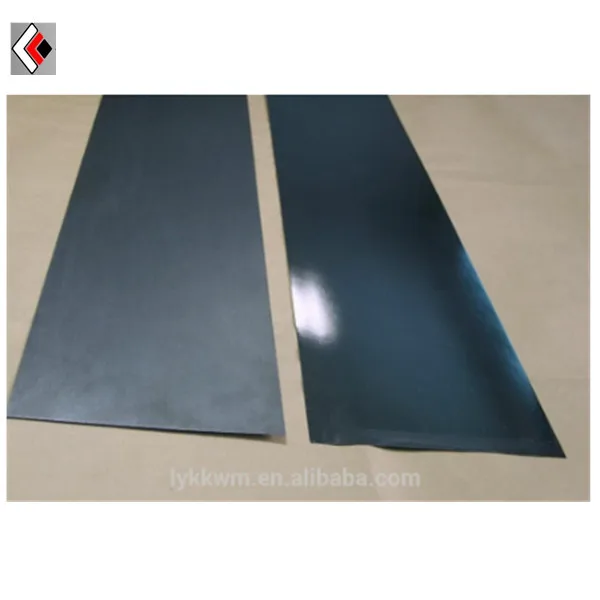

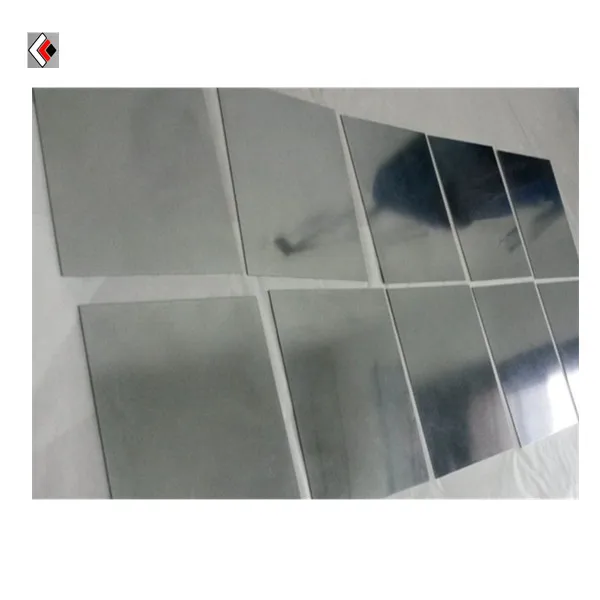

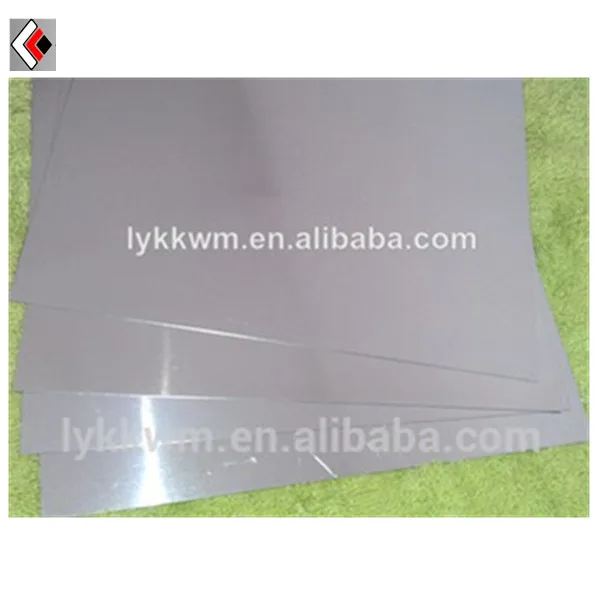

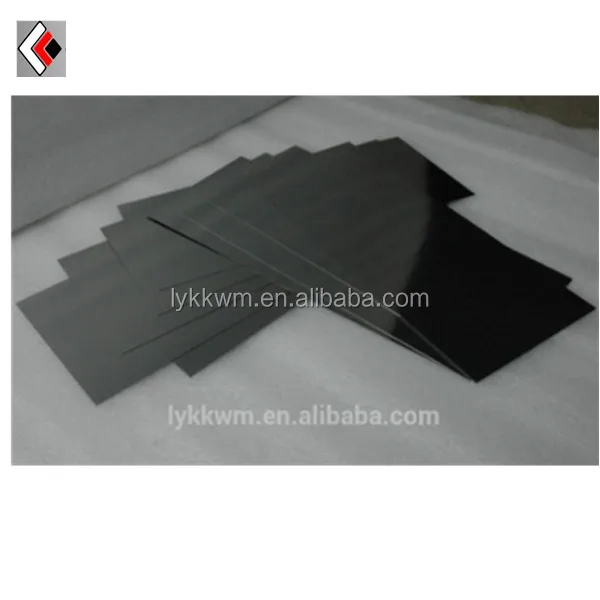

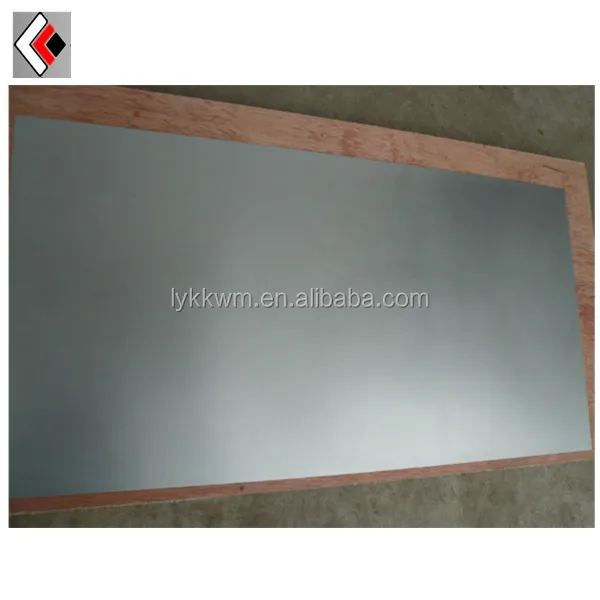

Polished molybdenum hard plate

Polished molybdenum hard plate

Molybdenum plate

Quick Details

·         Place of Origin: Henan, China (Mainland)

·         Brand Name: Kekai

·         Model Number: Mo1

·         Dimensions: As user's demand

·         Shape: Sheet

·         Material: Molybdenum, Pure Mo

·         Chemical Composition: Mo1 99.95%min.

·         Grade:Mo1

·         Appearance: Metallic silver luster

·         Dimension: As user's demand

·         Surface: shiny, matte, satin, or as-rolled condition

·         Melting point:2610 Celsius

·         Density:>10.2g/cc

·         Used for: making electric light source parts etc.

Packaging & Delivery

Product Description:

Description:

1. Product name: Molybdenum plate

2. Standard: ASTM B386 or as required

3. Material: Mo >99.95%

4. Density: >10.2g/cc

5. Tensile strength: 610MPa

6. Elongation: > =10%

7. Using temperature: 1800℃, max temperature: 2310℃

Application:

Molybdenum plate is used for making electric light source parts, components of electric vacuum and electric power semiconductor. It is also used for producing molybdenum boats, heat shield and heat bodies in high temperature furnace. It is widely used in furnace construction mould and parts, electronic components manufacturing and semiconductor industry. In vacuum furnace and high temperature furnace and heat preservation material plate electrode, etc.

Specification:

Specification: (0.2-90) mm*max 760mm*max10m

We produce high quality molybdenum sheet as one of our hot product. We offer 3,000-5,000 kg molybdenum sheets per month and small order is also acceptable.

Surface Condition:

Surface can be supplied in a shiny, matte, satin, or as-rolled condition;

dependent upon thickness and width parameters.

Heat treatment:

Molybdenum flat products are rolled and annealed to provide the optimum condition for the desired end use.

Composition:
