UV label Variable Data Printing System
- Category: >>>
- Supplier: Guangzhou Beyer Machinery Equipment Company Limited [Guangdong China]Guangzhou
Share on (60792568048):
Product Overview
Description
Product Description
BYIP is aimed at all kinds of standard card, can print on CARDS, letters, Numbers, one dimensional bar code, two dimensional bar code and etc variable information.The production standard card, output up to 12000-12000 per hour .
The UV ink is environmental protection,and exists in all kinds of surface for long time, resistance to alcohol solvent and propyl alcohol to wipe, you just need to less UV inks to save cost.
Technical

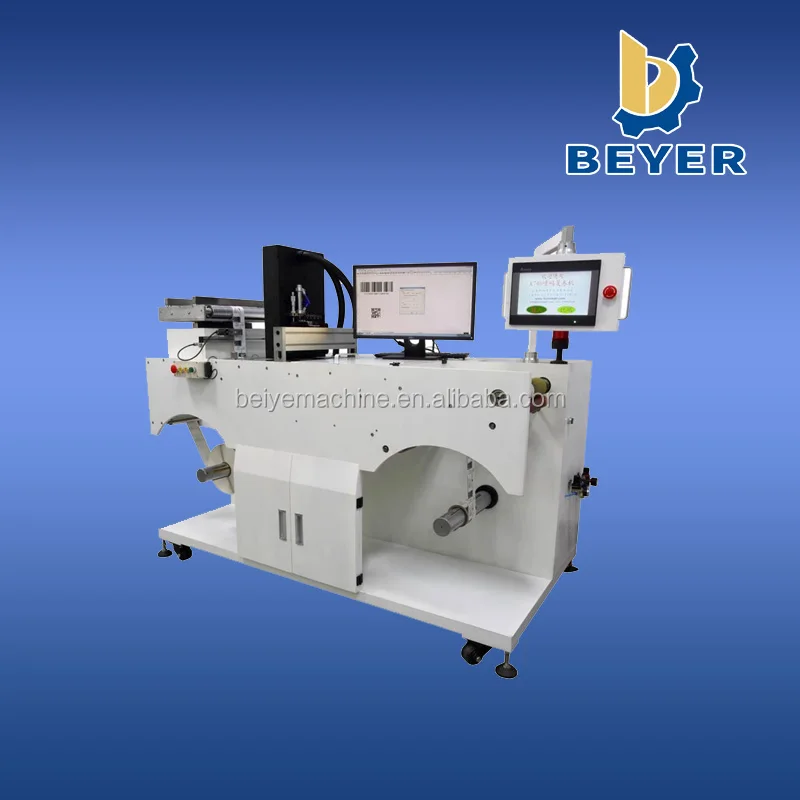

Equipment:BYIP
Nozzle type:Ricoh GEN5 industrial piezoelectric nozzle
The normal life of the nozzle is more than 3 years
Nozzle print width of 108 mm
Printing unit number 1 ~ 24 groups can be extended
Physics 600 dpi printing precision
Card linear velocity of 70 ~ 90 m/min
Gigabit network interface type
Imported environmentally friendly,black and firm UV ink.
Suitable for all kinds of paper, plastics, PVC/PP/PE film,etc printing materials
Model | G5INKJETV | Print Head | Ricoh GN5-4 |
Tech. | Japan Ricoh | Resolution | 300,600×600,400,300,200dpi |
Single Print heads Width | 54.0mm | Speed | 140m/min (600×200dpi) 120m/min (600×300dpi) 100m/min (600×400dpi) 91m/min (600×500dpi 75m/min (600×600dpi) |
Max.Width | 54mm×6 | Printing Type | Piezoelectricity |
Support | Computer online printing | Drop Size | (7PL),(14PL),(21PL)
|
Inks | SEIKO UV inks 1L | Software | G5INKJETV Printing Software |
Computer | Windows 7 | Port | Internet,Online Support |
Bar code | UPCA,UPCE,EAN8,EAN13,EAN128,CODE25,CODE39,CODE128,PDF417,QR,DATAMATRIX | Data Type | MSExcel,TXT format |
Power | AC 200~240V/50~60Hz | Environment | Temp:15℃~30℃,
|
Quality assurance:
1.Accept The third party checking before delivery.
2.1 year warranty.
Packaging & Shipping
PACKAGE:
Standard export wooden packing.
DELIVERY TIME:
20days after 40%payment.
