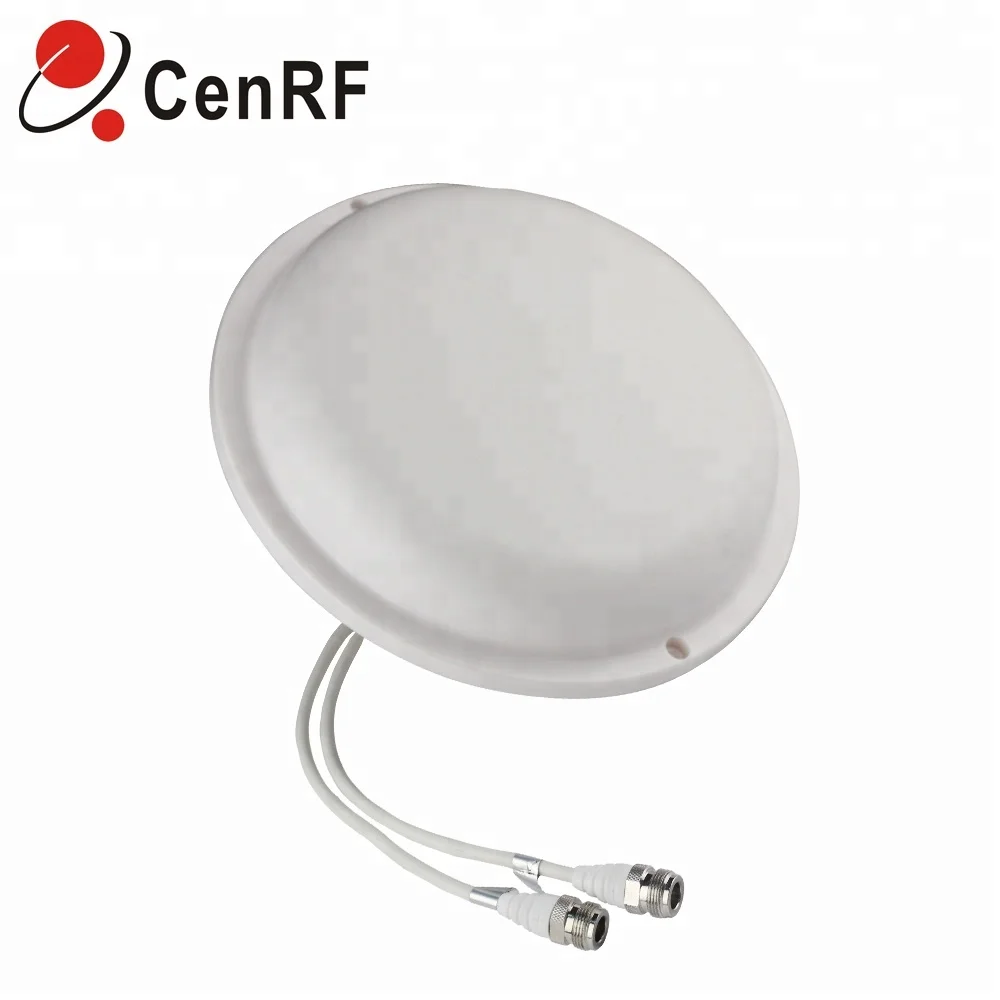

RF Indoor GSM DCS WCDMA signal booster 698 2700MHz 2/4dBi MIMO Omni ceiling Antenna
- Category: >>>
- Supplier: Hangzhou Shengtong Technology Co. Ltd.
Share on (60792687764):
Product Overview
Description

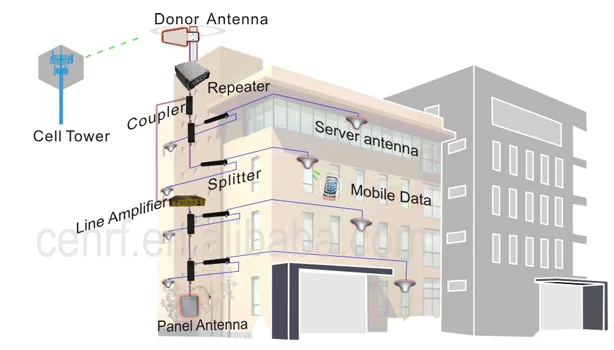

Applications
1. Installation instruction: In accordance with the installation sketch, drill a hole of Φ35mm in the ceiling. Screw the fixing nut to fasten the antenna on the ceiling. The ceiling's thickness is at most 20mm.
2. Storage and transportation:
A. The antenna must be stored in room temperature and dry environment;
B. Handle the antenna with care.
3. Attention: The antenna mustn't be near to fire.

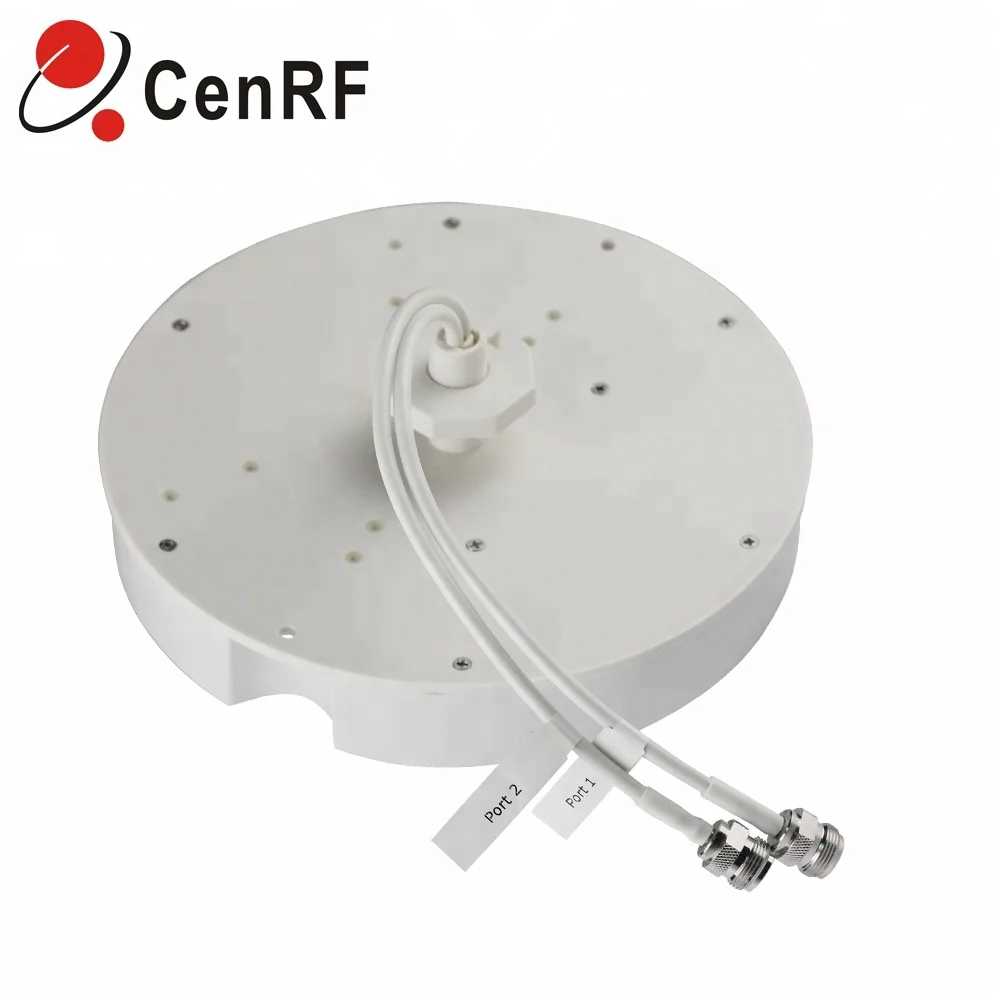

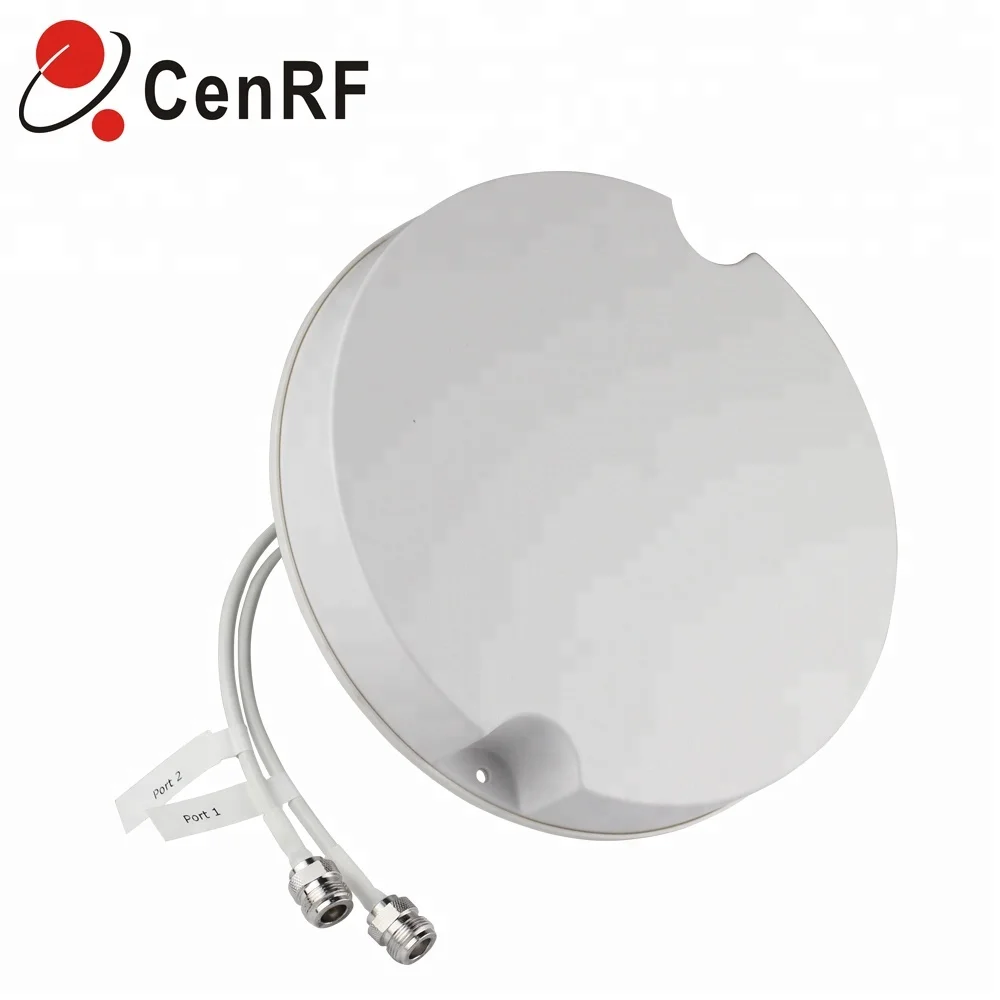

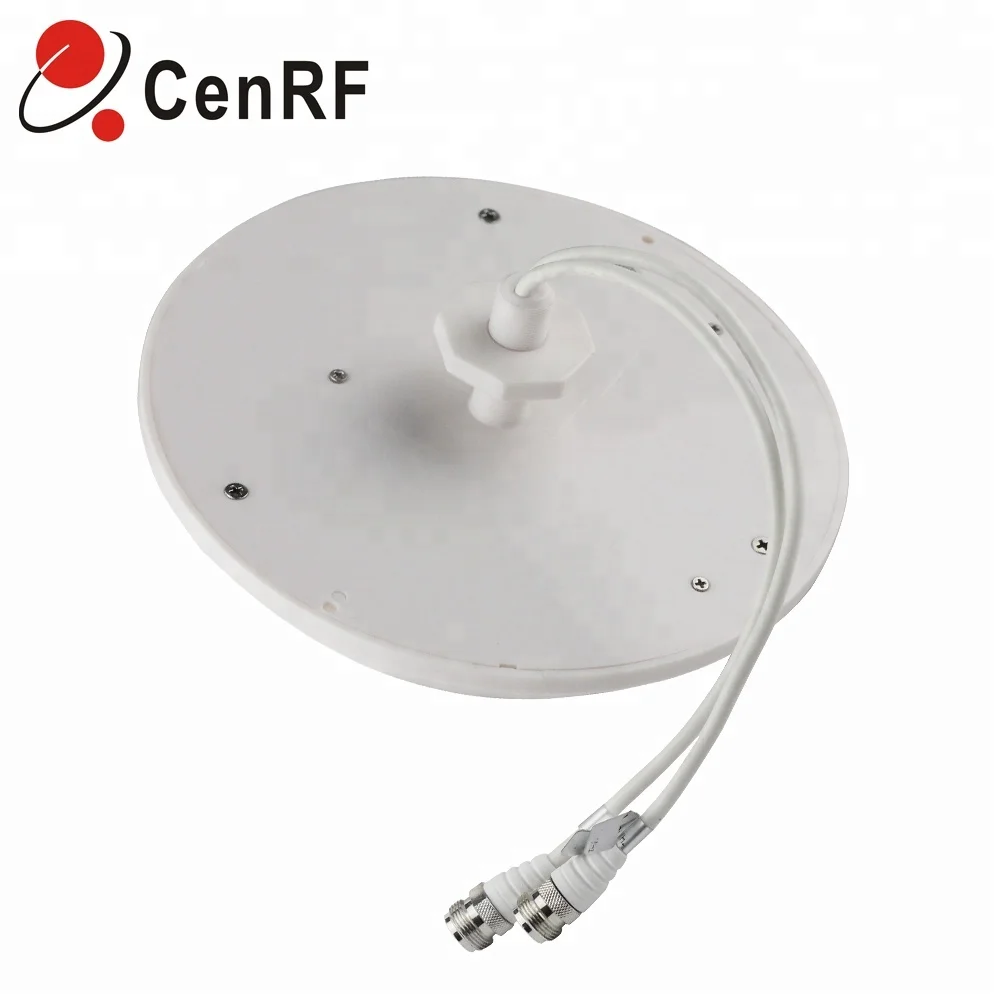

Product Show
Specification
Frequency range | 698~800MHz | 800~960MHz | 1710~2700MHz | 1710~2700MHz | |||
Polarization type | Vertical | Vertical | Horizontal | ||||
VSWR | ≤2 | ≤1.5 | ≤1.5 | ≤1.8 | |||
Gain | 2dBi ±1 | 3.5dBi ±1.5 | |||||
Isolation | / | >25dB | |||||

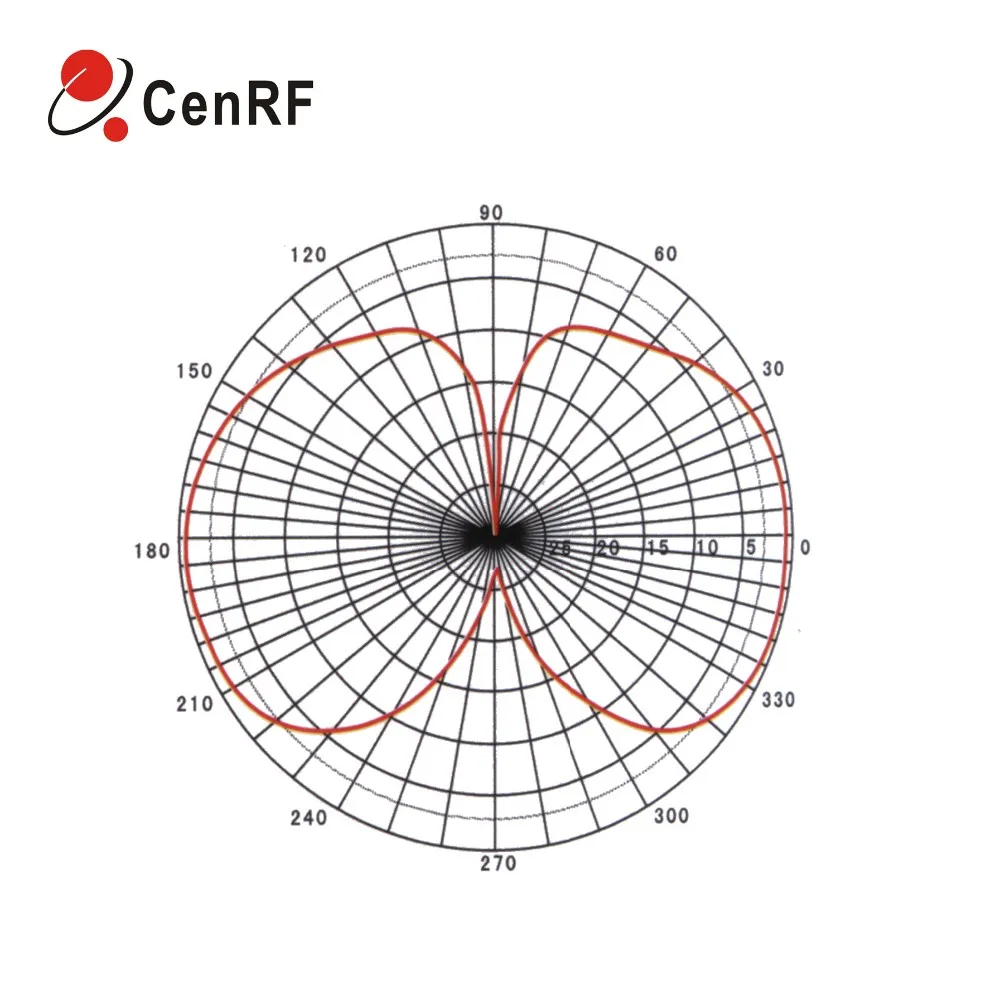

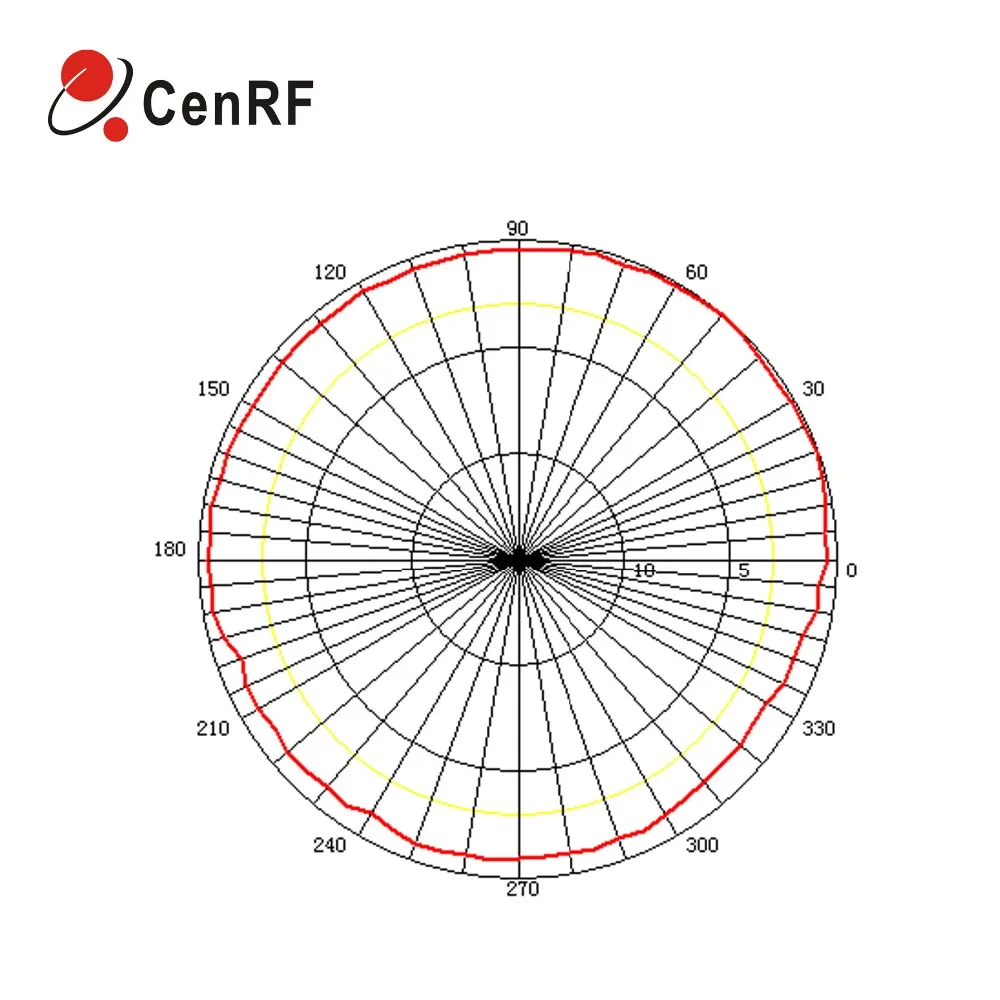

Roundness of pattern | ±1.5dB | ±2dB | ±2dB | ||||
Horizontal Beamwidth | 85° | 50° | |||||
Input impendence | 50Ω | ||||||
Intermodulation | <-150dBc@40dBm*2 | ||||||
Max power | 50W | ||||||
Connector type | N-Female | ||||||
Weight | 512g | ||||||
Dimension | Φ204×119mm | ||||||
Radome material | Uv-Protected ABS | ||||||
Antenna's color | White | ||||||
Limit Temperature: | -55℃ to +70℃ | ||||||
Working Temperature | -40℃ to +60℃ | ||||||
Dimension
Why Choose Us
About company

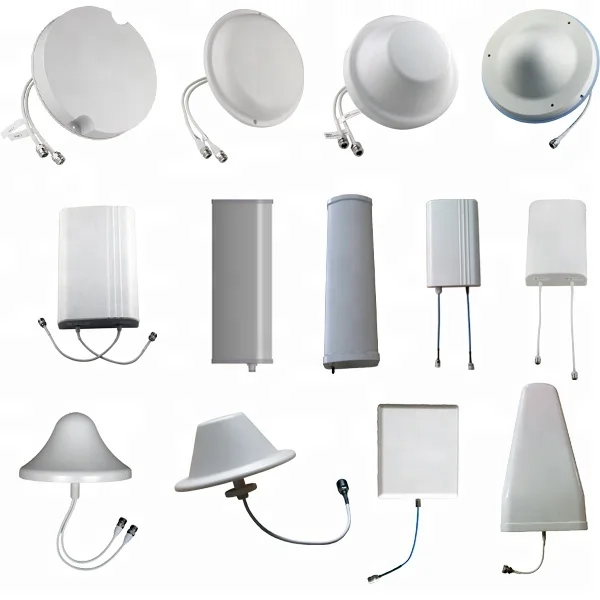

We Recommend
