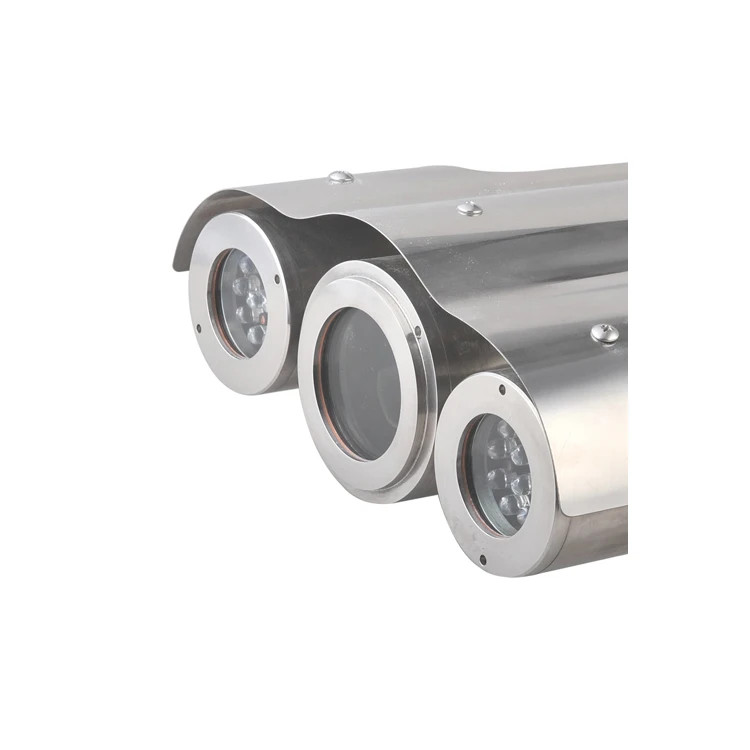

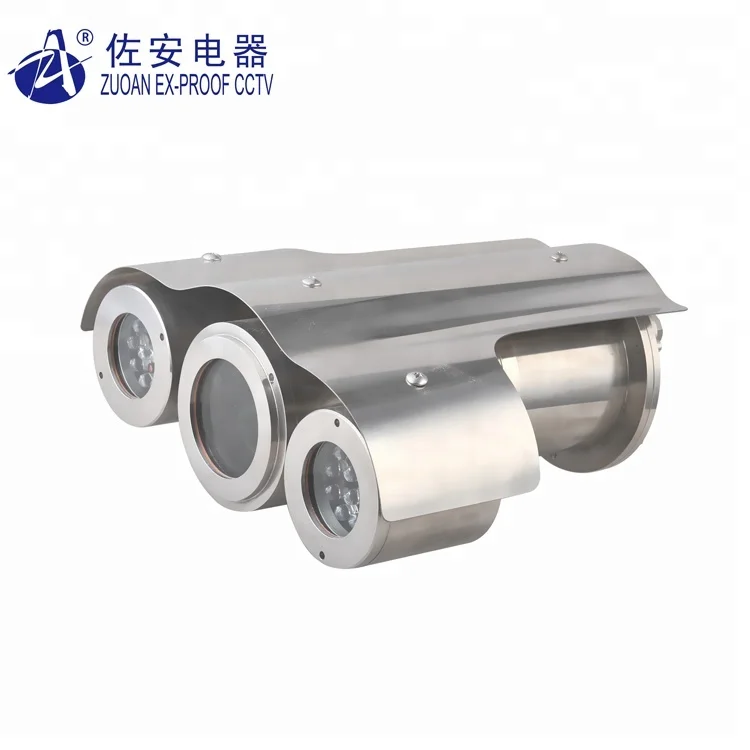

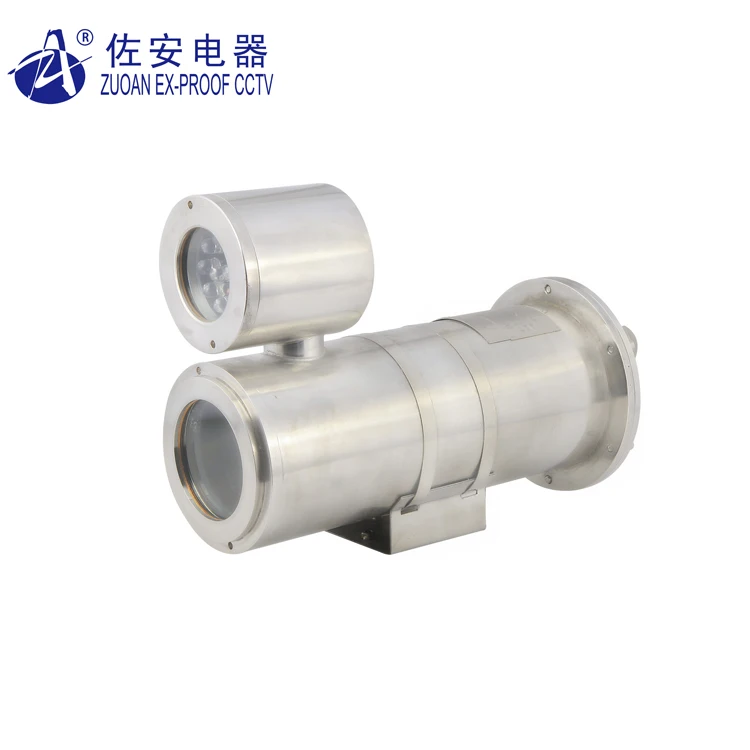

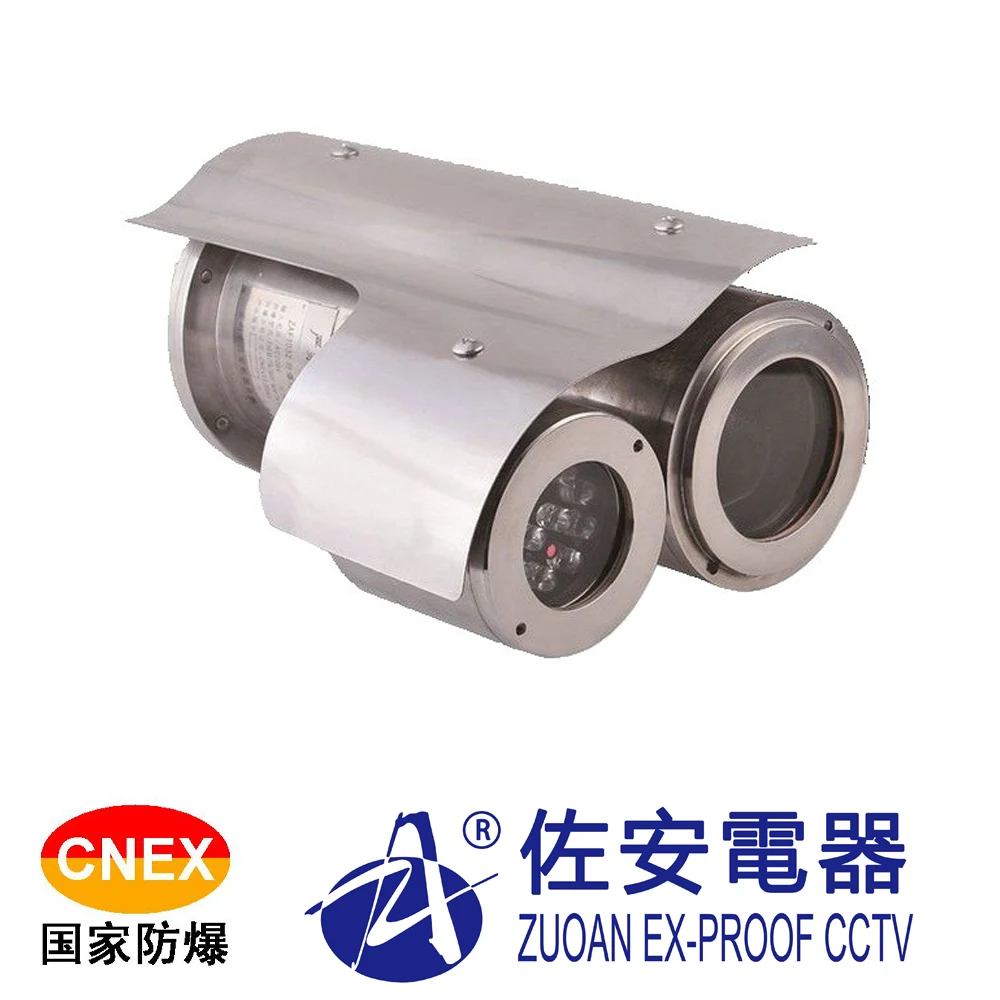

ip68 zuoan stainless explosion proof camera ir housing
Product Description

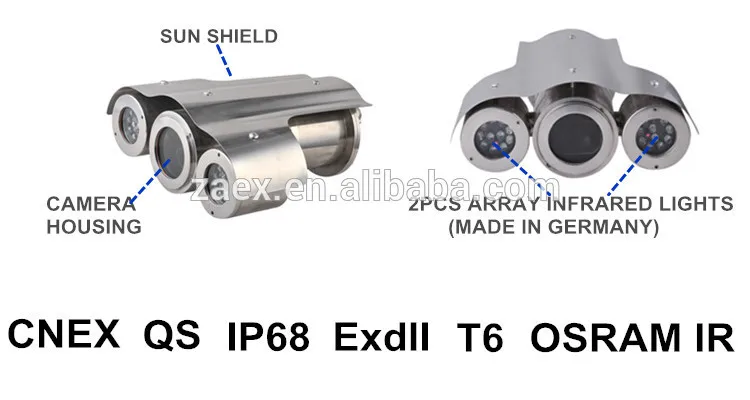

AF1032 series is ip68 zuoan stainless explosion proof camera ir housing. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAF1032, explosion proof camera housing, which explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP68, which means dust tight, and can protect against continuous immersion in water.

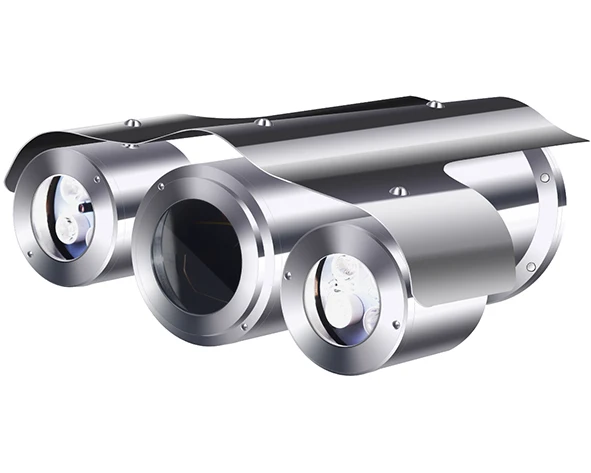

ZAF1032 bullet camera housing has large inner size can load bullet camera and lens.
Main Features
ip68 zuoan stainless explosion proof camera ir housing Main Features:
·Exd II CT6 & DIP A20, TA, T6
·Explosion proof certificates No.: CNEx11.0585
·ZUOAN produce permission certificate No. XK06-014-01196
·Adopts stainless steel 304 or 316L
·Surface finish: electropolished or corrosion resistant paint finish
·IP68
·Made in Germany infrared lights for night vision
· Night vision range: 0-20m, 20-60m, 60-100m

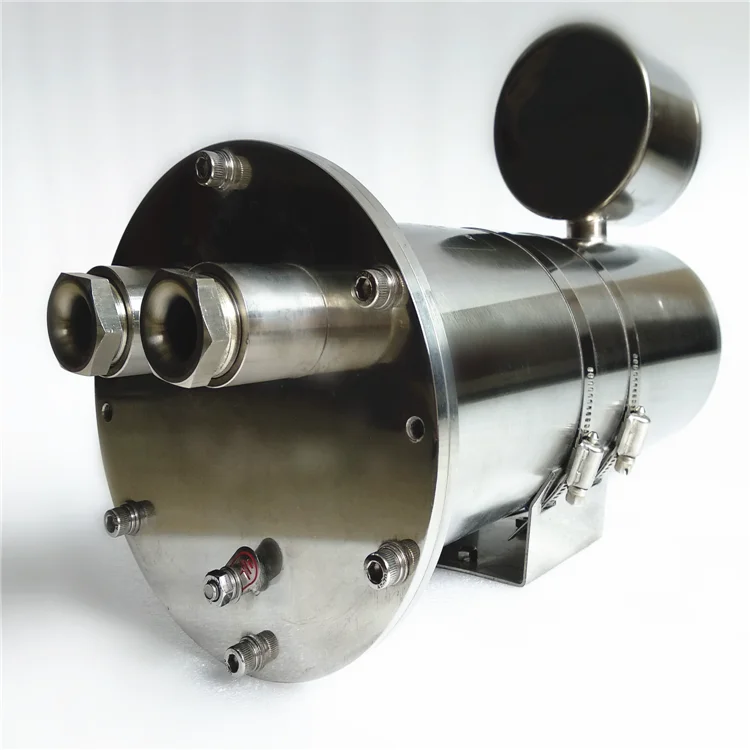

·2 cable glands
·Tempered glass with nanometer paint film
Model
ZAF103-S
ZAF1031-S
ZAF1031-S-LA
ZAF1032-S
ZAF1032-S-LA
ZAF1032-S-LA2
Atmospheric pressure
80KPa~106Kpa
Ambient Temperature
–25°c~+60°c (-13°~140°F)
Relative Humidity
≤95% (+25°c)
Ex-proof mark
CNEX: ·ExdⅡCT6 /·DIP A20 TA, T6
CNEX certificate no.
CNEx:13.2139
CNEx:11.0586
CNEx:11.0586
CNEx:11.0585
CNEx:11.0585
CNEx:11.0585
Ingress Protection
IP68
IP68
IP68
IP68
IP68
IP68
Voltage Input
AC85-220V,AC24V, DC24V,DC12V, optional
Power supply (within)
AC85-265V
AC85-265V
AC85-265V
AC85-265V
AC85-265V
AC85-265V
Overall dimension LxWxH
420*195*194mm 16.5x7.7x7.6in
345*192*195mm 13.6x7.6x7.7in
345*192*195mm 13.6x7.6x7.7in
366*335*170mm 14.4x13.2x6.7in
366*195*280mm 14.4*7.7*11.0in
366*335*170mm 14.4x13.2x6.7in
Material

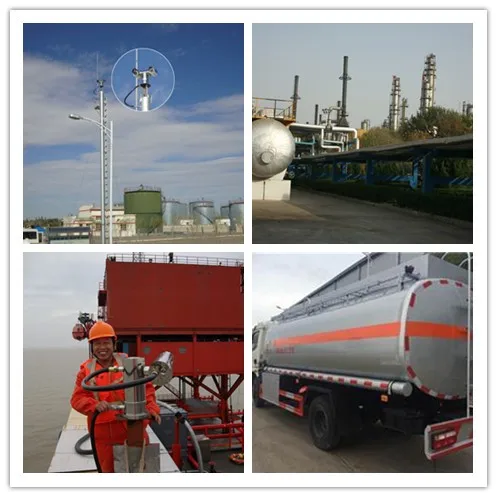

SS304 (industrical chemical factories, outdoors and so on) SS316L(in highly corrosive areas such as marine, petrochemical, naval and offshore platforms)
