YSD 85/1500 China Supplier duct hvac automatic spiral duct making machine

Product Overview

Description





Nanjing Shanduan CNC Machine Tool Co., Ltd is one of the Top 3 press brake and shearing machine in China, which specializing in manufacturing and marketing of press brake,shearing machine,press machine, square duct production line LINE5,4,3,2,1;spiral duct machine, locking forming machine;folding machine,plasma cutting machine, power press,ironworker,hydraulic notching machine, beading machine,flange forming machine,shearing machine & press brake,Blade/Mold, etc.



Company Name (manufacturer):     Nanjing Shanduan CNC Machine Tool Co., Ltd.

Brand:    YSDCNC

Address: MINGJUR INDUSTRIAL CONCENTRATION DISTRICT,SHIQIU TOWN,LISHUI AREA,NANJING,JIANGSU

Tel:+86 025-57262305 Phone:+86 18851629789

WhatsApp/Skype /Wechat :+86 18851629789

Website: www.ysdcnc.com

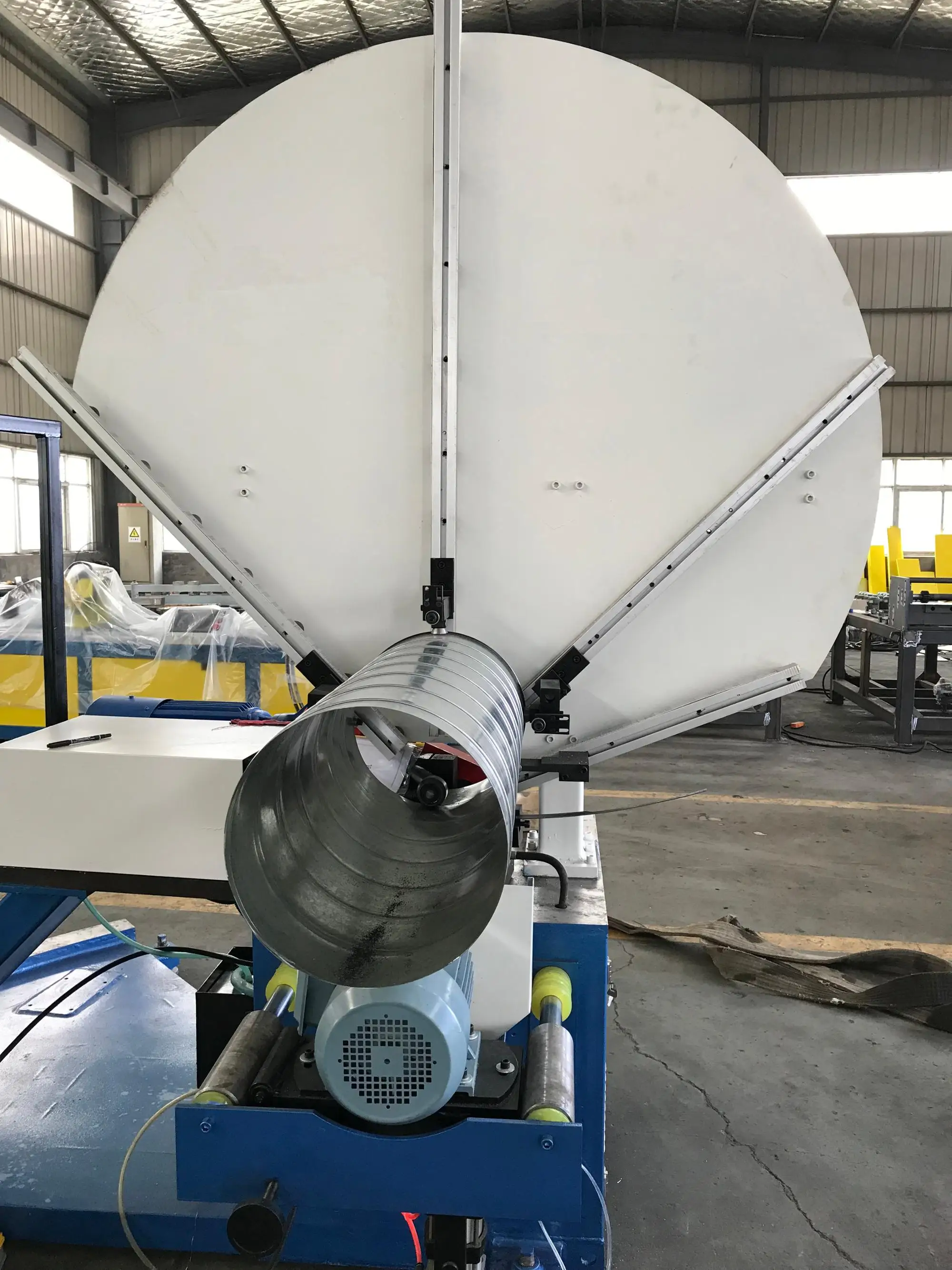

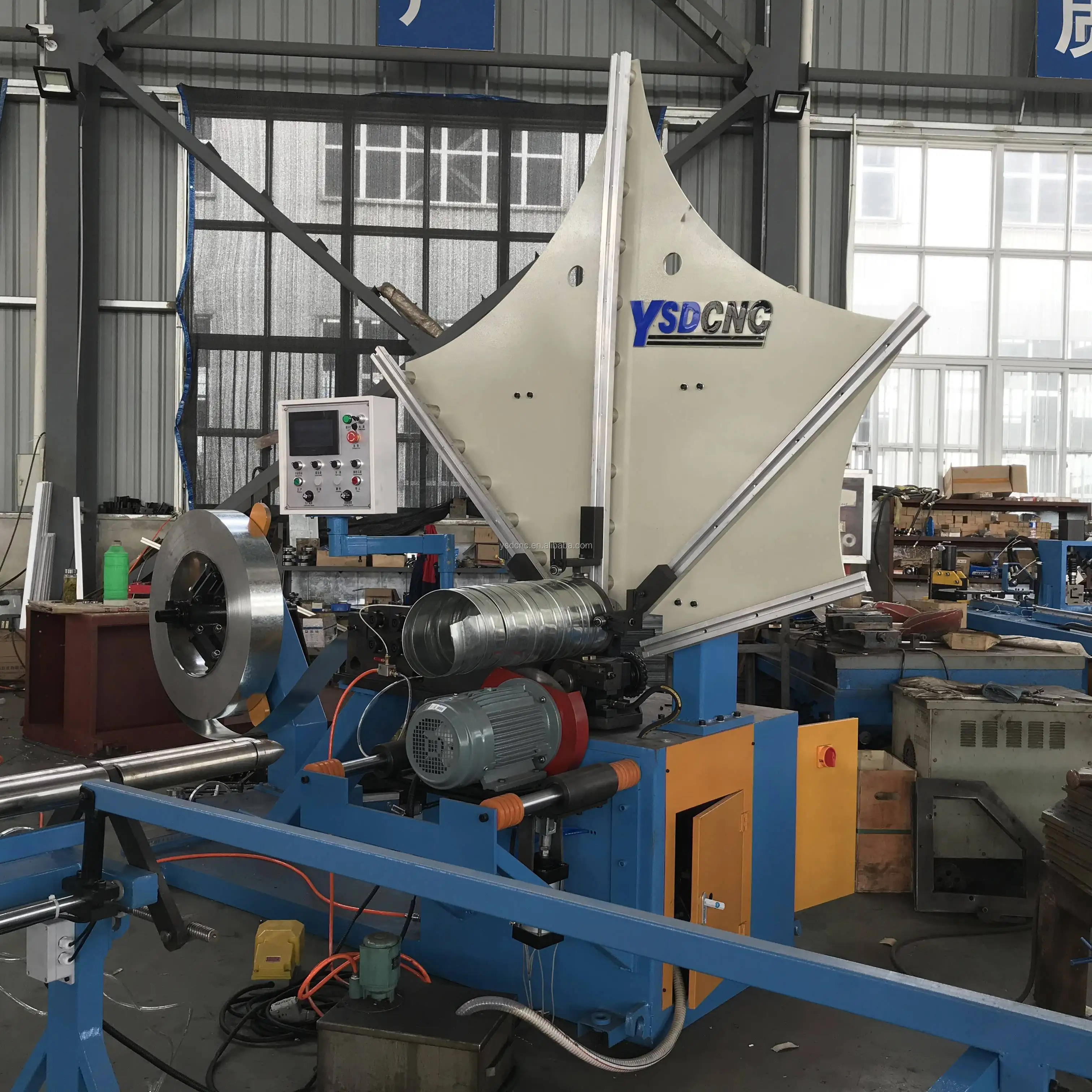

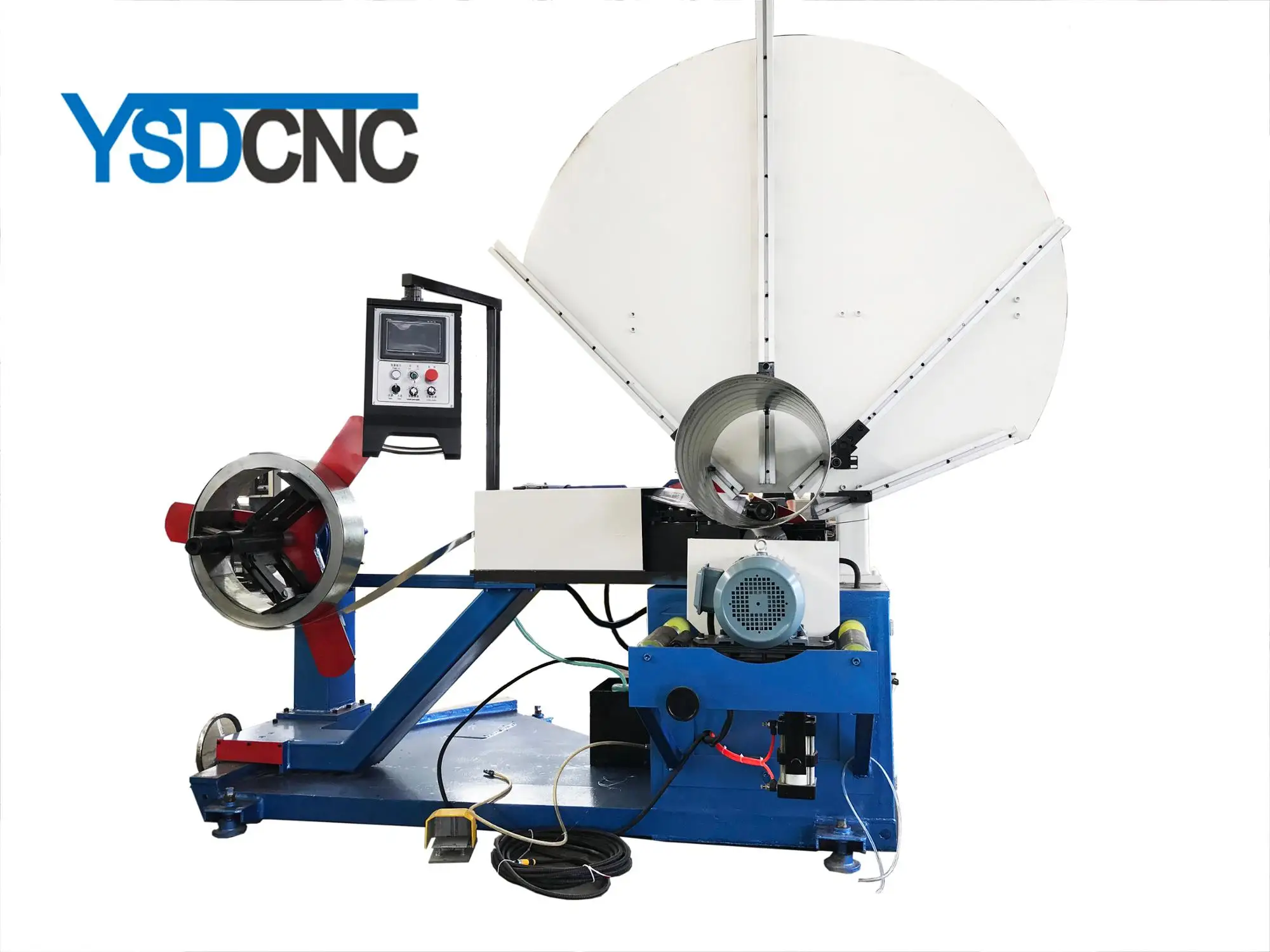

spiral duct machine





Performance Features:

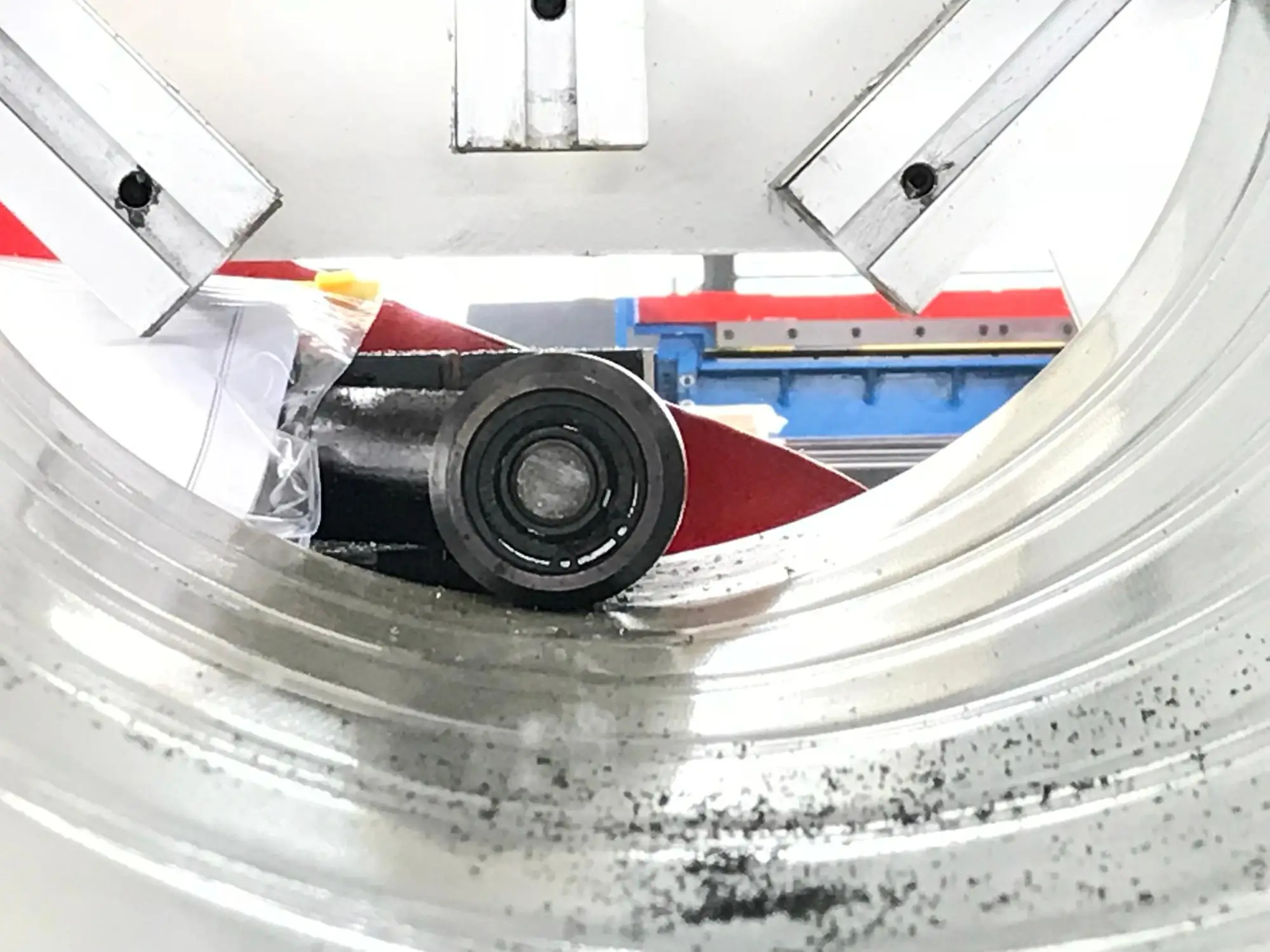

1, patented mold, easy to adjust, and has its own patent, replace the mold more trouble and save the province of materials

2, high-speed synchronous cutting system

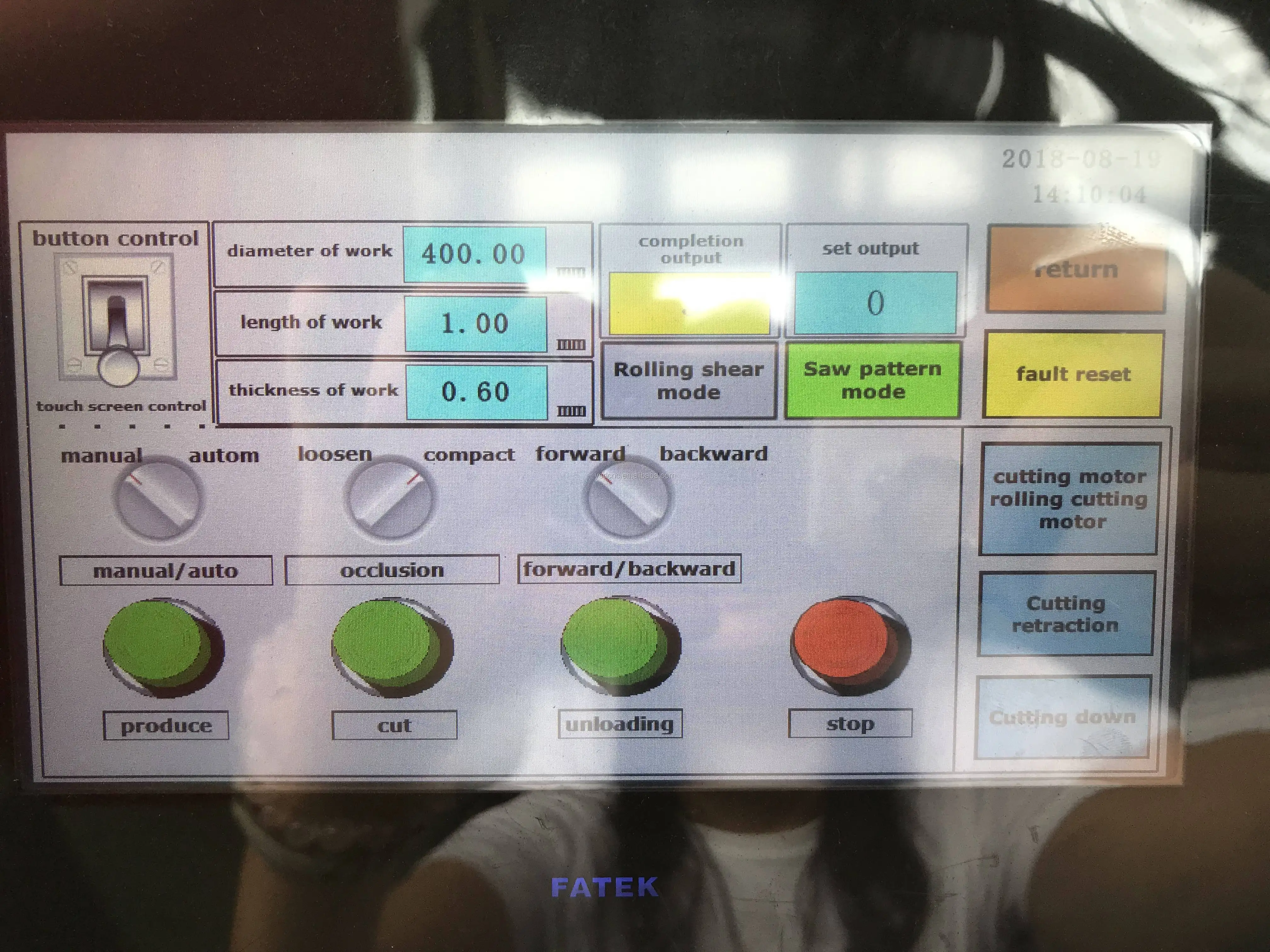

3, PLC control

4, can be on-site construction

5, can be adjusted

6, high-quality products, high-quality services

7, the system can handle galvanized sheet, aluminum

8, automatic roll out of equipment

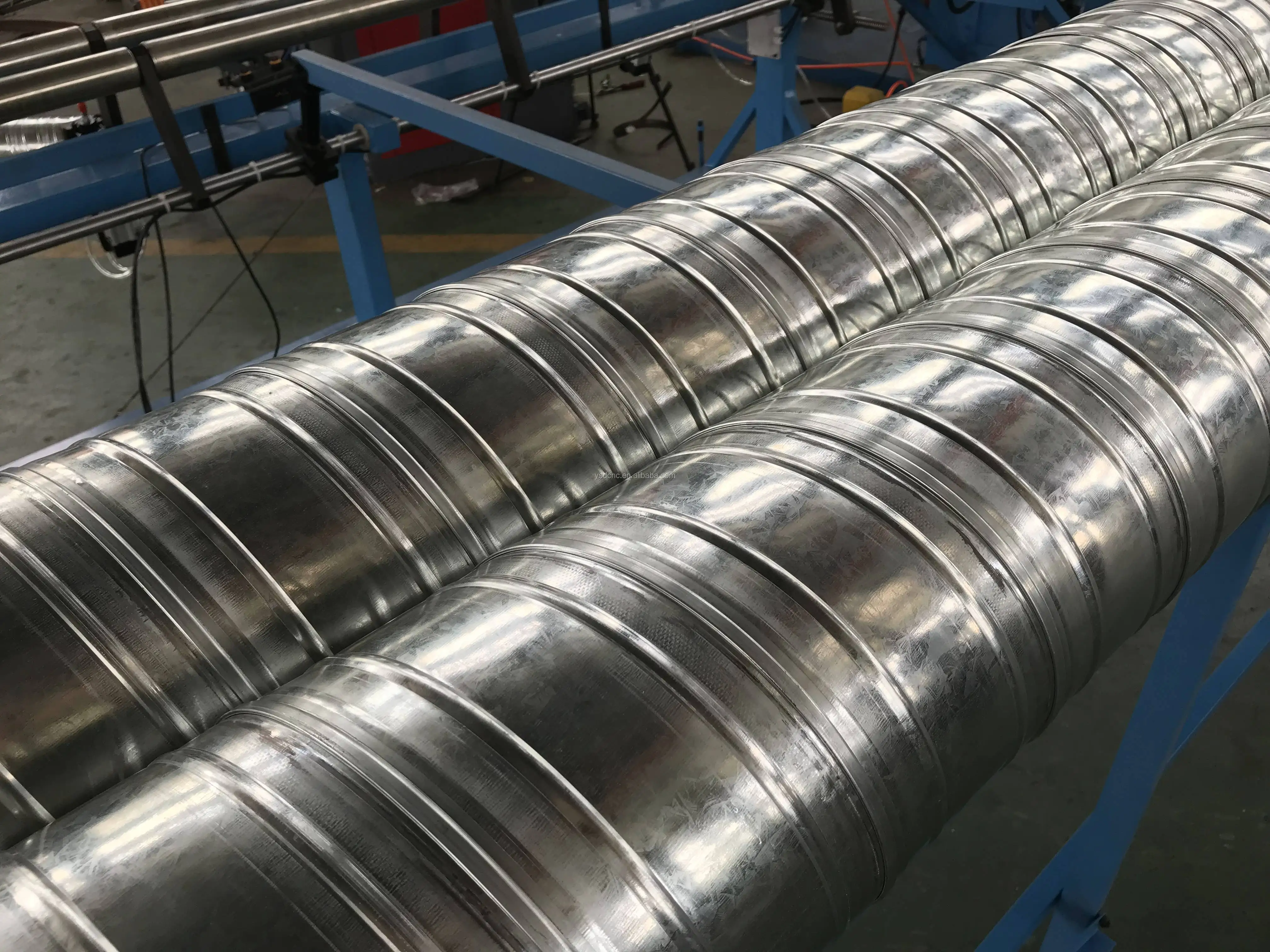

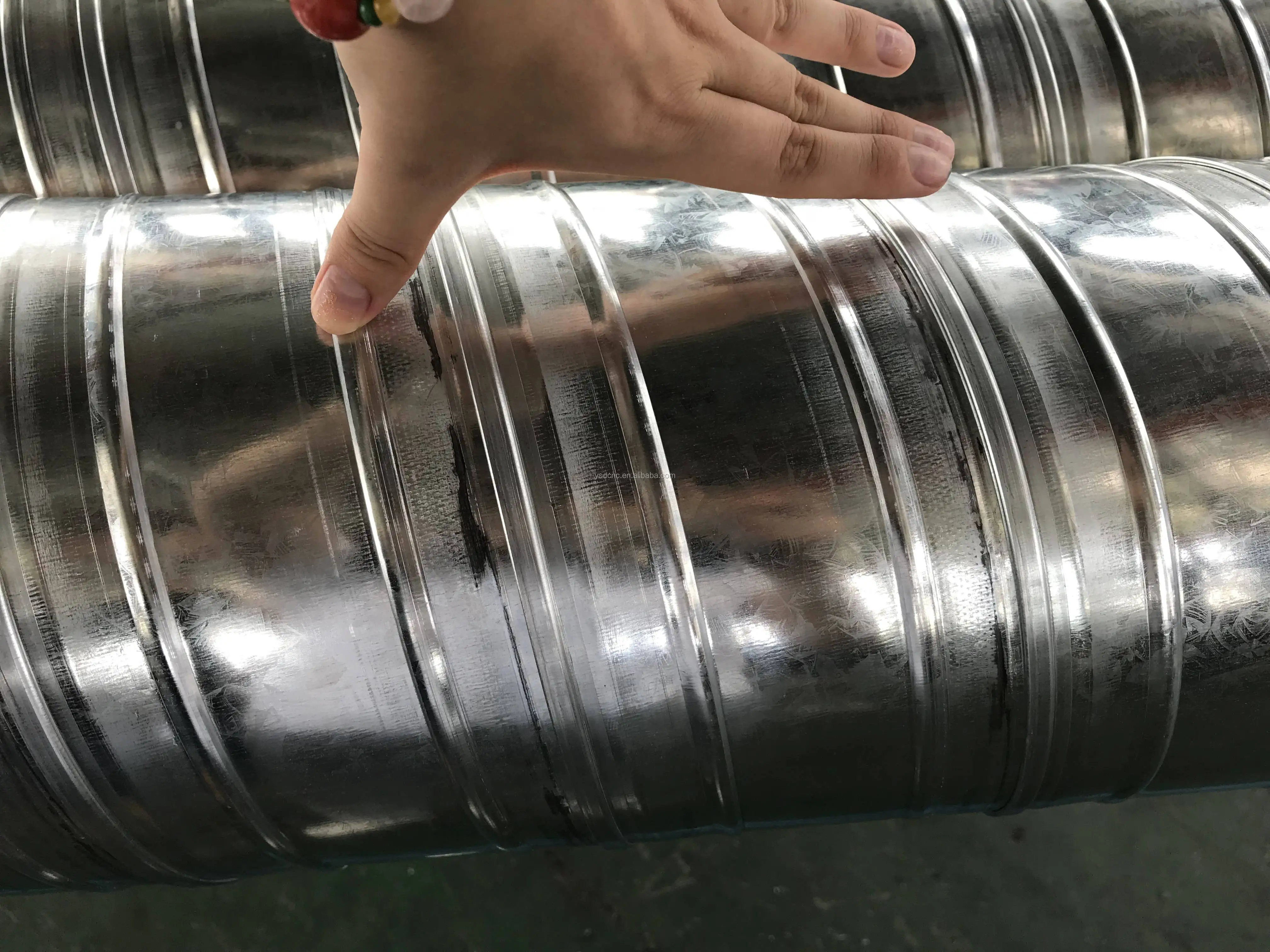

9, can produce a variety of different diameter spiral tube



Main Technical Parameters:





Tpye                        Item		Unit	YSD-85/800	YSD-85/1200	YSD-85/1500
Diameter		mm	85-800	85-1200	85-1500
Thickness		mm	0.4-1	0.4-1	0.4-1
Steel width		mm	124/137	124/137	124/137
Feeding speed		m/min	0-32	0-32	0-32
Power rating		KW	5.5	5.5	5.5
Cutting power		KW	4	4	4
Dimension	L	mm	2620	2620	2620
	W	mm	1920	1920	1920
	H	mm	2100	2100	2100
Weight		KG	1250	1250	1280











`





spiral duct machine
