zuoan popular sale mini explosion proof infrared camera for oil tank truck

Product Overview

Description

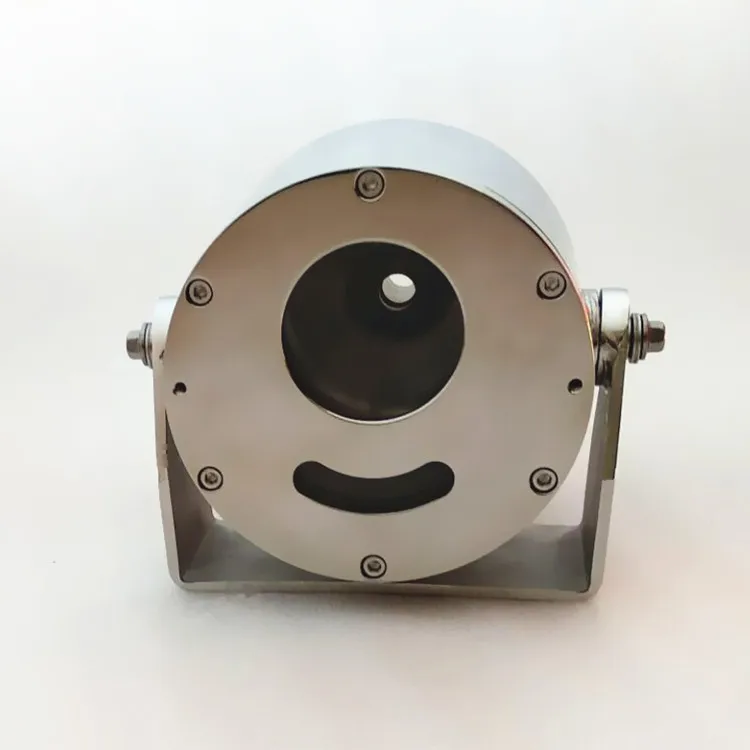

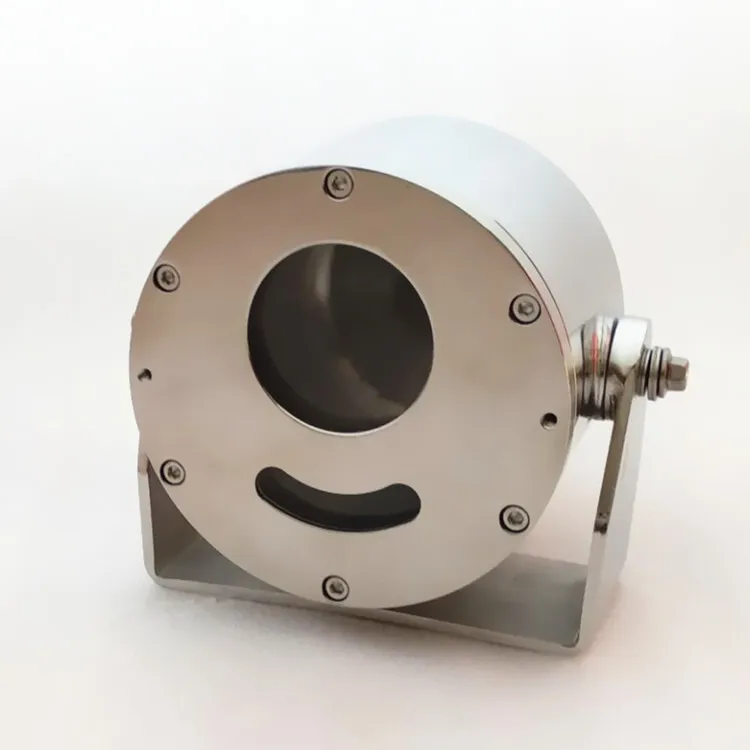

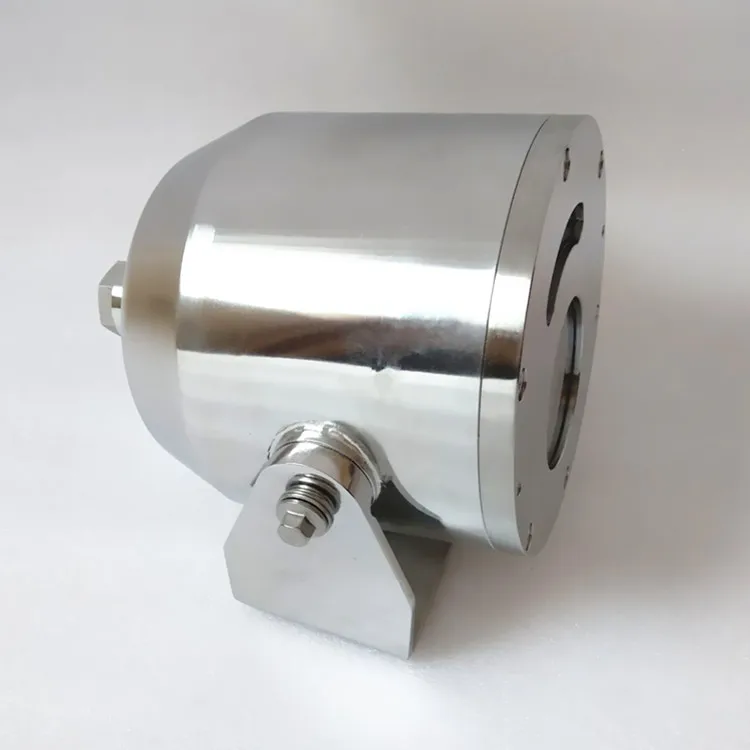

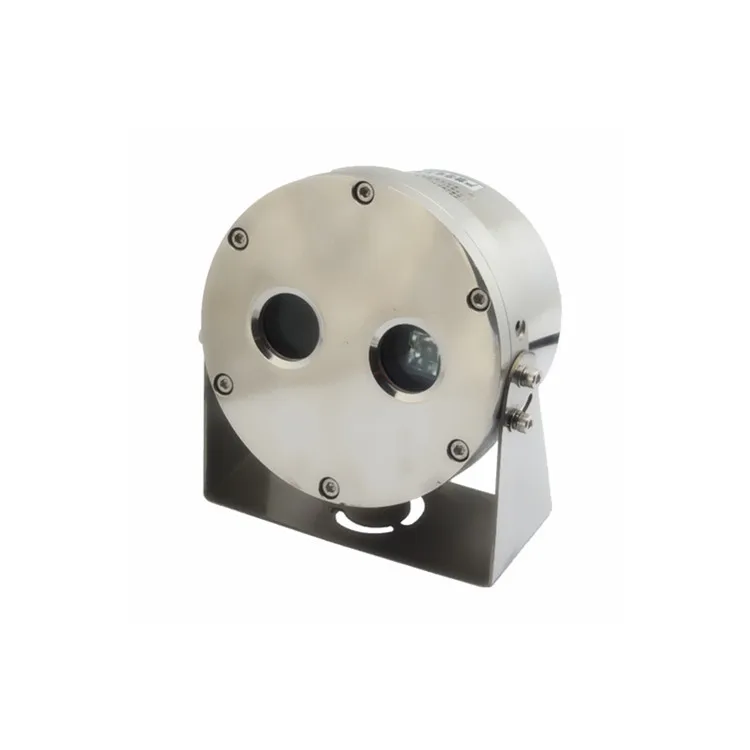

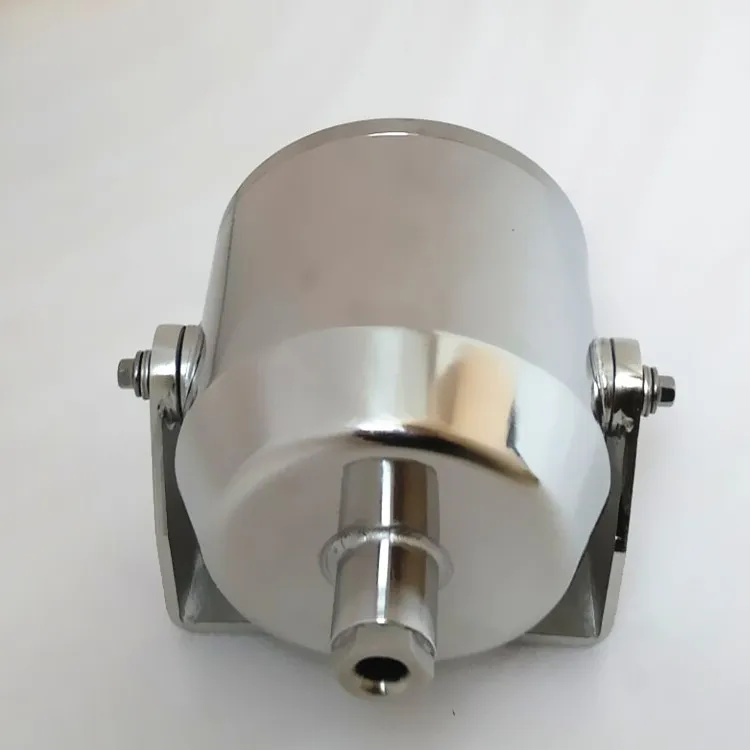

zuoan popular sale mini explosion proof infrared camera for oil tank truck



ZAF109-S-IP,  Factory Best Selling!!  zuoan popular sale mini explosion proof infrared camera for oil tank truck , explosion proof  mini  cctv camera is a mini type of high-end ex-proof monitoring equipment. It can be applied in the explosive gas automosphere, like zone1 and zone2 withⅡA,ⅡB orⅡC, and in flammable dust environment, like zone 20,zone21 and zone22.

ZAF109 isinternally installed with the infrared lamp with 20m viewing distance, which is suitbale for a less scope night vision environment inside and outside. The ex-proof frade and temperature groups all accord with the highest requirements of National standards.

ZAF109-S-IP ex-proofcamera its window is made of nanometer glass, which has a self- cleaning flunction,thickness 8mm.

ZAF109-S-IP is installed with a network camera with a high resolution and a function of automatical switching from color to black.

ZAF109-S-IP series has get the highest protection: IP68.  for all weather use.

ZAF109-S-IP series has get the explosion proof certification: CNEX. it's the only one china government authority for explosion proof test and certification.





Applications

 oil tank truck, dangerous goods vehicle, train, bus, or other hazardous place



Product Parameter

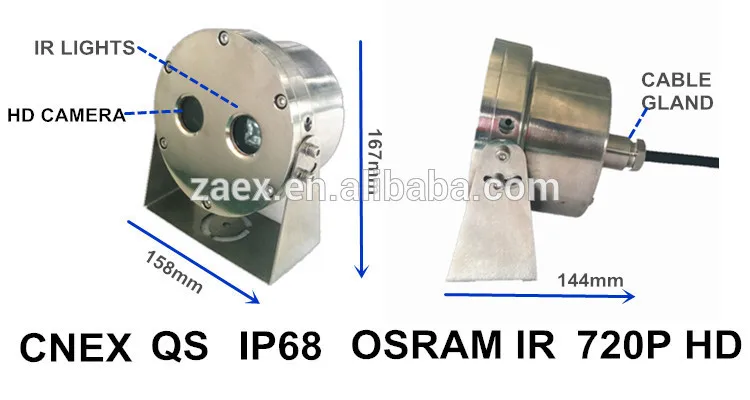

Mini explosion proof CCTV camera	ZAF109-S-IP
Explosion proof marking	Ex d II CT6 Gb / Ex tD A21 IP68 80 °C fit for gas zone 1, zone2; dust zone 20, 21, 22.
Explosion proof certificate No.	CNEx16.2524
QS (produce permission No.)	XK06-014-01196
Ingress rate	IP68
Enclosure material	stainless steel 304
Camera	720P, 720*1080pixel
Lens	4mm
power	DC12V, POE
infrared lights	20-30m night vision
netweight	4.4KG
