Lier famous brand 50t/day scale ice maker flake Ice making Machine for ice plant,LR 50T
- Category: >>>
- Supplier: Shenzhen Lier Machinery Equipment Co. Ltd.
Share on (60792961035):
Product Overview
Description

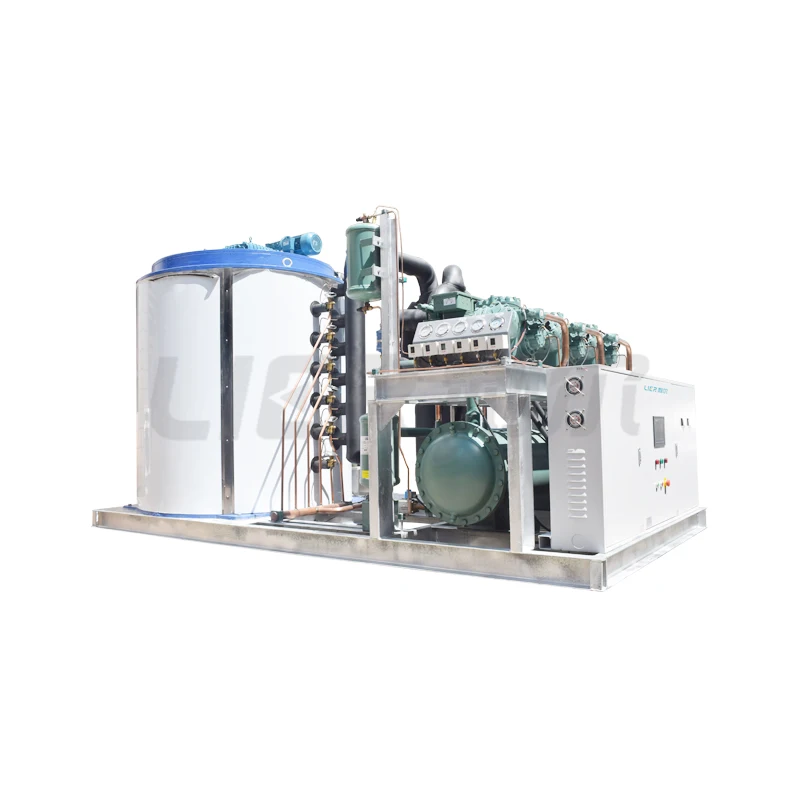

Lier famous brand 50t/day scale ice maker flake Ice making Machine for ice plant,LR-50T
Flake ice machine are widely applied into flake ice making plant and ammonia system ice machine, etc. To realize the continuous ice making, users only need to connect the evaporator tube to the refrigeration source, convenient installation, lower cost.
Features and advantages of Flake ice
1 Large contact area:
As its flat and thin shape, it has got the largest contact area among all types of ice. The larger its contact area is, the faster
it cools other stuff. In comparison with 1 ton of cube ice, 1 ton of flake ice has 1799 sqm of contact area while 1 ton of cube
ice only has 1383 sqm, therefore the flake ice has got much better cooling effects than cube ice.
2 Low cost of producing:
The producing of flake ice is very economical, it only requires 1.3RT refrigerating effect to make 1 ton of ice from 16C water.
3 Perfect in food cooling:
Flake ice is type of dry and crispy ice, it hardly forms any shape edges, in food cooling process, this nature has made it the
best material for cooling, it can reduce the possibility of damage to food to the lowest rate.
4 Thoroughly mixing:
Flake ice can become water quickly through the rapid heat exchanging with products, and also supply the moisture for products to be cooled.
5 Convenient for delivery:
Because the flake ice fairly dry, it will not stick with others during delivery or storage.

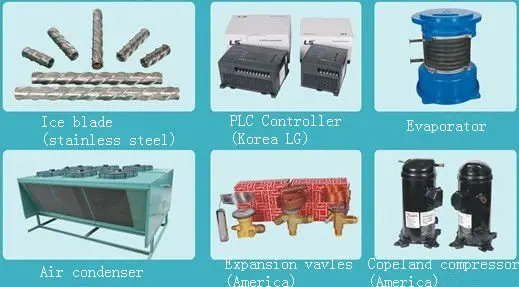

Worldwide famous main ice accessories
1.Compressor: main refrigeration system power components ( American Copeland ZB series--High efficiency ,
low noise, built-in discharging valve and temperature Protector);
2.PLC controller: Korea LG;
3.American Expansion valve: (1)Reduce the high pressure and throttle the cold liquid refrigerant from the side with
high pressure, Making it a low temperature low pressure gas-liquid mixing refrigerants; (2) Control the refrigerant flow into the evaporator to adjust cooling capacity of the system
and adapt to the change of external load.
4.Schneider AC relay, etc.
Application:
Application
Application Field– Supermarkets, hotels, etc
– Slaughtering industry
– Fishery cooling and packing
– Food processing
– Fresh preservation for fruit, vegetable, etc
– Pharmaceutical application
– Aquatic product processing
Technical parameter
Model | Daily output | Ref.Capacity | Power supply | Total power | Refrige | Unit Dimension | Net Weight kg |
LR-50T | 50000 | 420 | 3P/380V/50HZ | 155 | R22 | 6300*2500*2640 | 4860 |
Why to choose us:
1.Cheaper price - more competitive.
2.Longer warranty period - 18 months.
3.Faster delivery speed and more on time,
4.Superior after-sales service guarantee.
5.More stringent quality assurance than foreign trade company.
6.And the most important: As one of few ice machine evaporator leading and professional manufacturers who have the self-production capacity, we provide it for many refrigeration companies and counterparts. And they just need to assemble the ice
machine with our evaporator and other refrigerating accessories. our evaporators are warmly welcomed at home and abroad.
