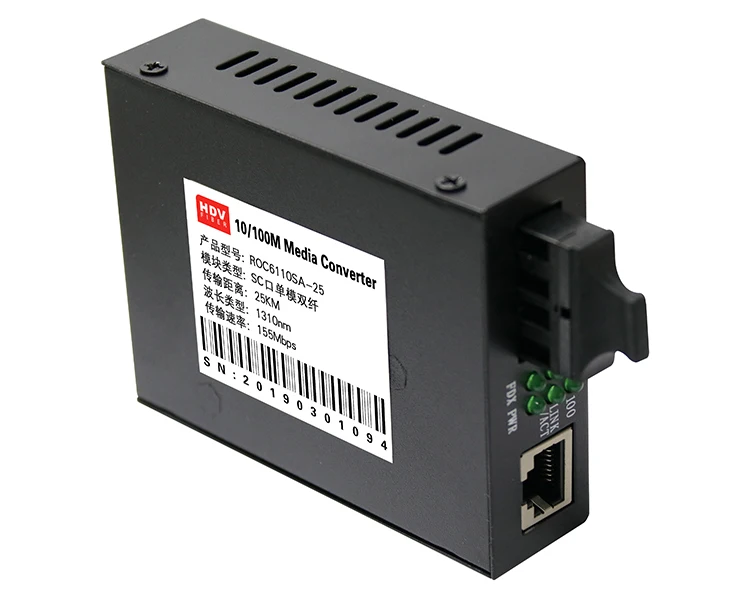

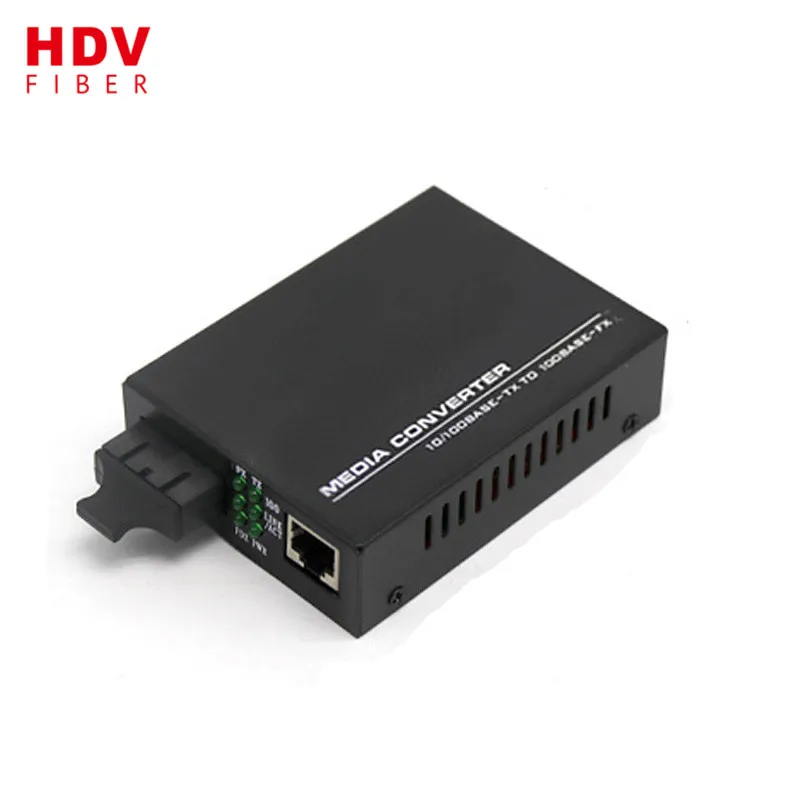

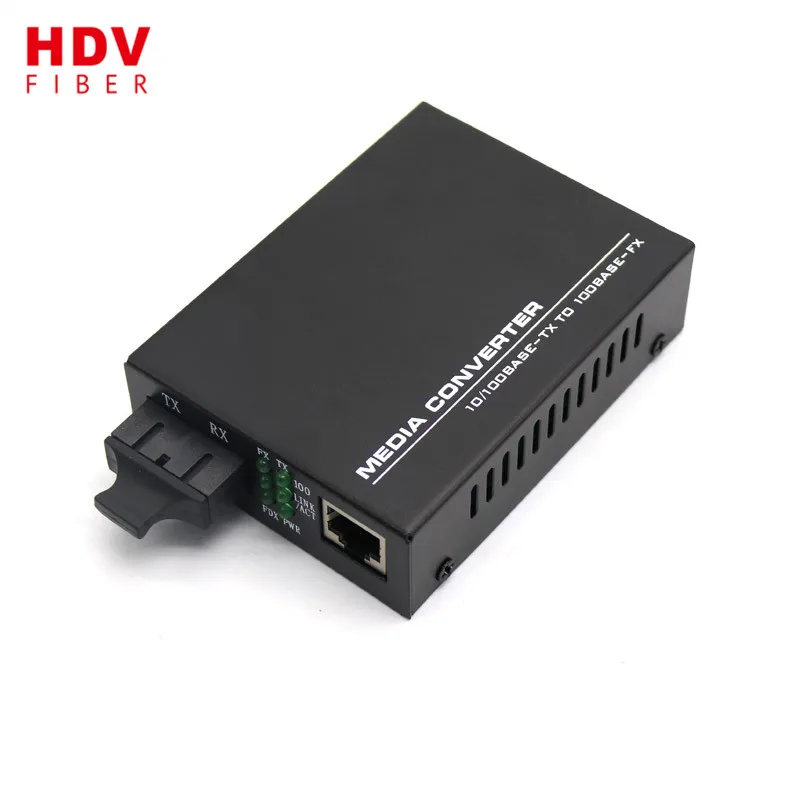

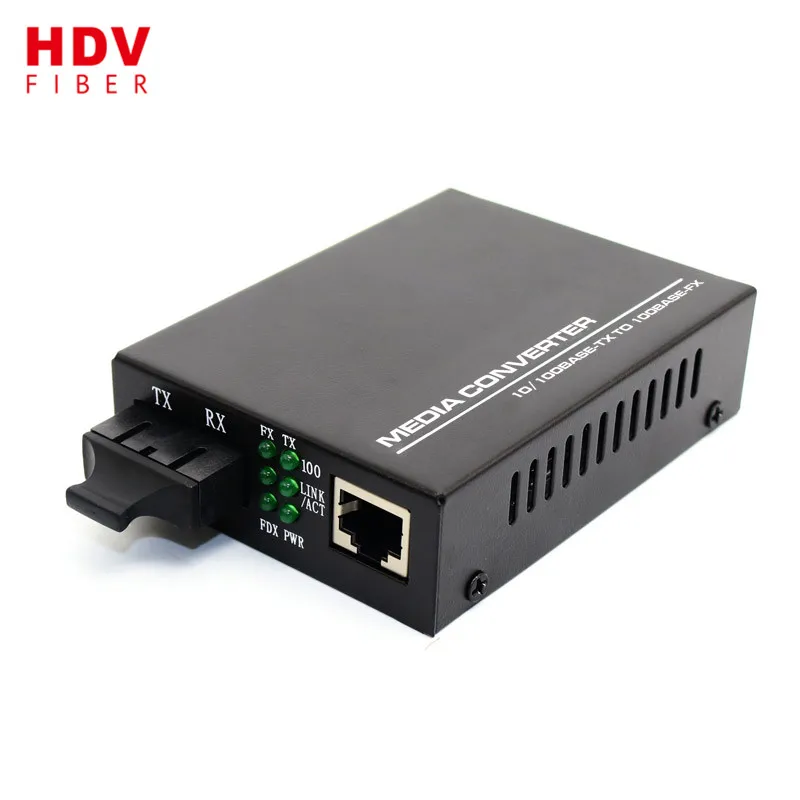

ZTE 10/100M Single Mode Dual Netlink Fiber Media Converter

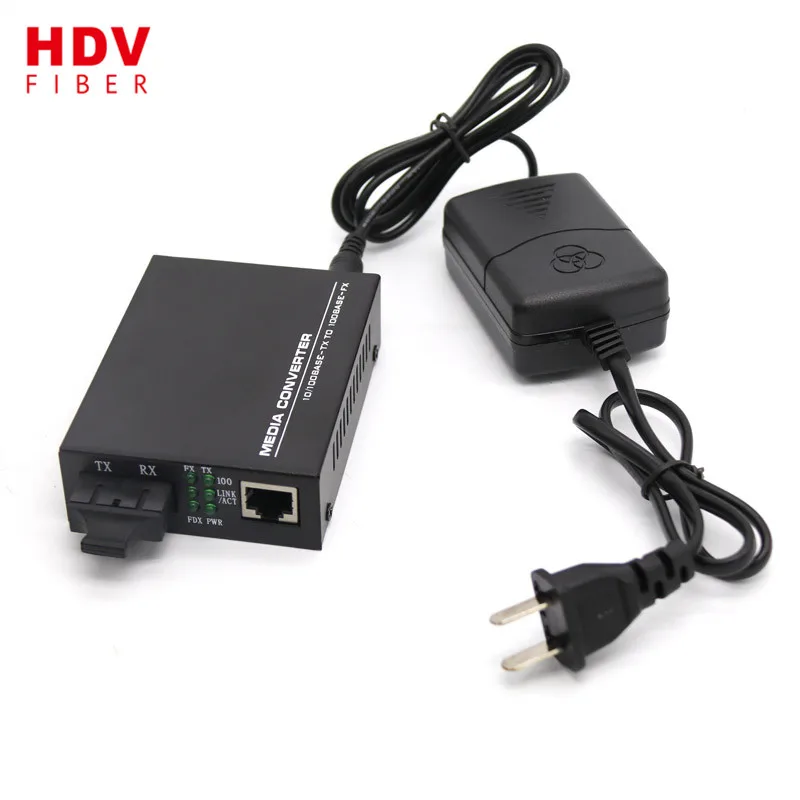

Power adapter
1.Introduction
10/100M adaptive fast Ethernet optical Media Converter is a new product used for optical transmission via high-speed Ethernet. It is capable of switching between twisted pair and optical and relaying across 10/100Base-TX to 100Base-FX network segments, meeting long-distance, high-speed and high-broadband fast Ethernet workgroup users’ needs, achieving high-speed remote interconnection for up to 100 km's relay-free computer data network. With steady and reliable performance, design in accordance with Ethernet standard and lightning protection, it is particularly applicable to a wide range of fields requiring a variety of broadband data network and high-reliability data transmission or dedicated IP data transfer network, such as telecommunication, cable television, railway, military, finance and securities, customs, civil aviation, shipping, power, water conservancy and oilfield etc, and is an ideal type of facility to build broadband campus network, cable TV and intelligent broadband FTTB/FTTH networks.
2.Features
In accordance with IEEE802.3 10Base-T, IEEE802.3u 100Base-T,
IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-FX
Supported Ports: SC for optical fiber; RJ45 for twisted pair
Auto-adaptation rate and full/half-duplex mode supported at twisted pair port
Auto MDI/MDIX supported without need of cable selection
Up to 6 LEDs for status indication of optical power port and UTP port
External and built-in DC power supplies provided
Up to 1024 MAC addresses supported
512 kb data storage integrated, and 802.1X original MAC address authentication supported
Conflicting frames detection in half-duplex and flow control in full duplex supported
In accordance with IEEE802.3 10Base-T, IEEE802.3u 100Base-T,
IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-FX
Supported Ports: SC for optical fiber; RJ45 for twisted pair
Auto-adaptation rate and full/half-duplex mode supported at twisted pair port
Auto MDI/MDIX supported without need of cable selection
Up to 6 LEDs for status indication of optical power port and UTP port
External and built-in DC power supplies provided
Up to 1024 MAC addresses supported
512 kb data storage integrated, and 802.1X original MAC address authentication supported
Conflicting frames detection in half-duplex and flow control in full duplex supported
3.Technical Parameters
Technical Parameters for 10/100M Adaptive Fast Ethernet Optical Media Converter | |||||||
| Number of Network Ports | 1 channel | ||||||
| Number of Optical Ports | 1 channel |  | |||||
| NIC Transmission Rate | 10/100Mbit/s | ||||||
| NIC Transmission Mode | 10/100M adaptive with support for automatic inversion of MDI/MDIX | ||||||
| Optical Port Transmission Rate | 100Mbit/s | ||||||
| Operating Voltage | AC 220V or DC +5V | ||||||
| Overall Power | <3W | ||||||
| Network Ports | RJ45 port | ||||||
| Optical Specifications | Optical Port: SC, FC,ST (Optional) Multi-Mode: 50/125, 62.5/125um Single-Mode: 8.3/125, 8.7/125um, 8/125,10/125um Wavelength: Single-Mode: 1310nm | ||||||
| Data Channel | IEEE802.3x and collision base backpressure supported Working Mode: Full/half duplex supported Transmission Rate: 1000Mbit/s with error rate of zero | ||||||
