Plastic board slat chain conveyor bottle conveyor systems

Product Overview

Description

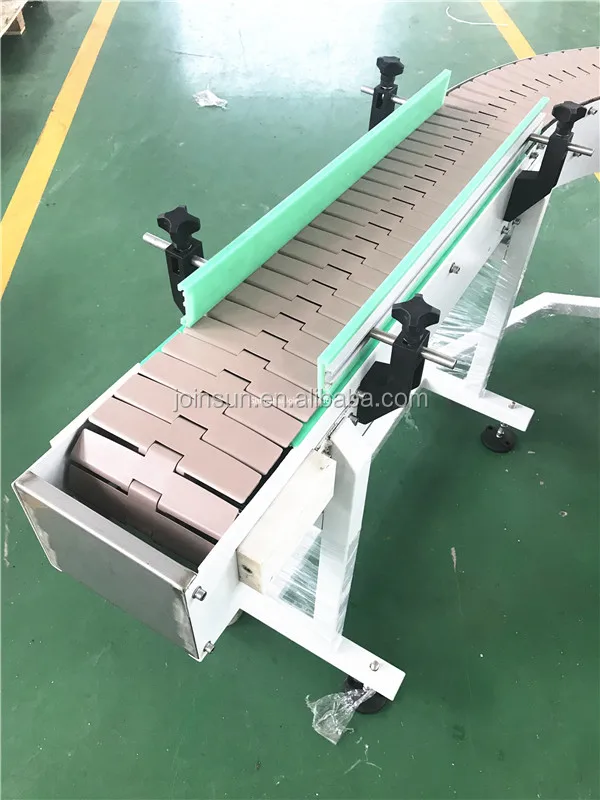

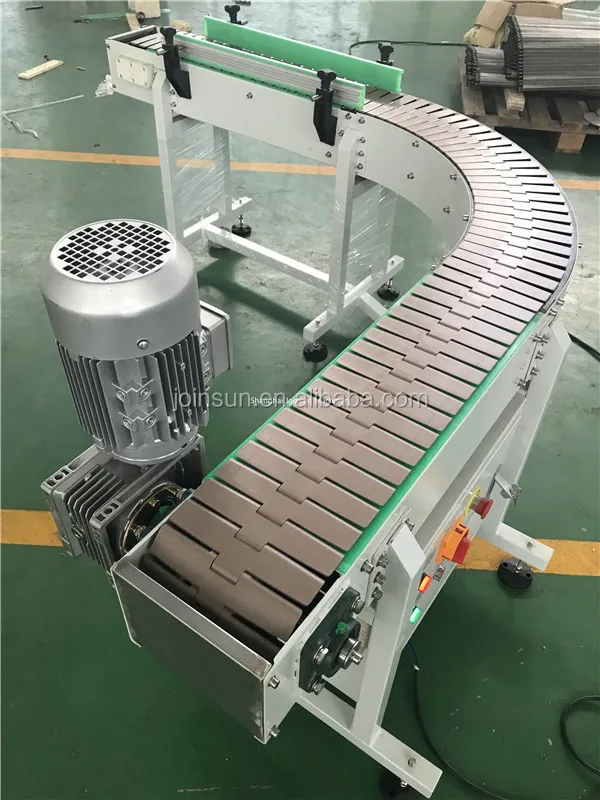

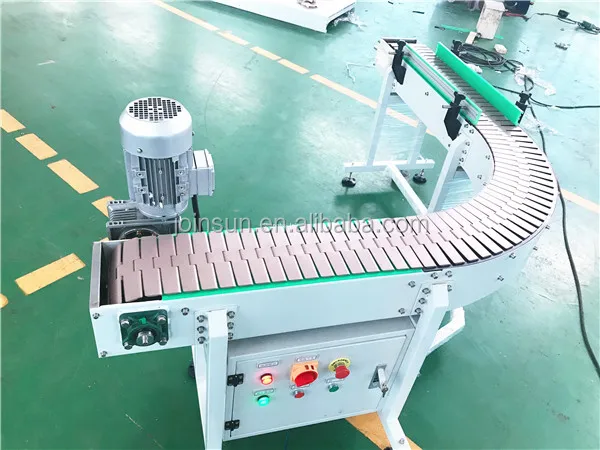

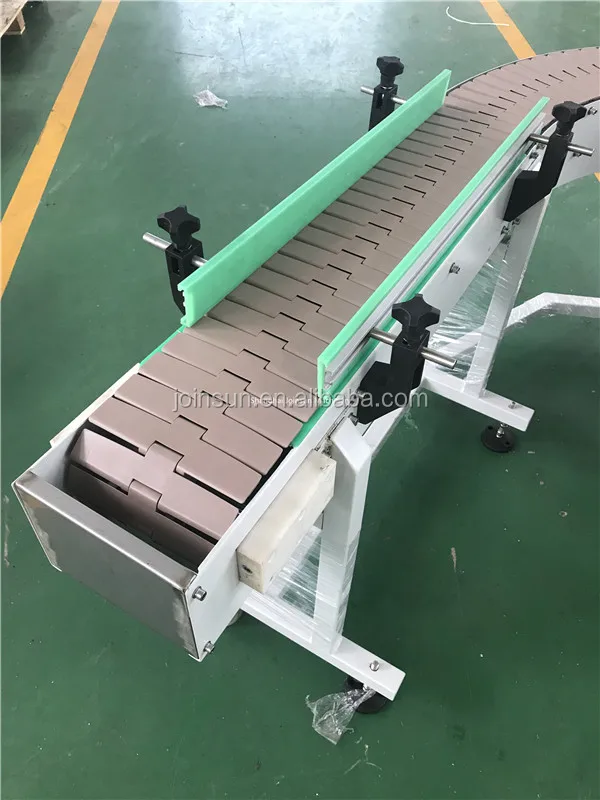

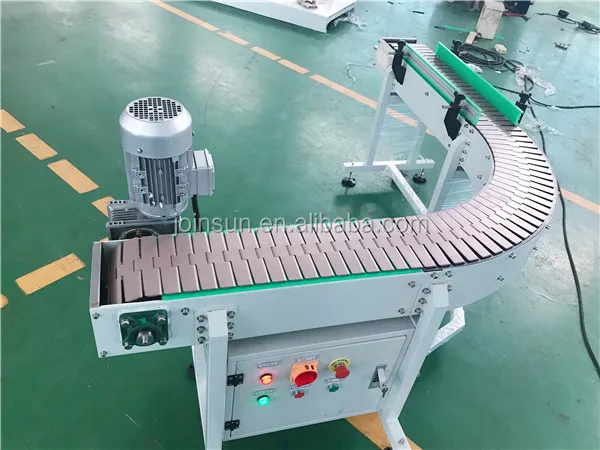

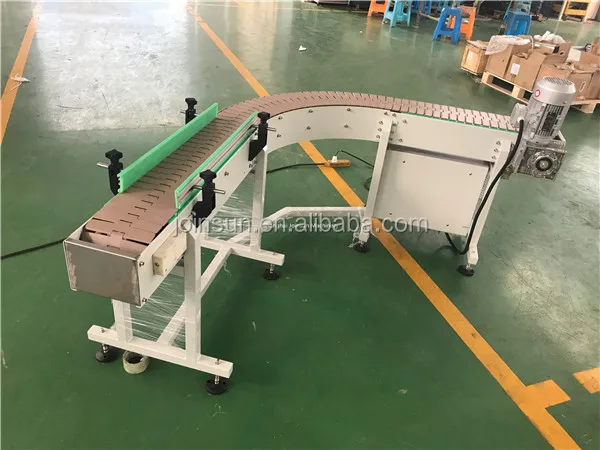

Product Name:Plastic chain plate conveyor for boxes



Description:

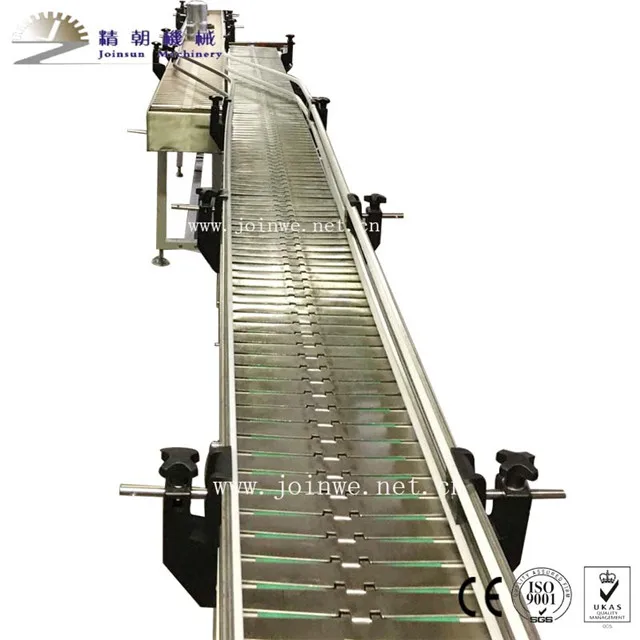

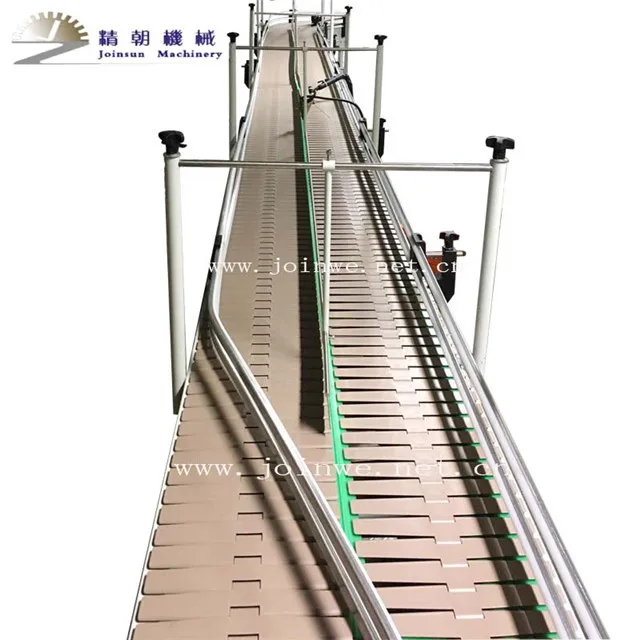

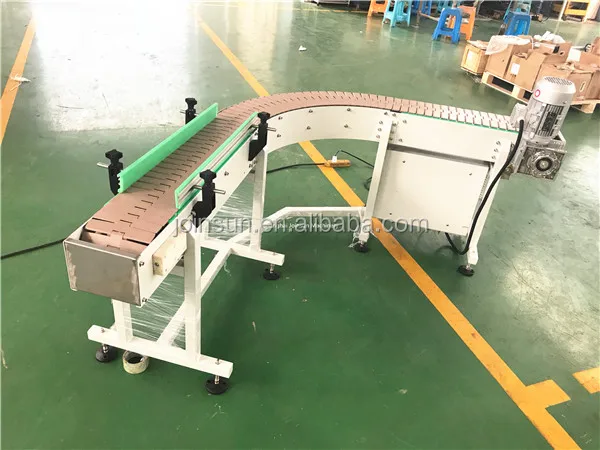

Slat chain conveyor adopts standard slat chain as the carrying surface, motor speed reducer as the power, running on the special rail. The conveying surface is flat and smooth. The friction is low. Materials can be transported smoothly among conveying lines. Based on different technological processes, slat chain can be divided into straight running type and flexible running type. Material of slat chain includes plastic steel and stainless steel. It is suitable to convey plastic bottles, glass bottles and ring pull cans. It can also convey cartons, and cargoes in bags. We can make slat chain conveyor multi-row that makes conveying surface very wide and produces a difference in speed, then the material can be transported from multi-row to single-row without squeezing. Also, we can make material transported from single-row to multi-row so as to realize storage of material while being transported.



Technical parameters:

Chain pitch	25.4 mm ~203.2 mm
Chain plate material	Carbon steel, stainless steel, hot plastic chain etc
Plate chain conveyor width	200 mm~800 mm(width >800 mm, it can use double plate chains)
Transportation speed	0.4 m ~ 15 m/Min
Maximum weight of goods	800 kg/m2
Conveyor system material	SS304
Metal plate chain working  environment temperature	-20 °C ~ + 120 °C





Feature

I



According to different products, standard specification as fllowing:



Equipment height	500~1200(customized)
Equipment length	500~12000(customized)
Estimated weight (unloaded)	50~500(customized)
Conveying medium mateial	POM
Frame material	C.S/S.S/Al//
Suppor material	C.S/S.S/Al//
Conveyor speed	10~50m/min
Output capacity	by customer
Reduced Motor	110V/220/380/415V*50hz/60hz
Frequency Inverter	110V/220/380/415V



We always do the customized products according to your request.





Company Information

SHANGHAI JOINSUN MACHINERY PROJECT CO.,LTD specialized in manufacturing and exporting conveyors and packing solutions for 10+ years, got high reputation from the customer Huangming solar energy, Coco cola, Unilever, Libai group, White cat group. We keep making unique innovation, try to do best service for your automation business.

Certification

FAQ

1. Can you accept OEM?

A: Yes, we can. We had 8years OEM experience.

2. What’s the MOQ of order?

A: MOQ is 1 set

3. Can you make a general proposal for us if we have no technical engineer?

A: Yes, sure. We can offer the professional suggestions and proposal design for you freely.

4. How long is the delivery time?

A: Most simple and standard type is 3~7days, non-standard design depends on per order.

5. How about your machine quality control ?

 A: 48 hours testing before the shipment, there is a specialized quality control engineer to check the processing quality for each step and strictly obey the ISO,CE rules.

6. How about after-sale service?

A: We will make a completely installation and manual operation attached with shipment. If the customer still have question aboard, we will guide the customer by phone, email, or video firstly, engineers available to service overseas if necessary, the customer will bear all travel expense.





Thanks for your attention to our machines, If  you are interested in any of our equipments, Please feel free to contact us. As a professional packing Machine manufacturer & exporter.We would like to provide you with high-quality packaging machinery and excellent after-sale service.
