horizontal type heavy duty in China price copper wire rod drawing machine with standard
- Category: >>>
- Supplier: SHIJIAZHUANG SOKA IMPORT &EXPORT CO. LTD
Share on (60793050518):
Product Overview
Description
horizontal type heavy duty in China price copper wire rod drawing machine with standard
Product Description

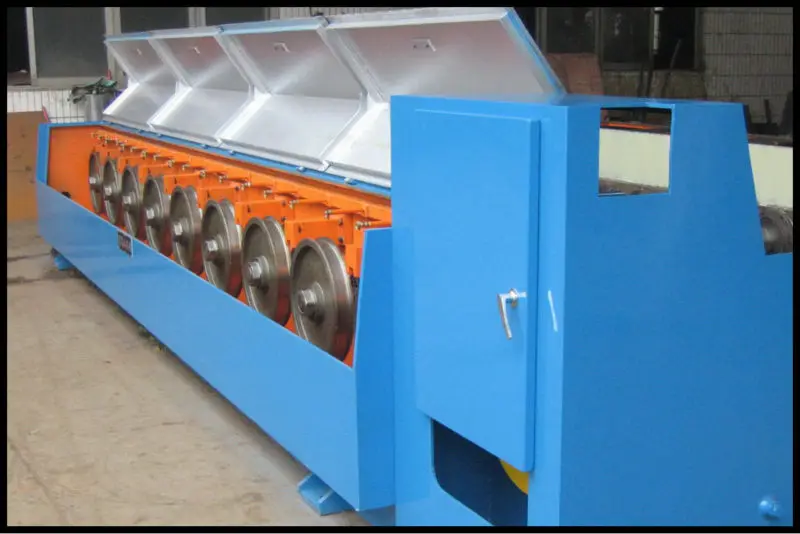

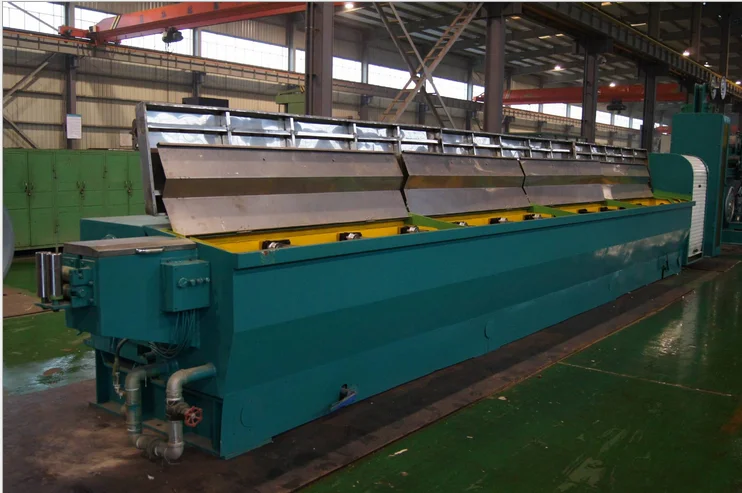

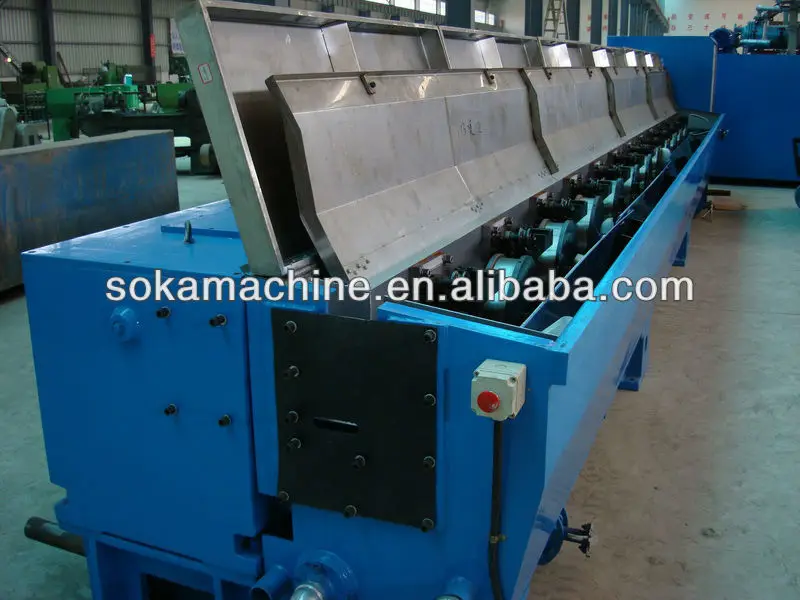

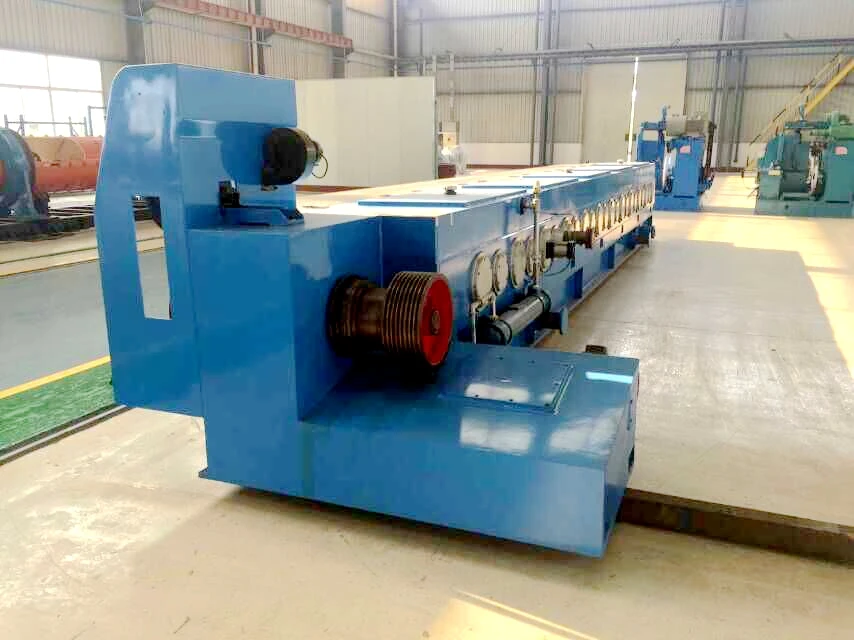

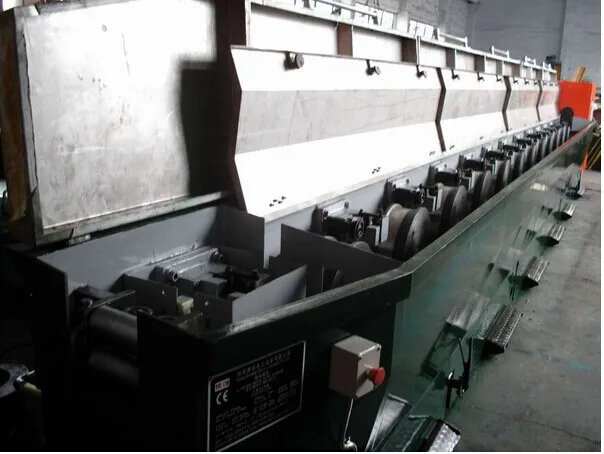

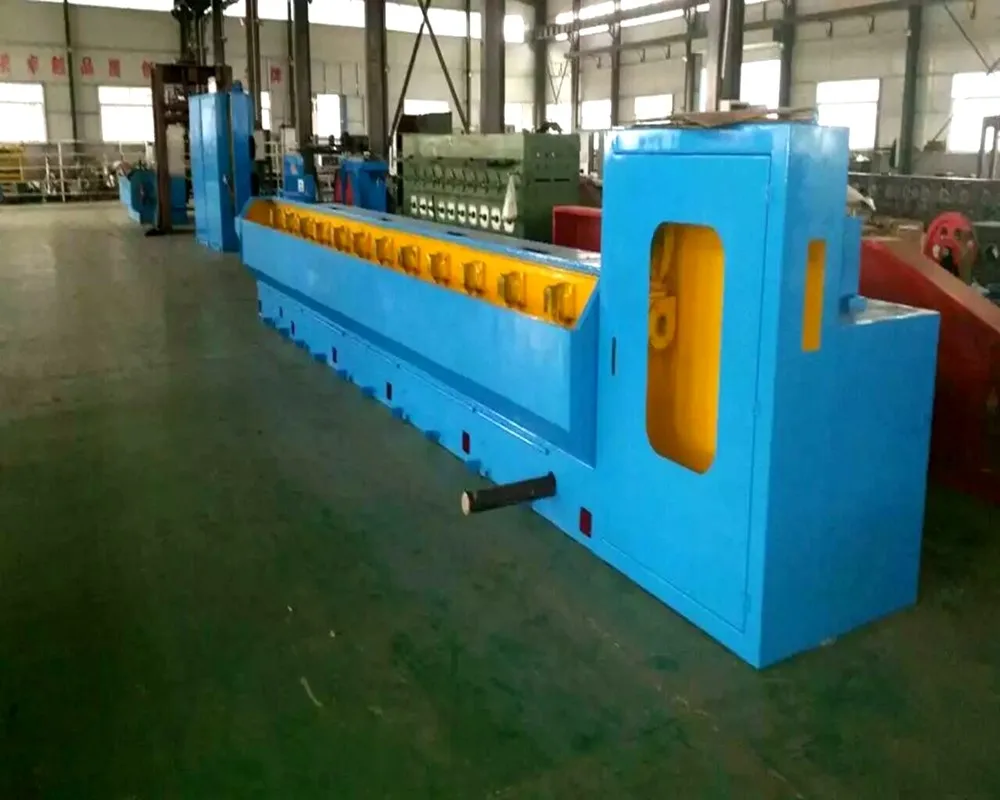

SK-450/13 COPPER ROD DRAWING AMCHINE WIHT STANDARD PICTURE :
Main technical parameters
Machine type | SKT—450/13 | SDT—450/11 | SKT—450/9 |
lnlet dia.(mm) | Φ8.00 | Φ8.00 | Φ8.00 |
Outlet dia(mm) | Φ1.20-Φ4.00 | Φ1.50-Φ4.00 | Φ2.00-Φ4.00 |
Main motor power | 280 | 250 | 250 |
Drawing drum dia.(mm) | Φ450 | Φ450 | Φ450 |
Max drawing speed | 25 | 22 | 18 |
Annealing voltage(V) | 0~65V(DC) | 0~65V(DC) | 0~65V(DC) |
Annealing current | 0~6000A(DC) | 0~6000A(DC) | 0~6000A(DC) |
Fix speed capstan motor power | 75 | 75 | 75 |
Double take-up standard(mm) | PND500/560/630 | PND500/560/630 | PND500/560/630 |
Take-up motor power(KW) | 30×2 | 30×2 | 30×2 |
Optional equipments | Ring take up machine | ||

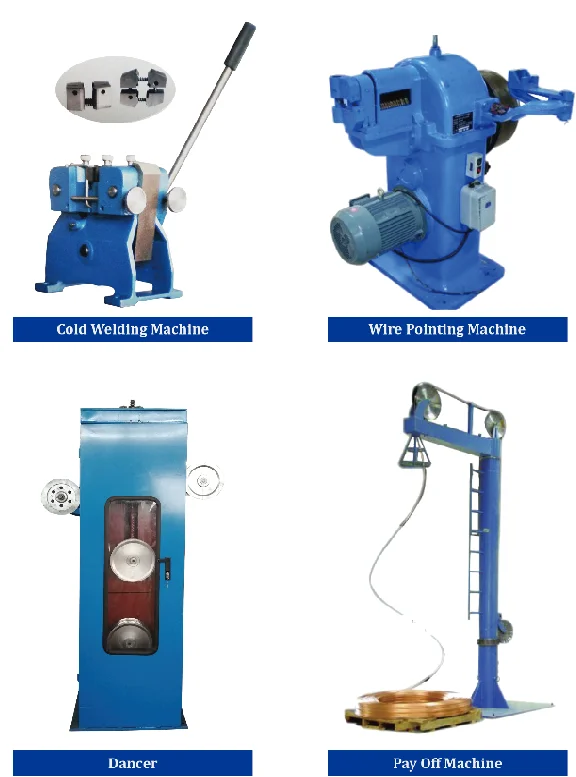

The Equipment Composition
Pay Off Stand 1 set
450/11 Rod Breakdown Machine 1 set
Annealing machine WT-450 1set
The steam generator 1 set
630 mm Dual Spooler with Auto Change-Over 1 set
Protection Steel Channel From Dancer To Dual Spooler 1 set

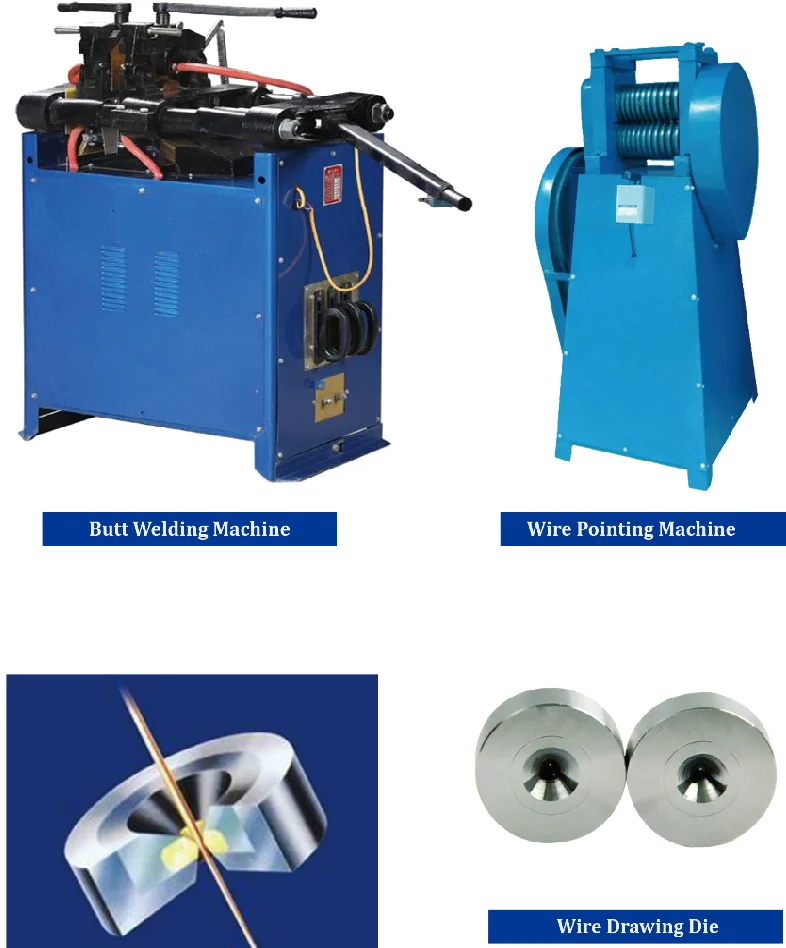

Pointing & Stringing Device 1set
PLC work station and power distribution cabinet 1set

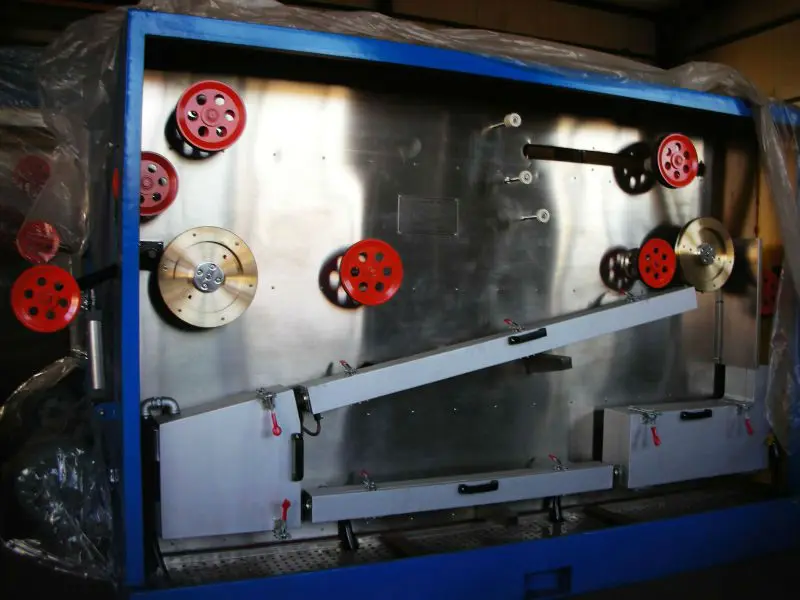

Annealing machine WT-450 PICTURE :
Structure: Horizontal, suitable wire:1.2-4.5mm |
annealing: AC three section type |
host drive through belt transmission |
annealing maximum current:5000A |
annealing maximum voltage:50V |
annealing wheel diameter ( nominal diameter ):Φ 400mm |
annealing rim material: cold rolled nickel belt |
the intermediate idler pulley with LY12spray the surface of ceramic |
consumption of compressed air: about 300L/min pressure over 0.8Mpa |
heat exchange in cooling water consumption: about 250L/min temperature is not higher than 25 degree |
cooling water pump model: 80-65-160 |
heat exchange (20 square meters ) |
bearing using NSK or SKF products |

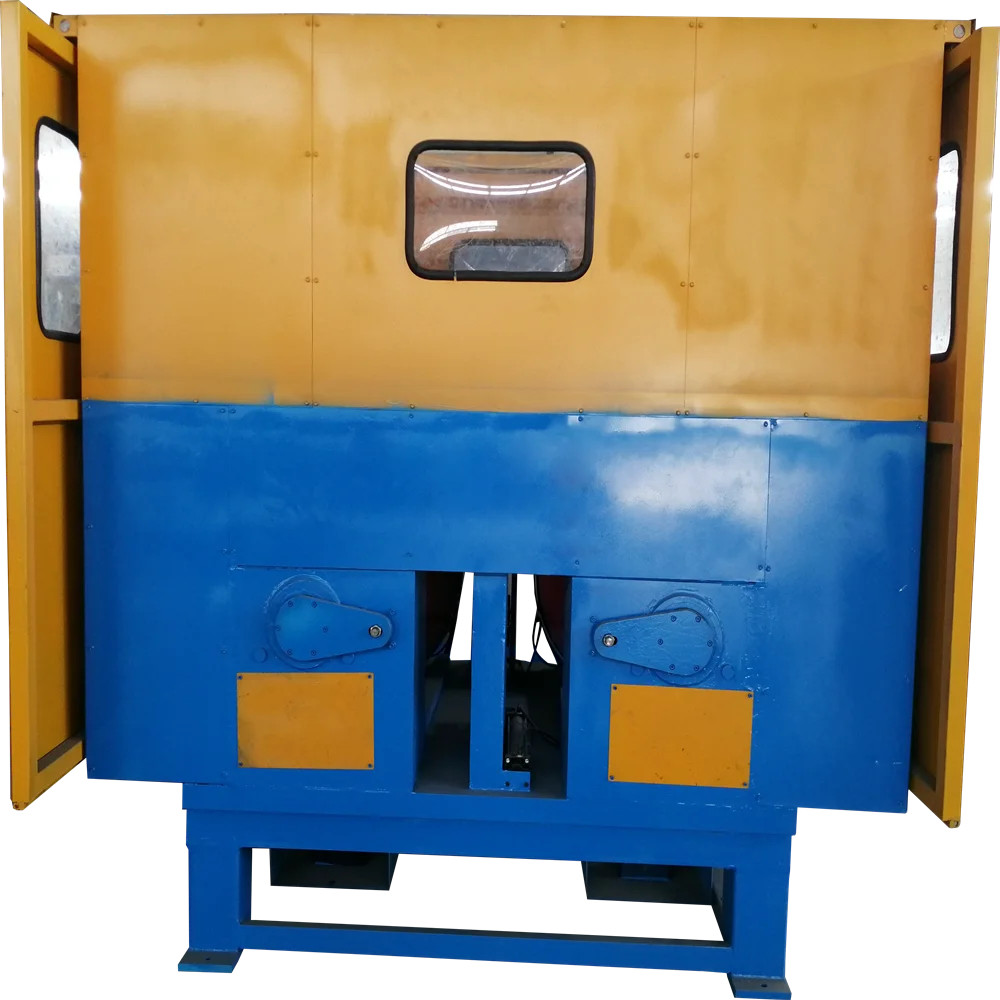

630 mm Dual Spooler with Auto Change-Over PICTURE :
Max rows of pitch | 6mm stepless adjustable |
2.Rows way | Wire rod rows |
3.Max rows of wide: | 460m(500-630 bobbin size) |
4.Take-up disk specs | PND500-630 |
5.Loading capacity | 400-500KGS/ bobbin |
6.Max take-up speed | 30m/s |
7.Take-up motor | 22kw*2 |
8.Winding displacement motor | 1.5KW(AC) |
9.Chang shaft success rate | 99% |
10.By NSK OR SKF brand bearing | |
11.Row wire drive:AC motor Frequency control of motor speed | |
12.Top tight cylinder shaft:Pneumatic additional mechanical lock | |
Packaging & Shipping
Company Information
SOKA (CN) Mechanical Co., Ltd. Was established in 2009,SOKA company is a modern enterprise with rich practical experience in manufacture and trade.Our factory has been established for more than 20 years.The machine sell well all over the world and are famous for their excellent quality.To enjoy high reputation at home and abroad,Deeply foreign cooperation buyer to soka company's favor and the trust .Also let the SOKA company product categories with the needs of the industry and continue to expand.Relying on existing factory products, we have become one of the most trusted partners of many foreign buyers in China.Now SOKA has been involved in the Building materials industry To provide one-stop, diversified services for foreign buyers.
The Exhibition
FAQ
01 Q:You product exported to which countries?
We exported to India,Argentina ,Uzbekistan,Tajikistan Russia,Algeria,Thailand,Egypt.,Tanzania,Qatar ,Hungary,Ghana,
Turkey,Bangladesh,Trinidad and Tobago,Lithuania
02 Q: If the client no any Production experience, How can help
the client?
A:we provide you with professional team is responsible for equipment installation and debugging
B: training your workers operate the machines,
C: Lifelong provide free technical guidance for our client
D:according to your budget to help you design the ideal investment programs
E: make sure the client with minimum investment and the highest return
03 Q:How about the quality and the service life of the machine ?
Concerning with every detail, every processing procedure of our products, using reliable components. Electrical appliances all adopt international famous brand (Such as Siemens, Schneider )
Running test will be carried out before delivery.
The machine at least use 8-20 years, the daily maintenance of equipment and and maintenance is very important ,
High configuration equipment use life more longer
04 Q:How long is your machine’s guarantee time?
Whole machine one year, electrical equipment 6 months (except wearing parts)
05 Q.How about the spare parts?
After we finish our deal, we will offer you a spare parts list for your reference.
Make sure we can long-term supply the relevant components of machines and the maintenace service. But after the free period of service, you need to pay some charge according on the actual situation such as travel expense,standard hour plan and the components cost (factory price).
06 Q:How many workers are needed to operate the machine?
1-4 people According to the worker's operation skill level.
