High Nibbler Metal Cutting Machine

High Nibbler Metal Cutting Machine Sanwa SN-600B

Specification:

1. Maximum steel plate thickness

Mild steel : 6mm

Stainless steel: 4mm

Aluminium plate: 8mm

2. Cutting speed: 1.5m/min

3. Cutting range: 8mm

4. Minimum cutting radius: 125 m m R

5. Pilot hole:  above 50 m m φ

6. Power: 1090W

    Volatge: 100V

    Frequency: 50/60 Hz

7. G.W.: 6.8kg

Features:

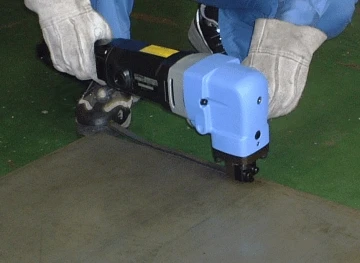

1. Staight and circular cutting is possible

2. Cut-surface is fine, no distortion nor twist.

3. Inside-pocket cutting is possible.

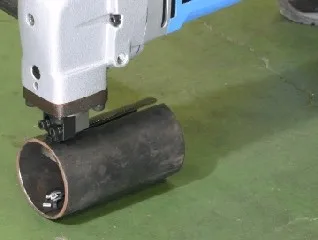

4. By changing the tool holder, it is also possible to cut the pipe vertically.

5. Moving blade is 7mm · receiving blade is can be re-polished to 1m m

6. Safety motor with double insulation structure
