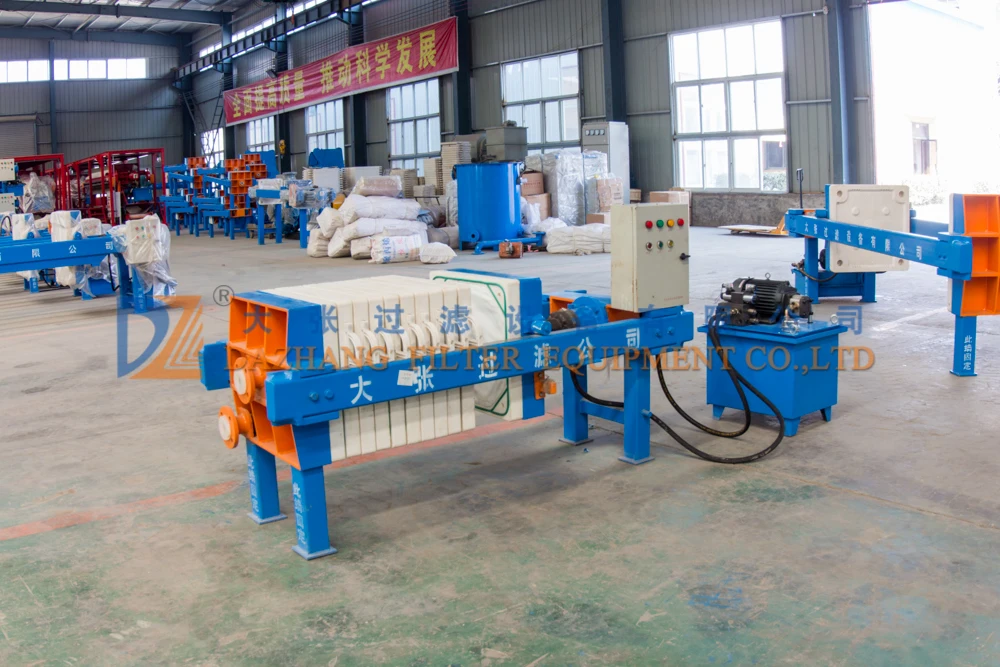

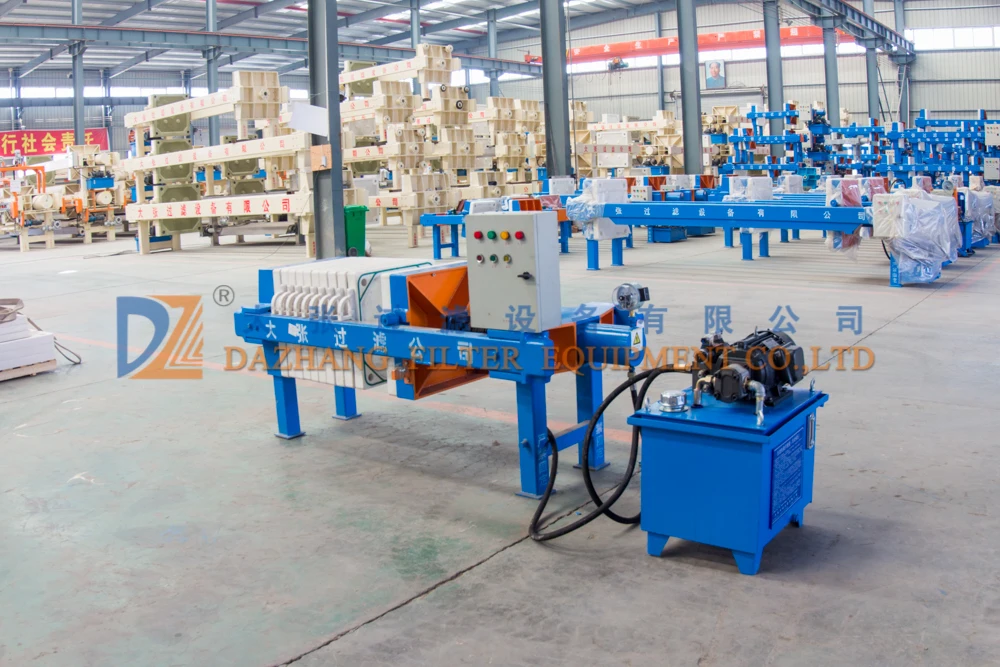

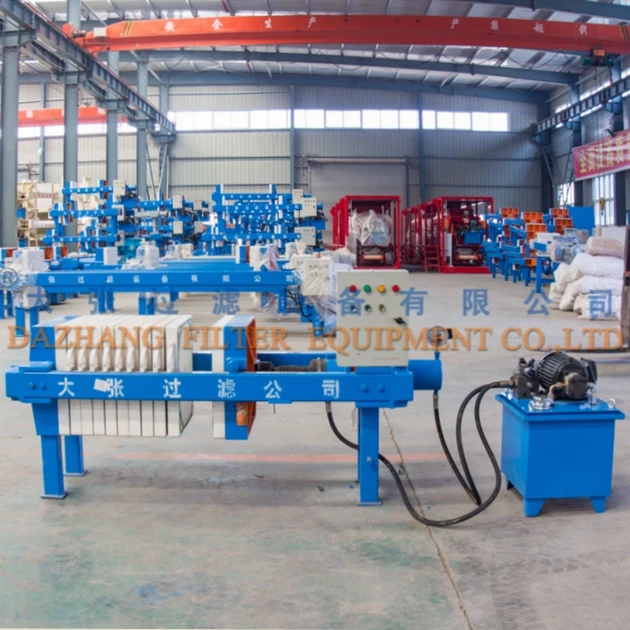

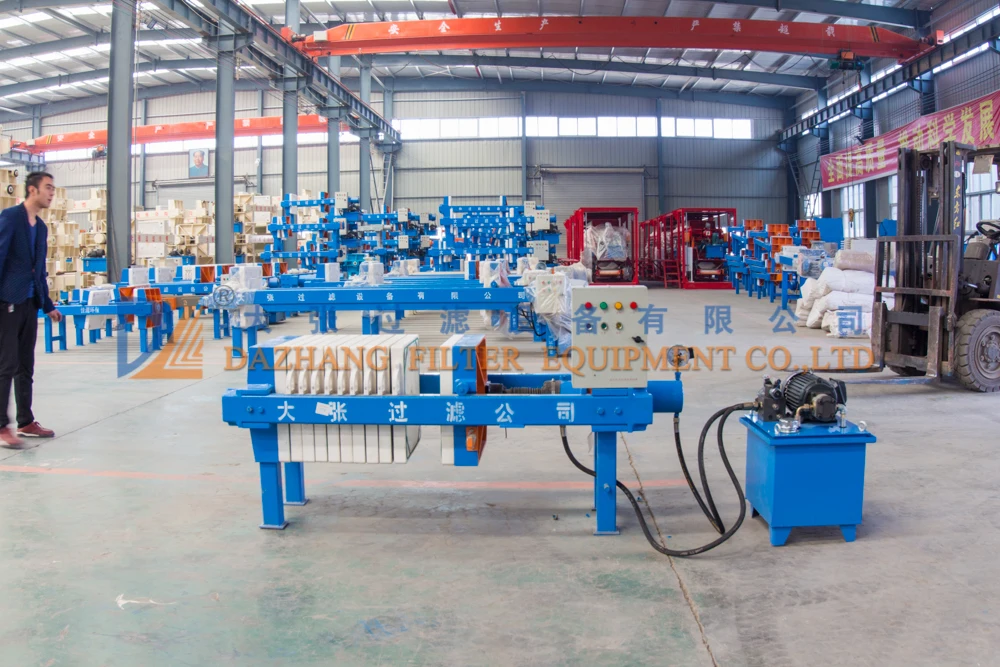

XMY6/450 Small Hydraulic Filter Press Machine

Screw Jack filter press adopts screw jack as closing system. It has features of simple structure, easy operation, no power consumption, cost saving. It is generally used in filter press with 1-40M2 filter area.

Structure and Operating Principle of Filter Press

1. Filter press consist of frame ,filter plate ,pressing system(manual , mechanical or hydraulic ) and electric control cabinet

2. Frame consists of base , push plate and girder and supports the pressing device and filter plates .

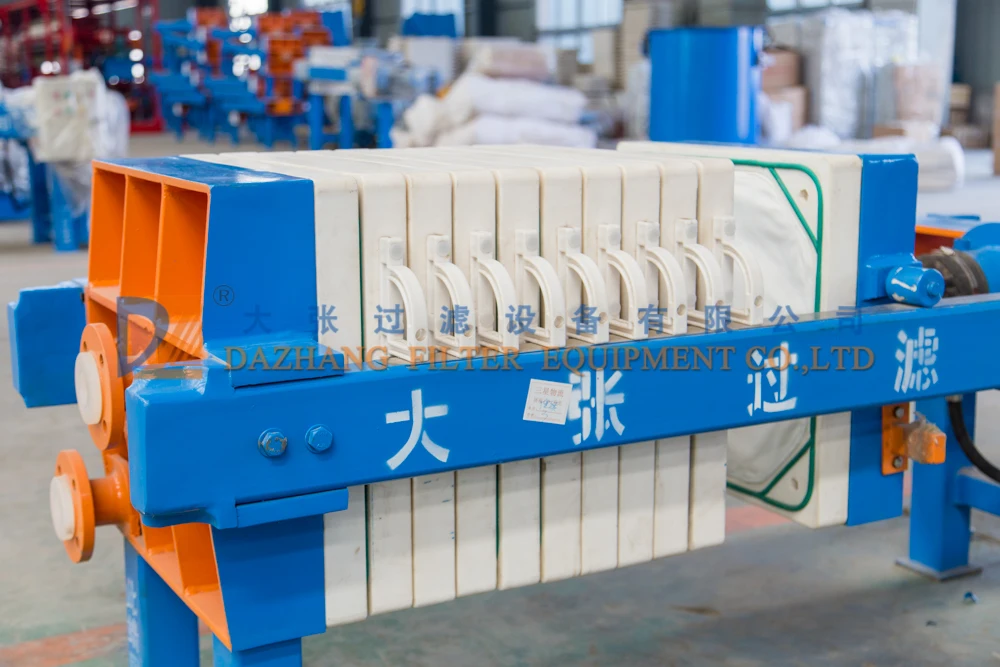

3. Filter plates are installed on girder between tail plate and push plate , with filter cloth sandwiched in them.

4. In operation , the pressing device(cylinder piston rod or screw ) drives the push plate to press the filter plates and filter cloth between push plate and tail plate . Filter chambers are formed between pressed filter plates and material get in to The filter chambers through the feeding port in tail plate . Solid particles are trapped in filter chambers form into cakes , while liquid is discharged out of the tail Plate . In similar manner ,to drying the press cakes , compressed air can be introduced through the washing port .

1. We will supply operation manual of filter press and filtration elements which introduced the specifications and warnings.

2. We also can optimize the technical data of filtration and constitute operation regulations for customers accordingly.

3. We can supply the filtration flow chart according to different material and demands.

4. We can offer the filtration testing free of charge.

5. We could offer training in free.

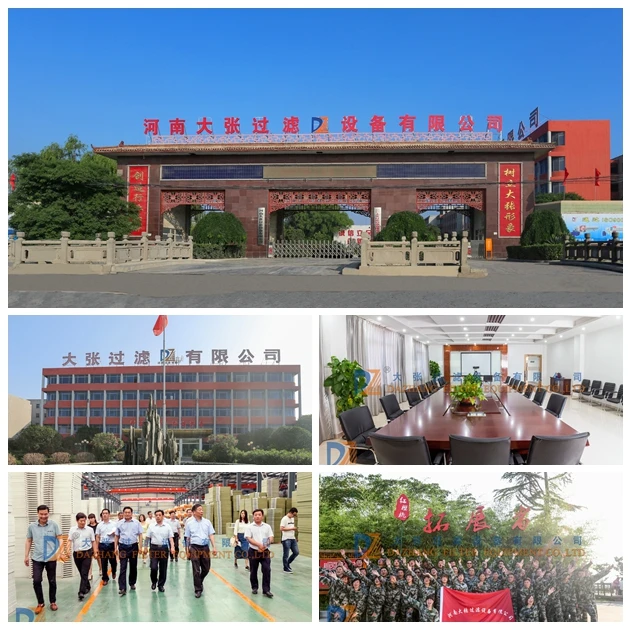

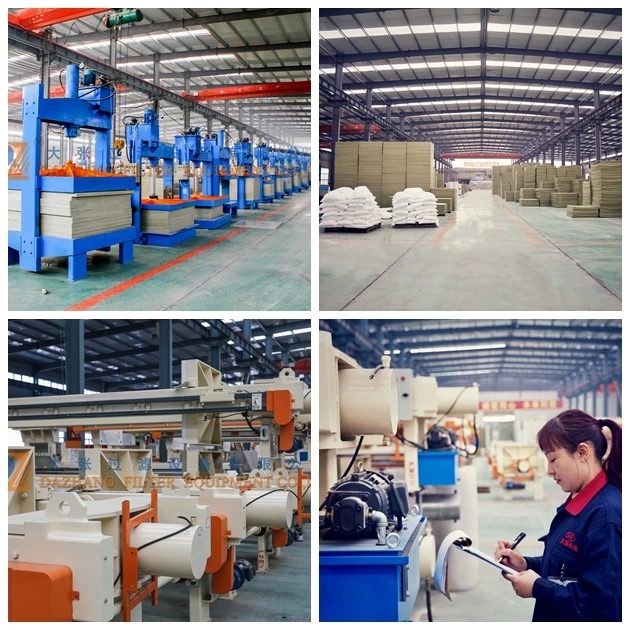

Henan Dazhang Filter Equipment Co.,Ltd was founded in 2007. We are specialized in design, manufacture and sales of various equipment, as well as comprehensive filtration solutions and projects. Our factories cover 250,000 square meters with advanced production line and precise testing equipment. With top class R & D personnel, experienced workers and high qualified sales team, we are all devoting to provide best products for our clients.

Quality is our culture and DaZhang will be your best friend forever.

1. DaZhang Filter Equipment is the biggest factory in north-central of China, and we have the biggest injection molding machine with 4000 tons.

2. The oil cylinder seat, pressing plate and thrust plate are formed by carbon dioxide protection welding.

3. DaZhang self-developed flter press with the biggest filter area of 1000M2 goes well in Vietnam.

4. The main beam of DaZhang filter press is designed by adopting welded box construction, and manufactured by making use of submerged arc auto welding technology.

5. The chain cover which is indenpendently developed by DaZhang has the characteristic of high hardness and anti-corrosion.

6. All the spare parts that need painted are dealed with high speed centrifugal ball blast descaling and iron scale. After painting MIO exoxy build primer, paint acrylic polyurethane coating directly to make it have the best adhesion. It can save hundreds tons of putty every year, thus not only reduce the cose, but also protect the environment. More important, it improves the adhesion of the paint and antisepsis class of the filter press.
