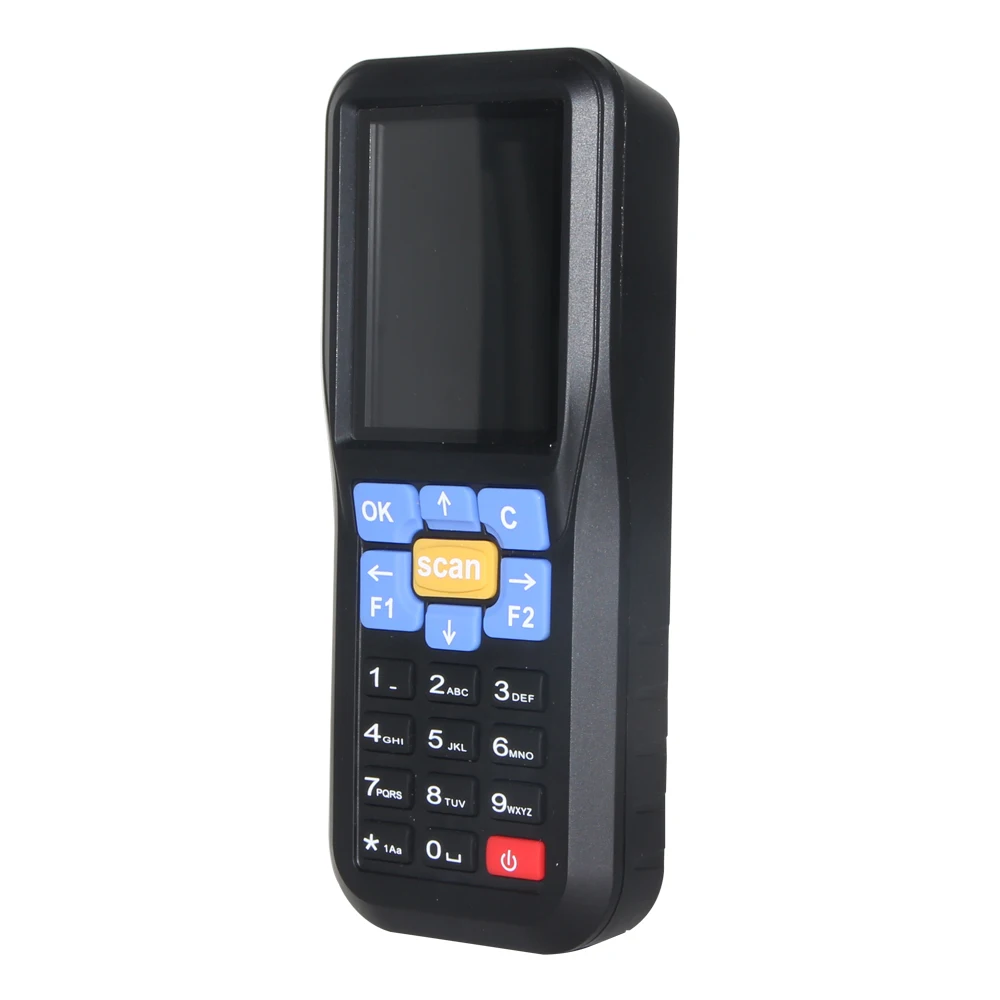

JEPOD JP D1 USB 433MHz wifi 1D reader portable data terminal collector handheld data collector
- Category: >>>
- Supplier: Guangzhou Jepod Electronic Technology Co. Ltd.
Share on (60793247598):
Product Overview
Description
Product Description

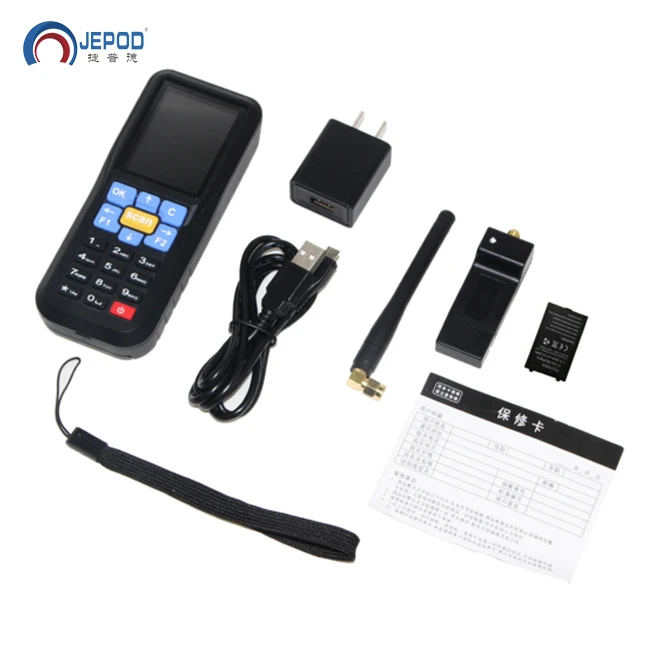

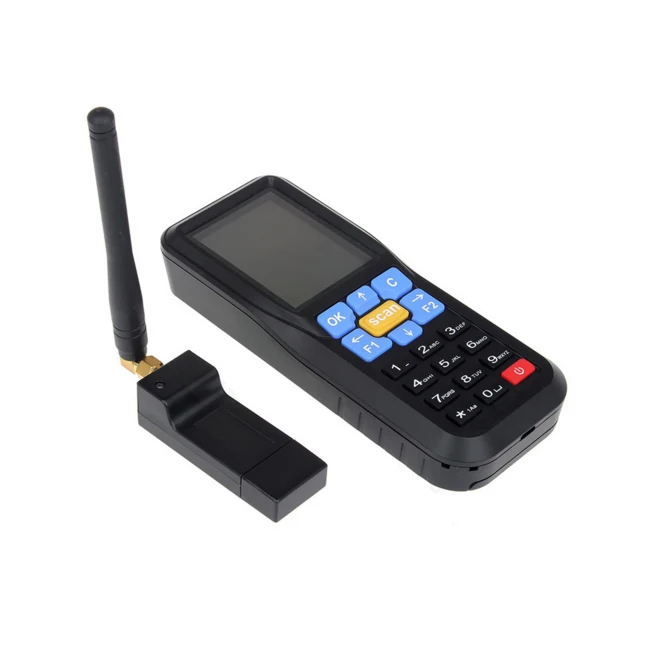

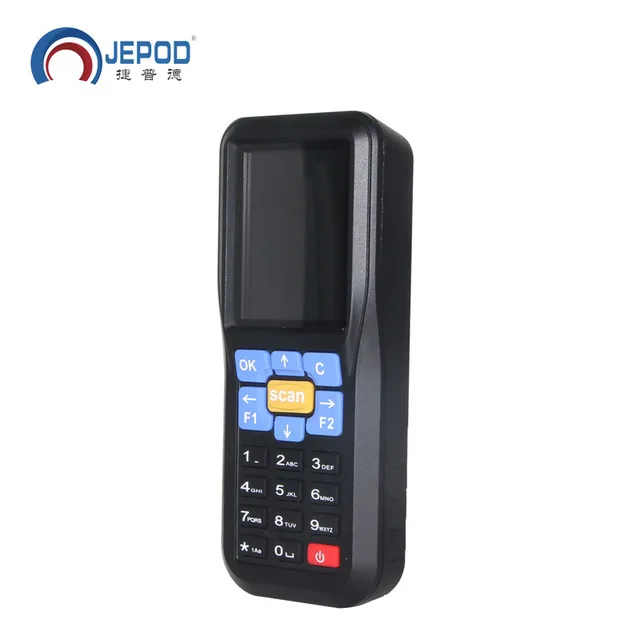

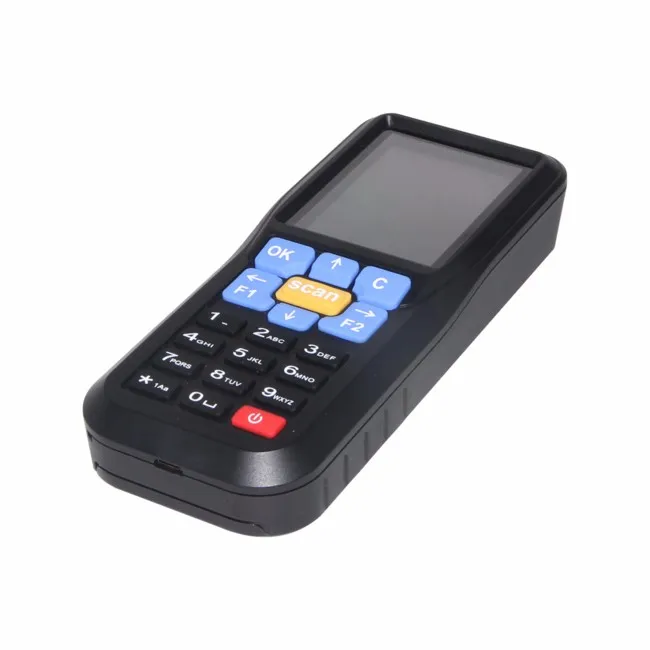

JEPOD JP-D1 USB 433MHz Wifi Portable Data Terminal Collector Handheld Data Collector
Main Functions:
1.Cordless Scanner and Wireless Inventory Handheld Functions

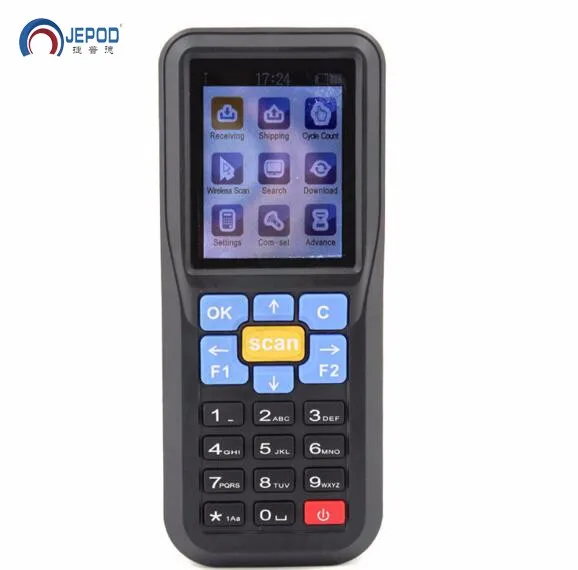

2.Item Information Displays after Scanning Barcodes;
3.Program Refreshing Supported;
4.TXT or EXCEL File Created as soon as Data is Downloaded or Uploaded;
5.Use USB Receiver or USB To Transfer Data
Specification
Physical Parameters | ||
Case Color | Black | |
Screen Size | 2.4" | |
LCD Display | Color Screen(65536 Colors) | |
Resolution | 240*320 | |
Memory | 16MB(over 100,000 records can be saved) | |
Keypad | T9 numeric keypad | |
Charging Port | MICRO-USB | |
Material | ABS + Silicon | |
Weight | 174g (With Battery) | |
Dimensions | 145(L)*60(W)*32(H) mm | |
Electrical Parameters | ||
Battery | Rechargeable lithium ion Battery (3.7V ,2800mAh) | |
Duration | 10 Hrs | |
Standby Time | 15 Days | |
Charging Indicator | LCD Display | |
Working Current | 160mA | |
Standby Current | 8mA | |
Laser Safety | National Class2 Regulatory | |
EMC | CE & FCC DOC Compliance | |
Scan Performance | ||
Light Source | 650nm Laser | |
Scan Pattern | Single line | |
Scan Rate | 120/sec | |
Scan Precision | 4mil | |
Scan Width | 20mm@window,220mm@200mm | |
Depth of Field | 0~250mm(0.33mm,PCS 90%) | |
Roll(Till) | 30° | |
Pitch | 65° | |
Skew(Yaw) | 55° | |
Print Contrast | 30% minimum reflectance | |
Operating Mode | Continuous / itemized scanning | |
Error Rate | 5 million-to-one | |
Indicator | beeper,LCD screen | |
Decode Capability | EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codabar,Industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI etc. | |
Transmission parameters | ||
Cable | USB 2.0 | |
Wireless | 433MHz,300M visibility range(Max.) | |
Environment | ||
Storage Temperature | -20℃~60℃ | |
Operating Temperature | 0℃~45℃ | |
Humidity | 5%~95% (non-condensing) | |
Ambient Light Immunity | Max.5,000 Lux(fluorescent) | |
Our Company
Guangzhou JEPOD Electronic Technology Co., Ltd is a high-tech enterprise which specializes in R&D, manufacturing,marketing of thermal printers and barcode scanners. Our company products have already been widely applied in a lot of fields including commercial retails, caterings, hotels, industrials, logistics, etc. Here we have advanced development laboratories and production facilities,highly professional manufacturing team ,and a number of senior R&D engineers.

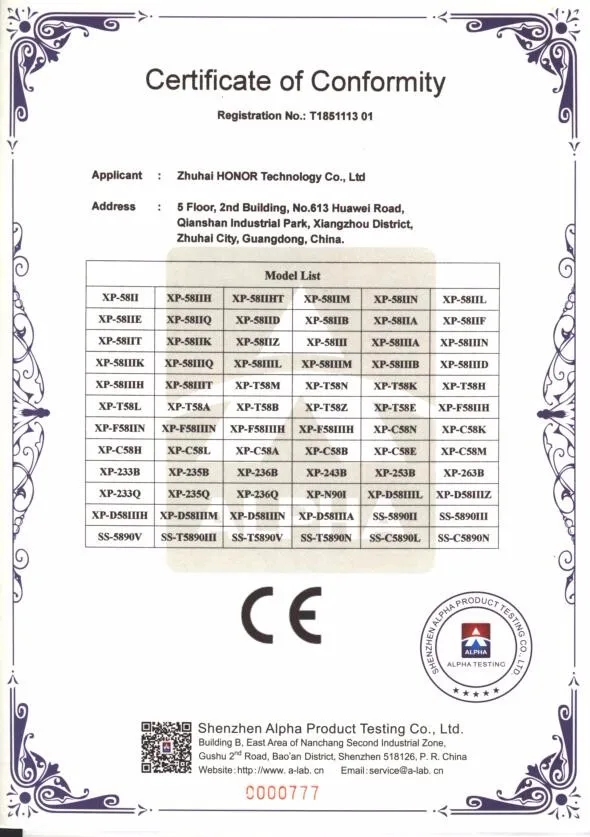

Certifications
