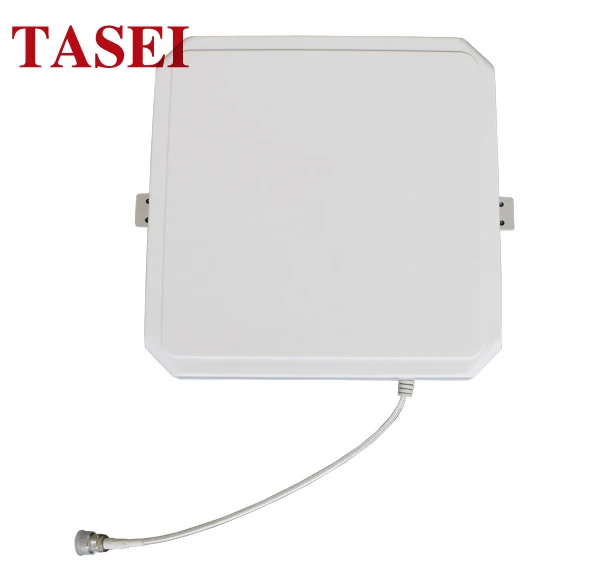

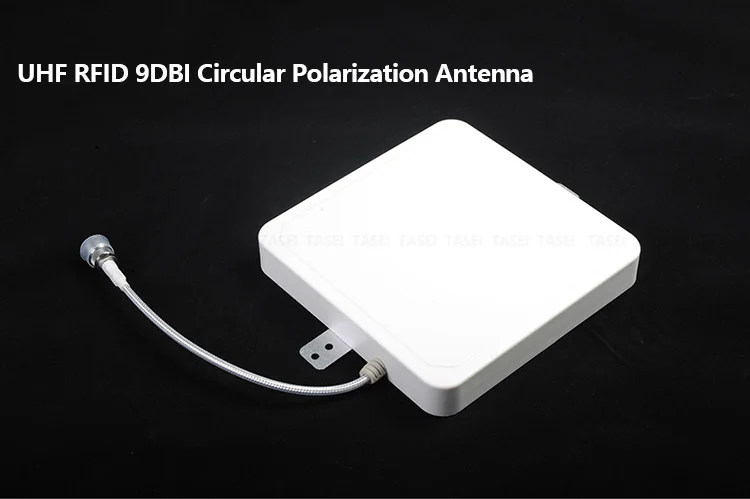

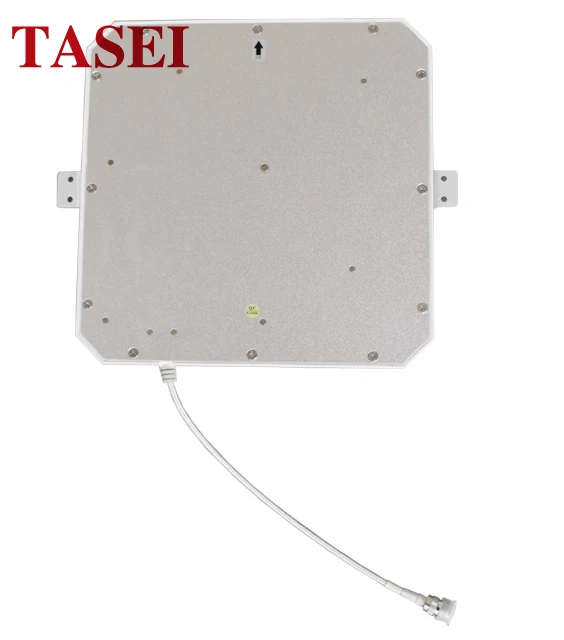

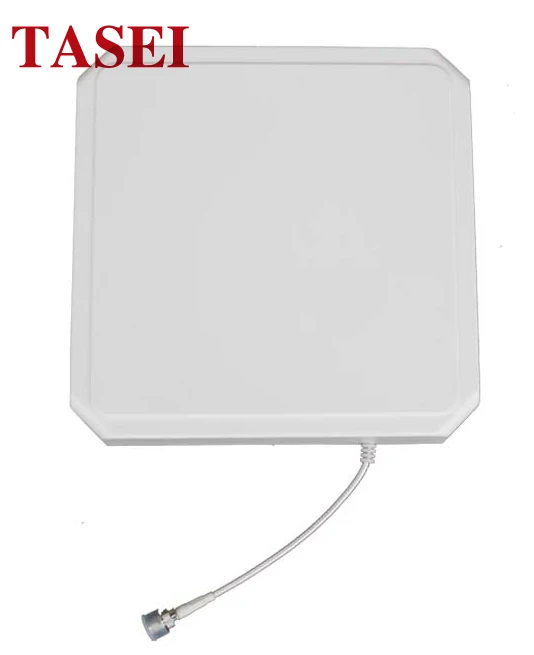

Waterproof UHF 9dBi circular polarization outdoor RFID antenna
Product Description
Introduction
♦ 902MHz-928MHz or 865MHz-868MHz
♦ Gain 9dbi
♦ Circular Polarization
♦ 260x260x40mm
Application
♦ RFID logistics tracking
♦ warehouse application
♦ access control system
♦ Parking management
Specification
Frequecy
902MHz-928MHz or 865MHz-868MHz
Antenna Gain
9dbi
Polarization
Circular Polarization
Beam width
Horizontal angle:70° Vertical angle:70°
VSWR
≤1.4
F/B Ratio
≥20
Impedance
50Ω
Maximum power
50W
Lightning protection
DC Ground
Connector Type
N-Female
Antenna Size
260x260x40mm
Net Weight
1.1kg
Package Size
290x290x80mm
Gross Weight
1.68KG
Material
ABS
Color
White
Pole Diameter

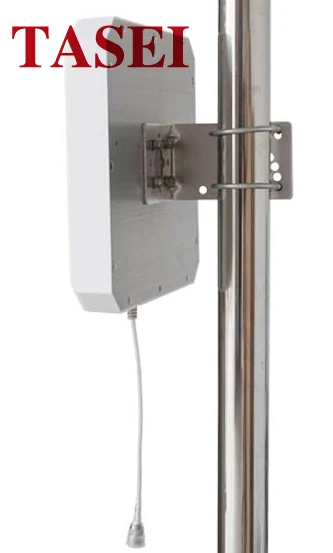

Φ30-50mm
Rated wind velocity
60m/s
Operating Temp
-40-70℃

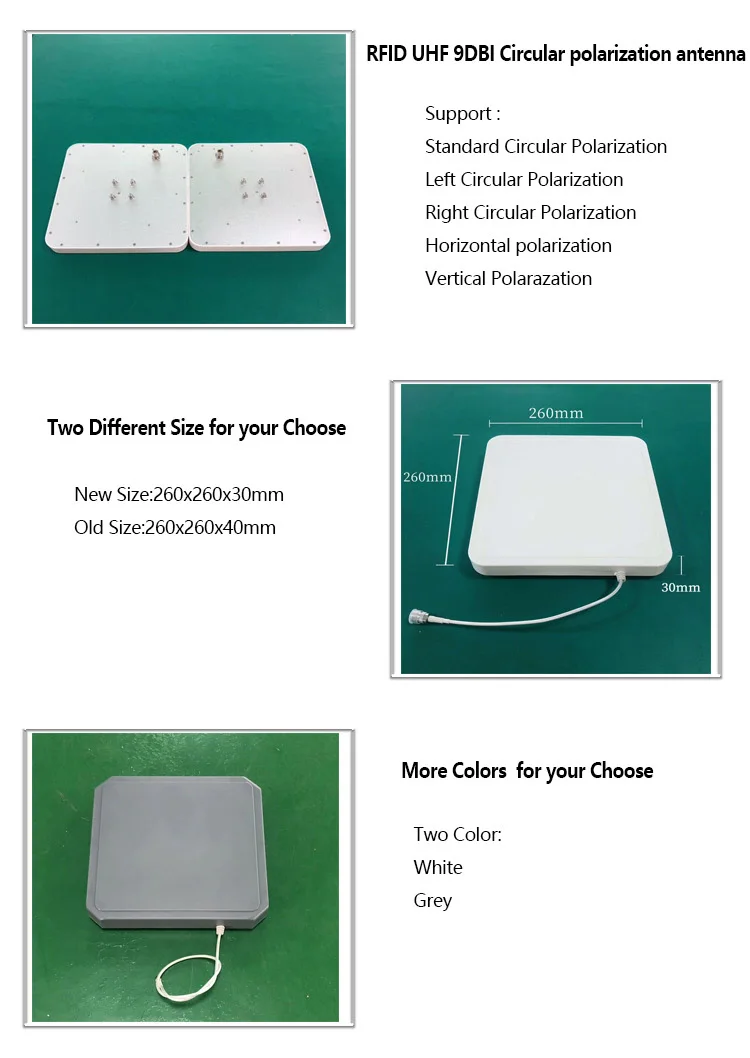

Other type with same specification for your choose ,only Installation mode is different :Hanging ear installation
Product details
How to choose to cable length , there are three types different parameters for your choose .Because cable if is longer , its Signal attenuation is larger ,so relatively should choose more high-quality cable according to cable's length
