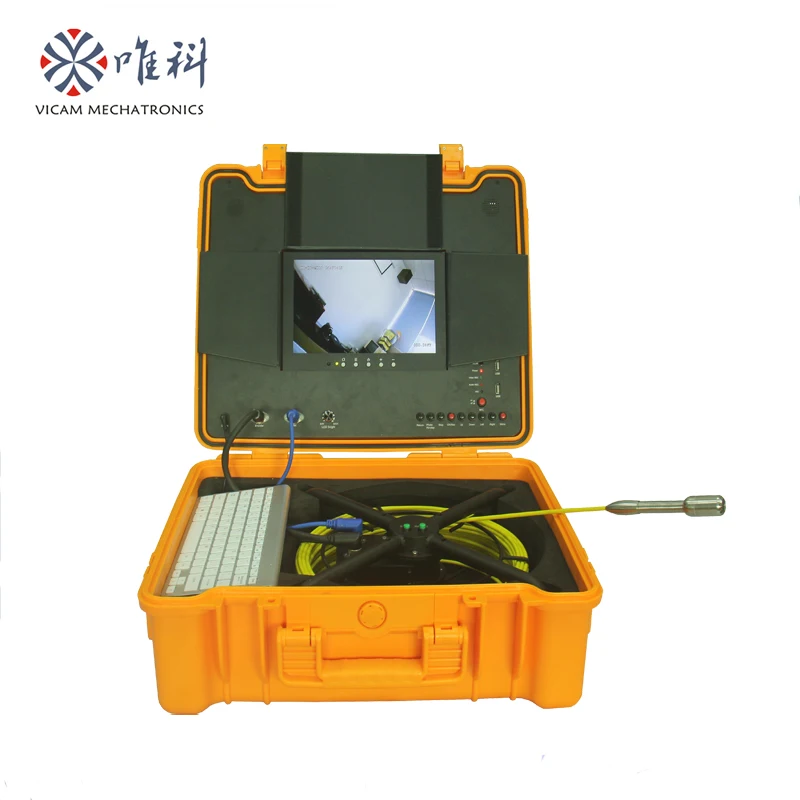

Vicam underwater video endoscope pipeline chimney drain inspection camera with digital meter counter V10-3188KCN

Main Features:
1. 23mm waterproof Analog HD waterproof camera head, Dia.23mm X 53 mm |
2. 10 inch IPS lcd screen, 1280*720 resolution |
3. USB wireless keyboard to typewrite the words |
4. DVR control panel with audio ,video recording and photography function |
5. 20m / 30m Dia.5.2mm fiberglass push rod cable |
6. Digital meter counter function, error is less than 1% |
7. Camera video resolution is 720P |
8. 16G flash disk storage device , easily transfer the video file to computer |
9. 1 year warranty for complete equipment |
|
Model |
V10-3188KCN
|
|

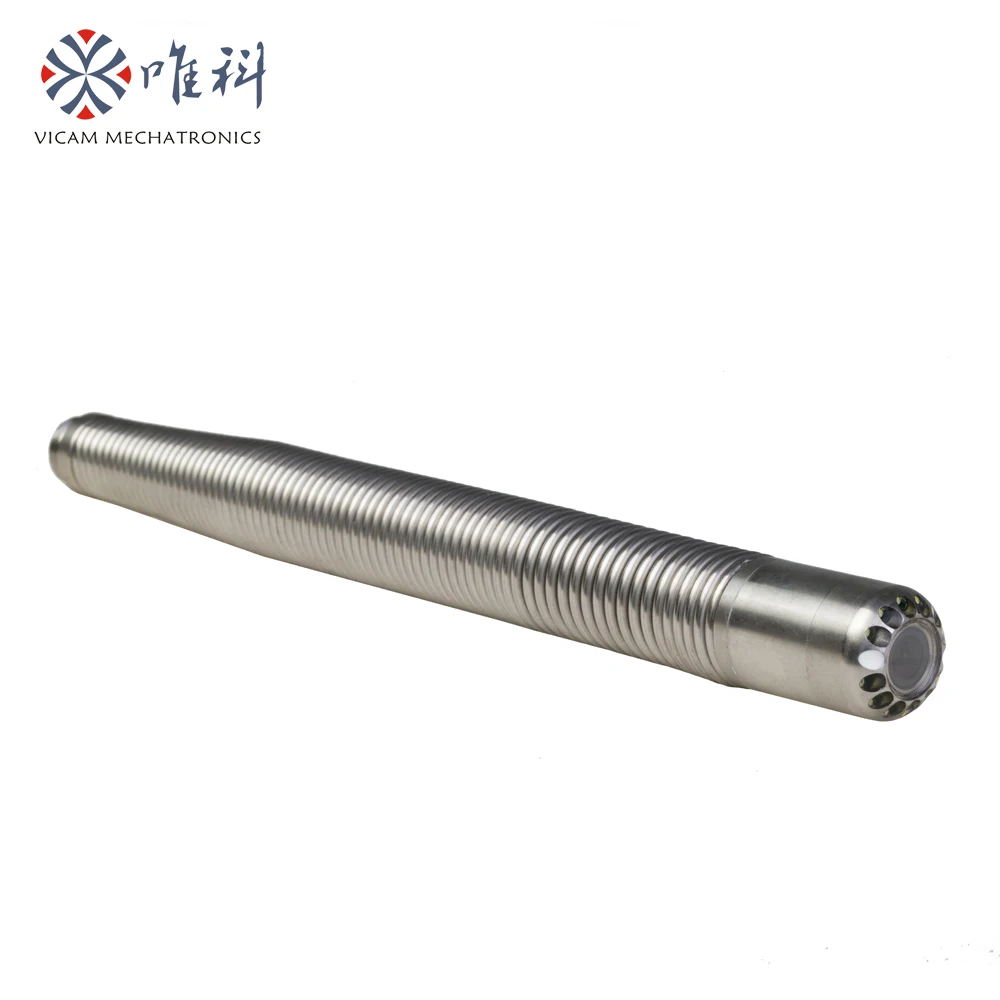

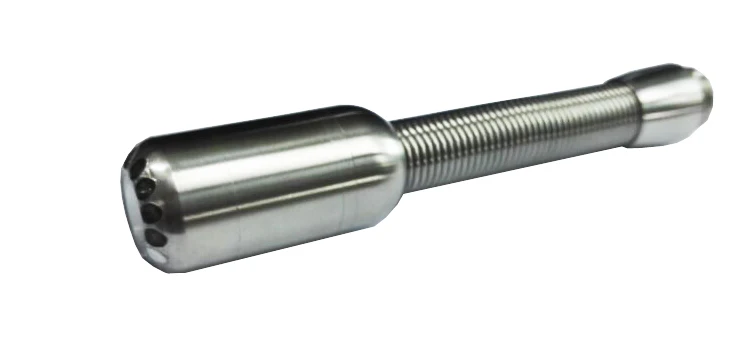

Camera head
* Camera head size Dia.23X53cm
* AHD module
* 960TVL sensor 1/3 CMOS, 1.3MP pixel camera

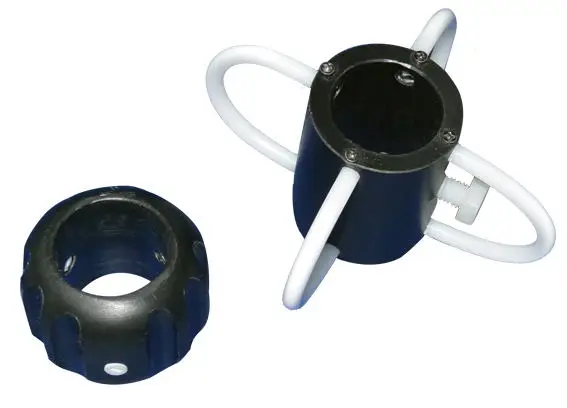

* IP68 waterproof * View range 90° * Lens window sapphire glass * 12 pcs high light LED lighting adjustable * Detachable with pins type connection to Cable Reel * Two size skids: Dia.40mm and Dia.85mm
|
|

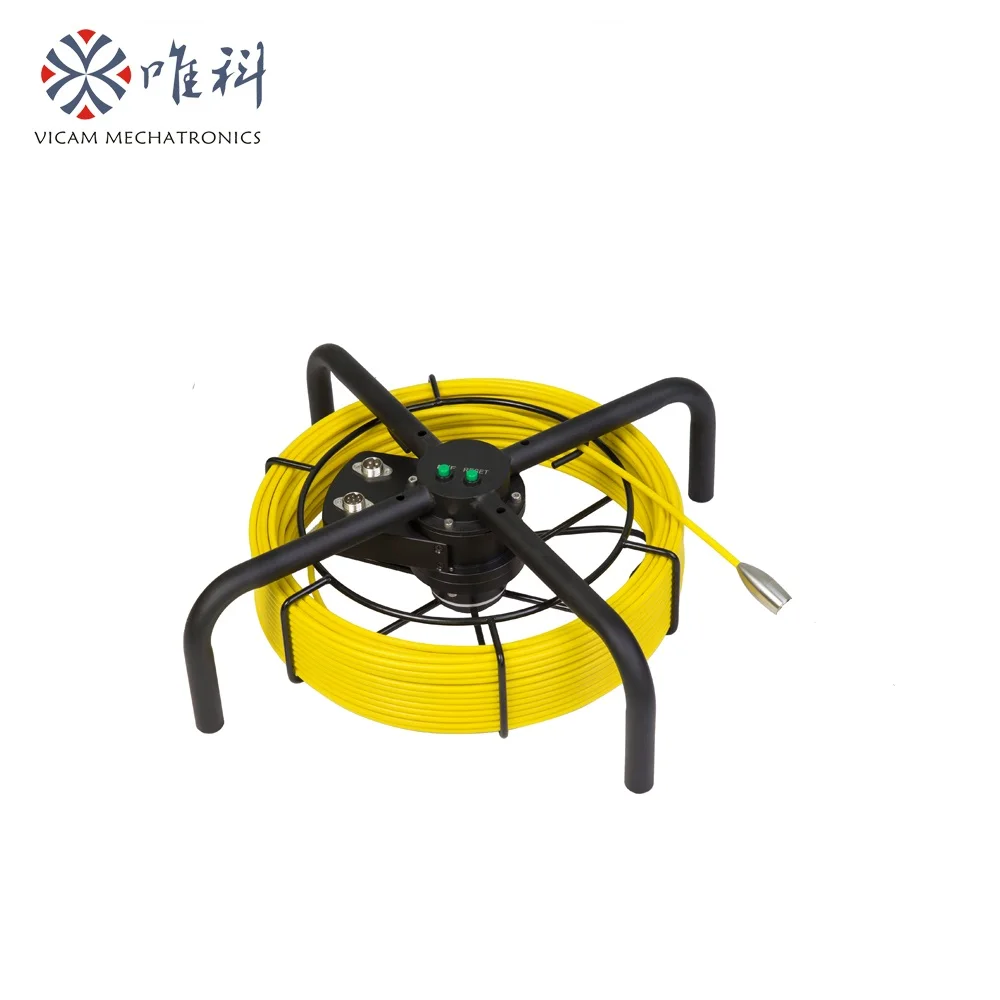

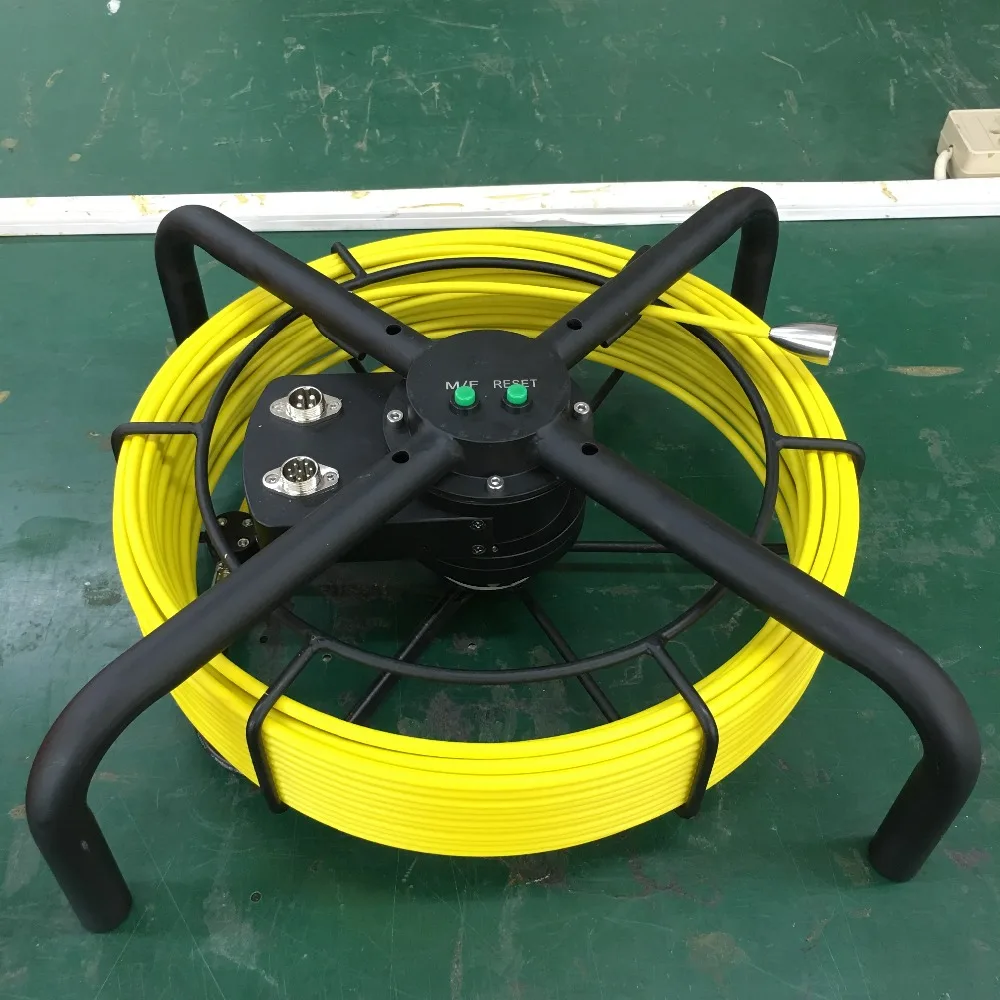

Cable reel
* Fiberglass push rod cable
* Digital meter counter function, error is less than 1% * Cable diameter ø5.2mm * Cable length: 20m / 30m * Reel size Φ 440X122mm
* Feet / Meter switch buttons
|
|

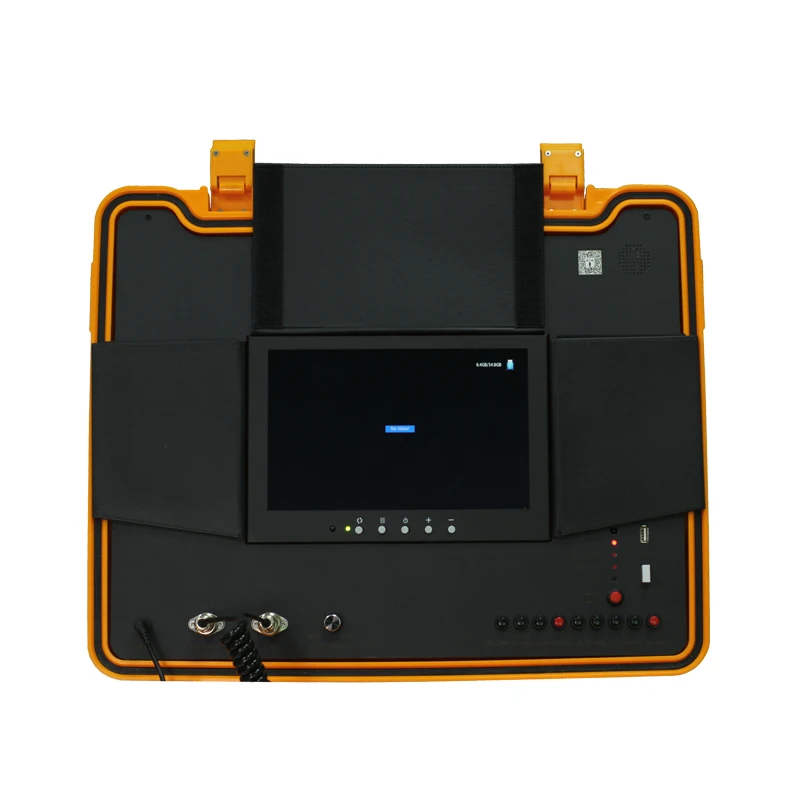

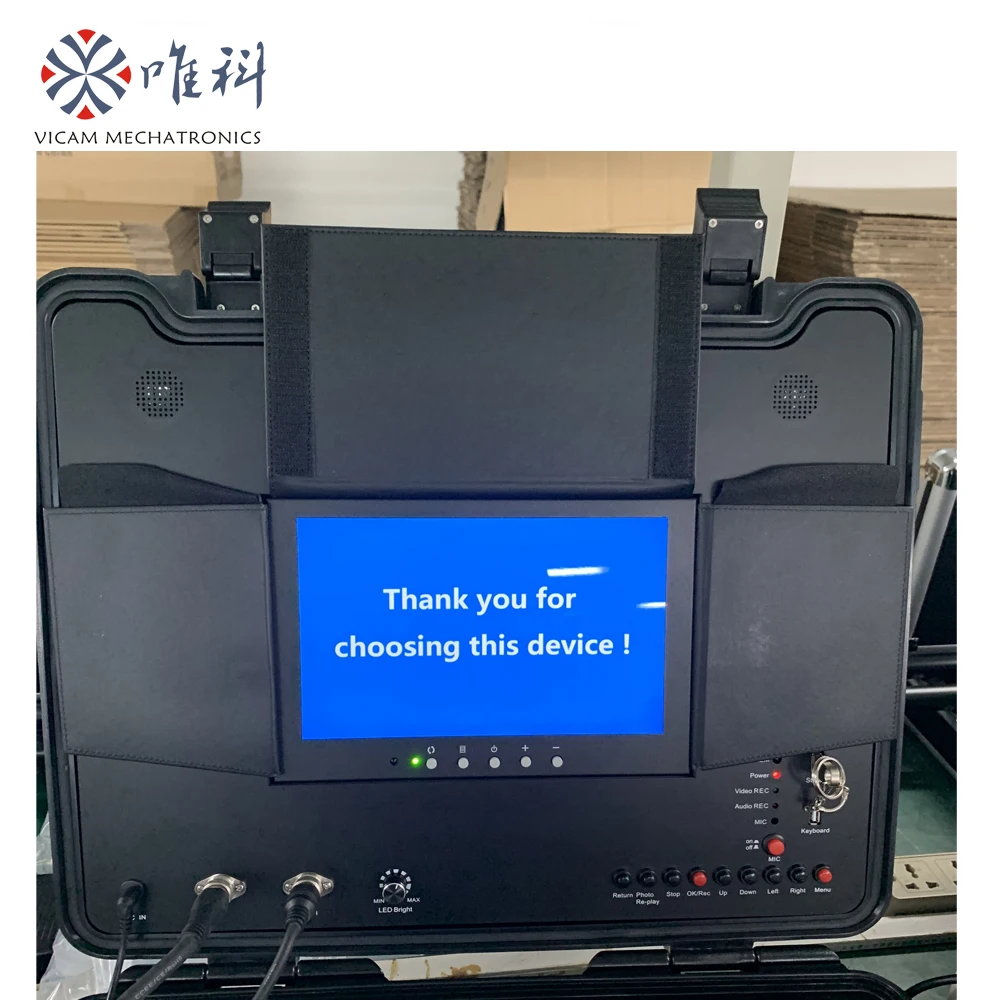

Monitor
* 10 inch LCD IPS Screen
* 1280*720 resolution
* 16:9 display model
* Sun shield and remote control included
Built-in DVR control unit
* There will be no control box, the DVR control part will be built in the monitor board
* Video input and encoder input
* USB flash drive (Max 1TB) jack, wireless keyboard jack
* LED brightness adjusting knob
* HD DVR video / photo selection available
* On/off microphone control button
* Up / down / left / right button
|
|

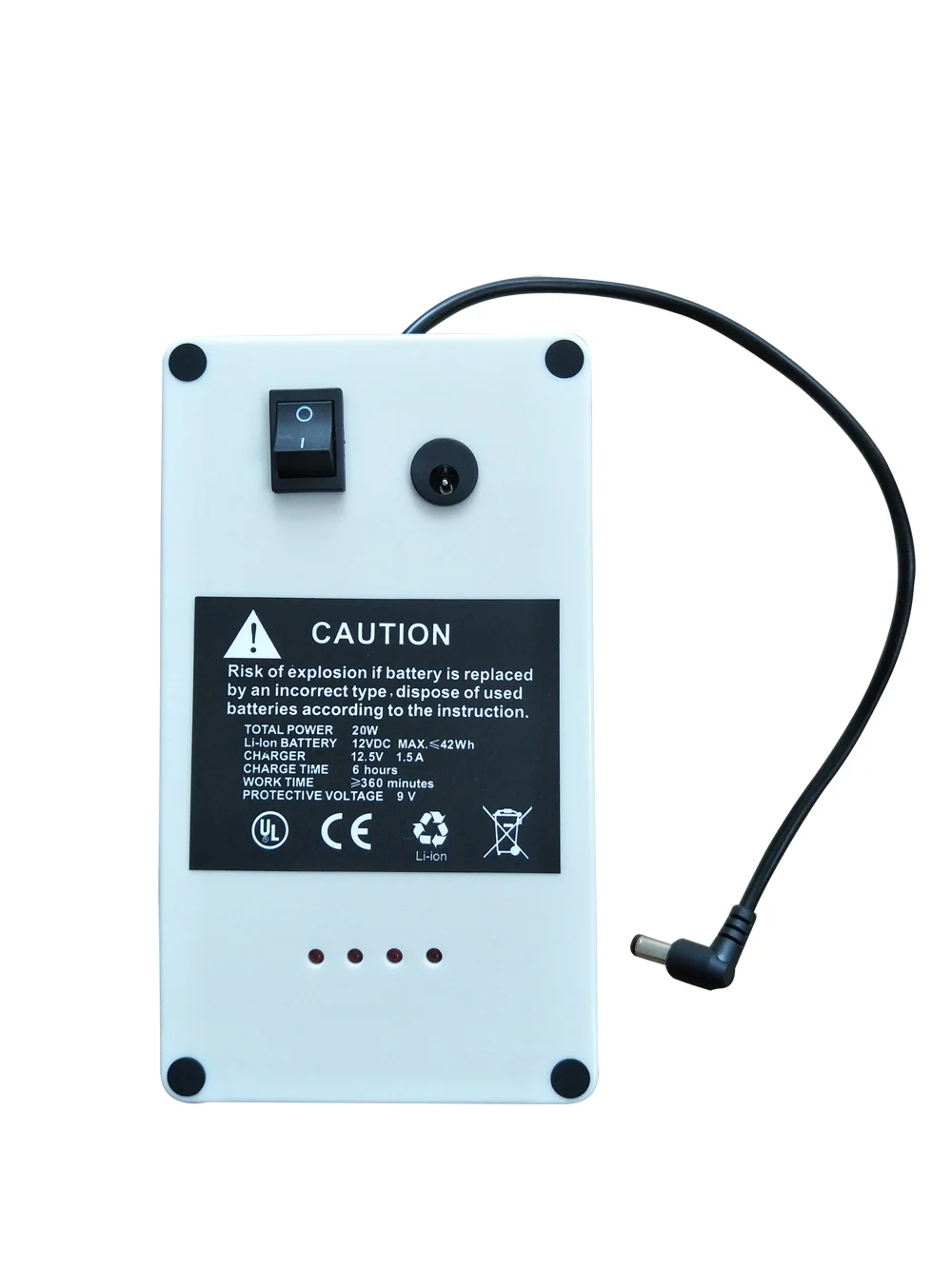

Battery
* 8800mA li-ion battery with power switch * Charging time 6 hours, working time 8~10 hours
|

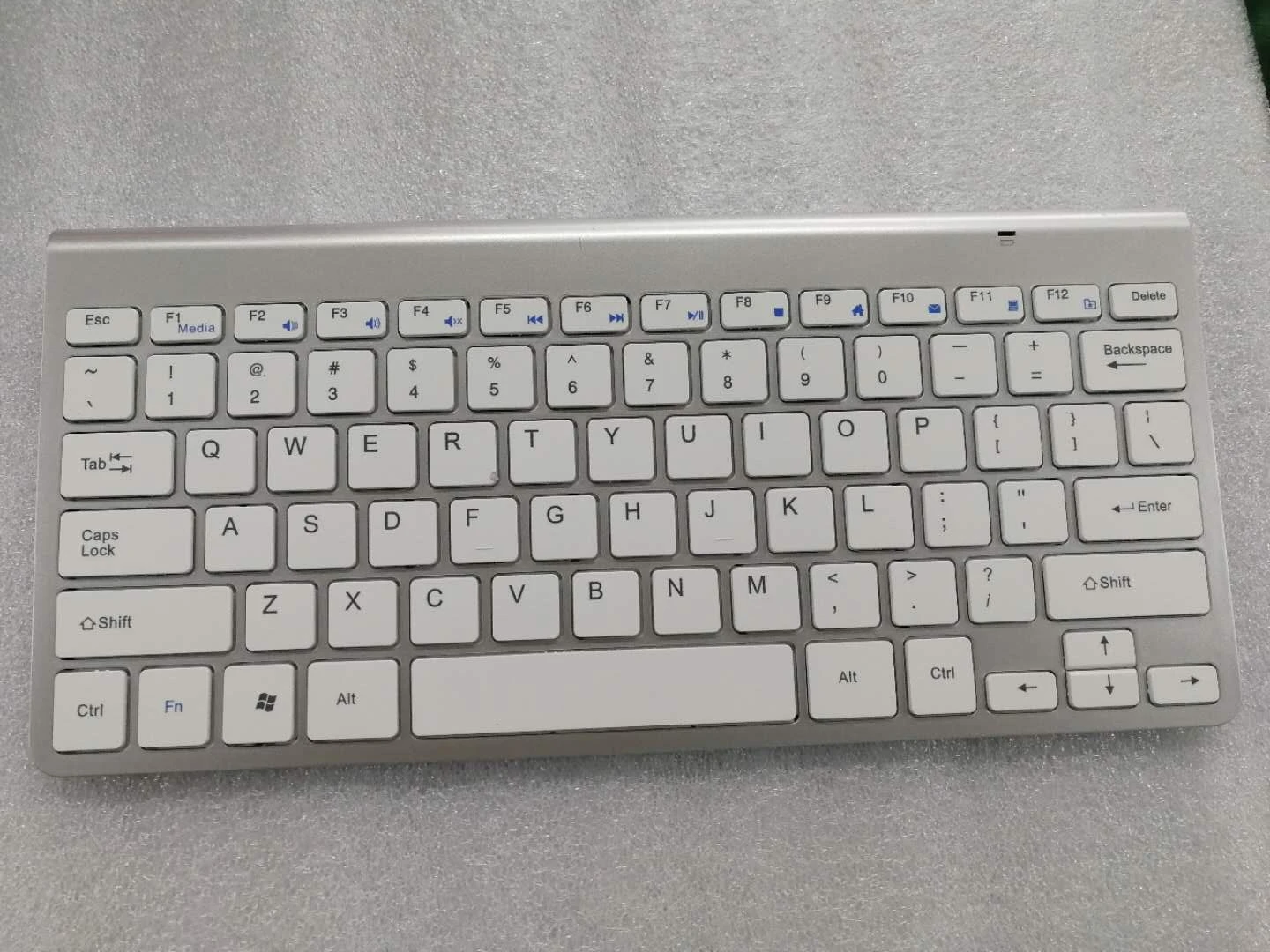

USB wireless keyboard:

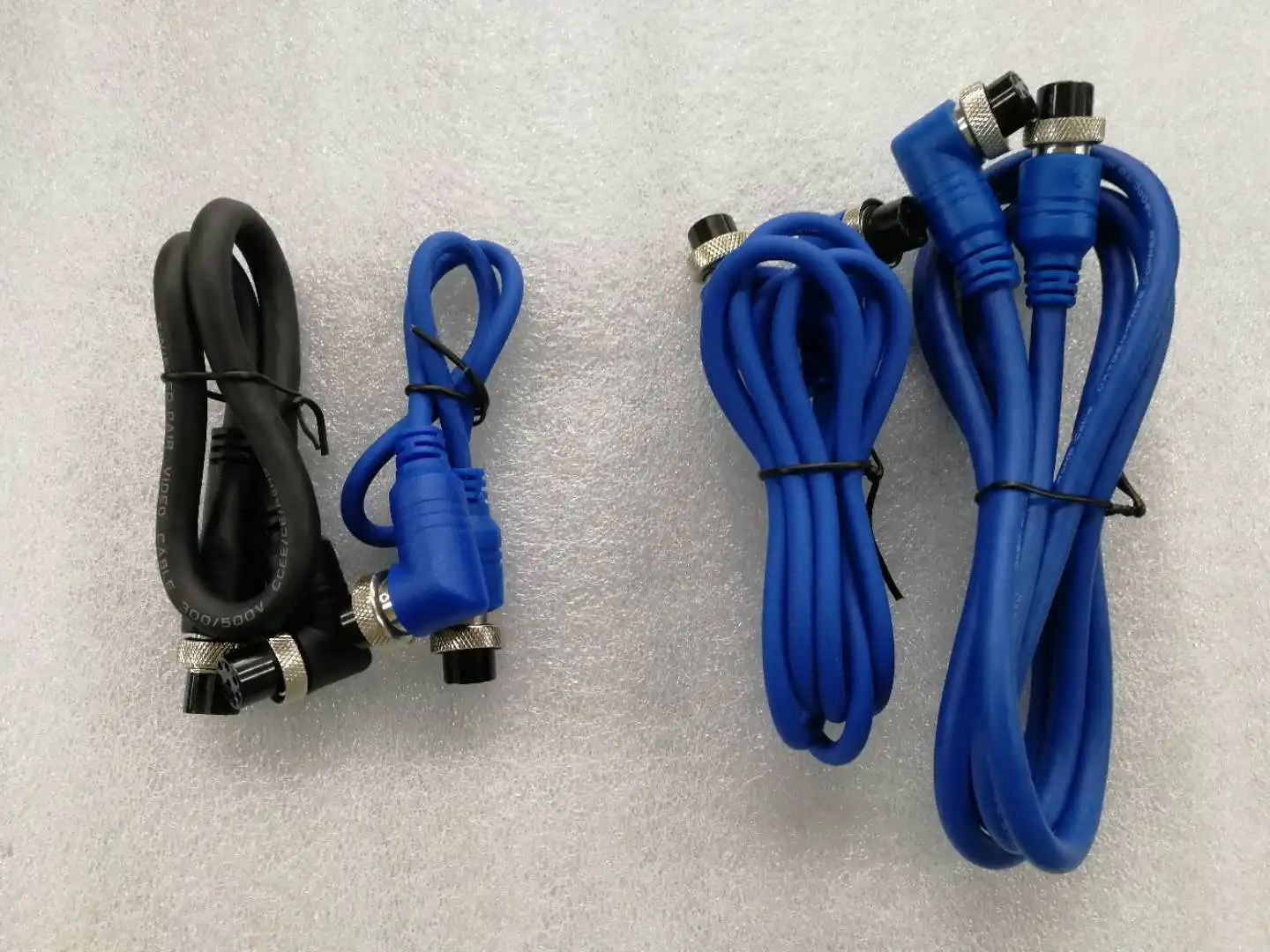

Link cables:

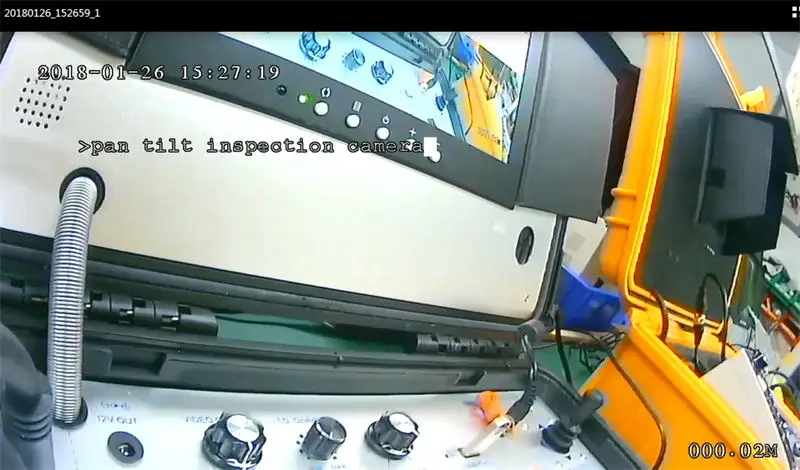

Image:

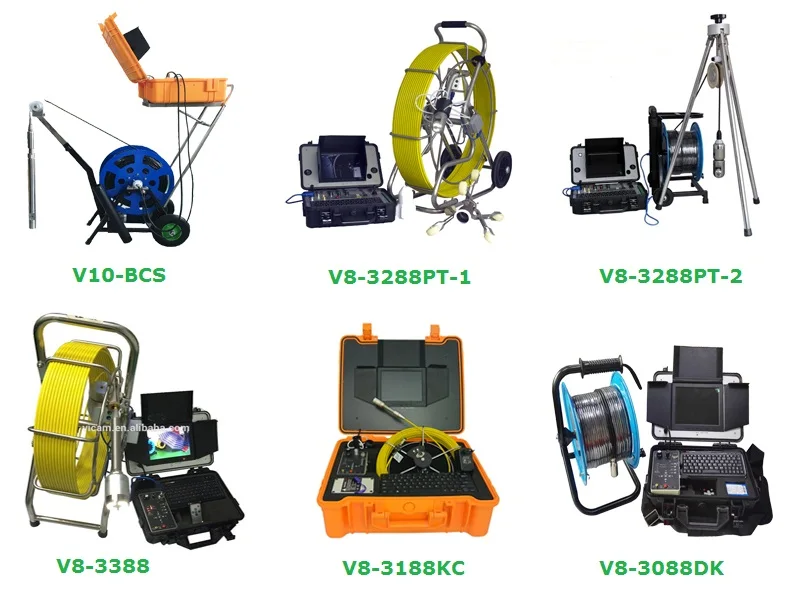

Our main product range include portable pipeline video inspection system, industrial and city underground heavy-duty pipe video inspection system, mini-pipe video inspection cameras and CCTV robots for complex applications and hazardous area rated environment.
|
|

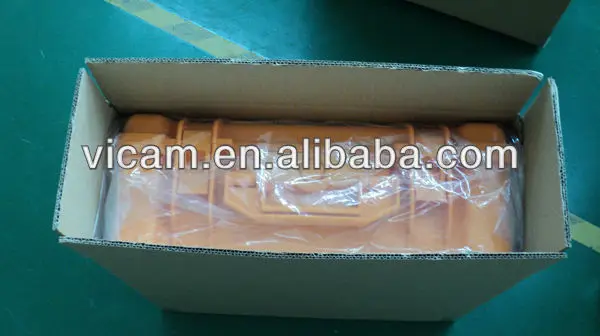

Packaging
|
|
52(L) * 21 (W) * 45(H)
|
|
15KG
|
|
Carton case with pearl wool
|
|
